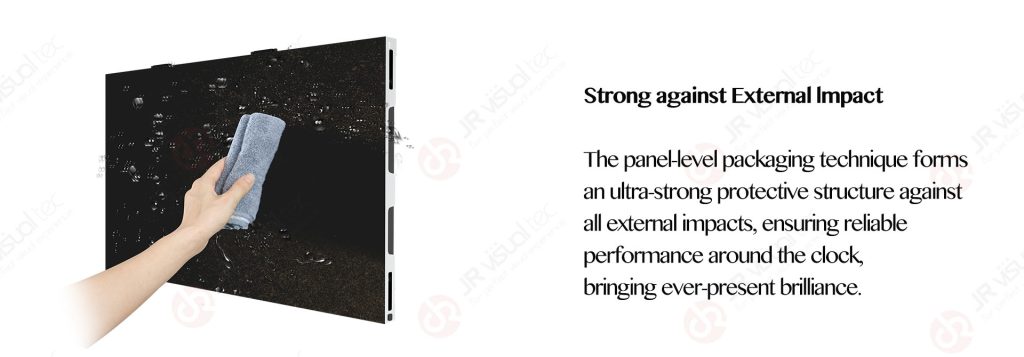

Strong COB Surface

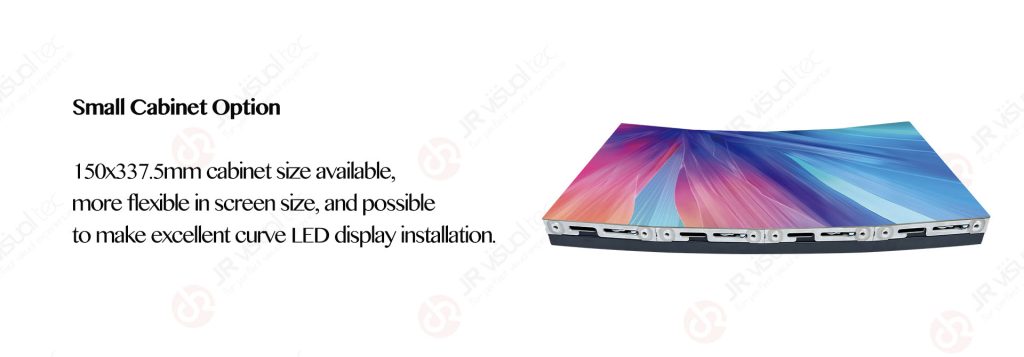

Small Cabinet Option

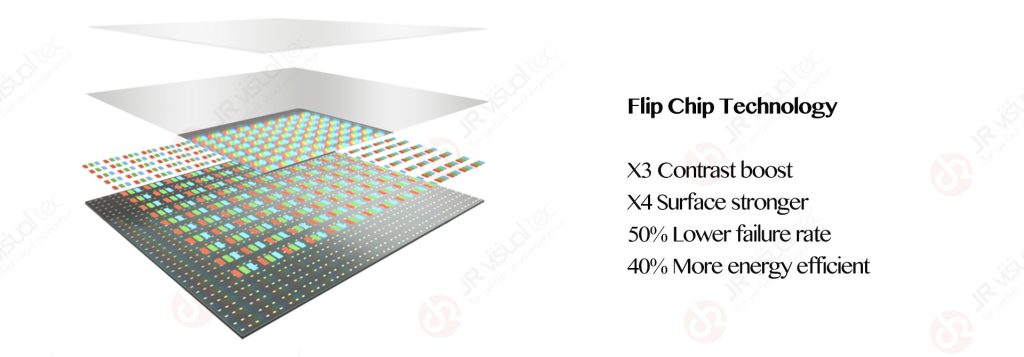

Flip Chip COB
Product application cases
Shopping Malls, Fashion Stores, Corporate, etc
Copyright © 2025 JR VISUAL TEC, all rights reserved.

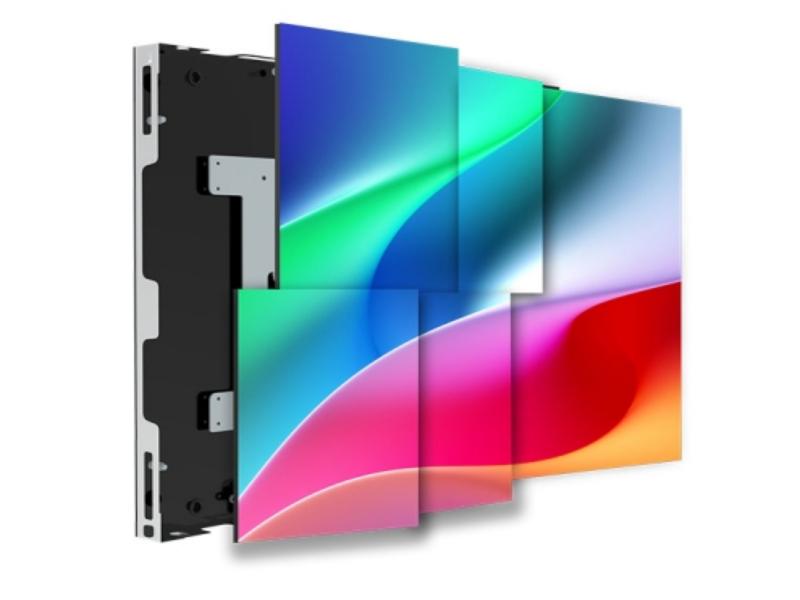

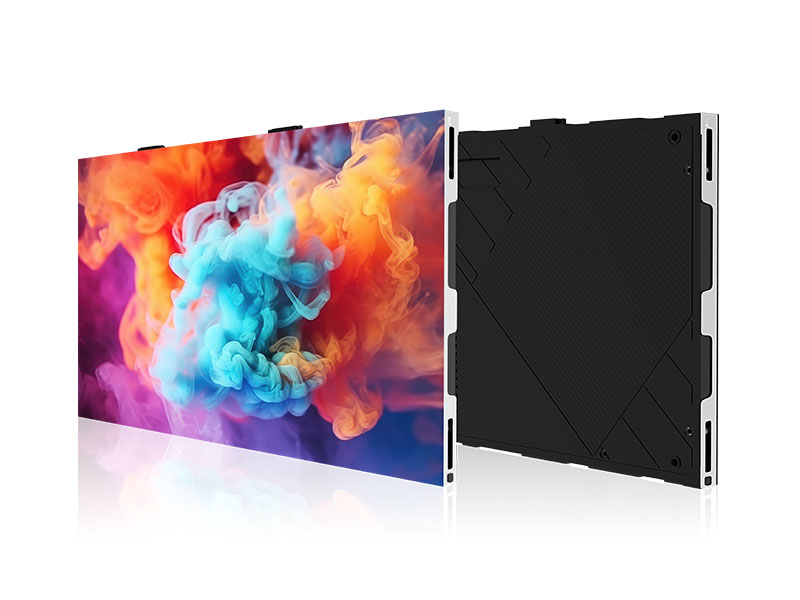

iX Series | Indoor COB LED Display
Pixel Pitch: P0.7mm, P0.9mm, P1.2mm, P1.5mm (COB)
Pixel Pitch: P0.9mm, P1.2mm, P1.5mm, P1.8 (SMD)
Cabinet Size: 600×337.5×27.5mm, 150×337.5×27.5mm
1. Lightweight and slim cabinet, only 7.8kg/panel, and 53mm thickness.
2. Full front maintenance, all the components could be serviced from front side.
3. Wide range of pixel pitch and cabinet size options, flexible in display solutions.
4. High refresh rate and high contrast ratio, excellent visual performance.
5.Wide viewing angle, 320° viewing angle from all directions.
Features
1
Specification
| No. | Model | iX-COB-P0.78125 | iX-COB-P0.9375 | iX-COB-P1.25 | iX-COB-P1.5625 |
| LED Type | LED Type | Flip chip | Flip chip | Flip chip | Flip chip |
| Module | Pixel Pitch (mm) | 0.78125 | 0.9375 | 1.25 | 1.5625 |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |
| Module Resolution (W x H) | 192×216 | 160×180 | 120×135 | 96×108 | |
| Module Size (mm) | 150×168.75 | ||||
| Cabinet | Module Arrangement (W x H) | 4×2 | |||
| Cabinet Resolution (W x H) | 768×512 | 640×360 | 480×270 | 384×216 | |
| Cabinet area (㎡) | 0.2025 / 27” | ||||
| Cabinet size (mm) | 600×337.5 | ||||
| Cabinet Material | Die-casting Aluminum | ||||
| Net.weight/Cabinet (kg) | 4.5 | ||||
| Ingress Protection | IP31 | ||||
| Working Voltage (V) | 100-240 | ||||
| Serviceability | Front | ||||
| Display | Max.Power Consumption (W/㎡) | 420 | 420 | 420 | 420 |
| Avg.Power Consumption (W/㎡) | 80-150 | 80-150 | 80-150 | 80-150 | |
| Viewing Angle (H/V °) | 170/170 | 170/170 | 170/170 | 170/170 | |
| Brightness (cd/㎡) | 600 | 600 | 600 | 600 | |
| Pixel Density (dots/㎡) | 1,638,400 | 1,137,778 | 640,000 | 409,600 | |
| Scan Mode | 1/48 | 1/60 | 1/60 | 1/48 | |
| Contrast Ratio | 10,000:1 | ||||
| Operation Temperature/Humidity | -20℃~+45℃/10~80%RH | ||||
| Lifetime (50% Brightness) | 100000 | ||||
| Greyscale (bit) | 16 | ||||
| Refresh Rate | 3840 | ||||
| Frame Rate | 50/60 | ||||
| Screen Angle | Flat, Concave, Convex, 90° | ||||
| Installation Method | Direct wall Mounting / Mounting Frame | ||||
| Certificate | CE/EMC/LVD/RoHS | ||||

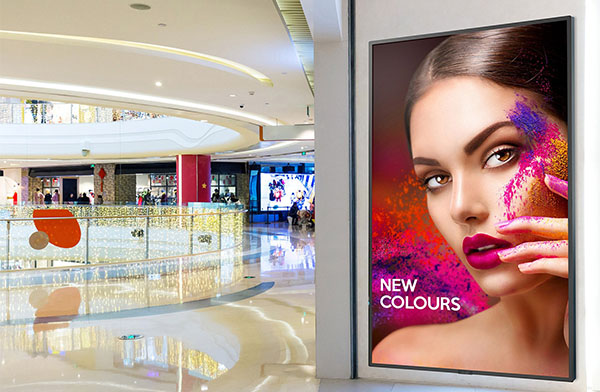

Application Scenarios
Shopping Malls, Fashion Stores, Casinos, etc
