Features
1
Copyright © 2025 JR VISUAL TEC, all rights reserved.

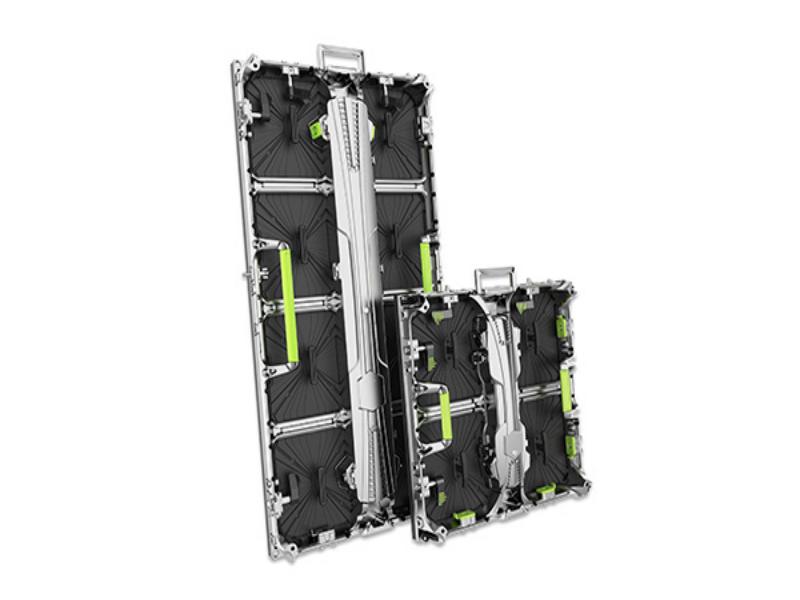

RS – 500×500/500x1000mm
1. Indoor & Outdoor rental LED display system
2.500x500mm and 500x1000mm cabinet size
3. Concave and convex LED screen possible with curve-able locks
4. Corner protection design and removable power box unit
5.Modular design and cost effective for rental events
Specification
| Item | RS2.60 – i | RS2.97 – i | RS3.91 – i | RS3.91 – o | RS4.81 – o | |
| Technical | Pixel Pitch (mm) | 2.604 | 2.97 | 3.91 | 3.91 | 4.81 |
| LED Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |
| LED Type | SMD1515 | SMD1515 | SMD2121 | SMD1921 | SMD1921 | |
| Physical Density (dot/m²) | 147,456 | 112,896 | 65,536 | 65,536 | 43,264 | |
| Module Size (W ×H ×D) mm | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | |
| Module Resolution (W ×H) | 96×96 | 84×84 | 64×64 | 64×64 | 52×52 | |
| Cabinet Size (W ×H ×D) mm | 500x500x89 | |||||
| 500x1000x89 | ||||||
| Cabinet Material | Die Casting Aluminum | |||||
| Scanning Mode | 1/32 | 1/28 | 1/16 | 1/16 | 1/13 | |
| Cabinet Flatness (mm) | ≤0.10 | ≤0.20 | ||||
| Grey Scale (Bit) | 14 | 14 | ||||
| Curve Angle | Concave 2.5/5/7.5/10/12.5/15° adjustable, Convex 2.5/5/7.5° adjustable | |||||
| Protection Level | IP30 | IP65 | ||||
| Installation/Service Method | Front or rear installation/Rear service | Rear Installation and Rear Service | ||||
| Optical | Brightness (cd/㎡) | 700-900 | 700-900 | 700-900 | 1,000-3,300/5,000-6,000 | |
| Color Temperature | 3,200-9,000 adjustable | 3,200-9,000K adjustable | ||||
| Brightness Uniformity | ≥98% | ≥98% | ||||
| Color Uniformity | Within 0.003Cx, Cy | Within 0.003Cx, Cy | ||||
| Horizontal/Vertical View Angle | ≥140°/≥140° | ≥140°/≥120° | ||||
| Contrast Ratio | ≥5000:1 | ≥5000:1 | ||||
| Color Calibration of Single Dot | Yes | Yes | ||||
| Brightness Calibration of Single Dot | Yes | Yes | ||||
| Operation | Drive Mode | Constant Current Drive | Constant Current Drive | |||
| Module Max Current DC | 8.5A | 9.5A | ||||
| Module Input Voltage DC | 4.5V | 4.5-5V | ||||
| Standard Receiving Card | A5S plus | A5S plus | ||||
| Refresh Frame Frequency | 50/60Hz | 50/60Hz | ||||
| Max Refresh Rate | 3,840Hz | 3,840Hz | ||||
| Max Refresh Rate | 500-M500-M Standard Port | 500-M Standard Port | ||||
| Input Voltage AC | 100—240V | 100—240V | ||||
| Cabinet Max Power Consumption | ≤650 | ≤800 | ||||
| Cabinet Aver. Power Consumption | ≤200 | ≤260 | ||||
| Working Temperature | -20℃～+80℃ | -20℃～+80℃ | ||||
| Working Temperature | 10%～95%RH | 10%～95%RH | ||||

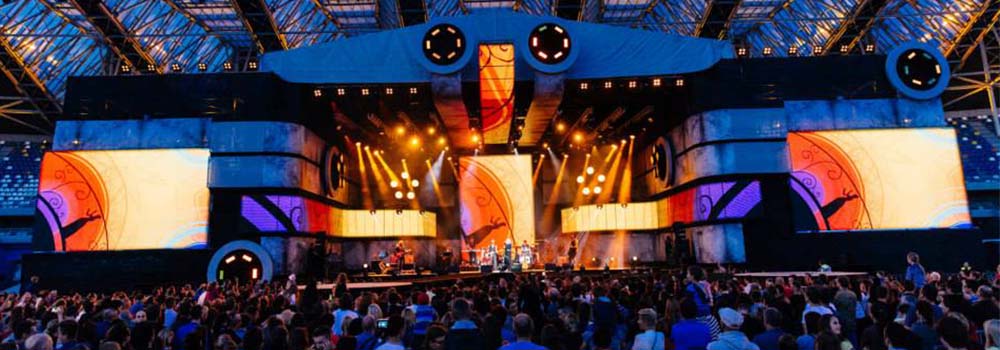

Application Scenarios
Stage Background, Exhibition booth stands, Road Shows, etc
