Pixel Pitch: P4mm, P4x8mm, P6mm, P8mm, P10mm,P16mm
Cabinet Size: 800x240x3mm, 1000x240x3mm, or customized
1. Superb transparency with PET film, more than 85% transparency rate
2. Extremely thin body with only 3-5mm thickness, less than 3.5kg/sqm
3. Flexible in LED screen shape, suitable for flat and curve screen
4. Wide viewing angle of 140 degree H/V directions
5. Fast installation, directly stick to the glass windows
6. Above 3,000nits brightness, vivid color performance
JR Transparent LED film reflects the object behind the product even after the product is attached and turned off. This offers a wide-open view while blending into existing interior design smoothly and delivers various information effectively by attracting the attention of passersby.
| Transparent LED Film Specification | ||||||
| Product Model | TF-4 | TF-4*8 | TF-6 | TF-8 | TF-10 | TF-16 |
| Pixel Pitch | 4mm*4mm (HxW) | 4mm*8mm (HxW) | 6mm*6mm (HxW) | 8mm*8mm (HxW) | 10mm*10mm (HxW) | 16mm*16mm (HxW) |
| Pixel Density (Dots/㎡) | 62,500 | 31,250 | 27,556 | 15,625 | 10,000 | 3,844 |
| LED Type | SMD1010 (LED&IC packed in 1) | SMD1010 (LED&IC packed in 1) | SMD2121 (LED&IC packed in 1) | SMD2121 (LED&IC packed in 1) | SMD2121 (LED&IC packed in 1) | SMD2121 (LED&IC packed in 1) |
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module Size | 800mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm |
| Module Resolution (Pixels) | 200*60 | 250*30 | 166*40 | 125*30 | 100*24 | 62*15 |
| Transparency Rate | ≥85% | ≥85% | ≥85% | ≥85% | ≥90% | ≥90% |
| Cabinet Cable Connection | Internal connection | Internal connection | Internal connection | Internal connection | Internal connection | Internal connection |
| Weight | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 |
| Brightness | ≥3000cd/㎡ | ≥3000cd/㎡ | ≥3000cd/㎡ | ≥3500cd/㎡ | ≥3500cd/㎡ | ≥3500cd/㎡ |
| Peak Power Consumption | 600 W/㎡ | 600 W/㎡ | 600 W/㎡ | 600 W/㎡ | 600 W/㎡ | 600 W/㎡ |
| Average Power Consumption | ≈ 200 W/㎡ | ≈ 200 W/㎡ | ≈ 200 W/㎡ | ≈ 200 W/㎡ | ≈ 200 W/㎡ | ≈ 200 W/㎡ |
| Refresh Rate | ≥3840s | ≥3840s | ≥3840s | ≥3840s | ≥3840s | ≥3840s |
| Gray Scale | 16Bit | 16Bit | 16Bit | 16Bit | 16Bit | 16Bit |
| Brightness Control Level | 0-255 | 0-255 | 0-255 | 0-255 | 0-255 | 0-255 |
| Color Temperature | 3200K-8500K (adjustable) | 3200K-8500K (adjustable) | 3200K-8500K (adjustable) | 3200K-8500K (adjustable) | 3200K-8500K (adjustable) | 3200K-8500K (adjustable) |
| Frame Rate | ≥60Hz | ≥60Hz | ≥60Hz | ≥60Hz | ≥60Hz | ≥60Hz |
| Viewing Angle | H140° / V140° | H140° / V140° | H140° / V140° | H140° / V140° | H140° / V140° | H140° / V140° |
| Input Signal | DVI VGA, composite video | DVI VGA, composite video | DVI VGA, composite video | DVI VGA, composite video | DVI VGA, composite video | DVI VGA, composite video |
| Control Method | Synchronous controller (computer control screen) or asynchronous controller (WiFi connection mobile phone APP control screen, USB flash drive control screen) | Synchronous controller (computer control screen) or asynchronous controller (WiFi connection mobile phone APP control screen, USB flash drive control screen) | Synchronous controller (computer control screen) or asynchronous controller (WiFi connection mobile phone APP control screen, USB flash drive control screen) | Synchronous controller (computer control screen) or asynchronous controller (WiFi connection mobile phone APP control screen, USB flash drive control screen) | Synchronous controller (computer control screen) or asynchronous controller (WiFi connection mobile phone APP control screen, USB flash drive control screen) | Synchronous controller (computer control screen) or asynchronous controller (WiFi connection mobile phone APP control screen, USB flash drive control screen) |
| Protection Grade | IP30 | IP30 | IP30 | IP30 | IP30 | IP30 |
| Power Input | AC 110-220V ± 10%, 50-60Hz | AC 110-220V ± 10%, 50-60Hz | AC 110-220V ± 10%, 50-60Hz | AC 110-220V ± 10%, 50-60Hz | AC 110-220V ± 10%, 50-60Hz | AC 110-220V ± 10%, 50-60Hz |
| Working Temperature | -20~50 ℃ | -20~50 ℃ | -20~50 ℃ | -20~50 ℃ | -20~50 ℃ | -20~50 ℃ |
| LED Lift Span | 100000 hours | 100000 hours | 100000 hours | 100000 hours | 100000 hours | 100000 hours |
Your message is important to us. Complete the form below, and we will get in touch with you shortly to assist you with your needs or concerns.
JR VISUAL TEC
Join our satisfied customers who trust us to undertake your most important projects and let us impress you with superior LED technology when it matters most.

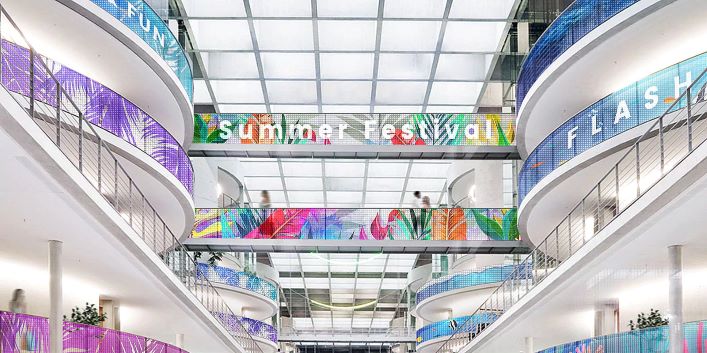

Shopping Malls, Fashion Stores, Corporate, etc
