O-Fenix – Outdoor Fine Pitch LED Display
Pixel Pitch: P1.2mm, P1.5mm, P1.9mm, P2.6mm, P3.9mm
Cabinet Size: 500x500mm
1. Indoor and outdoor fine pitch LED display
2. World’s leading outdoor P1.2mm LED display
3. Innovative M+M(mechanical+magnetic) lock system with high security

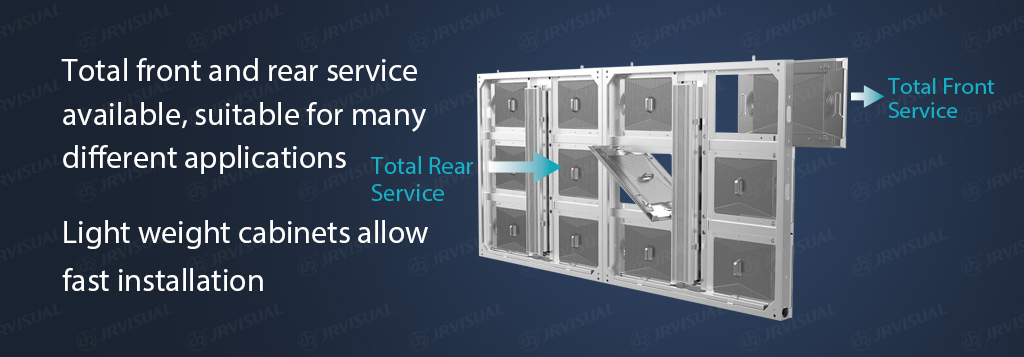

4. Front service and installation LED display
5. 90 degree installation possible
6. Multi-functional LED display for LED wall and floor screen
6. Multi-functional LED display for LED wall and floor screen
Specification
| Pixel Pitch | P1.56 | P1.95 | P2.6 | P2.97 | P3.9 |
| Model No. | FX1.56o | FX1.95o | FX2.6o | FX2.9o | FX3.9o |
| True Black SMD | >3,500cd/m2 | >3,500cd/m2 | >3,500cd/m2 | 4,000-4,500cd/m2 | 4,000-4,500cd/m2 |
| Black Shell SMD | >5,000cd/m2 | >5,000cd/m2 | |||
| Viewing Distance | >1.56m | >1.95m | >2.6m | >2.97m | >3.9m |
| LED Kind | SMD1010 | SMD1515 | SMD1515 | SMD1515 | SMD1921 |
| Pixel Density | 409,600 dots/m2 | 262,144 dots/m2 | 147,456 dots/m2 | 112,896 dots/m2 | 65,536 dots/m2 |
| Technology | M+M lock, FPO, HDR | ||||
| Refresh Rate | 1920/3840 HZ | ||||
| Viewing Angle | 160° (H) / 160° (V) | ||||

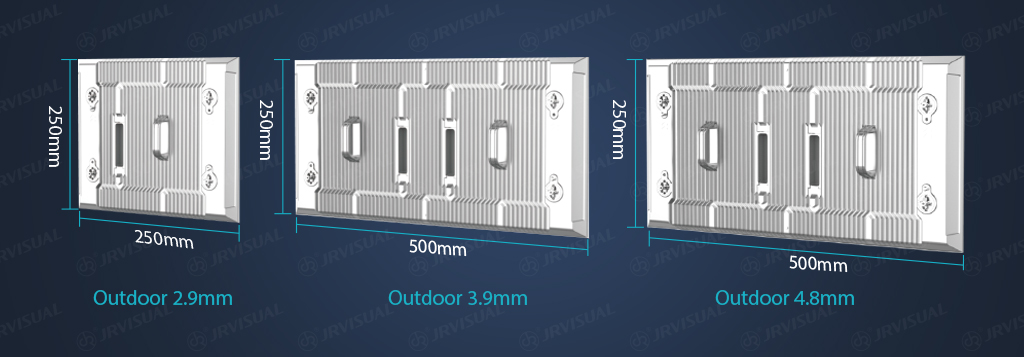

| Module Size | 250x250mm | ||||
| Cabinet Size | 500x500x82mm | ||||
| Cabinet Resolution | 320 x 320 px | 256 x 256 px | 192 x 192 px | 168 x 168 px | 128 x 128 px |
| Drive Mode | 1/32 scan | 1/32 scan | 1/16 scan | 1/14 scan | 1/8 scan |

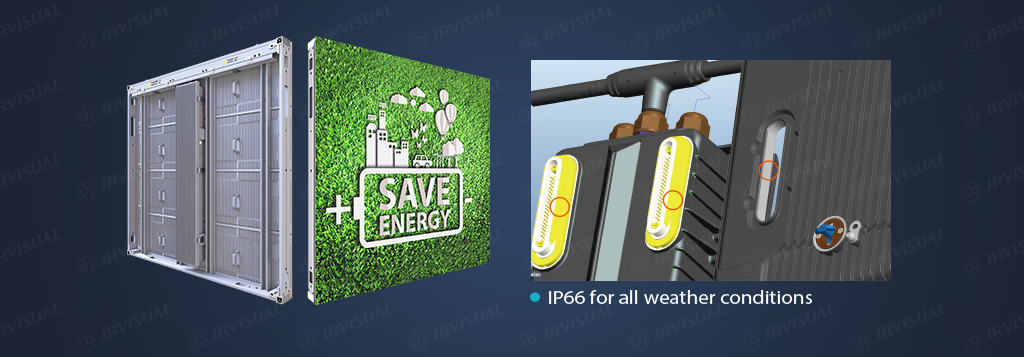

| Environment | IP65/IP54 | ||||
| Max Power | 900 W/m2 | ||||
| Voltage | AC100-240V | ||||
| Weight | 9kg/pc | ||||
| Certificate | CE EMC, ETL | ||||
