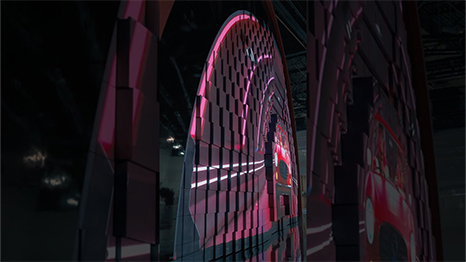

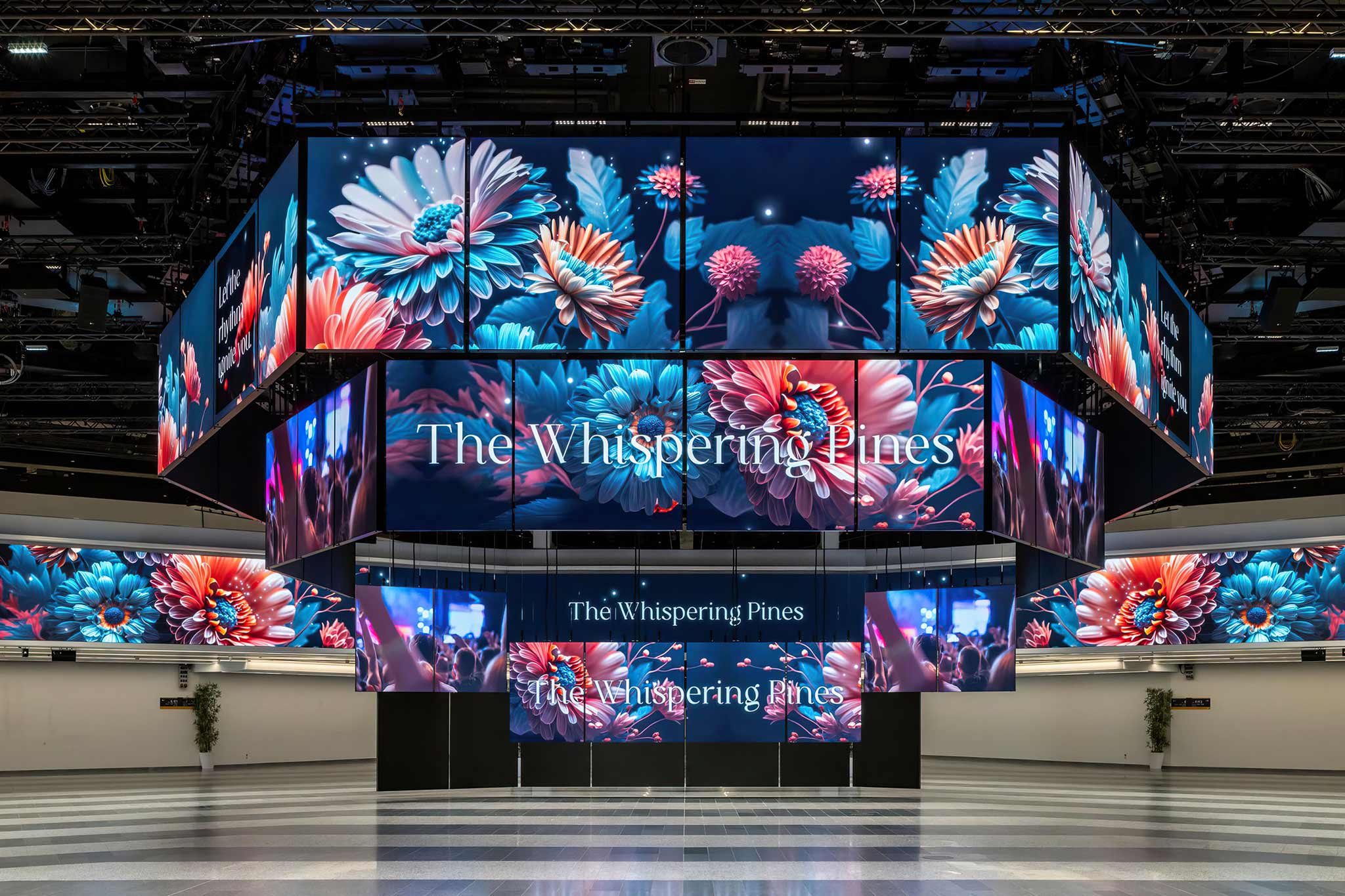

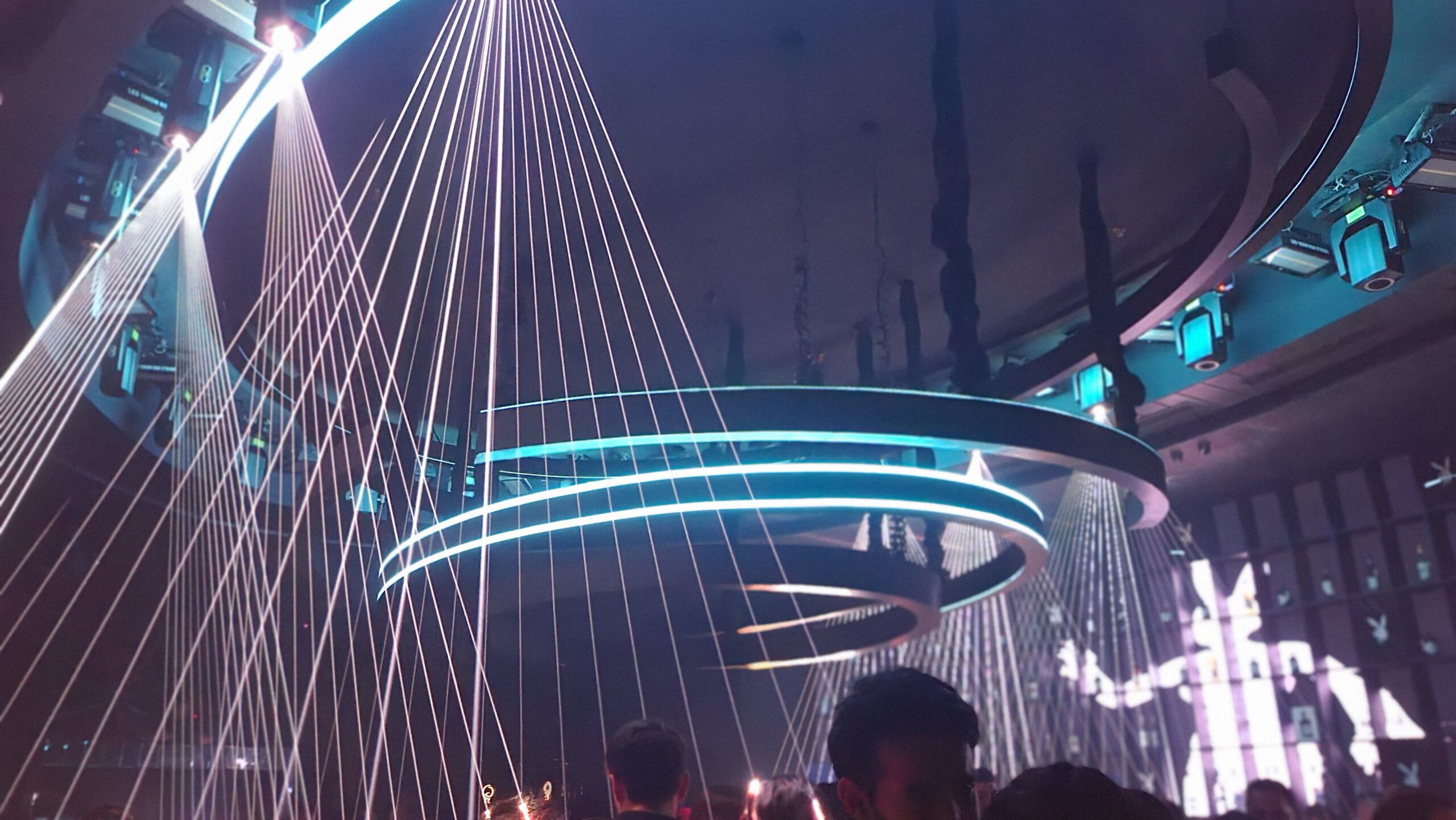

A Kinetic LED Display combines LED technology with precise mechanical motion to create depth, rhythm, and impact. From large-scale kinetic LED signage to immersive stage backdrops and architectural façades, these systems attract attention through synchronized light and movement. However, the integration of power supplies, data transmission, control systems, and moving modules also introduces a broader range of potential faults compared with conventional static LED screens. When a kinetic display malfunctions, the issue may originate from many factors. Understanding common faults and practical troubleshooting methods can significantly stabilize LED operation and reduce downtime.
Kinetic LED Display Power Supply and Black Screen Faults
Power-related problems remain the most frequent cause of total display failure in
Kinetic LED Displays. When the entire screen is black or unresponsive, the root cause is often a power supply malfunction, loose DC connections, or an upstream circuit breaker that has tripped due to overload or short circuit. Because kinetic LED signage typically relies on a stable 5V DC supply for both LED modules and control electronics, even minor voltage fluctuations can interrupt operation.
Troubleshooting should begin with a visual inspection of power indicators on each power supply unit. An inactive indicator suggests either no AC input or internal failure. Measuring the DC output with a multimeter is a critical step; a healthy supply should deliver between 5.0V and 5.2V under load. Values outside this range may lead to black screens, flickering, or intermittent resets. Loose power cables, oxidized terminals, or improperly crimped connectors can also create resistance and voltage drop, especially in large installations with long cable runs.
Kinetic LED Display Signal Transmission and “No Signal” Issues
Signal loss often presents as a “No Signal” message or a blank screen, even with normal power status. These issues typically stem from loose or damaged network cables, incorrect port connections, or a malfunctioning sending card in the control system. Since kinetic LED signage relies on precise data flow to coordinate both image content and motion commands, stable signal transmission is essential.
Initial troubleshooting should focus on physical connections. CAT5e or
CAT6 network cables between the controller, sending card, and the first receiving module must be firmly seated and free from visible damage. Replacing suspect cables is often faster than extended testing and can immediately rule out cable failure. On the control hardware, status lights provide valuable diagnostic information. A normally operating sending card will show a steady or flashing green indicator, confirming data output activity. The absence of this signal may indicate configuration errors or hardware faults.
Software configuration also plays a significant role. Incorrect screen mapping, mismatched resolution settings, or improper port assignments can interrupt data flow even when hardware is intact.
Partial Display Failure and Image Distortion
When only part of a kinetic LED screen fails or displays distorted images, the problem is usually localized. Common causes include loose ribbon cables between modules, damaged receiving cards, or improper module addressing. In kinetic installations, the constant motion of modules can gradually stress internal connections if strain relief and cable routing are not well designed.
Troubleshooting begins with isolating the affected area. Inspecting ribbon cables and data jumpers for secure connections is essential, as even slight loosening can corrupt data transmission. Swapping a suspected faulty module or receiving card with a known working one is an effective way to confirm the source of the issue. If the problem moves with the component, replacement is typically required.
Secondly, Excessive vibration, extreme temperatures, or high humidity can accelerate connector fatigue and electronic degradation. Displays manufactured with robust LED processes often incorporate reinforced connectors and protective housings to mitigate these risks.
Dead Pixels, Color Inconsistency, and Calibration Problems
Individual dead or stuck pixels, along with uneven color performance, are familiar concerns across all LED displays, including kinetic systems. These issues may result from damaged LED lamp beads, natural aging, or calibration drift over time.
A practical troubleshooting step is to run built-in test patterns through the control software. These patterns can help identify whether pixels are electrically locked or permanently damaged. In some cases, software-driven pixel refresh or reset functions can restore regular operation. When pixels remain inactive, module replacement is usually the most reliable solution.
Color disparity often requires recalibration rather than hardware replacement. Modern control systems support brightness and color calibration to balance output across the entire screen. Regular calibration ensures visual uniformity, especially in high-end applications where color accuracy is critical.
Kinetic LED Display Motion and Mechanical Malfunctions
A Kinetic LED Display also introduces mechanical components such as motors, guide rails, and driver boards. Motion-related faults often present as unusual noise, delayed response, uneven movement, or complete failure of specific modules to move. These problems may originate from motor wear, mechanical obstruction, or loose driver connections.
Effective troubleshooting starts with a physical inspection of the moving structure. Debris, dust buildup, or misaligned components can obstruct motion and place additional strain on motors. Ensuring that motor driver cables are secure and free from tension helps maintain reliable control signals. Listening for abnormal sounds during operation can also indicate bearing wear or gear misalignment, prompting timely maintenance.
Long-Term Reliability of a Kinetic LED Display
The reliability of a Kinetic LED Display depends on balanced integration of power stability, signal integrity, mechanical precision, and routine maintenance. Regular inspection, proper cable management, stable power monitoring, and timely calibration significantly reduce the risk of unexpected downtime.
For customers considering kinetic LED signage, understanding these fault patterns is essential when comparing products and suppliers. Displays developed through mature
LED manufacturing practices, supported by clear documentation and responsive technical support, offer greater peace of mind throughout the installation’s lifespan. By prioritizing build quality, maintainability, and proven troubleshooting pathways, a kinetic LED system can deliver reliable performance and compelling visual impact long after installation.
