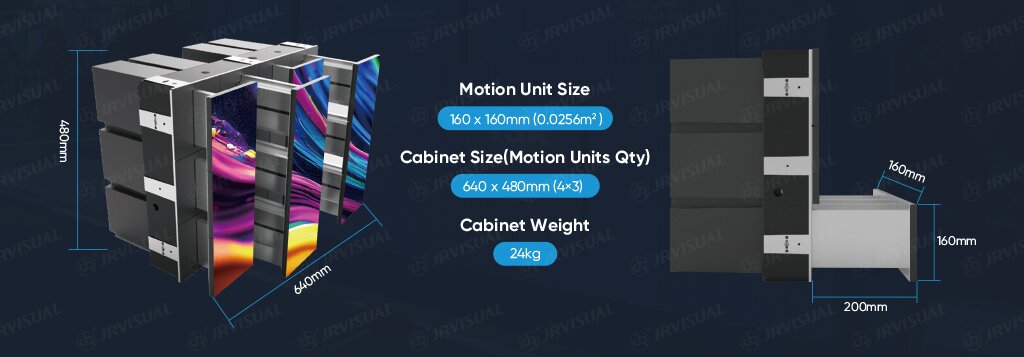

Option 1: 640x480mm P1.98mm, module size: 160x160mm

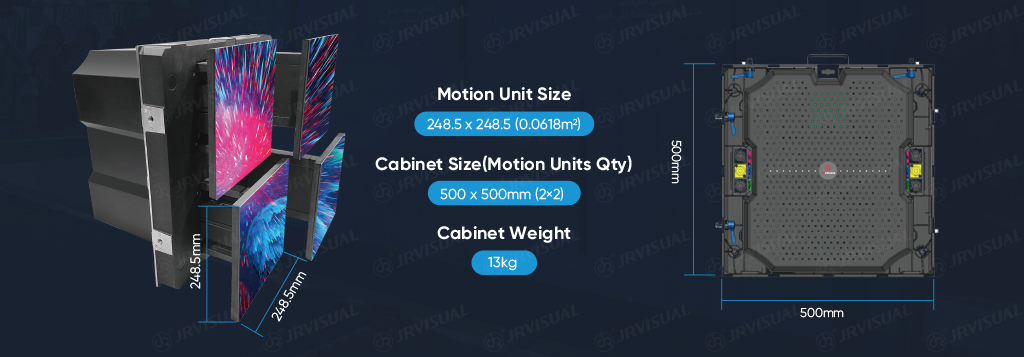

Option 2: 500x500mm P1.9mm P2.6mm, module size: 250x250mm
1. Modular Design with standard 160x160mm and 250x250mm module size, die-casting aluminum cabinet for excellent screen flatness.
2. Precision Machining Technology with industrial-grade linear guide rails ensures less than 1mm module gap.
3. Fast response with max forward speed of 300mm/s and min 0.7s forward back cycle time.
4. Noise reduction design with closed-loop stepping drive system, effectively reduce 70% noise.

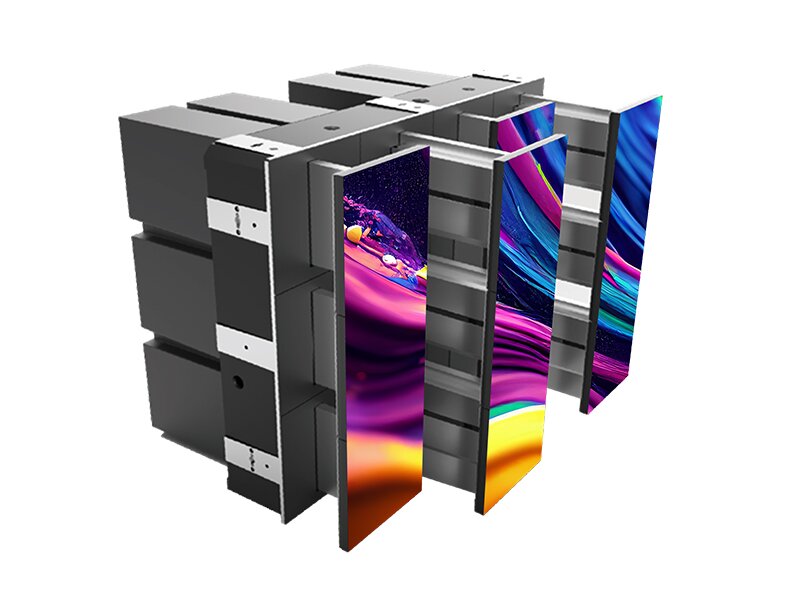

The 3D Kinetic LED Screen features an exceptionally narrow gap between modules, creating a virtually seamless viewing experience. The result is a unified, continuous image, free from distracting lines or separations.
Quick Installation And Disassembly Die-casting Aluminum Cabinet For Exhibition, Event, And Rental
| Application | Indoor | Outdoor | |||
| Model | 160x160mm | 250x250mm | 495x495mm | ||
| Pixel Pitch | 1.98mm | 1.5625mm | 1.94mm | 2.604mm | 10mm |
| LED Module Dimension(WxH) | 160 × 160mm | 248.5 x 248.5 mm | 495×245 mm | ||
| Gap between Units | 1 (0.5～1.5) mm | 1.5 (1.0~2.0) mm | 5(3.5～6.5) mm | ||
| Motion Unit Dimension(WxH) | 160×160mm (0.0256m²) | 248.5 x 248.5mm (0.0618m²) | 495×495 (0.25m²) | ||
| Resolution of Unit | 80×80 | 160x160 | 128x128 | 96x96 | 48×48 |
| Cabinet Dimension(Motion Units Qty) | 640×480mm (4×3) | 500x500mm (2x2) | 1000×1000mm (2×2) | ||
| Cabinet Thickness (Standby mode) | 320mm | 320mm | 1400mm | ||
| Max. Forward Stroke | 200mm | 200mm | 600mm | ||
| Max. Forward Speed | 300mm/s | 500mm/s | 800mm/s | ||
| Min. Forward-back Cycle Time | ＜0.7s | 0.5s | ＜1.5s | ||
| Motion Qty per Sqm | 39 | 16 | 4 | ||
| Weight per Sqm | 80Kg/m² | 52Kg/m² | 180Kg/m² | ||
| Max. Power Capacity | 900W/m² | 720W/m² | 1,500W/m² | ||
| Power Supply Requirement | ≤3KW:220V Single phase | ≤3KW:220V Single phase | ≤3KW:220V Single phase | ||
| ≥3KW:380V Three phases/Five wires | ≥3KW:380V Three phases/Five wires | ≥3KW:380V Three phases/Five wires | |||
| Screen Brightness | ≥700 nits | ≥600 nits | ≥7,000 nits | ||
| Ambient Temperature | 0～40℃ | 0～40℃ | -10～60℃ | ||
| IP Rating | IP40 | IP40 | IP65 | ||
| Environmental Attentions | Indoor use, no corrosive gases, no flammable gases, no oil mist and dust | Indoor use, no corrosive gases, no flammable gases, no oil mist and dust | Outdoor use | ||
| Heat Dissipation | Open self-cooling (with fan cooling) | Open self-cooling (with fan cooling) | Semi-closed Self-cooling (with fan cooling) | ||
