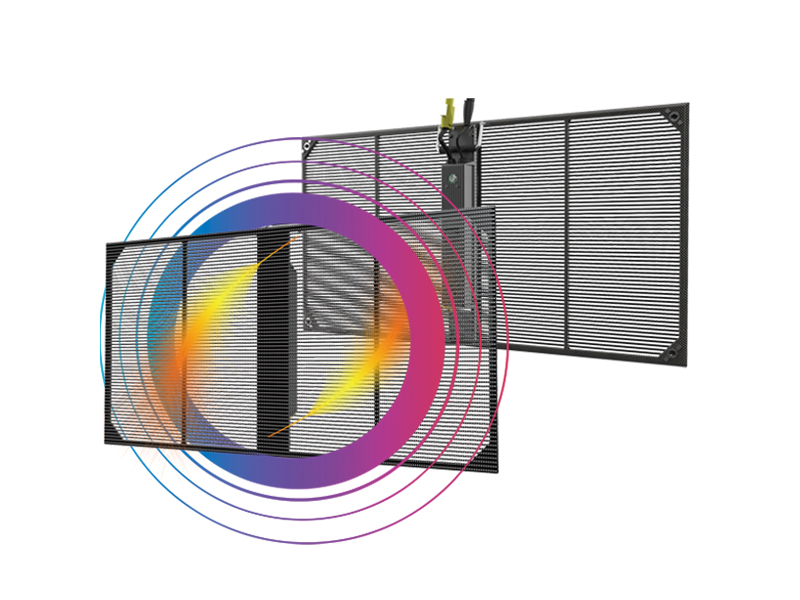

Pixel pitch: 2.6×5.2mm, 3.9×7.8mm.

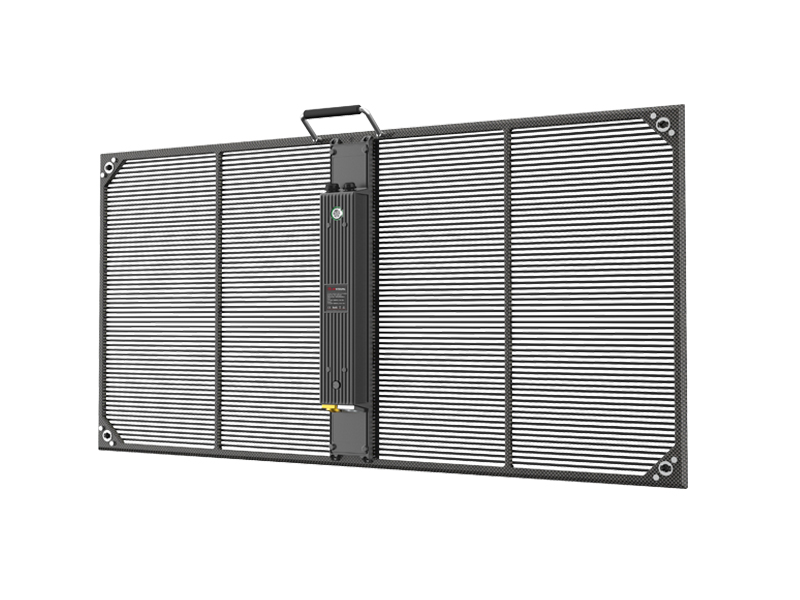

Cabinet size: 1000x500mm.

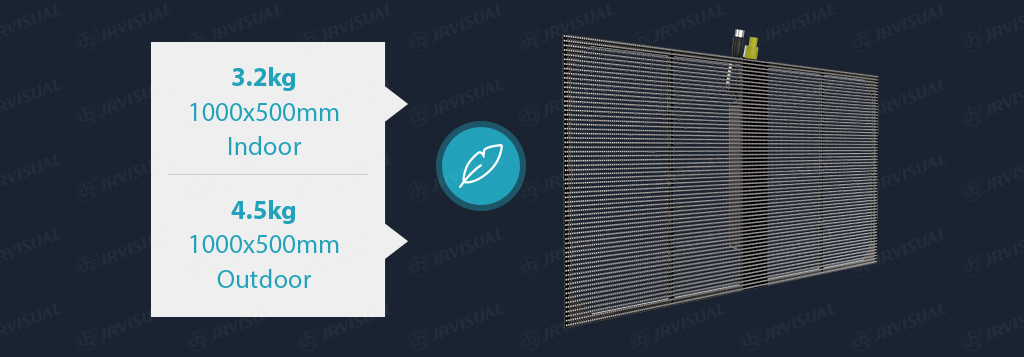

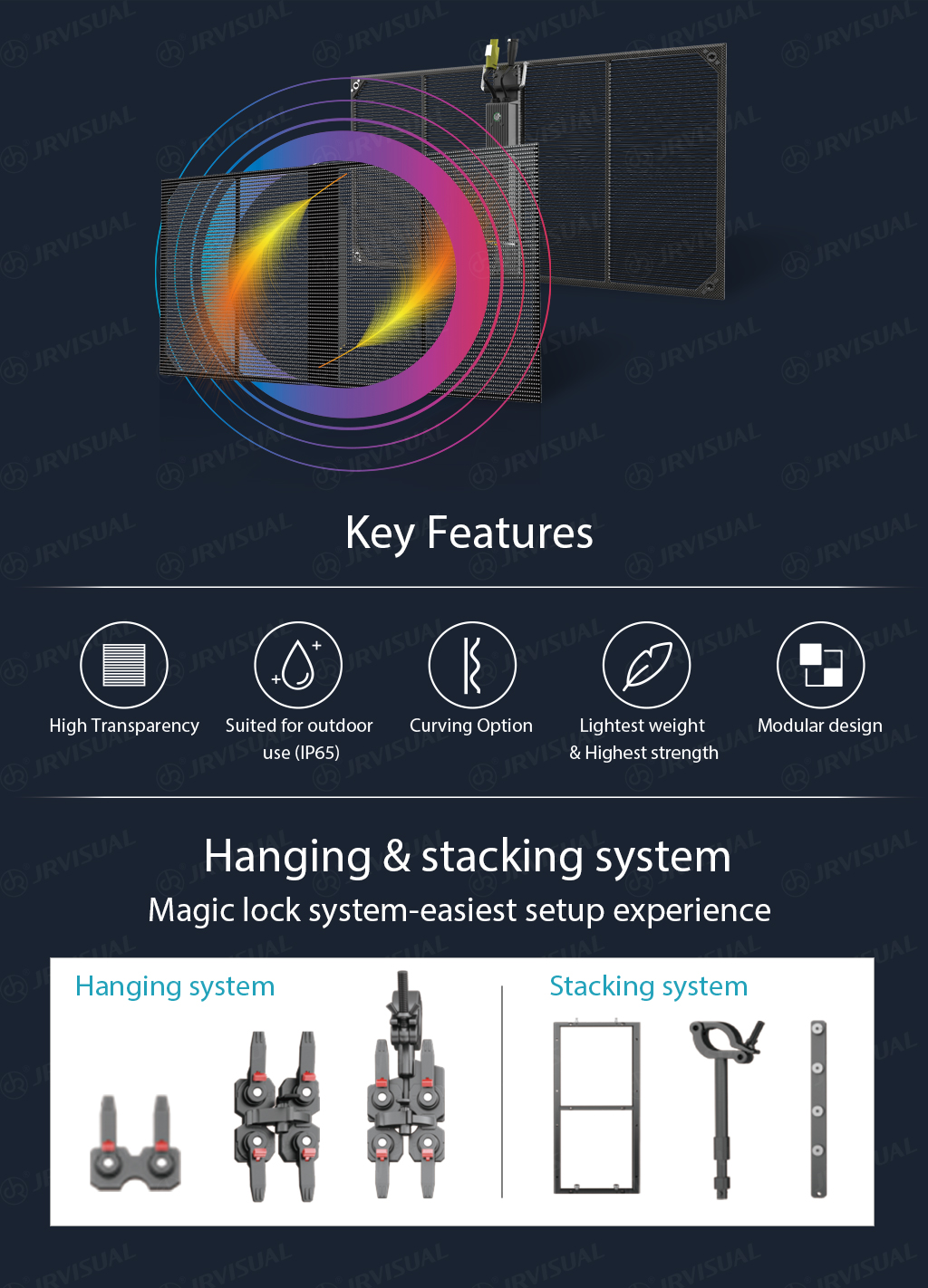

1. Carbon fiber cabinet with extremely light weight, 7kg/sqm for indoor, and 10kg for outdoor.

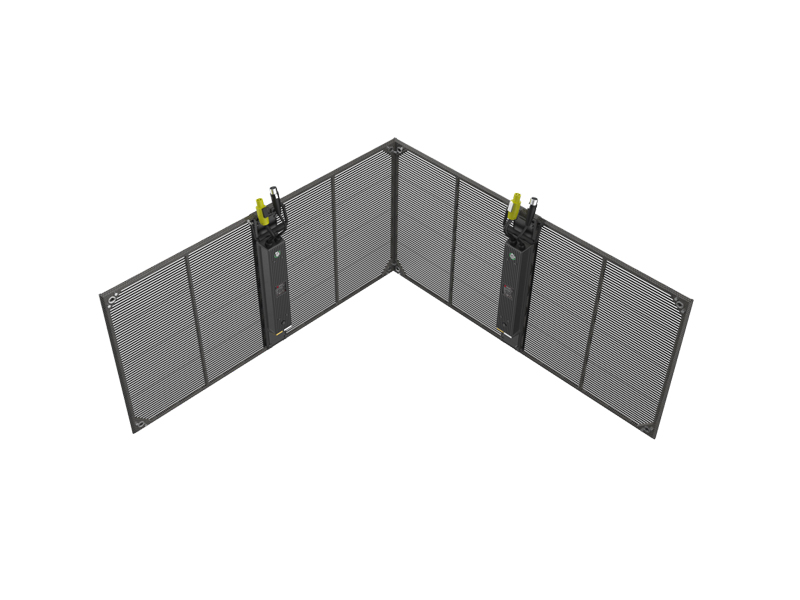

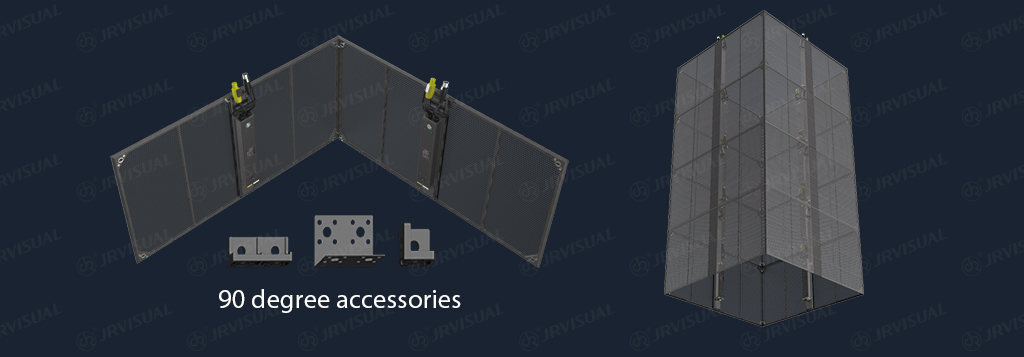

2. Full package of lock accessories to install curve, cube LED screen.
3. Slim but strong cabinet with 490 0Mpa, can hang >10m high screen.
4. High transparency rate with super slim module design.

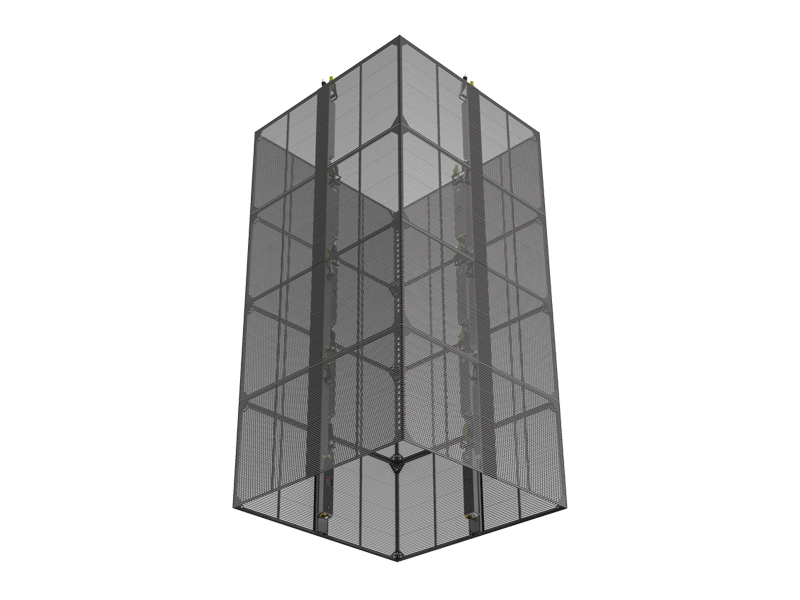

3-dimensional cubic shape provide endless creative possibilities

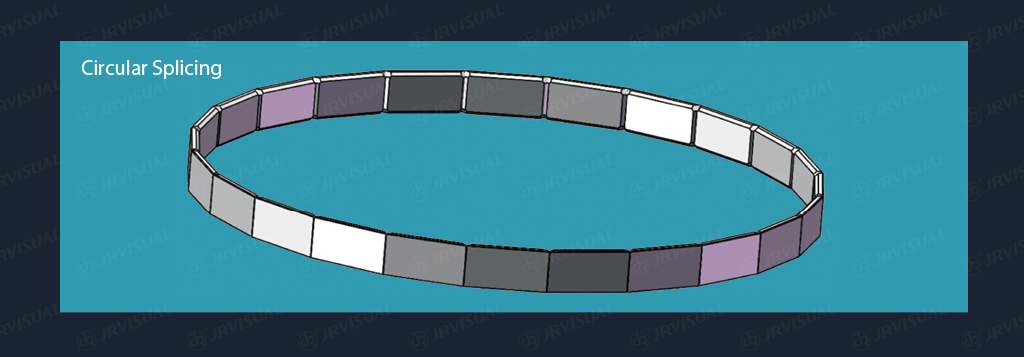

Concave and convex curving capabilities provide a larger field of view and a more immersive experience.
| CB TLED Specification | ||
| Item Number | CB TLED-i3.9 | CB TLED-o3.9 |
| Pixel Pitch | H3.9-V7.8(mm) | H3.9-V8.9(mm) |
| Pixel Density | 32,768 pixels/㎡ | 28,672 pixels/㎡ |
| LED Type | SMD2020/SMD1921 | SMD1921 |
| LED Configuration | 1 R 1G 1B, 3 in 1 | 1 R 1G 1B, 3 in 1 |
| Module Resolution | 128x16 pixels | 128x14 pixels |
| Module Dimension | 500x125mm | 500x125mm |
| Module Number | W2 x H4 | W2 x H4 |

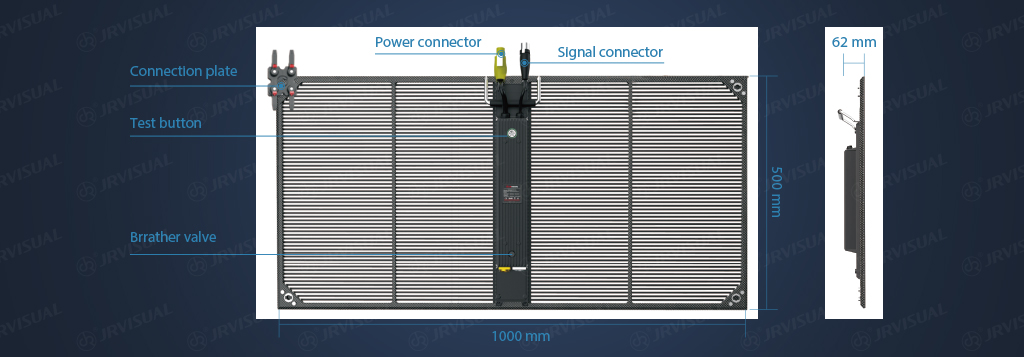

| Cabinet Dimension | 1000x500x62mm | 1000x500x62mm |
| Cabinet Resolution | 256x64 pixels | 256x56 pixels |
| Cabinet Weight | 3.2 kg/panel | 4.5 kg/panel |
| Cabinet Material | Carbon Fiber | Carbon Fiber |
| Standard Brightness | 1000nits | 5,000nits |
| Optional Brightness | 2,500/4,500 nits | - |
| Brightness Control | Manual/Auto/Programmable | Manual/Auto/Programmable |
| Color Temperate | 6,500 K as standard | 6,500 K as standard |
| Colors | 281 Trillion | 281 Trillion |
| Contrast Ratio | 3000 : 1 | 3000 : 1 |
| Gray Scale | 16 bit | 16 bit |
| Refresh Rate | ≤3,840HZ (Configurable) | ≤3,840HZ (Configurable) |
| Viewing Distance | > 4 m | > 4 m |
| Ingress Protection | IP30 | IP65 |
| Maintenance | Front & Rear | Front & Rear |
| Bezel Width | None | None |
| Gap Between Cabinets | Seamless | Seamless |
| Max Power Consumption | 400 W/SQM | 800 W/SQM |
| Ave Power Consumption | 160 W SQM | 260 W SQM |
| LED Life Time | 100,000 Hours | 100,000 Hours |
| Screen Angle | Flat, 90 degree, Concave & Convex | Flat, 90 degree, Concave & Convex |
| Standard Installation Method | Hanging | Hanging |
| Max. Hanging Height | 30m | 30m |
| Optional Installation Method | Stacking | Stacking |
| Visual View Angle | 160°/140° (H/V) | 160°/140° (H/V) |
| Video Frame Rate | 50/60 HZ | 50/60 HZ |
| Input Voltage | 110-220V ± 10% | 110-220V ± 10% |
| Date Interconnection | CAT5/6, Multi/Single-mode fiber | CAT5/6, Multi/Single-mode fiber |
| Operating Temperature | -20~ +45 °C | -20~ +45 °C |
| Signal Input Source | S-video,VGA,DVI,HDMI,SDI | S-video,VGA,DVI,HDMI,SDI |
| Certificate | CE, EMC. LVD, RoHS | CE, EMC. LVD, RoHS |
| Note: Specifications are for reference only and are subjected to change without notice. | ||
