D-Poster – 960x2160mm Dual Sides
1.P1.56mm pixel pitch, high resolution, min. 0.9mm, up to 2.5mm.

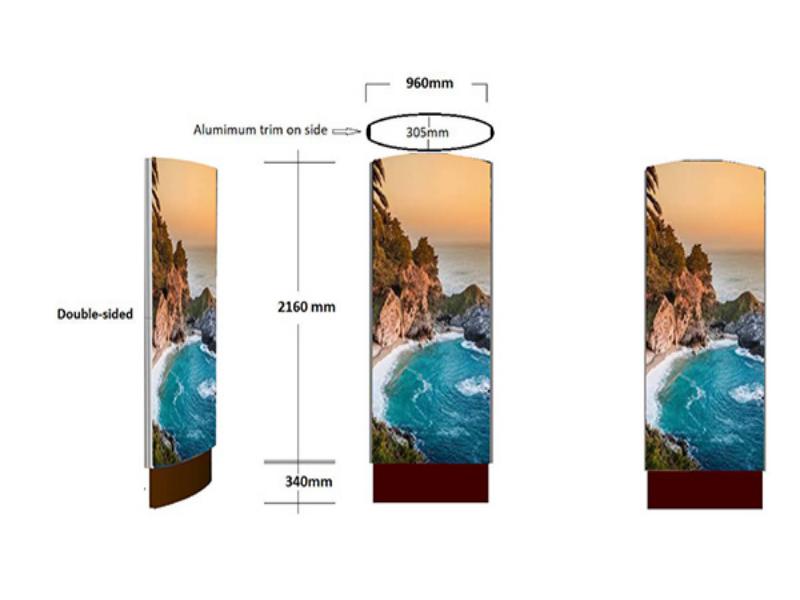

2.960x2160mm display size
3. Smooth curve surface for wide viewing angle
4. Dual-sided design ensures better AD effect
5. Novastar processing integrated
6.Solid aluminum structure base
Specification
| D-Poster Specification | ||||||||||||
| Model | D-Poster 1.5mm | |||||||||||
| Display | Pixel Pitch (mm) | 1.579mm | ||||||||||
| Display Area (m²) | 4.1472sqm (Each side with 2.0736sqm) | |||||||||||
| LED Lamp Type | SMD1212 black 3 in 1 | |||||||||||
| Resolution (dots) | 608*1368 | |||||||||||
| Brightness (nits) | 600 ~ 800 | |||||||||||
| Contrast Ratio | 5000 : 1 | |||||||||||
| Refresh Rate (HZ) | 3,840 | |||||||||||
| Color Temperature (K) | 6,500 | |||||||||||
| Viewing Angle (H/V) | 160°/160° | |||||||||||
| Operation Hours | 24/7 | |||||||||||
| Dimensions | Display Size (mm) | 960*2160 curve | ||||||||||
| Poster Thickness (mm) | 305mm max. | |||||||||||
| Poster Size with frame (mm) | 1013*2500*305 | |||||||||||
| Module Size (mm) | 240×120 | |||||||||||
| Bottom Base Height (mm) | 340 | |||||||||||
| Weight | Set (kg) | 185 | ||||||||||
| Connectivity | Imput | Video | Support RM, FLV, AVI, MP4, and other mainstream video formats | |||||||||
| Image | JPEG, BMP, GIF, PNG, WEBP | |||||||||||
| Animation | GIF | |||||||||||
| Networking | Wire/Wi-Fi/4G | |||||||||||
| User Terminal | PC/Tablet/Phone/Flash Drive | |||||||||||
| User Terminal System Compatible | Android/iOS/Windows | |||||||||||
| Power | Model | MW brand, 12 psu for each poster, Integrated | ||||||||||
| Power Supply | AC100-240V(+/-10%),50/60Hz | |||||||||||
| Power Consumption | Max (W) | 2025 | ||||||||||
| Typical (W) | 650 | |||||||||||
| Service | Service Access | Front | ||||||||||
| Protection | Protection Level | IP30 | ||||||||||
| Green Management | EMC | Class A | ||||||||||
| RoHS Compliant | Yes | |||||||||||
| Packaging Recyclability | Yes | |||||||||||
| Safety Compliant | Safety Standard | CCC (China) : GB4943.1- 2011 | ||||||||||
| Control System | Media Player Model | Novastar TB60, Integreated | ||||||||||
| Receiving Card Model | Novastar MRV412 | |||||||||||
| Content and Terminal Management | ViPlex Express | PC Terminal and Content Management Client Software | ||||||||||
| Viplex Handy | LAN-based Terminal and Content Management Client App for Phone and Tablet | |||||||||||
| Cloud Based Service (Optional) | VNNOX: Cloud based content and terminal management. NovaiCare: Cloud based terminal monitoring | |||||||||||
| Control Mode | Asynchronous / Synchronous | |||||||||||
| Opertion Language | English/Chinese | |||||||||||
| Accessories | Included | Self-standing structure base | ||||||||||
| Warranty | Standard | 2 Years | ||||||||||
