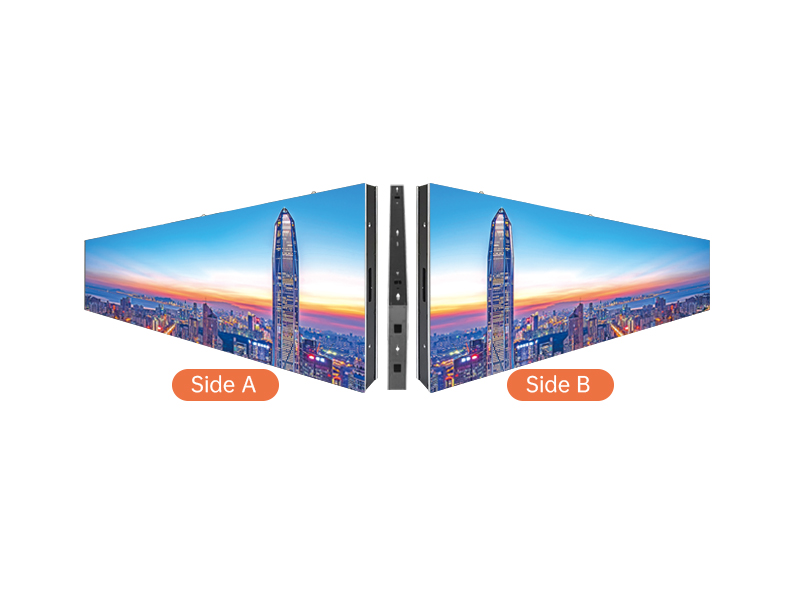

D-Sides Double Sides LED Display

Pixel pitch: 1.2mm, 1.5mm, 1.9mm, 2.5mm 2.6mm, 2.9mm, 3.9mm.
Cabinet size: 1000x250mm, 750x250mm, 500x250mm.

1. 54mm thickness for double sides LED Display.

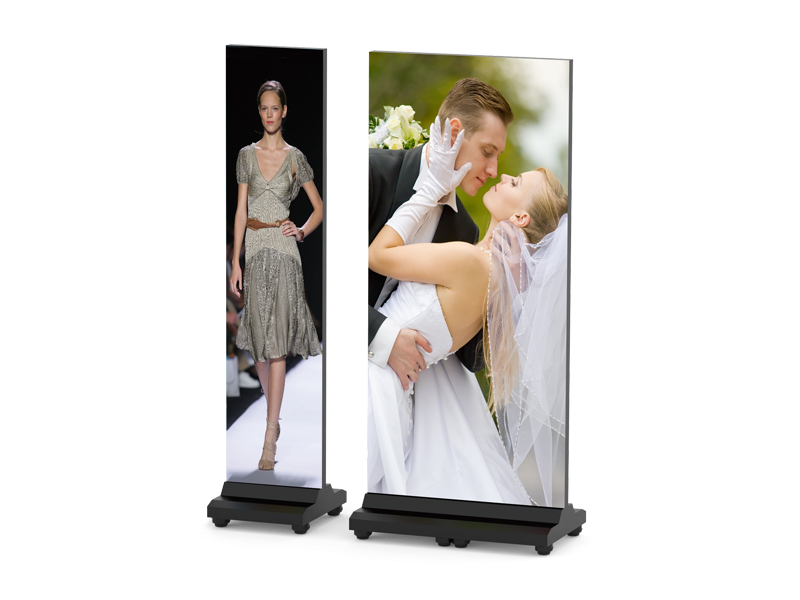

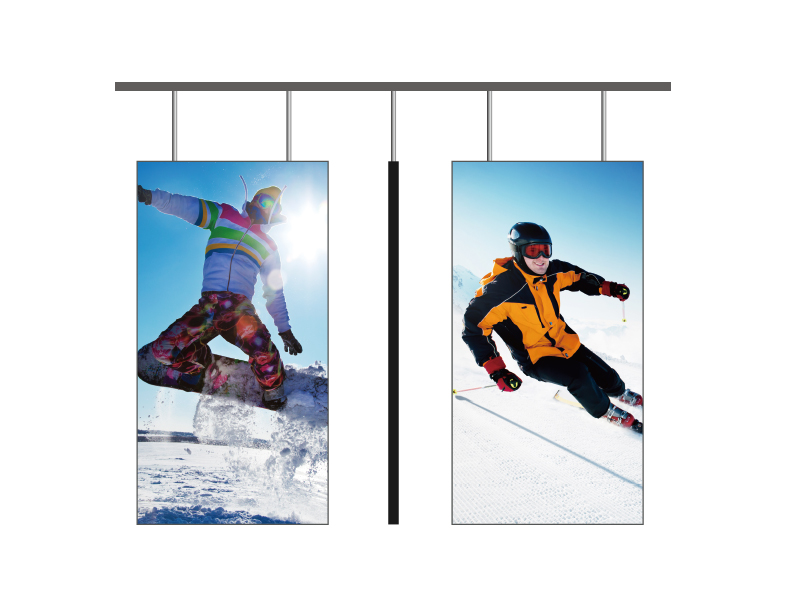

2. Support both hanging and standing installation.
3. Wide range of pixel pitch options.
4. Easy service with front access.

Request a Quote

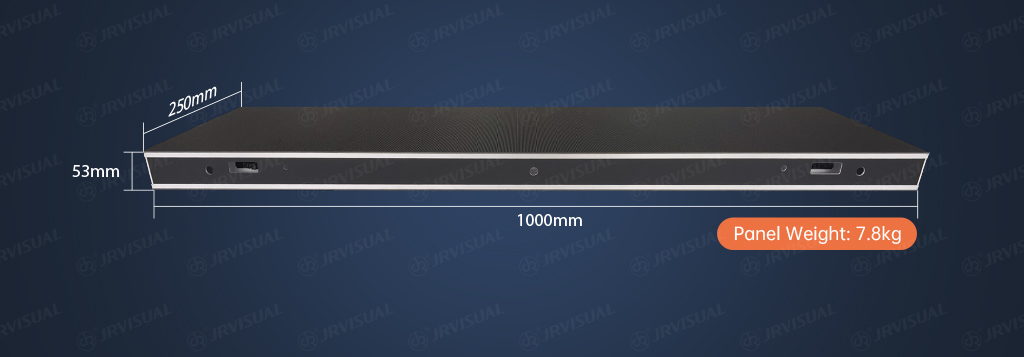

D-Sides Description 1

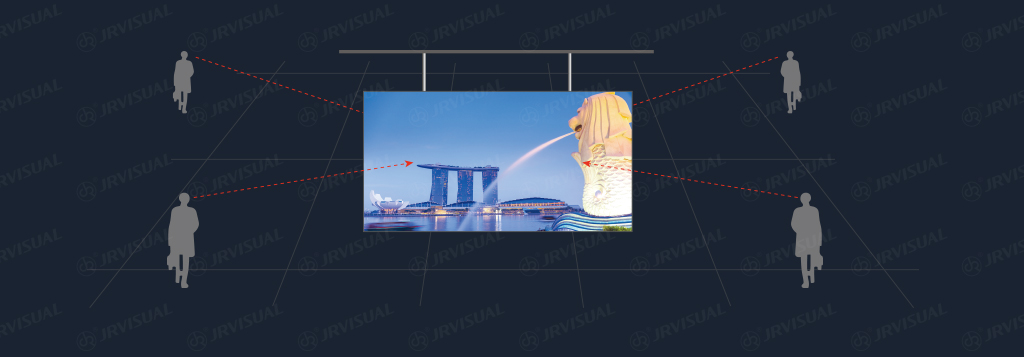

320° ultra wide viewing angle

D-Sides Description 2

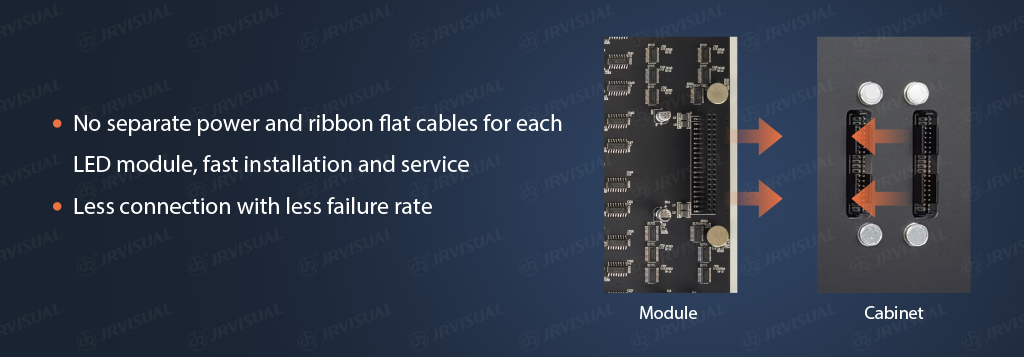

Module Cable-Free Design

D-Sides Description 3

Front access

Full front access makes the maintenance easier

D-Sides Description 4

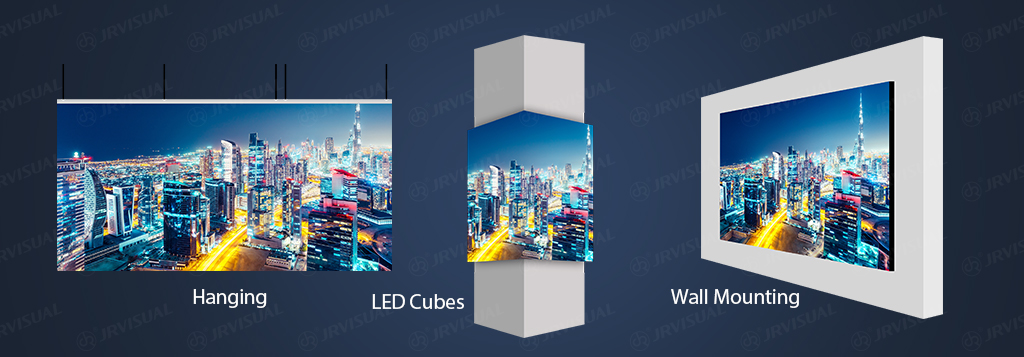

Installation mode

D-Sides Description 5

Product application cases

Features

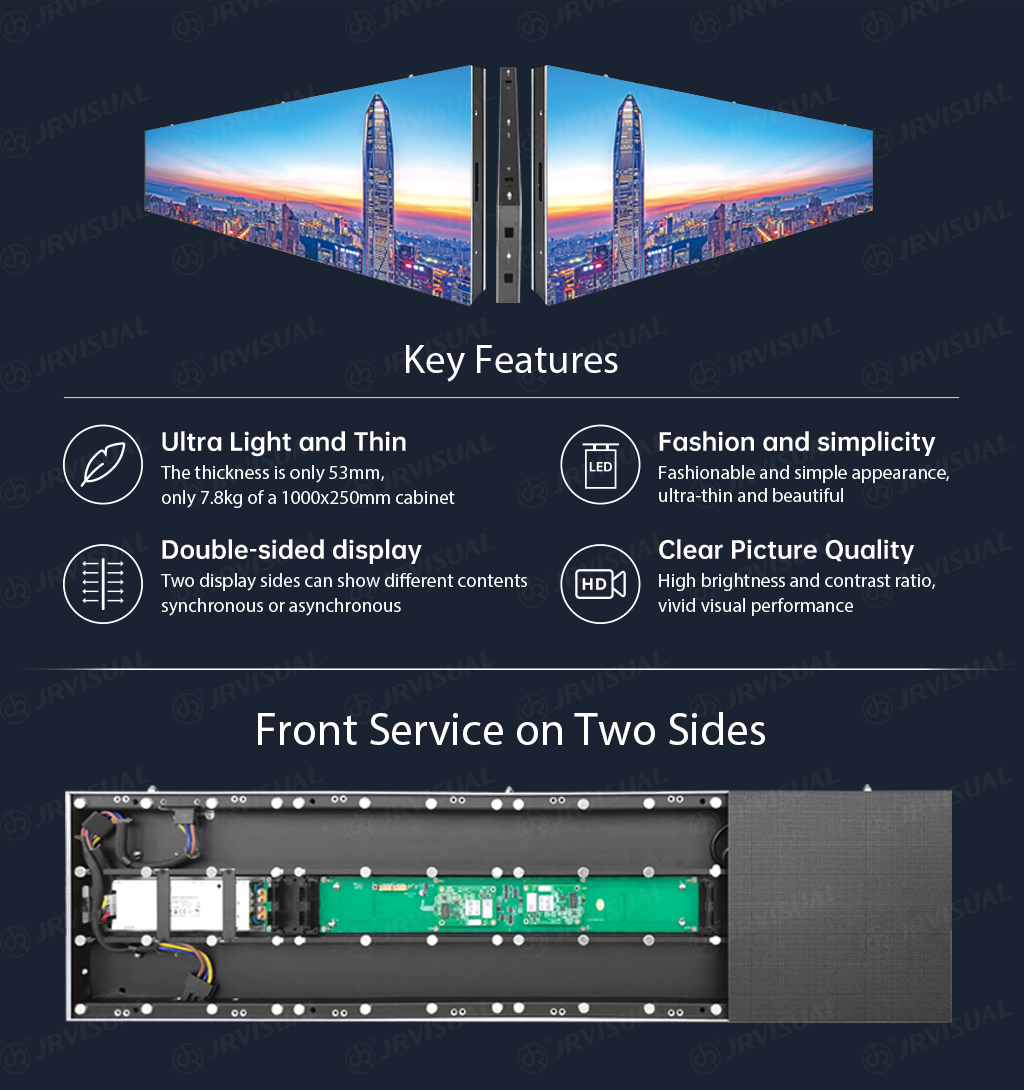

D-Sides Key Features

D-Sides Features

Specification

One-Side Specification

One-Side Specification
Item Number D1.5 D1.9 D2.5 D2.6 D2.9 D3.9
Pixel Pitch 1.5625mm 1.95mm 2.5mm 2.604mm 2.9mm 3.9mm
Pixel Density 409,600pixels/㎡ 262,144 pixels/㎡ 160,000 pixels/㎡ 147,456 pixels/㎡ 102,400 pixels/㎡ 65,536 pixels/㎡
LED Type SMD1212 SMD1515 SMD1515 SMD1515 SMD1515 SMD2121
LED Configuration 1 R 1G 1B, 3 in 1 1 R 1G 1B, 3 in 1 1 R 1G 1B, 3 in 1 1 R 1G 1B, 3 in 1 1 R 1G 1B, 3 in 1 1 R 1G 1B, 3 in 1
Module Resolution 160x160 pixels 128x128 pixels 100x100 pixels 96x96 pixels 84x84 pixels 64x64 pixels
Module Dimension 250x250mm
Module Number W4 x H1
Cabinet Dimension 1000x250x33mm
Cabinet Resolution 640x160 pixels 512x128 pixels 400x100 pixels 384x96 pixels 336x84 pixels 256x64 pixels
Optional Cabinet Size 750x250mmx33mm / 500x250mmx33mm

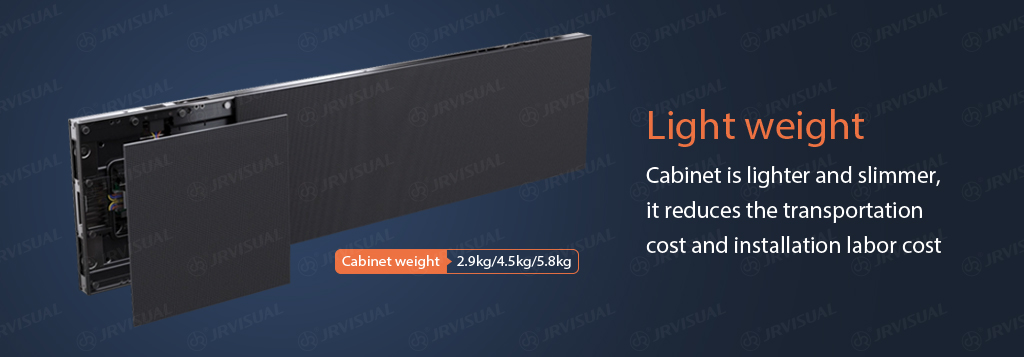

Cabinet Weight 5.8kg
Cabinet Material Aluminum CNC Cut
Standard Brightness 600 nits 800 nits 1,000 nits 1,000 nits 1,000 nits 1,200 nits
Optional Brightness None None 3,000nits 3,000nits 3,000nits 3,000nits
Viewing Distance > 1 m > 1 m > 2 m > 2 m > 2 m > 3 m
Scan Mode 1/40 1/32 1/25 1/32 1/28 1/16
Brightness Control Manual/Auto/Programmable
Color Uniformity ≥97%
Color Temperate 6,500 K as standard
Colors 281 Trillion
Contrast Ratio 5000 : 1
Gray Scale 16 bit
Refresh Rate ≤3,840HZ (Configurable)
Ingress Protection IP31
Maintenance Front only
Bezel Width None
Gap Between Cabinets Seamless
Max Power Consumption 800 W/SQM
Ave Power Consumption 100-200 W/SQM
LED Life Time 100,000 Hours
Screen Angle Flat Only

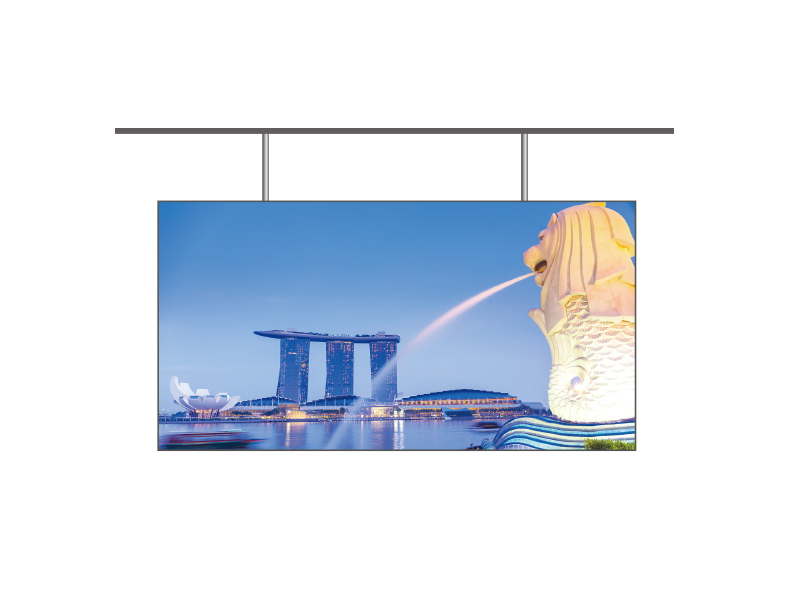

Standard Installation Method Hanging
Optional Installation Method Stacking
Visual View Angle 160°/160° (H/V)
Video Frame Rate 50/60 HZ
Input Voltage 100-240V ± 10%
Date Interconnection CAT5/6, Multi/Single-mode fiber
Operating Temperature -20~ +45 °C
Signal Input Source S-video,VGA,DVI,HDMI,SDI
Certificate CE, EMC, LVD. RoHS
Note: Specifications are for reference only and are subjected to change without notice.

D-Sides Specification

D-Sides Specification
Item Number D1.5 D1.9 D2.5 D2.6 D2.9 D3.9
Pixel Pitch 1.5625mm 1.95mm 2.5mm 2.604mm 2.9mm 3.9mm
Pixel Density 409,600pixels/㎡ 262,144 pixels/㎡ 160,000 pixels/㎡ 147,456 pixels/㎡ 102,400 pixels/㎡ 65,536 pixels/㎡
LED Type SMD1212 SMD1515 SMD1515 SMD1515 SMD1515 SMD2121
LED Configuration 1 R 1G 1B, 3 in 1 1 R 1G 1B, 3 in 1 1 R 1G 1B, 3 in 1 1 R 1G 1B, 3 in 1 1 R 1G 1B, 3 in 1 1 R 1G 1B, 3 in 1
Module Resolution 160x160 pixels 128x128 pixels 100x100 pixels 96x96 pixels 84x84 pixels 64x64 pixels
Module Dimension 250x250mm
Module Number W4 x H1
Cabinet Dimension 1000x250x53mm
Cabinet Resolution 640x160 pixels 512x128 pixels 400x100 pixels 384x96 pixels 336x84 pixels 256x64 pixels
Optional Cabinet Size 750x250mmx53mm / 500x250mmx53mm
Cabinet Weight 7.8kg
Cabinet Material Aluminum CNC Cut
Standard Brightness 800 nits 800 nits 1,000 nits 1,000 nits 1,000 nits 1,200 nits
Optional Brightness None None 3,000nits 3,000nits 3,000nits 3,000nits
Viewing Distance > 1 m > 1 m > 2 m > 2 m > 2 m > 3 m
Brightness Control Manual/Auto/Programmable
Color Uniformity ≥97%
Color Temperate 6,500 K as standard
Colors 281 Trillion
Contrast Ratio 5000 : 1
Gray Scale 16 bit
Refresh Rate ≤3,840HZ (Configurable)
Ingress Protection IP31
Maintenance Front only
Bezel Width None
Gap Between Cabinets Seamless
Max Power Consumption 800 W/SQM
Ave Power Consumption 100-200 W/SQM
LED Life Time 100,000 Hours
Screen Angle Flat Only
Standard Installation Method Hanging
Optional Installation Method Stacking
Visual View Angle 160°/160° (H/V)
Video Frame Rate 50/60 HZ
Input Voltage 100-240V ± 10%
Date Interconnection CAT5/6, Multi/Single-mode fiber
Operating Temperature -20~ +45 °C
Signal Input Source S-video,VGA,DVI,HDMI,SDI
Certificate CE, EMC, LVD. RoHS

Note: Specifications are for reference only and are subjected to change without notice.
