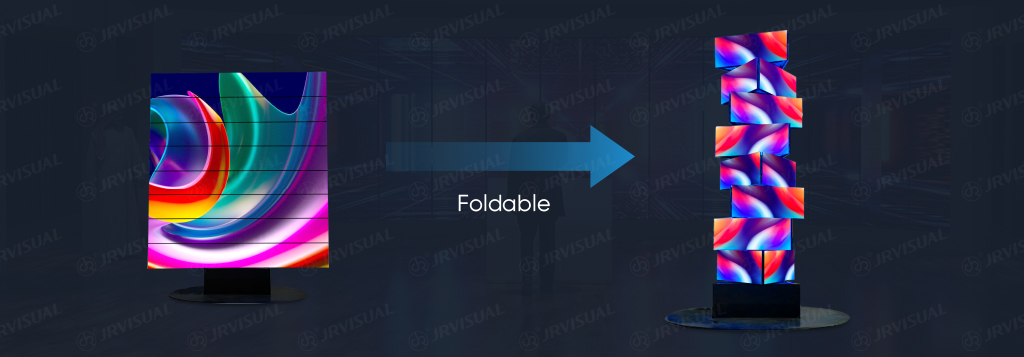

Foldable
Double-Sided Curve Kinetic DNA LED Display
Double-Sided Kinetic DNA LED Display

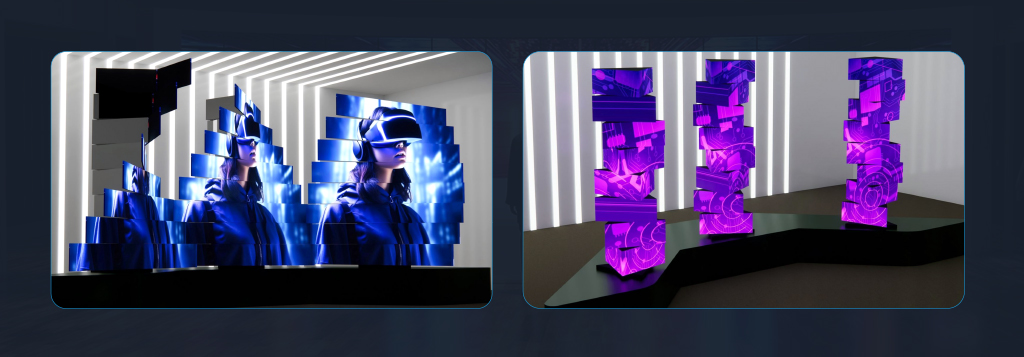

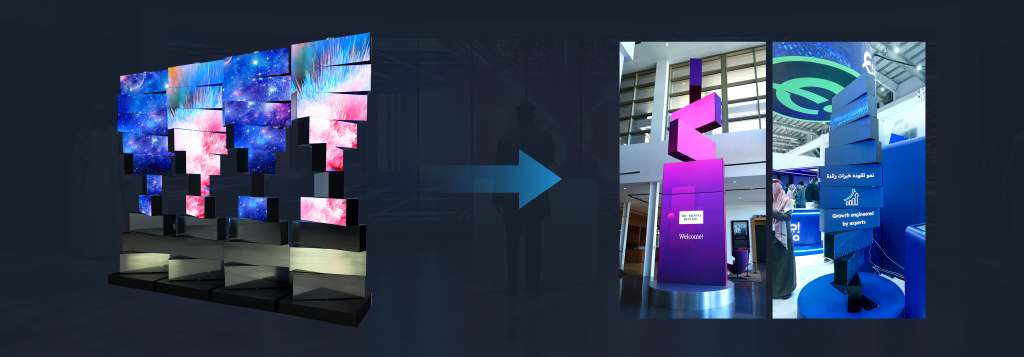

Product application cases
Copyright © 2025 JR VISUAL TEC, all rights reserved.

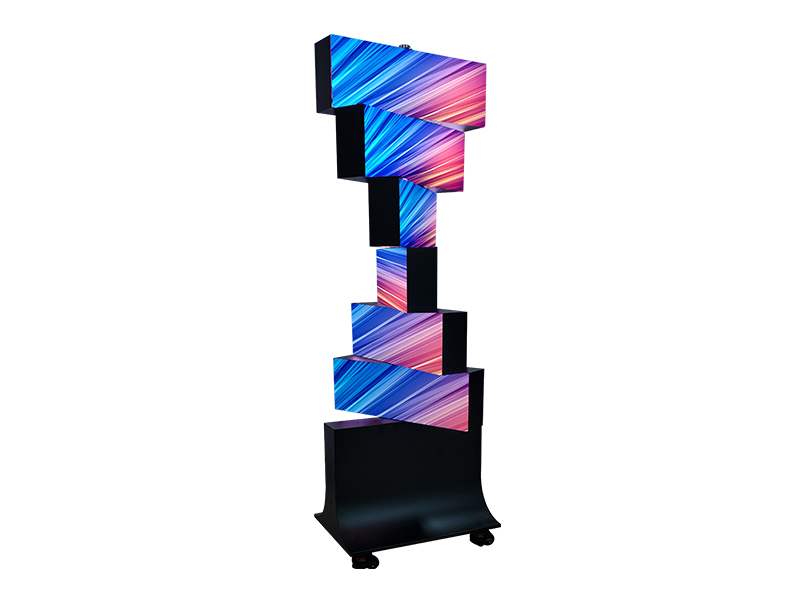

DNA Rotating LED Screen
Pixel pitch: 1.2mm, 1.5mm, 1.8mm, 1.9mm, 2mm

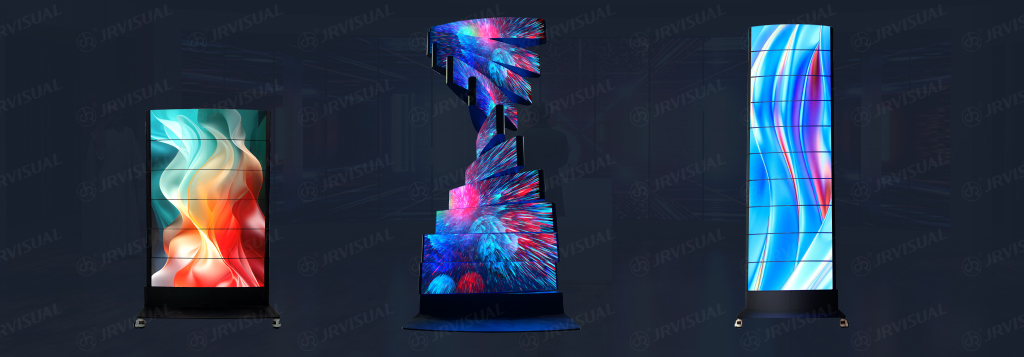

Screen model: Double sides flat screen, double sides curved screen, triangular rotating LED screen
1. Infinite rotating, 7/24 operation.
2. Flexible in size requirements, can be customized.
3. Easy front service for the LED screen part.
4. Stable and reliable, low noise.
Features
Specification

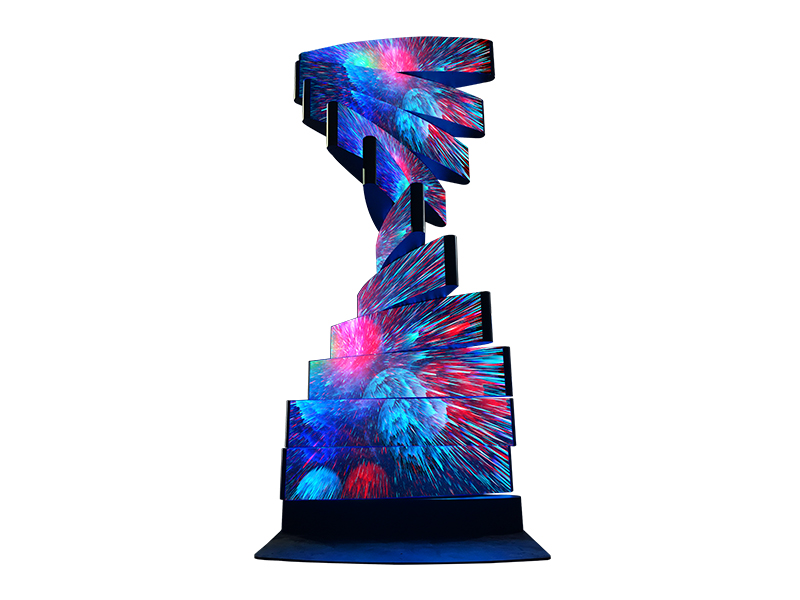

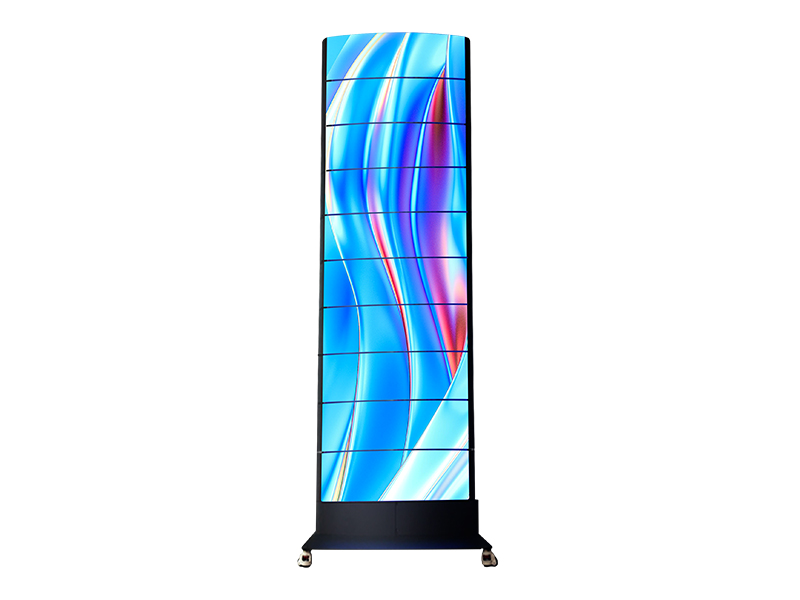

Double-Sided Curve Kinetic DNA LED Display
| Items | Description | Specification | Specification |
| Display & Dimension | LED Display Model | Indoor P2mm LED Display (Optional pixel pitch: P1.2, P1.5, P1.8) | |
| LED Module Size | 320 x 160mm Flexible LED Module | ||
| Number of the Layers | 6 (Can be Customized) | 10 (Can be Customized) | |
| Number of the Units | Multiple Units can be Spliced and Displayed Simultaneously | ||
| Each Unit Dimension | Length 1,4050mm; Thickness 280mm; Height: 2,2980mm. |
Length 1,4050mm; Thickness 280mm; Height: 3,600mm. |
|
| Display Surfaces | Double sides with Curve LED Display | ||
| Each Layer Display Size | 1,280 x 320mm | ||
| Whole Display Size | 1,280 x 1,920 mm (WxH), 2 sides | 1,280 x 3,200 mm (WxH), 2 sides | |
| Whole Display Resolution | 640x 960 pixels (WxH) x 2 | 640x 1,600 pixels (WxH) x 2 | |
| Gap between Each Layer | 2mm | 2mm | |
| Net Weight | LED Display: 258 kgs | Base: 200 kgs | LED Display: 430 kgs | Base: 25 kgs | |
| Gross Weight | LED Display: 370 kgs | Base: 260kgs | LED Display: 614 kgs | Base: 319 kgs | |
| Control & Script | Moving Range | 360° unlimited rotation | |
| Motion Mode | Built-in motion scripts (user-editable) Or with software-adjustable motion script parameters |
||
| Operation Speed | The rotation and opening/closing speeds are adjustable via the control program | ||
| Control Category | Network-based control via TCP/IP protocol | ||
| Video Binding Capability | Yes (1 video file per motion script) | ||
| Multi-Script Support | Yes (Multiple videos can be mapped to multiple motion scripts) | ||
| Protocol Support | External UDP-based invocation protocol | ||
| Self-Recovery Functionality Supported | Software-enabled automatic error detection and clearance | ||
| Power & Installation | Power Input | AC 110 ~ 240V, 50/60HZ | |
| Max. Power Consumption | 4.5 KW | 7.5 KW | |
| Signal Transmission | CAT 6 | ||
| Installation | Factory Configuration: Display panel and base shipped as separate units. Installation requires upright positioning of panel followed by screw-fastening to base |
||
Double-Sided Kinetic DNA LED Display
| Items | Description | Specification | Specification |
| Display & Dimension | LED Display Model | Indoor P1.875mm LED Display | Indoor P1.953mm LED Display |
| LED Module Size | 240 x 240mm | 250 x 250mm | |
| Number of the Layers | 10 (Can be Customized) | 10 (Can be Customized) | |
| Number of the Units | Multiple Units can be Spliced and Displayed Simultaneously | ||
| Each Unit Dimension | Length 800mm; Thickness 138mm; Height: 2720mm. |
Length 754mm; Thickness 138mm; Height: 2830mm. |
|
| Display Surfaces | Double sides with LED Display | ||
| Each Layer Display Size | 720x240mm | 750x250mm | |
| Whole Display Size | 720 x 2,400 mm (WxH), 2 sides | 750 x 2,500 mm (WxH), 2 sides | |
| Whole Display Resolution | 384x 1,280 pixels (WxH) x 2 | 384x 1,280 pixels (WxH) x 2 | |
| Gap between Each Layer | 2mm | 2mm | |
| Net Weight | LED Display: 181 kgs | Base: 83 kgs | LED Display: 190 kgs | Base: 86 kgs | |
| Gross Weight | LED Display: 249 kgs | Base: 115kgs | LED Display: 265 kgs | Base: 121 kgs | |
| Control & Script | Moving Range | 360° unlimited rotation | |
| Motion Mode | Built-in motion scripts (user-editable) Or with software-adjustable motion script parameters |
||
| Operation Speed | The rotation and opening/closing speeds are adjustable via the control program | ||
| Control Category | Network-based control via TCP/IP protocol | ||
| Video Binding Capability | Yes (1 video file per motion script) | ||
| Multi-Script Support | Yes (Multiple videos can be mapped to multiple motion scripts) | ||
| Protocol Support | External UDP-based invocation protocol | ||
| Self-Recovery Functionality Supported | Software-enabled automatic error detection and clearance | ||
| Power & Installation | Power Input | AC 110 ~ 240V, 50/60HZ | |
| Max. Power Consumption | 3.5 KW | ||
| Signal Transmission | CAT 6 | ||
| Installation | Factory Configuration: Display panel and base shipped as separate units. Installation requires upright positioning of panel followed by screw-fastening to base |
||
