Various panel size
Multiple installation styles
Creative design

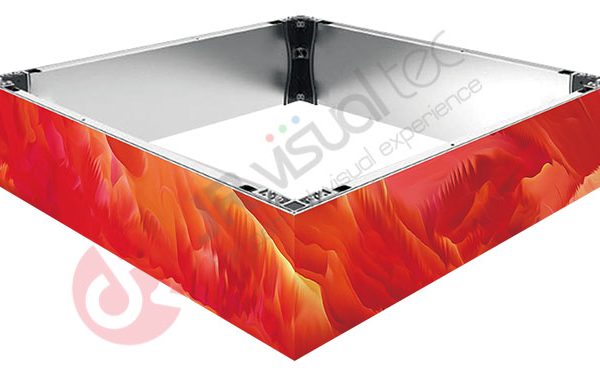

90 degree design, Seamless right-angle installation.

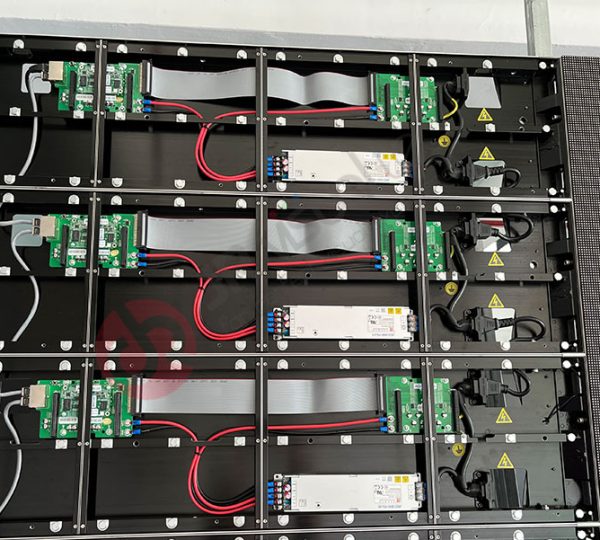

Easy for service
Product application cases
Copyright © 2025 JR VISUAL TEC, all rights reserved.
iBand plus – Indoor Fixed Installation LED Display
Pixel pitch: 1.5mm, 1.9mm, 2.5mm, 2.6mm, 3.9mm.
Cabinet size: 1000x500mm, 750x500mm, 500x500mm, 1000x250mm, 750x250mm, 500x250mm.
1. Wide range of pixel pitch and cabinet size options.
2. Fire proof test approved, EN13501.
3. Flat, curve, cubes LED screen shapes all possible.
4. Only 33mm cabinet thickness, super slim design.
5. Easy front service and front installation.
Features
iBand plus Features
Specification
iBand plus Specification
| iBand plus Specification | |||
| Item Number | iBp1.9 | iBp2.5 | iBp2.6 |
| Pixel Pitch | 1.95mm | 2.5mm | 2.6mm |
| Pixel Density | 262,144 pixels/㎡ | 160,000 pixels/㎡ | 147,456 pixels/㎡ |

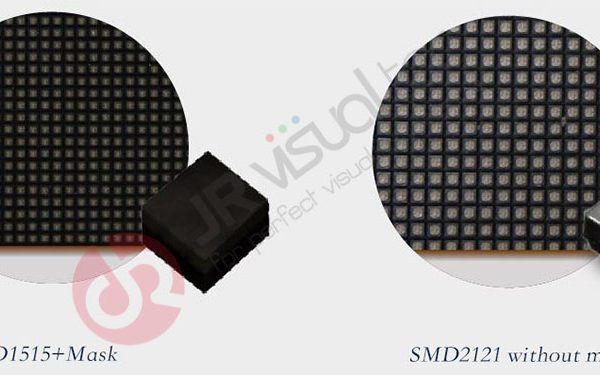

| LED Type | SMD1212 | SMD1515 | SMD1515 |
| LED Configuration | 1 R 1G 1B, 3 in 1 | 1 R 1G 1B, 3 in 1 | 1 R 1G 1B, 3 in 1 |
| Module Resolution | 128x128 pixels | 100x100 pixels | 96x96 pixels |
| Module Dimension | 250x250mm | 250x250mm | 250x250mm |
| Module Weight | 0.36g | 0.33g | 0.33g |
| Module Number | W4 x H2 | W4 x H2 | W4 x H2 |
| Cabinet Dimension | 1000x500x30mm | 1000x500x30mm | 1000x500x30mm |
| Cabinet Resolution | 512x256 pixels | 400x200 pixels | 384x192 pixels |
| Optional Cabinet Size | 500x500mmx30mm 250x500mmx30mm |
500x500mmx30mm 250x500mmx30mm |
500x500mmx30mm 250x500mmx30mm |
| Cabinet Weight | 9.5kg | 10kg | 10kg |
| Cabinet Material | Aluminum CNC Cut | Aluminum CNC Cut | Aluminum CNC Cut |
| Standard Brightness | 800-1,000 nits | 800-1,000 nits | 800-1,000 nits |
| Optional Brightness | 2,000nits | 3,000nits | 3,000nits |
| Brightness Control | Manual/Auto/Programmable | Manual/Auto/Programmable | Manual/Auto/Programmable |
| Color Temperate | 6,500 K as standard | 6,500 K as standard | 6,500 K as standard |
| Colors | 281 Trillion | 281 Trillion | 281 Trillion |
| Contrast Ratio | 3000 : 1 | 5000 : 1 | 5000 : 1 |
| Gray Scale | 16 bit | 16 bit | 16 bit |
| Refresh Rate | ≤3,840HZ (Configurable) | ≤3,840HZ (Configurable) | ≤3,840HZ (Configurable) |
| Viewing Distance | > 1 m | > 2m | > 2m |
| Ingress Protection | IP20 | IP20 | IP20 |
| Maintenance | Front only | Front only | Front only |
| Bezel Width | None | None | None |
| Gap Between Cabinets | Seamless | Seamless | Seamless |
| Max Power Consumption | 435 W/m2 | 400 W/m2 | 400 W/m2 |
| Ave Power Consumption | 130 W/m2 | 120 W/m2 | 120 W/m2 |
| LED Life Time | 100,000 Hours | 100,000 Hours | 100,000 Hours |
| Screen Angle | Flat, 90°, concave or convex | Flat, 90°, concave or convex | Flat, 90°, concave or convex |
| Standard Installation Method | Direct Wall Mounting | Direct Wall Mounting | Direct Wall Mounting |
| Optional Installation Method | Stacking | Stacking | Stacking |
| Visual View Angle | 160°/140° (H/V) | 160°/140° (H/V) | 160°/140° (H/V) |
| Video Frame Rate | 50/60 HZ | 50/60 HZ | 50/60 HZ |
| Input Voltage | 100-240V ± 10% | 100-240V ± 10% | 100-240V ± 10% |
| Date Interconnection | CAT5/6, Multi/Single-mode fiber | CAT5/6, Multi/Single-mode fiber | CAT5/6, Multi/Single-mode fiber |
| Operating Temperature | -20~ +45 °C | -20~ +45 °C | -20~ +45 °C |
| Signal Input Source | S-video,VGA,DVI,HDMI,SDI | S-video,VGA,DVI,HDMI,SDI | S-video,VGA,DVI,HDMI,SDI |
| Certificate | CE, ETL, FCC, EMC | CE, ETL, FCC, EMC | CE, ETL, FCC, EMC |
| Note: Specifications are for reference only and are subjected to change without notice. | |||
