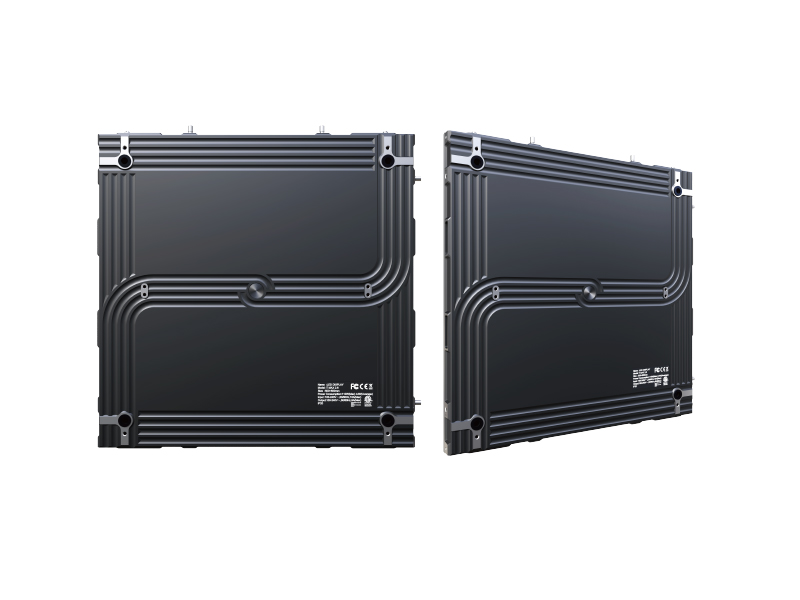

iBand plus – Indoor Fixed Installation LED Display

Pixel pitch: 1.5mm, 1.9mm, 2.5mm, 2.6mm, 3.9mm.
Cabinet size: 1000x500mm, 750x500mm, 500x500mm, 1000x250mm, 750x250mm, 500x250mm.

1. Wide range of pixel pitch and cabinet size options.
2. Fire proof test approved, EN13501.
3. Flat, curve, cubes LED screen shapes all possible.
4. Only 33mm cabinet thickness, super slim design.
5. Easy front service and front installation.

Request a Quote

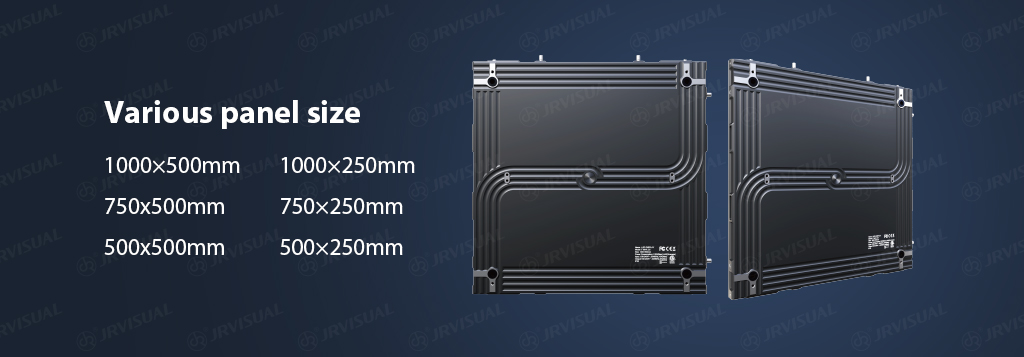

Various panel size

Focused on Various panel sizes, the iBand plus Indoor Fixed Installation LED Display stands out for its flexible dimension options. It covers a range of sizes: 1000x500mm, 1000x250mm, 750x500mm, 750x250mm, 500x500mm, and 500x250mm. This broad selection lets the LED product match diverse indoor project requirements, from compact displays to larger setups. Whether you need a sleek small screen or a sprawling visual wall, this LED Display adapts smoothly. Beyond just fitting spaces, its varied panels also support seamless splicing for custom configurations.

iBand plus Description 1

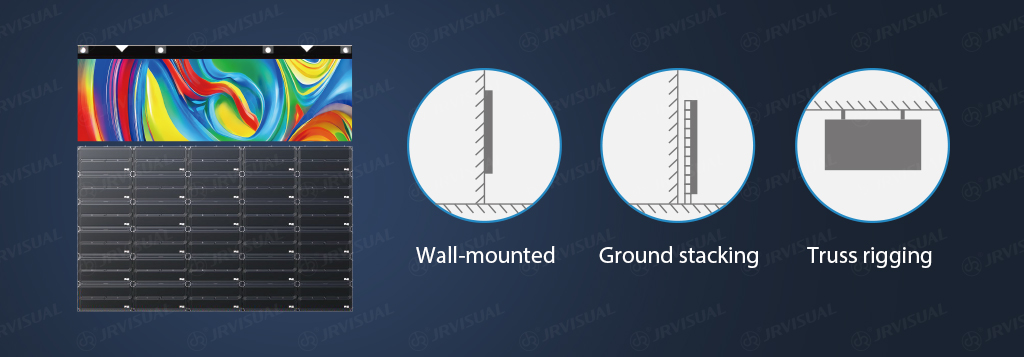

Multiple installation styles

Built around Multiple installation styles, the iBand plus Indoor Fixed Installation LED Display offers versatile setup options. These include wall-mounted, ground-stacking, and truss-rigging configurations. This flexibility lets the LED product adapt to diverse indoor spaces, from retail floors to event venues. For example, wall mounting saves floor space, while ground stacking is suitable for temporary setups. What’s more, truss rigging also works for elevated, eye-catching displays.

iBand plus Description 2

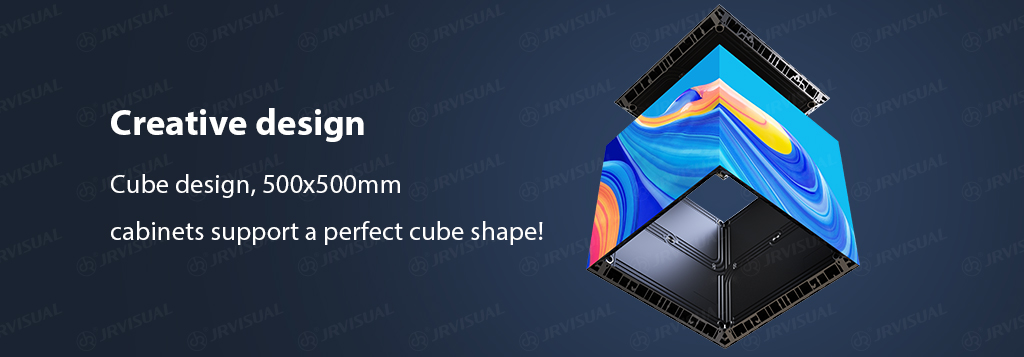

Creative design

Centred on Creative design, the iBand plus Indoor Fixed Installation LED Display leans into unique visual setups. It uses 500x500mm cabinets to support a polished cube shape. This design lets the LED product break away from standard flat-display formats. For indoor spaces like exhibitions or brand lobbies, it adds a dynamic 3D visual layer. Beyond basic displays, this LED Display opens up options for showcasing artistic content. Its cube configuration brings fresh, engaging flair to indoor installations.

iBand plus Description 3

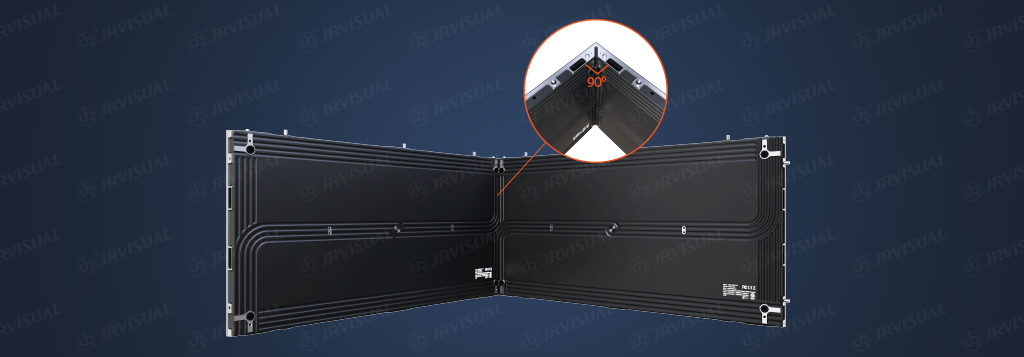

90 degree design, Seamless right-angle installation.

Built around 90 degree design, Seamless right-angle installation, the iBand plus Indoor Fixed Installation LED Display excels at corner setups. It features a 90-degree cabinet design that enables smooth right-angle connections. This design eliminates gaps when the LED product is installed at corners. For indoor spaces with angular walls, it creates continuous, cohesive visuals. Beyond flat layouts, this LED Display adapts to cornered areas without breaking display continuity. Its seamless right-angle fit adds flexibility to indoor installation configurations.

iBand plus Description 4

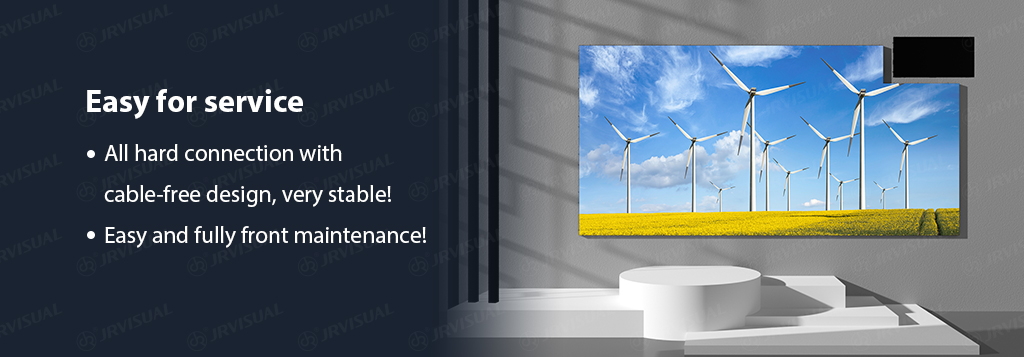

Easy for service

Focused on Easy service, the iBand plus Indoor Fixed Installation LED Display simplifies upkeep. It uses an all-hard connection with a cable-free design, boosting stability. This setup cuts down on wiring issues that can disrupt the LED product. What’s more, it supports full front maintenance—no need to access the display’s back. For indoor setups, this means faster, more convenient servicing of the LED Display. Its user-friendly design keeps maintenance hassle-free during daily use.

iBand plus Description 5

Product application cases

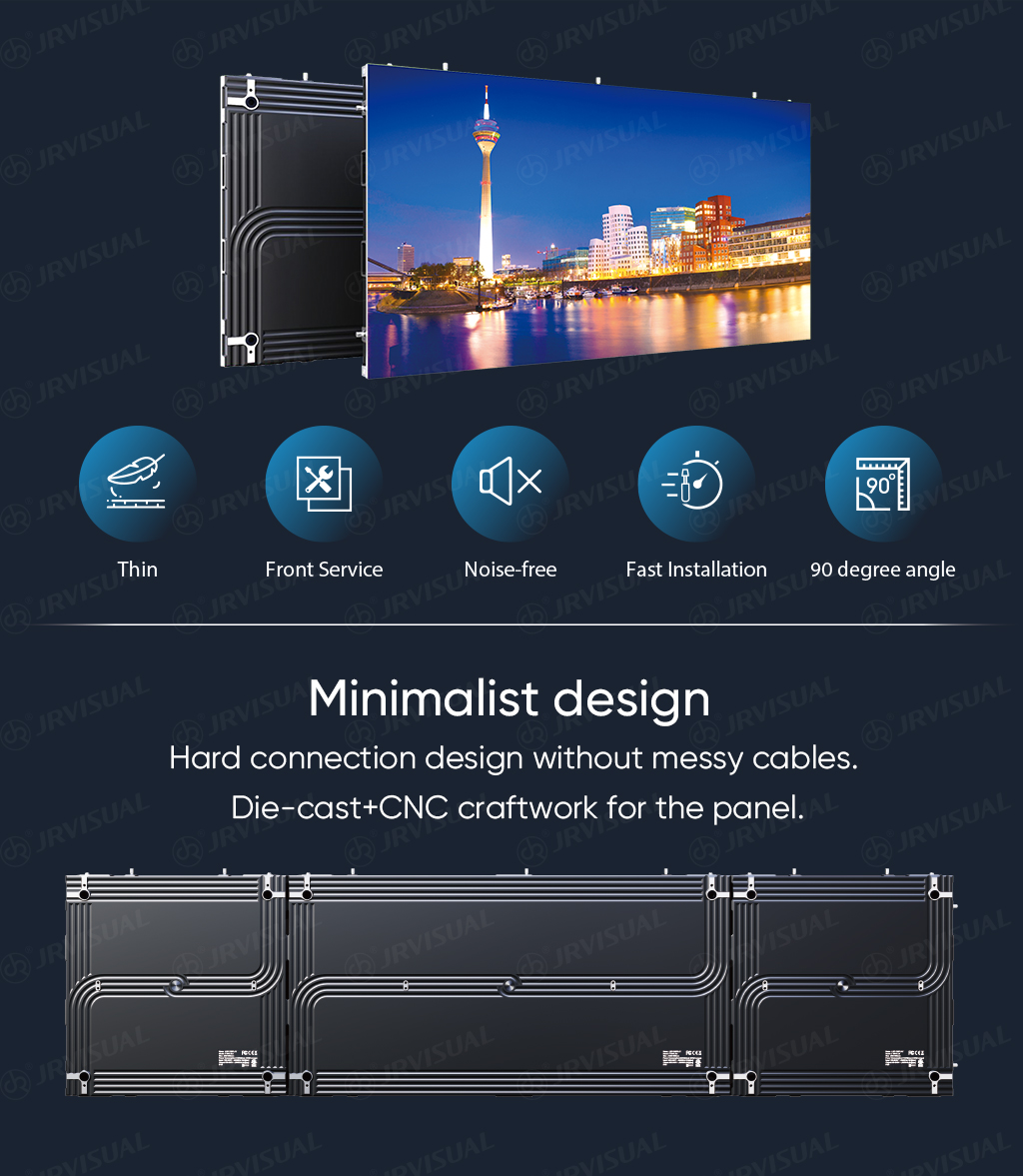

Features

iBand plus Features

When exploring the iBand Plus's Features and Minimalist design, its strengths shine through. It uses a cable-free hard connection, ditching messy wiring for a tidier setup. The panel uses die-cast + CNC craftwork, delivering a sleek, unified finish. This LED product also offers perks such as a thin design, front service, and quiet operation. Fast installation and 90-degree angle support further enhance its indoor adaptability. It merges clean aesthetics with practical, day-to-day functionality.


iBand plus Features



Specification

iBand plus Specification

iBand plus Specification
Item Number iBp1.9 iBp2.5 iBp2.6
Pixel Pitch 1.95mm 2.5mm 2.6mm
Pixel Density 262,144 pixels/㎡ 160,000 pixels/㎡ 147,456 pixels/㎡
LED Type SMD1212 SMD1515 SMD1515
LED Configuration 1 R 1G 1B, 3 in 1 1 R 1G 1B, 3 in 1 1 R 1G 1B, 3 in 1
Module Resolution 128x128 pixels 100x100 pixels 96x96 pixels
Module Dimension 250x250mm 250x250mm 250x250mm
Module Weight 0.36g 0.33g 0.33g
Module Number W4 x H2 W4 x H2 W4 x H2
Cabinet Dimension 1000x500x30mm 1000x500x30mm 1000x500x30mm
Cabinet Resolution 512x256 pixels 400x200 pixels 384x192 pixels
Optional Cabinet Size 500x500mmx30mm
250x500mmx30mm		 500x500mmx30mm
250x500mmx30mm		 500x500mmx30mm
250x500mmx30mm
Cabinet Weight 9.5kg 10kg 10kg
Cabinet Material Aluminum CNC Cut Aluminum CNC Cut Aluminum CNC Cut
Standard Brightness 800-1,000 nits 800-1,000 nits 800-1,000 nits
Optional Brightness 2,000nits 3,000nits 3,000nits
Brightness Control Manual/Auto/Programmable Manual/Auto/Programmable Manual/Auto/Programmable
Color Temperate 6,500 K as standard 6,500 K as standard 6,500 K as standard
Colors 281 Trillion 281 Trillion 281 Trillion
Contrast Ratio 3000 : 1 5000 : 1 5000 : 1
Gray Scale 16 bit 16 bit 16 bit
Refresh Rate ≤3,840HZ (Configurable) ≤3,840HZ (Configurable) ≤3,840HZ (Configurable)
Viewing Distance > 1 m > 2m > 2m
Ingress Protection IP20 IP20 IP20
Maintenance Front only Front only Front only
Bezel Width None None None
Gap Between Cabinets Seamless Seamless Seamless
Max Power Consumption 435 W/m2 400 W/m2 400 W/m2
Ave Power Consumption 130 W/m2 120 W/m2 120 W/m2
LED Life Time 100,000 Hours 100,000 Hours 100,000 Hours
Screen Angle Flat, 90°, concave or convex Flat, 90°, concave or convex Flat, 90°, concave or convex
Standard Installation Method Direct Wall Mounting Direct Wall Mounting Direct Wall Mounting
Optional Installation Method Stacking Stacking Stacking
Visual View Angle 160°/140° (H/V) 160°/140° (H/V) 160°/140° (H/V)
Video Frame Rate 50/60 HZ 50/60 HZ 50/60 HZ
Input Voltage 100-240V ± 10% 100-240V ± 10% 100-240V ± 10%
Date Interconnection CAT5/6, Multi/Single-mode fiber CAT5/6, Multi/Single-mode fiber CAT5/6, Multi/Single-mode fiber
Operating Temperature -20~ +45 °C -20~ +45 °C -20~ +45 °C
Signal Input Source S-video,VGA,DVI,HDMI,SDI S-video,VGA,DVI,HDMI,SDI S-video,VGA,DVI,HDMI,SDI
Certificate CE, ETL, FCC, EMC CE, ETL, FCC, EMC CE, ETL, FCC, EMC
Note: Specifications are for reference only and are subjected to change without notice.
