iBand pro – High-end Indoor LED Display

Pixel pitch: 1.5mm, 1.9mm, 2.5mm, 2.6mm, 3.9mm.
Cabinet size: 1000x500mm, 750x500mm, 500x500mm, 1000x250mm, 750x250mm, 500x250mm.

1. Compatible for Novastar, Colorlight and Bromptom control system.
2. Corner cabinet available for creative shapes installation.
3. Additional base structure supports LED poster application.
4. Only 33mm cabinet thickness, super slim design.
5. Easy front service and front installation.

Request a Quote

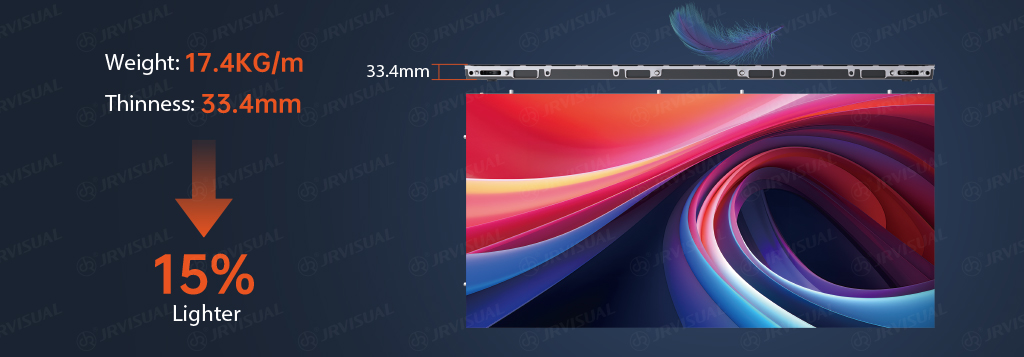

Lightweight and High-Strength Design

The cabinet features a lightweight structure with reduced thickness and weight, making it easy to transport and install. lt has passed extreme tensile strength tests without cracking, balancing portability with structural durability.

iBand pro Description 1

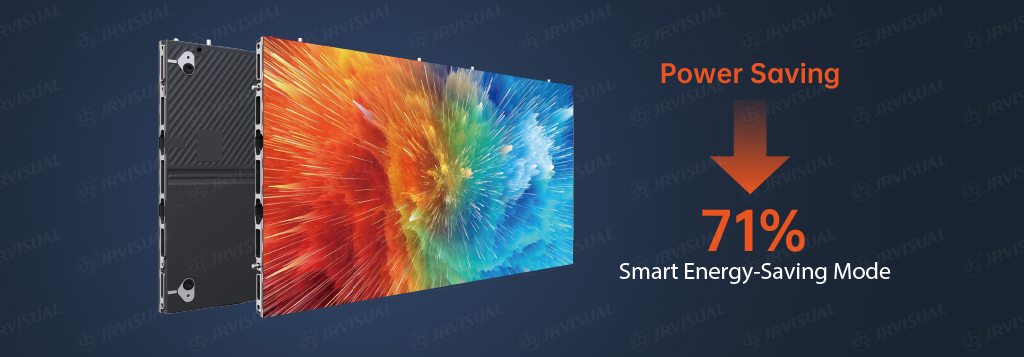

Smart Energy-Saving Design

The screen-off power-saving mode effectively reduces energy consumption and electricity costs while extending product lifespan and improving system stability and reduce maintenance.

iBand pro Description 2

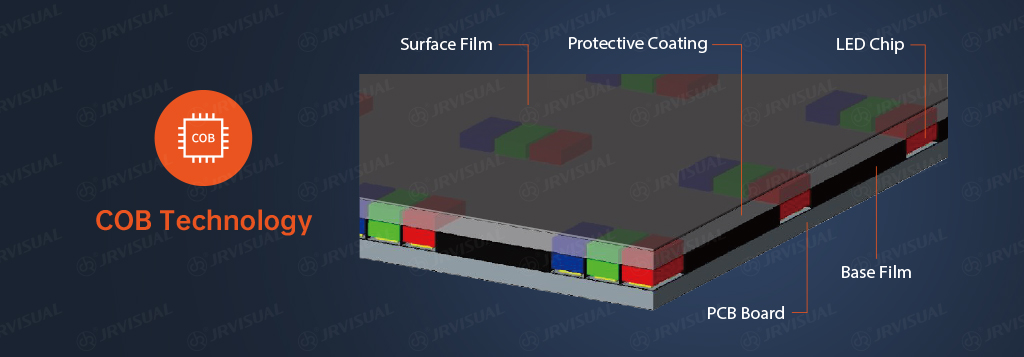

COB Module Compatible

The iBand Pro supports both SMD modules and high-standard COB modules, ensuring compatibility with mainstream technologies and applications while significantly enhancing system flexibility and functionality.

iBand pro Description 3

Supports Intelligent Calibration and Brompton System

Equipped with intelligent calibration for automatic brightness, color, and geometry adjustments to enhance image consistency. Integrated with Brompton image processing, supporting high-resolution input and seamless multi-screen splicing to ensure stable and professional display performance.

iBand pro Description 4

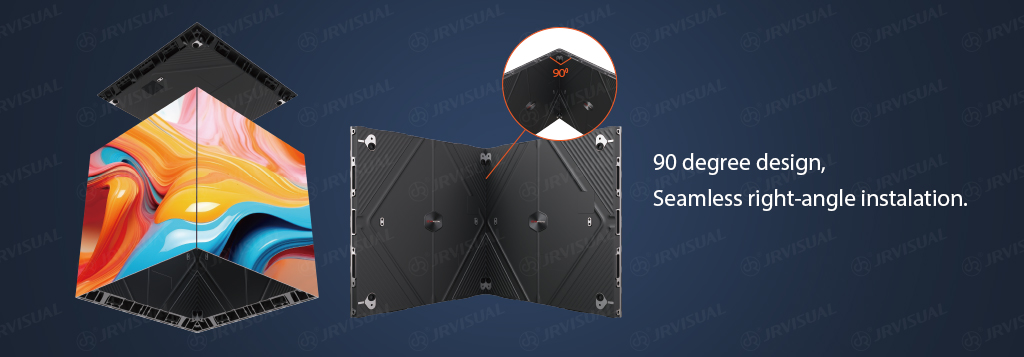

Creative design

Cube design, 500x500mm Cabinets support a perfect cube shape!

Creative design Cube design, 500x500mm cabinets support a perfect cube shape!

Product application cases

Features

iBand Pro Features

iBand plus Features

Specification

iBand Pro Specification

iBand Pro Specification
Item Number iBand Pro P1.9 iBand Pro P2.6
Pixel Pitch 1.95mm 2.6mm
Pixel Density 262,144 pixels/㎡ 147,456 pixels/㎡
LED Type SMD1212 SMD1515
LED Configuration 1 R 1G 1B, 3 in 1 1 R 1G 1B, 3 in 1
Module Resolution 128x128 pixels 96x96 pixels
Module Dimension 250x250mm 250x250mm
Module Weight 0.5g 0.5g
Module Thickness 2.6mm 2.6mm
Module Number W4 x H2 W4 x H2
Cabinet Dimension 1000x500x33.4mm 1000x500x33.4mm
Cabinet Resolution 512x256 pixels 384x192 pixels
Optional Cabinet Size 750x500mmx33.4mm
500x500mmx33.4mm
1000x250mmx33.4mm
750x250mmx33.4mm
500x250mmx33.4mm
250x250mmx33.4mm		 750x500mmx33.4mm
500x500mmx33.4mm
1000x250mmx33.4mm
750x250mmx33.4mm
500x250mmx33.4mm
250x250mmx33.4mm
Cabinet Weight 17.4kg/sqm 17.4kg/sqm
Cabinet Material Aluminum CNC Cut Aluminum CNC Cut
Standard Brightness 800-1,000 nits 800-1,000 nits
Optional Brightness 3,000nits 3,000 - 3,500nits
Brightness Control Manual/Auto/Programmable Manual/Auto/Programmable
Color Temperate 6,500 K as standard 6,500 K as standard
Colors 281 Trillion 281 Trillion
Contrast Ratio 8000 : 1 8000 : 1
Gray Scale 16 bit 16 bit
Refresh Rate 7,680HZ (Configurable) 7,680HZ (Configurable)
Viewing Distance > 1 m > 2m
Ingress Protection IP20 IP20
Maintenance Front only Front only
Bezel Width None None
Gap Between Cabinets Seamless Seamless
Max Power Consumption 400-540±3%W/㎡ 400-540±3%W/㎡
Ave Power Consumption 120-180W/㎡ 120-180W/㎡
LED Life Time 100,000 Hours 100,000 Hours
Screen Angle Flat, 90°, concave or convex Flat, 90°, concave or convex
Standard Installation Method Direct Wall Mounting Direct Wall Mounting
Optional Installation Method Stacking Stacking
Visual View Angle 160°/140° (H/V) 160°/140° (H/V)
Video Frame Rate 50/60 HZ 50/60 HZ
Input Voltage 100-240V ± 10% 100-240V ± 10%
Date Interconnection CAT5/6, Multi/Single-mode fiber CAT5/6, Multi/Single-mode fiber
Operating Temperature -20~ +45 °C -20~ +45 °C
Signal Input Source S-video,VGA,DVI,HDMI,SDI S-video,VGA,DVI,HDMI,SDI
Certificate CE, ETL, FCC, EMC A CE, ETL, FCC, EMC A
Note: Specifications are for reference only and are subjected to change without notice.
