Pixel pitch: 1.5mm, 1.9mm, 2.6mm
Module size: 250x250mm
Cabinet size: Customized Steel cabinet
1. Modular design with standard 250x250mm modules.

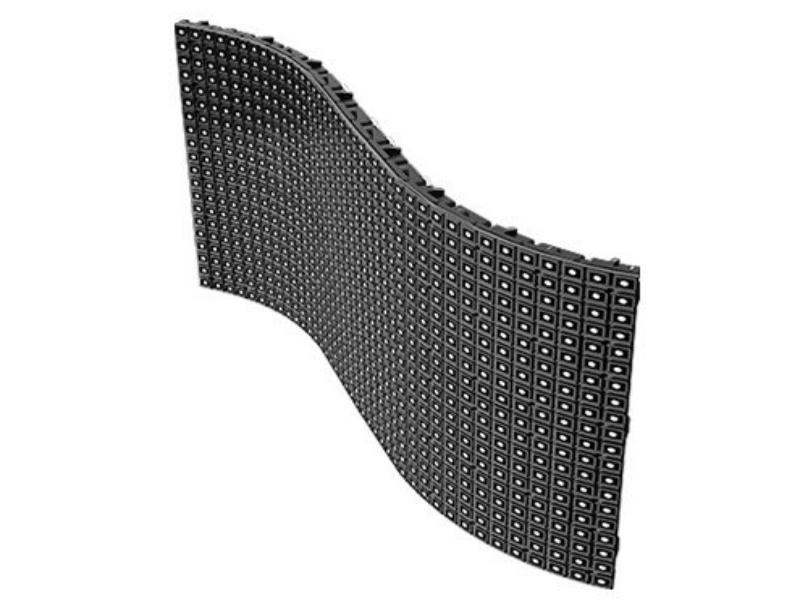

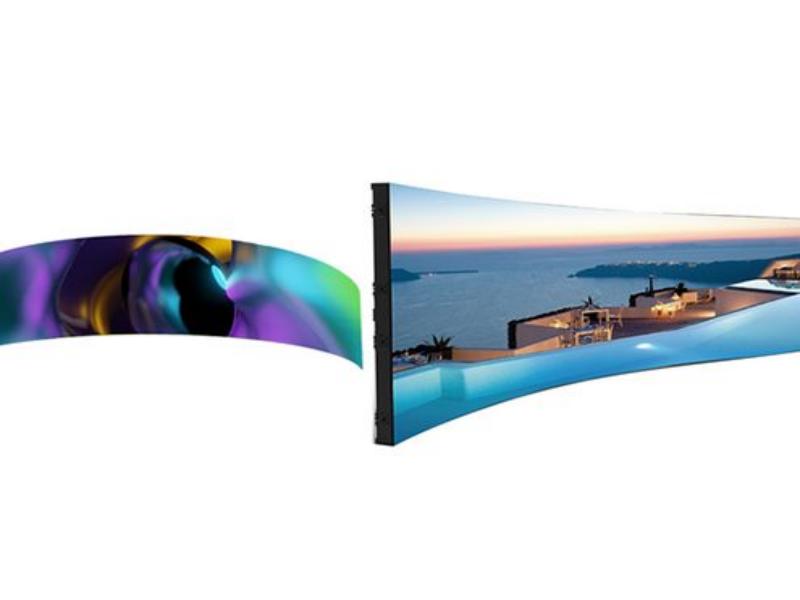

2. Support only curve in one direction.

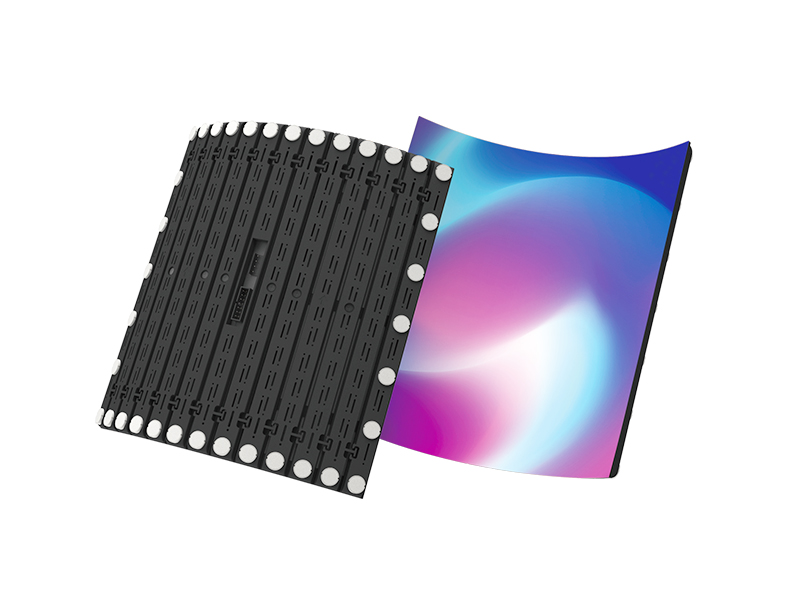

3. Strong magnetic design for super flat screen.
4. Small pixel pitch start from 1.5mm.

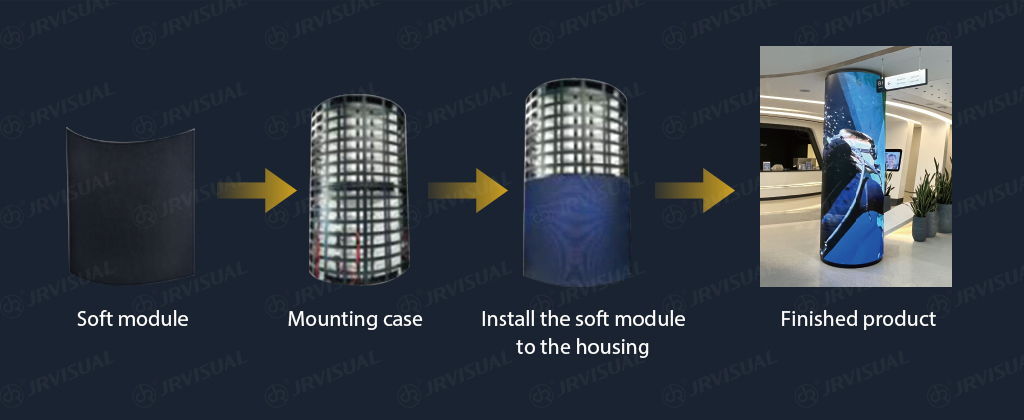

5. Min. 80mm cabinet thickness for curve screen installation.

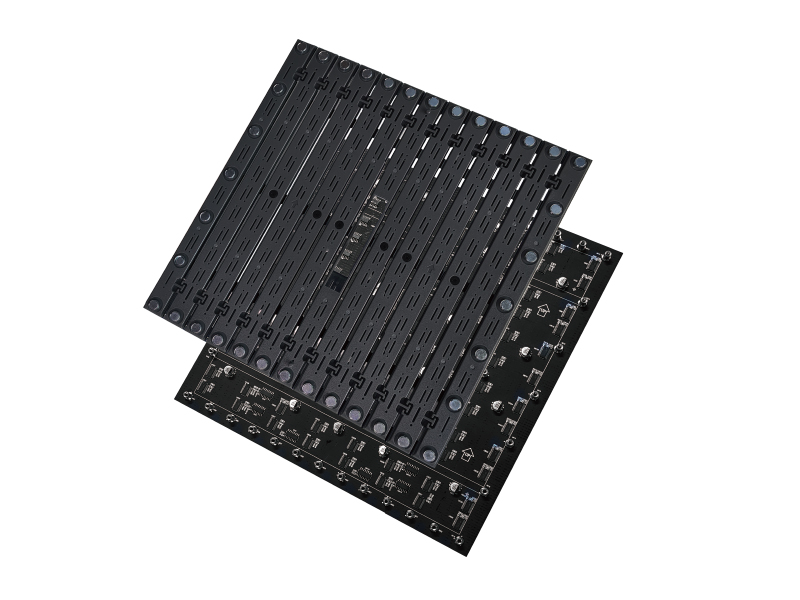

Strengthen the rear cover to prevent dust erosion
The magnets is adjustable and perfectly fit into the cabinet to present stunning visual performance.
| Model | iF1.5 | iF1.9 | iF2.6 |
| Pixel Pitch | 1.56mm | 1.953mm | 2.604mm |
| Pixel Density (pixels/m²) | 409,600 | 262,144 | 147,456 |
| LED Type | SMD1212 | SMD1515 | SMD1515 |
| LED Configuration | 1R 1G 1B | ||
| Module Material | Plastic with magnets | ||
| Module Surface Treatment | No mask (GOB optional) | ||
| Module Connector Type | HUB75 | ||
| Module Size (WxHxD) | 250x250 x11.2 mm | ||
| Cabinet Size (mm) | Customized based on standard module size / Steel cabinet | ||
| Module Resolution (pixels) | 160x160 | 128x128 | 96x96 |
| Module Weight (g) | 480 | 500 | 450 |
| Module Bending Angle | 171° - 180° | 169° - 180° | 169° - 180° |
| Min Bending Diameter | 1592mm | 1273mm | 1273mm |
| Brightness (nits) | 650-700 | 700-750 | 650-700 |
| Recommend Viewing Distance | 1-30m | 2-30m | 2-30m |
| Max. Power Consumption (W) | 480 | 500 | 490 |
| Avg. Power Consumption (W) | 140 | 143 | 140 |
| Scan Mode | 1/40 | 1/32 | 1/32 |
| Refresh Rate (HZ) | 1,920 - 3,840 | ||
| Color Temperature | 6,500 K as standard (3,200-9,000K adjustable) | ||
| Contrast Ratio | 5000 : 1 | ||
| Frame Frequency (HZ) | 50/60 | ||
| AC Input Voltage | 110-220V ±10% | ||
| Viewing Angle (°) | 160 / 140 (H/V) | ||
| Operating Temperature (°C) | -10°C~+50°C | ||
| Storage Temperature (°C) | -20°C~+60°C | ||
| Operating Humidity | 20%~75% | ||
| Dead Pixel Rate | <0.0003 | ||
| Lift Span | 100,000 hours | ||
| Ingress Protection | IP31 | ||
| Operating Environment | Indoor use only | ||
| Service | Front/Rear access | ||
