Pixel pitch: 0.9mm, 1.2mm, 1.5mm, 1.8mm, 2mm, 2.5mm, 3mm.
Module size: 240x120mm, 320x160mm.
Cabinet size: Customized Steel cabinet.
1. Modular design with two different module size.

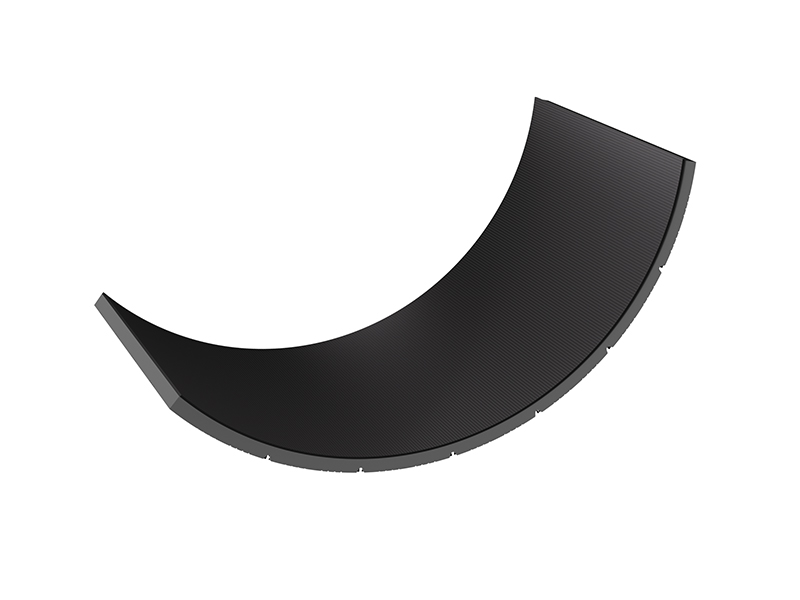

2. Rubber module cover for strong flexbilites in screen shapes.

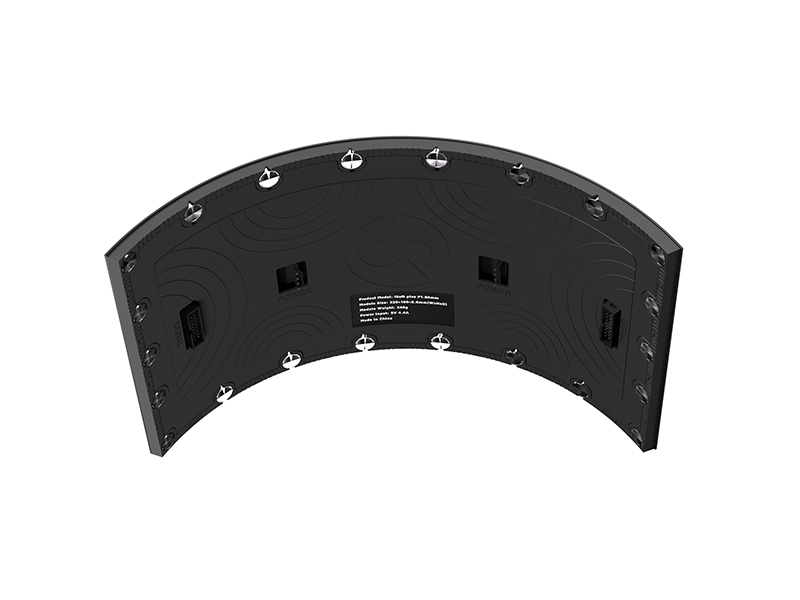

3. Strong magnetic design for super flat screen.
4. Small pixel pitch start from 0.9mm.
5. Min. 80mm cabinet thickness for curve screen installation.

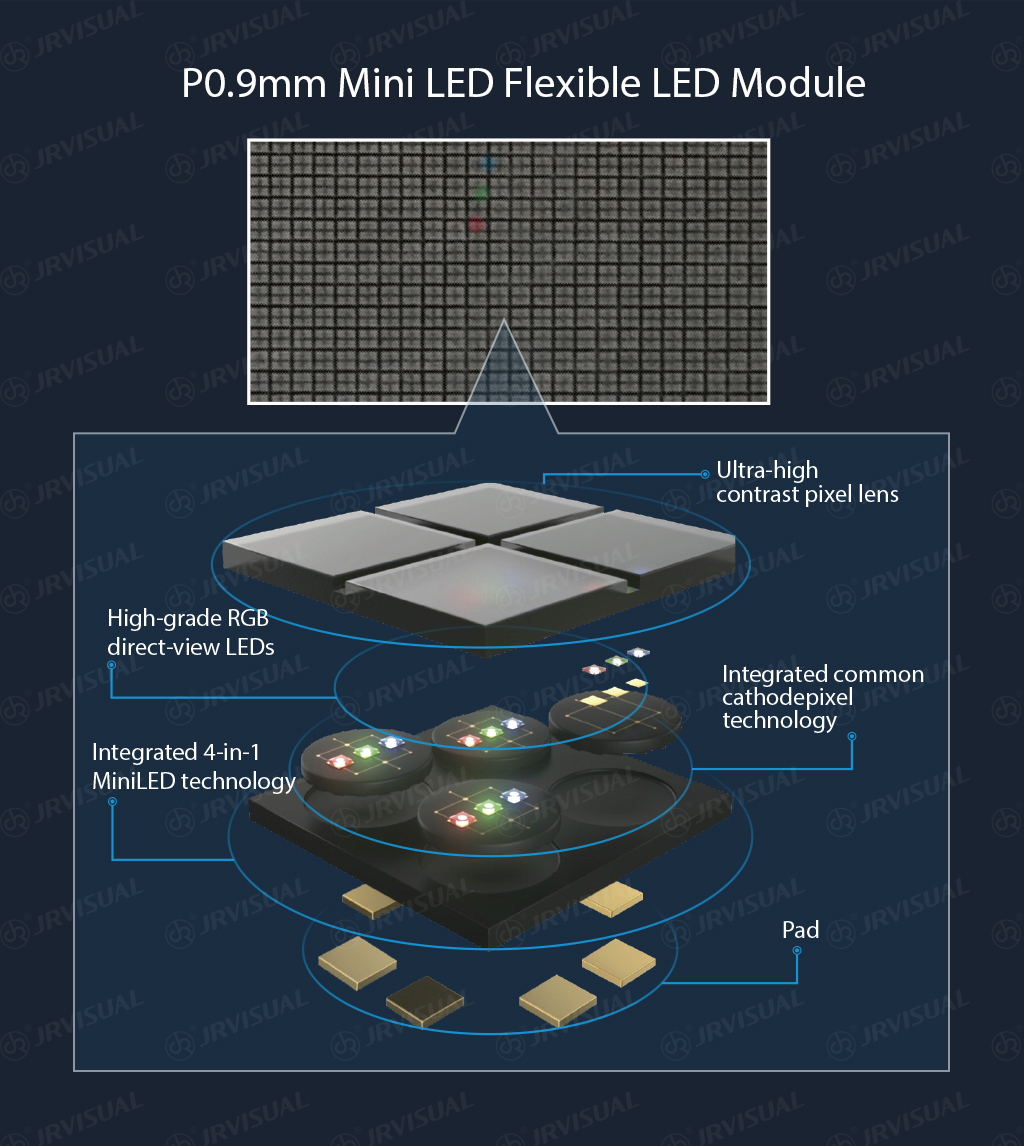

6. Mini 4 in 1 LED technology and COB technology available for P0.9mm.

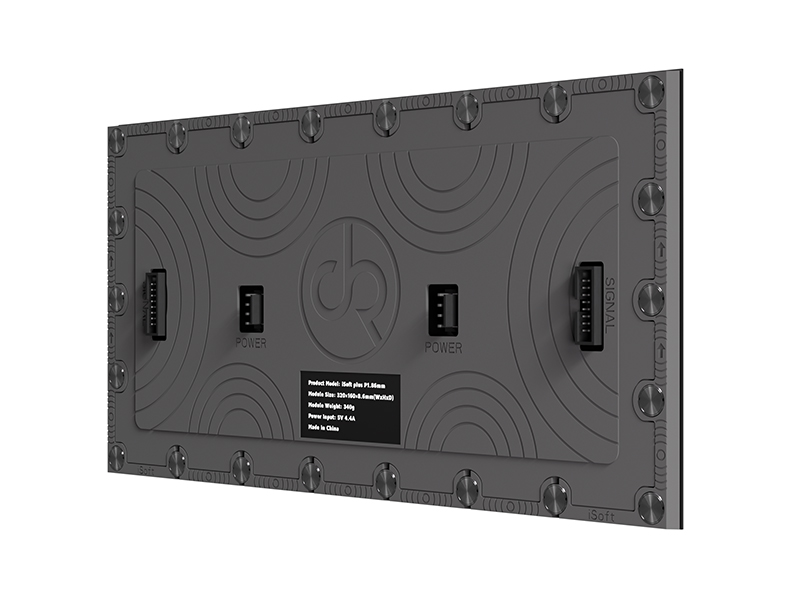

Strong magnets for seamless LED video screen and more flexibilities in different shapes.
| Model | ST0.9 | ST1.25 | ST1.579 | ST1.875 | ST2 | ST2.5 | ST3 | ST4 |
| Pixel Pitch | 0.9375mm | 1.25mm | 1.579mm | 1.875mm | 2mm | 2.5mm | 3mm | 4mm |
| Pixel Density (pixels/m²) | 1,137,777 | 640,000 | 401,110 | 284,444 | 250,000 | 160,000 | 111,111 | 62,500 |
| LED Type | Mini LED 4 in 1 | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| LED Configuration | 1R 1G 1B | |||||||
| Module Material | Rubber with magnets | |||||||
| Module Size (WxHxD) | 240x120x8.6 mm | |||||||
| Cabinet Size (mm) | Customized based on standard module size | |||||||
| Module Resolution (pixels) | 256x128 | 192x96 | 152x76 | 128x64 | 120x60 | 96x48 | 80x40 | 60x30 |
| Module Weight (g) | 220 | 220 | 210 | 217 | 210 | 190 | 190 | 175 |
| Module Bending Angle | 169° - 180° | 169° - 180° | 165° - 180° | 158° - 180° | 158° - 180° | 135° - 180° | 135° - 180° | 135° - 180° |
| Min Bending Diameter | 1222mm | 1222mm | 917mm | 611mm | 611mm | 306mm | 306mm | 306mm |
| Recommend Viewing Distance | 1-30m | 1-30m | 1-30m | 1-30m | 2-30m | 2-30m | 3-30m | 3-30m |
| Brightness (nits) | 500-550 | 600-650 | 700-750 | 750-800 | 750-800 | 750-800 | 750-800 | 800-850 |
| Refresh Rate (HZ) | 3,840 | 3,840 | 3,840 | 3,840 | >1,920 | >1,920 | >1,920 | >1,920 |
| Max. Power Consumption (W) | 572 | 560 | 490 | 490 | 490 | 460 | 440 | 460 |
| Avg. Power Consumption (W) | 160 | 160 | 140 | 140 | 140 | 130 | 125 | 130 |
| Color Temperature | 6,500 K as standard (3,200-9,000K adjustable) | |||||||
| Frame Frequency (HZ) | 50/60 | |||||||
| AC Input Voltage | 110-220V ±10% | |||||||
| Viewing Angle (°) | 120 (H/V) | |||||||
| Operating Temperature (°C) | -10°C~+40°C | |||||||
| Storage Temperature (°C) | -20°C~+50°C | |||||||
| Operating Humidity | 10%~95% | |||||||
| Dead Pixel Rate | <0.0003 | |||||||
| Lift Span | 100,000 hours | |||||||
| Ingress Protection | IP20 | |||||||
| Operating Environment | Indoor use only | |||||||
| Service | Front/Rear access | |||||||
| Model | ST+1.25 | ST+1.29 | ST+1.56 | ST+1.86 | ST+2 | ST+2.5 | ST+3.076 |
| Pixel Pitch | 1.25mm | 1.29mm | 1.56mm | 1.86mm | 2mm | 2.5mm | 3.076mm |
| Pixel Density (pixels/m²) | 640,000 | 600,625 | 409,600 | 289,032 | 250,000 | 160,000 | 111,111 |
| LED Type | SMD1010 | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 |
| LED Configuration | 1R 1G 1B | ||||||
| Module Material | Rubber with magnets | ||||||
| Module Connector Type | HUB75 | ||||||
| Module Size (WxHxD) | 320x160 mm | ||||||
| Cabinet Size (mm) | Customized based on standard module size / Steel cabinet | ||||||
| Module Resolution (pixels) | 256x128 | 248x124 | 204x102 | 172x86 | 160x80 | 128x64 | 104x52 |
| Module Weight (g) | 330 | 400 | 340 | 340 | 340 | 290 | 290 |
| Module Bending Angle | 165° - 180° | 165° - 180° | 158° - 180° | 150° - 180° | 150° - 180° | 135° - 180° | 135° - 180° |
| Min Bending Diameter | 1222mm | 1222mm | 815mm | 611mm | 611mm | 407mm | 407mm |
| Brightness (nits) | 600-650 | 600-650 | 600-650 | 700-750 | 700-750 | 700-750 | 650-700 |
| Recommend Viewing Distance | 1-30m | 1-30m | 1-30m | 1-30m | 2-30m | 2-30m | 3-30m |
| Max. Power Consumption (W) | 600 | 600 | 440 | 430 | 450 | 410 | 410 |
| Avg. Power Consumption (W) | 170 | 170 | 125 | 123 | 128 | 118 | 118 |
| Refresh Rate (HZ) | 1,920 - 3,840 | ||||||
| Color Temperature | 6,500 K as standard (3,200-9,000K adjustable) | ||||||
| Contrast Ratio | 5000 : 1 | ||||||
| Frame Frequency (HZ) | 50/60 | ||||||
| AC Input Voltage | 110-220V ±10% | ||||||
| Viewing Angle (°) | 160 / 140 (H/V) | ||||||
| Operating Temperature (°C) | -10°C~+50°C | ||||||
| Storage Temperature (°C) | -20°C~+60°C | ||||||
| Operating Humidity | 10%~95% | ||||||
| Dead Pixel Rate | <0.0003 | ||||||
| Lift Span | 100,000 hours | ||||||
| Ingress Protection | IP31 | ||||||
| Operating Environment | Indoor use only | ||||||
| Service | Front/Rear access | ||||||
