iSoft Max | Flexible LED Display

Pixel pitch: 1.5mm, 1.8mm, 2.5mm.
Module size: 480x320mm.

1. Big flexible LED Module solution with size 480x320mm.
2. Super thin design with only 5.8mm thickness.
3. Strong magnetic design for super flat screen.
4. Small pixel pitch start from 1.5mm.

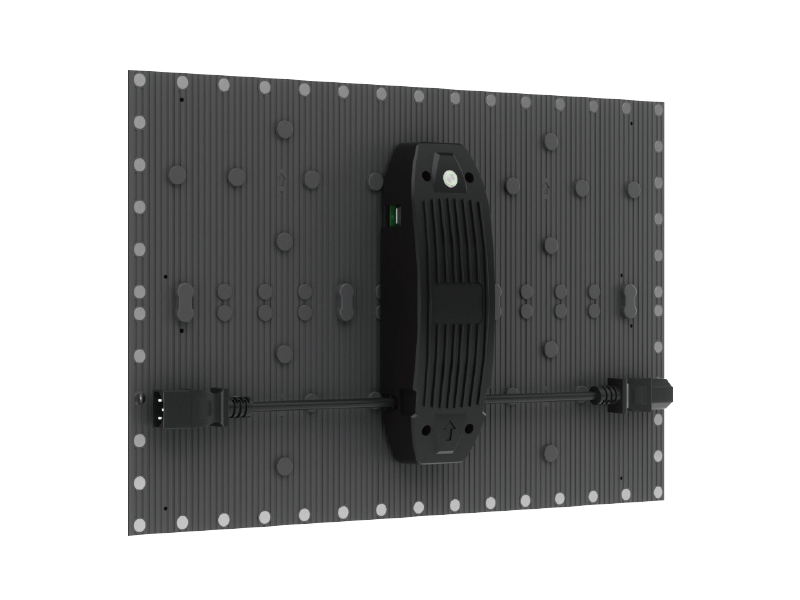

5. Separate power box for each LED module, fast installation.

Request a Quote

Key Features

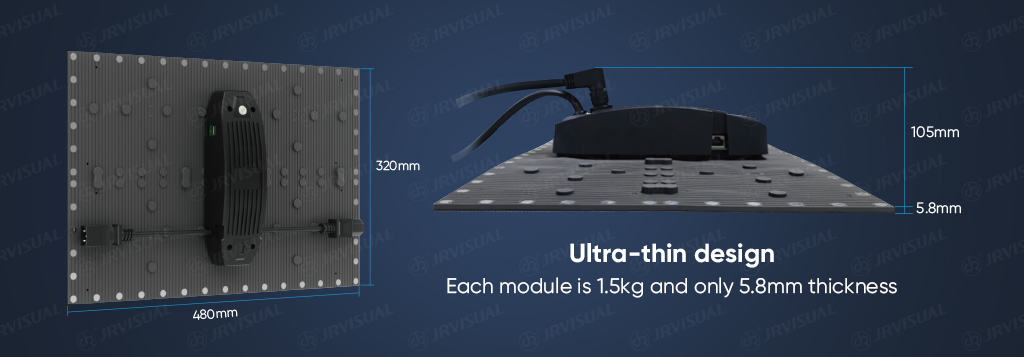

iSoft Max Description 1

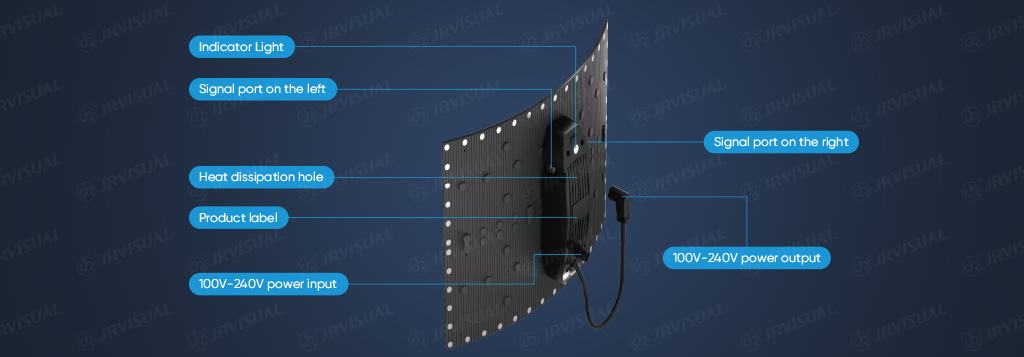

Interface Description

iSoft Max Description 2

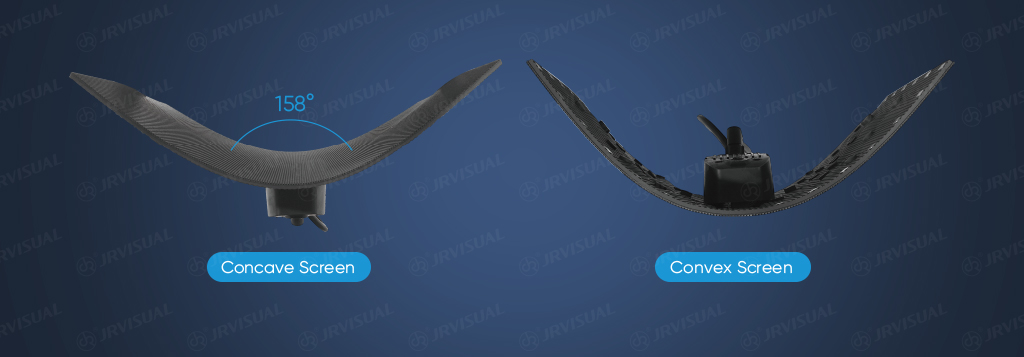

Maximum benging angle – 158°

Rubber material flexible LED module, can easy to install concave and convex LED screen.

iSoft Max Description 3

High Flatness

Screen flatness is designed with a tolerance of 0.3mm, smooth curve screen effect without
any image distortion, wide viewing angle.

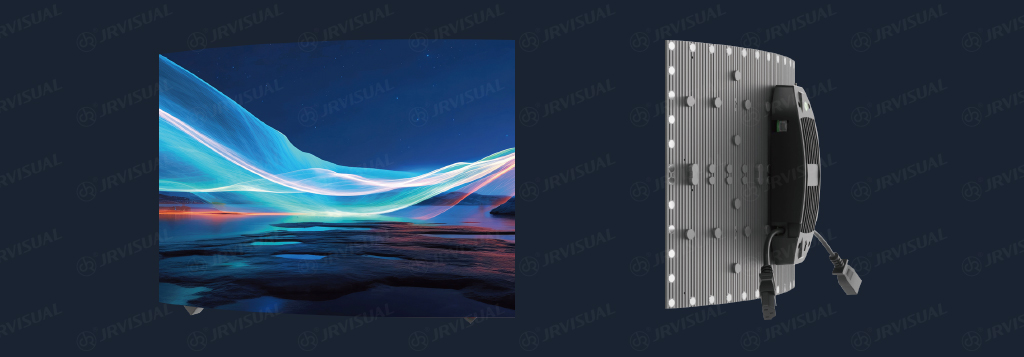

iSoft Max Description 4

Clean and Neat Installation

The screen looks more clean and tidy compared with traditional module, no more separate
5V DC cables and flat ribbon cables, say bye to the mess installation.

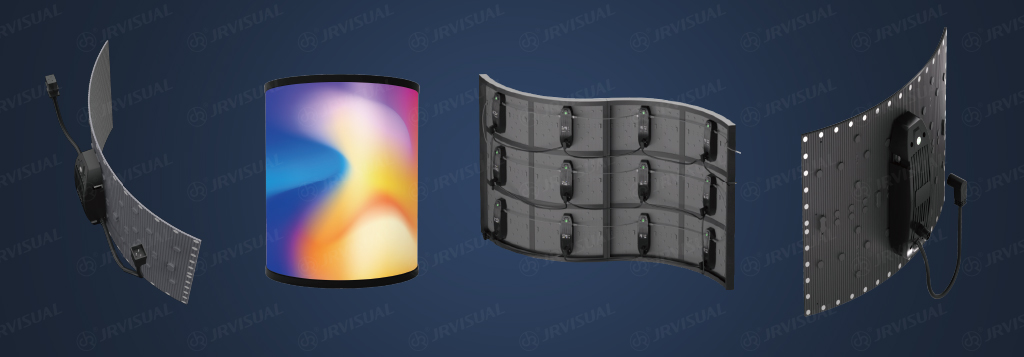

iSoft Max Description 5

Product application cases

Features

isoft Max Key Features

isoft max Features

Specification

iSoft Max Flexible LED Module Specification

Model iSM1.86 iSM2.5
Pixel Pitch 1.86mm 2.5mm
Pixel Density (pixels/m²) 288,906 160,000
LED Type SMD1010 SMD1515
LED Configuration 1R 1G 1B
Module Material Rubber with magnets
Module Connector Type Hard connection
Module Size (WxHxD) 480x320x5.8 mm
Cabinet Size (mm) Customized based on standard module size
Module Resolution (pixels) 258x172 192x128
Module Weight (kg) 1.6 1.5
Module Bending Angle 165° - 180° 158° - 180°
Min Bending Diameter 1222mm 1222mm
Brightness (nits) >600 >600
Recommend Viewing Distance 1-30m 2-50m
Max. Power Consumption (W) 440 440
Avg. Power Consumption (W) 125 125
Refresh Rate (HZ) 3,840
Color Temperature 6,500 K as standard (3,200-9,000K adjustable)
Contrast Ratio 5000 : 1
Frame Frequency (HZ) 50/60
AC Input Voltage 110-220V ±10%
Viewing Angle (°) 150 / 120 (H/V)
Operating Temperature (°C) -10°C~+50°C
Storage Temperature (°C) -20°C~+60°C
Operating Humidity 10%~95%
Dead Pixel Rate <0.0003
Lift Span 100,000 hours
Ingress Protection IP20
Operating Environment Indoor use only
Service Front/Rear access
