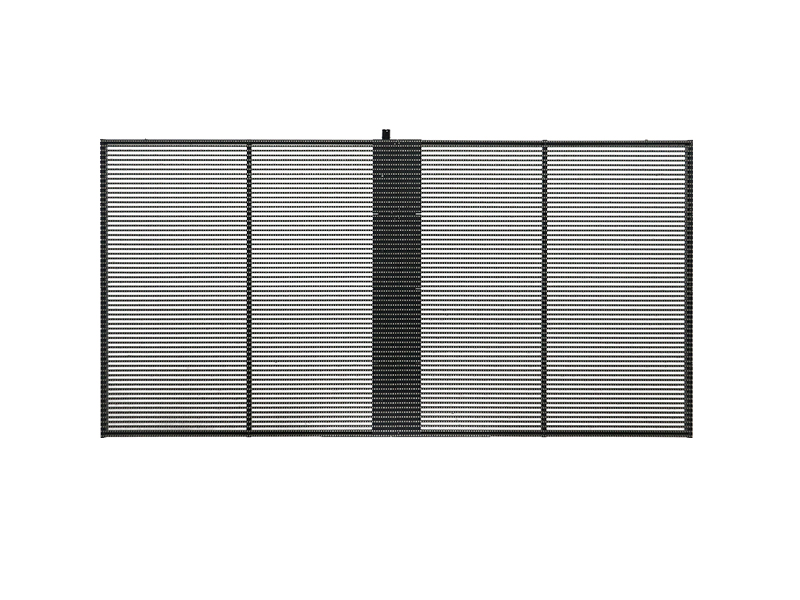

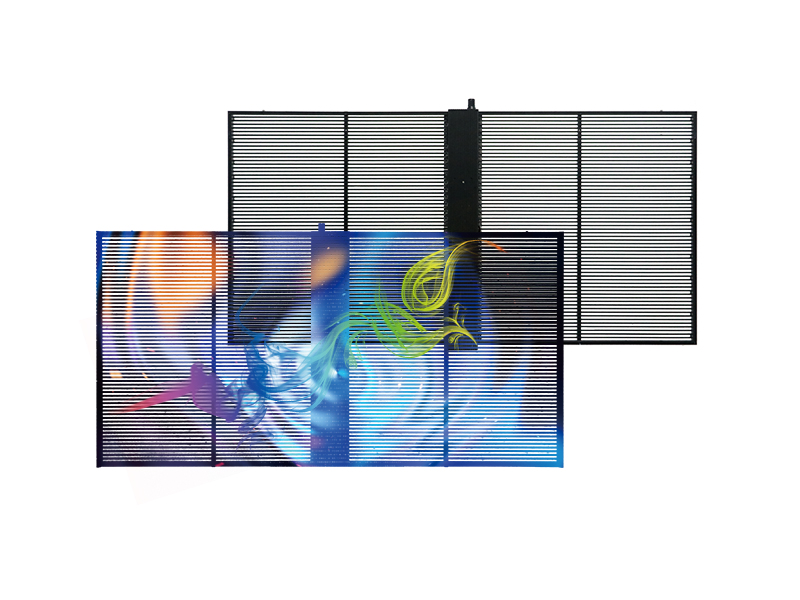

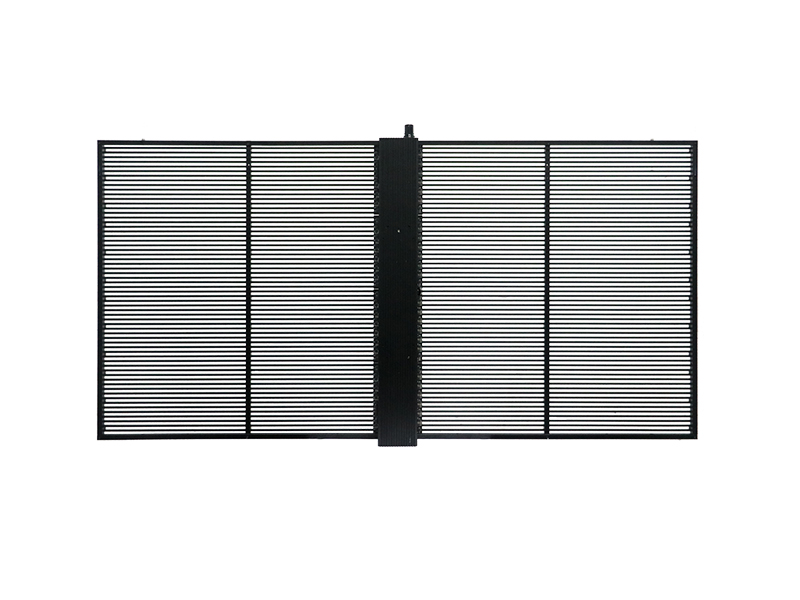

iTled – Indoor Transparent LED Display
Pixel pitch: 2.6×5.2mm, 3.9×3.9mm, 3.9×7.8mm, 10mm.
Cabinet size: 1000x1000mm, 1000x500mm and customzized.
1. High transparency rate with super slim PCB design.
2. Normal and high brightness, suitable for indoor and semi-outdoor application.
3. Modular design with standard module size, also customized module possible for creative shape.
4. TUV certificated indoor transparent LED display solution.
Features
Specification
iTled S Specification
| Item Number | iT3.9-7.8S | iT5.2-7.8S | iT6.9-7.8S | iT10.4S | iT15.6S |
| Pixel Pitch | 3.91mm (H) / 7.81mm (V) | 5.2mm (H) / 7.8mm (V) | 6.9mm (H) / 7.8mm (V) | 10.4mm (H) / 10.4mm (V) | 15.6mm (H) / 15.6mm (V) |
| Pixel Density | 32,768 pixels/㎡ | 24,576 pixels/㎡ | 18,432 pixels/㎡ | 9,216 pixels/㎡ | 4,096 pixels/㎡ |
| LED Type | SMD3012 | SMD3012 | SMD3012 | SMD3012 | SMD3012 |
| LED Configuration | 1 R 1G 1B, 3 in 1 | 1 R 1G 1B, 3 in 1 | 1 R 1G 1B, 3 in 1 | 1 R 1G 1B, 3 in 1 | 1 R 1G 1B, 3 in 1 |
| Module Resolution | 256x16 pixels | 192x16pixels | 144x16pixels | 96x12 pixels | 64x8 pixels |
| Module Dimension | 1000x125mm | 1000x125mm | 1000x125mm | 1000x125mm | 1000x125mm |
| Module Number | W1 x H8 | W1 x H8 | W1 x H8 | W1 x H8 | W1 x H8 |
| Cabinet Dimension | 1000x1000x95mm | 1000x1000x95mm | 1000x1000x95mm | 1000x1000x95mm | 1000x1000x95mm |
| Cabinet Resolution | 256x128 pixels | 192x128 pixels | 144x128 pixels | 96x96 pixels | 64x64 pixels |
| Cabinet Weight | 15kg | 14kg | 14kg | 12kg | 11kg |
| Optional Cabinet Size | 1000x500x95mm | 1000x500x95mm | 1000x500x95mm | 1000x500x95mm | 1000x500x95mm |
| Cabinet Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Standard Brightness | 5,500 nits | 5,500 nits | 5,500 nits | 5,500 nits | 5,500 nits |
| Transparency Rate | 79% | 79% | 79% | 85% | 89% |
| Color Temperate | 8,000 K as standard | 8,000 K as standard | 8,000 K as standard | 8,000 K as standard | 8,000 K as standard |
| Colors | 281 Trillion | 281 Trillion | 281 Trillion | 281 Trillion | 281 Trillion |
| Contrast Ratio | 1000 : 1 | 1000 : 1 | 1000 : 1 | 1000 : 1 | 1000 : 1 |
| Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Refresh Rate | ≤3,840HZ (Configurable) | ≤3,840HZ (Configurable) | ≤3,840HZ (Configurable) | ≤3,840HZ (Configurable) | ≤3,840HZ (Configurable) |
| Viewing Distance | > 3 m | > 5 m | > 7 m | > 10 m | > 16 m |
| Ingress Protection | IP30 | IP30 | IP30 | IP30 | IP30 |
| Maintenance | Rear | Rear | Rear | Rear | Rear |
| Bezel Width | None | None | None | None | None |
| Gap Between Cabinets | Seamless | Seamless | Seamless | Seamless | Seamless |
| Max Power Consumption | 800 W/Cabinet | 800 W/Cabinet | 800 W/Cabinet | 800 W/Cabinet | 800 W/Cabinet |
| Ave Power Consumption | 240 W/Cabinet | 240 W/Cabinet | 240 W/Cabinet | 240 W/Cabinet | 240 W/Cabinet |
| LED Life Time | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours |
| Screen Angle | Flat, or customized | Flat, or customized | Flat, or customized | Flat, or customized | Flat, or customized |
| Standard Installation Method | Hanging | Hanging | Hanging | Hanging | Hanging |
| Optional Installation Method | Fixing | Fixing | Fixing | Fixing | Fixing |
| Visual View Angle | 140°/100° (H/V) | 140°/100° (H/V) | 140°/100° (H/V) | 140°/100° (H/V) | 140°/100° (H/V) |
| Video Frame Rate | 50/60 HZ | 50/60 HZ | 50/60 HZ | 50/60 HZ | 50/60 HZ |
| Input Voltage | 100-240V ± 10% | 100-240V ± 10% | 100-240V ± 10% | 100-240V ± 10% | 100-240V ± 10% |
| Date Interconnection | CAT5/6, Multi/Single-mode fiber | CAT5/6, Multi/Single-mode fiber | CAT5/6, Multi/Single-mode fiber | CAT5/6, Multi/Single-mode fiber | CAT5/6, Multi/Single-mode fiber |
| Operating Temperature | -20~ +45 °C | -20~ +45 °C | -20~ +45 °C | -20~ +45 °C | -20~ +45 °C |
| Signal Input Source | S-video,VGA,DVI,HDMI,SDI | S-video,VGA,DVI,HDMI,SDI | S-video,VGA,DVI,HDMI,SDI | S-video,VGA,DVI,HDMI,SDI | S-video,VGA,DVI,HDMI,SDI |
| Certificate | CE, EMC. LVD, FCC | ||||
| Note: Specifications are for reference only and are subjected to change without notice. | |||||
