Pixel pitch: 0.7mm, 0.9mm, 1.2mm, 1.5mm,

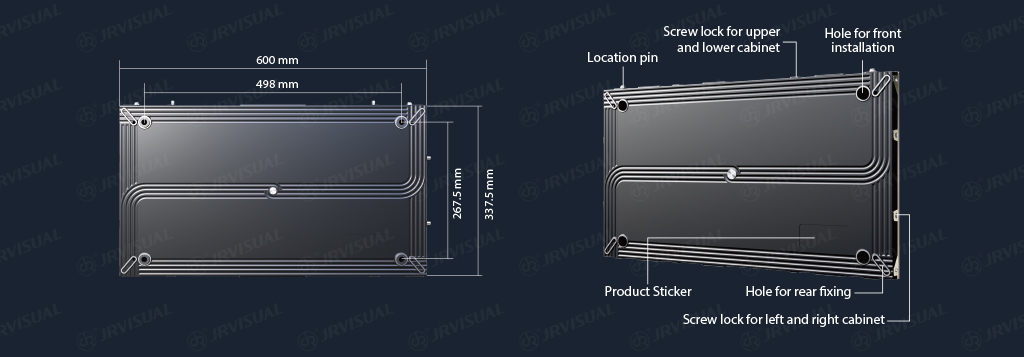

Cabinet size: 600×337.5mm | 16:9
1. High contrast ratio, super black COB LED Display.
2. Suitable for different installation methods, wall mounting, hanging.
3. Wide viewing angle, clear picture and video quality.

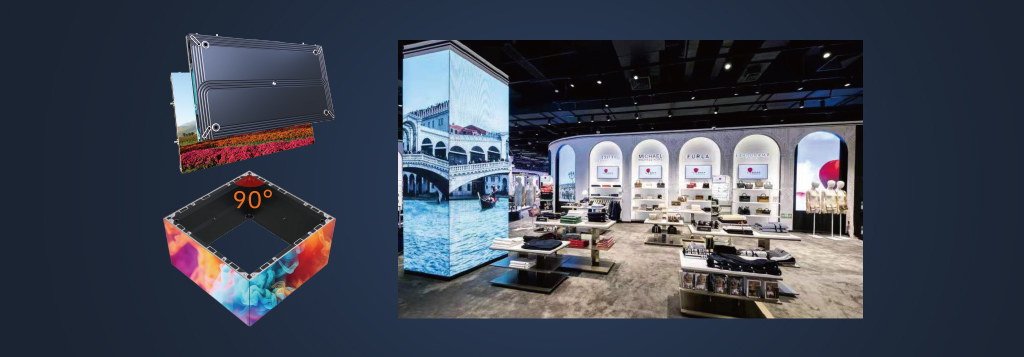

4. Possible for cube installation with 45 degree corner cut cabinet.

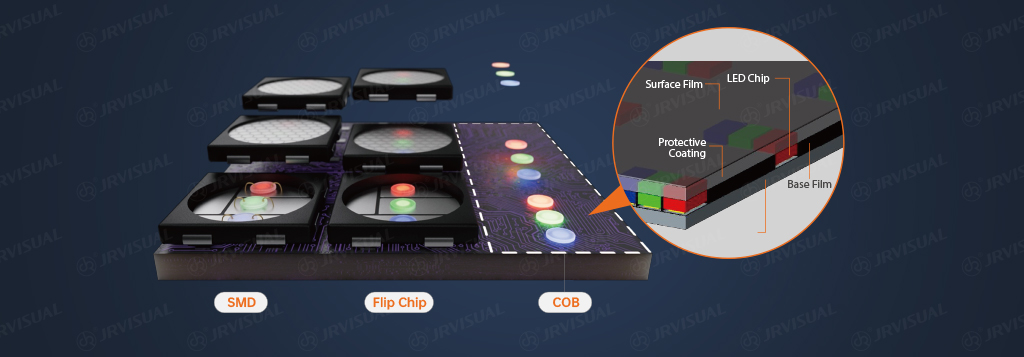

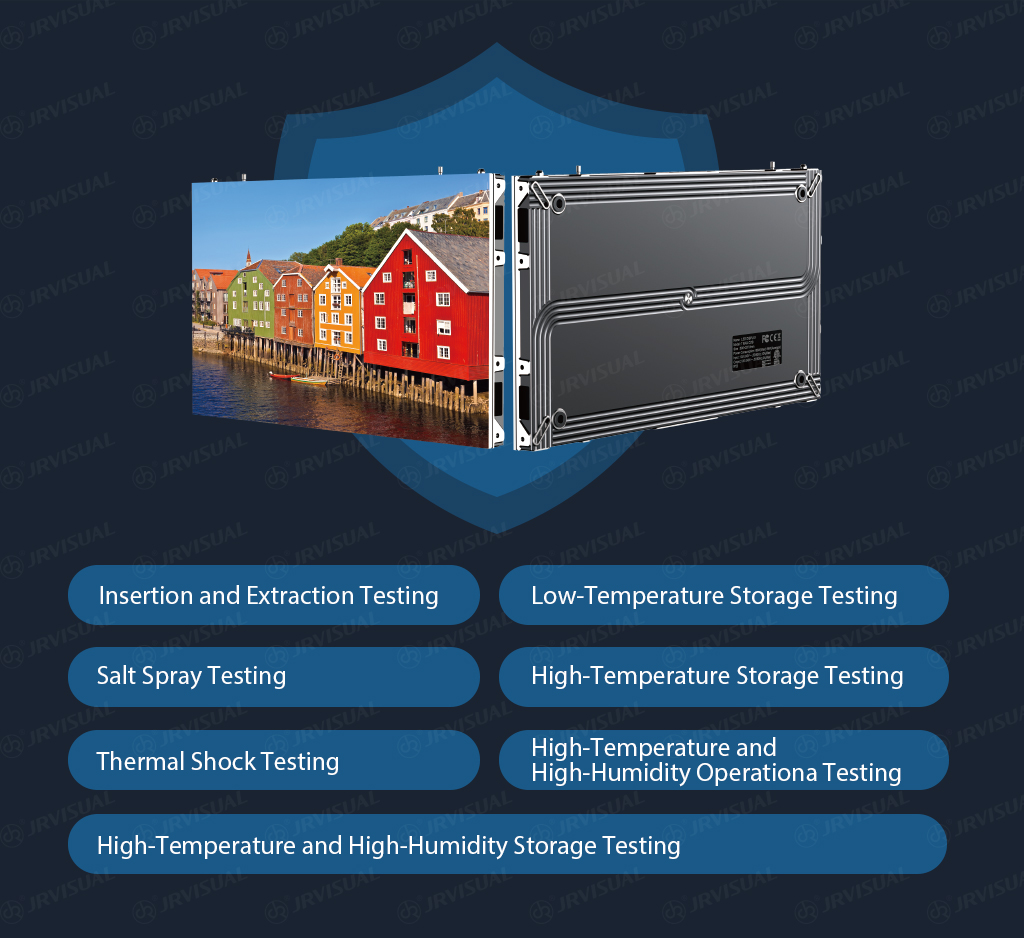

Enhanced Protection Technology- Extra Protective Coating for Greater Stability

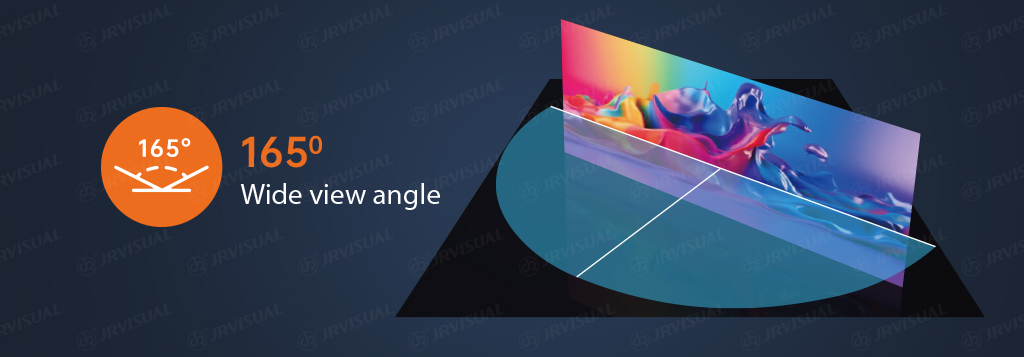

Wide 165° viewing angle it ensures superior color and image consistency, even from off-center perspectives.
Wide 165° viewing angle, it ensures superior color and image consistency, even from off-center perspectives.
Transform Spaces with 900 Precision
| Item Number | iTC0.7 | iTC0.9 | iTC1.2 | iTC1.5 |
| Pixel Pitch | 0.78125mm | 0.9375mm | 1.25mm | 1.5625mm |
| Pixel Density | 1,638,400 pixels/㎡ | 1,137,777 pixels/㎡ | 640,000 pixels/㎡ | 409,600 pixels/㎡ |
| LED Type | COB | |||
| LED Configuration | 1R 1G 1B | |||
| Module Dimension | 150x168.75mm | |||
| Module Resolution | 192x216 pixels | 160x180 pixels | 120x135 pixels | 96x108 pixels |
| Module Weight | 0.15g | |||
| Module Thickness | 2.6mm | |||
| Module Number | W4 x H2 | |||
| Cabinet Dimension | 600x337.5x31.3mm | |||
| Cabinet Resolution | 768x432 pixels | 640x360 pixels | 480x270 pixels | 384x216 pixels |
| Cabinet Weight | 21.7kg/sqm | |||
| Cabinet Material | Die-casting Aluminum | |||
| Standard Brightness | 600-1,000 nits | 600-1,000 nits | 600-1,000 nits | 600-800 nits |
| Brightness Control | Manual/Auto/Programmable | |||
| Color Temperate | 6,500 K as standard | |||
| Colors | 281 Trillion | |||
| Contrast Ratio | 20,000 : 1 | |||
| Gray Scale | 13-22 bit | |||
| Refresh Rate | 7,680HZ (Configurable) | |||
| Viewing Distance | >1 m | |||
| Ingress Protection | IP20 | |||
| Maintenance | Front only | |||
| Bezel Width | None | |||
| Gap Between Cabinets | Seamless | |||
| Max Power Consumption | 270-523 ±3%W/㎡ | 270-500 ±3%W/㎡ | 270-523 ±3%W/㎡ | 270-450 ±3%W/㎡ |
| Ave Power Consumption | 53W/㎡ | 53W/㎡ | 53W/㎡ | 53W/㎡ |
| LED Life Time | 100,000 Hours | |||
| Screen Angle | Flat, 90° | |||
| Standard Installation Method | Direct Wall Mounting | |||
| Optional Installation Method | Stacking/Hanging | |||
| Visual View Angle | 165°/165° (H/V) | |||
| Video Frame Rate | 50/60 HZ | |||
| Input Voltage | 100-240V ± 10% | |||
| Date Interconnection | CAT5/6, Multi/Single-mode fiber | |||
| Operating Temperature | -20~ +45 °C | |||
| Signal Input Source | S-video,VGA,DVI,HDMI,SDI | |||
| Certificate | CE, ETL, FCC, EMC A | |||
| Note: Specifications are for reference only and are subjected to change without notice. | ||||
