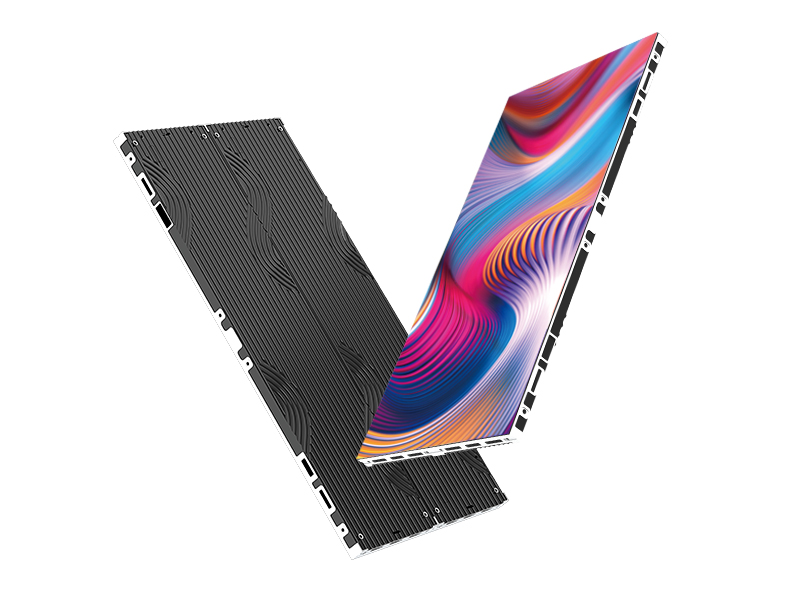

iTpro – Indoor Fixed Installation LED Display

Pixel pitch: 1.2mm, 1.5mm, 1.9mm, 2.5mm 2.6mm, 2.9mm, 3.9mm.
Cabinet size: 1000x500mm, 750x500mm, 500x500mm, 1000x250mm, 750x250mm, 500x250mm.

1. 6 different cabinet sizes, can match most of indoor LED screen project requests.
2. Min pixel pitch starts from 1.25mm, GOB treatment for 1.2mm and 1.5mm as standard solution.
3. Only 33mm thickness, slim cabinet design.
4. Front service only, both front and rear installation.

Request a Quote

Minimalist Design

Centered on Minimalist Design, the iTpro Indoor Fixed Installation LED Display blends style and functionality. It offers pixel pitches starting at 1.2mm, covering over 80% of indoor LED screen needs. Four cabinet options let this LED product fit various project size requirements. Its elegant finish ensures seamless connections and fast installation, too. Ideal for retail, malls, and airports, this LED Display shines as a star choice for sleek indoor setups. It marries minimalist aesthetics with practical adaptability for diverse spaces.

iTpro Description 1

Great Picture and Video Performance

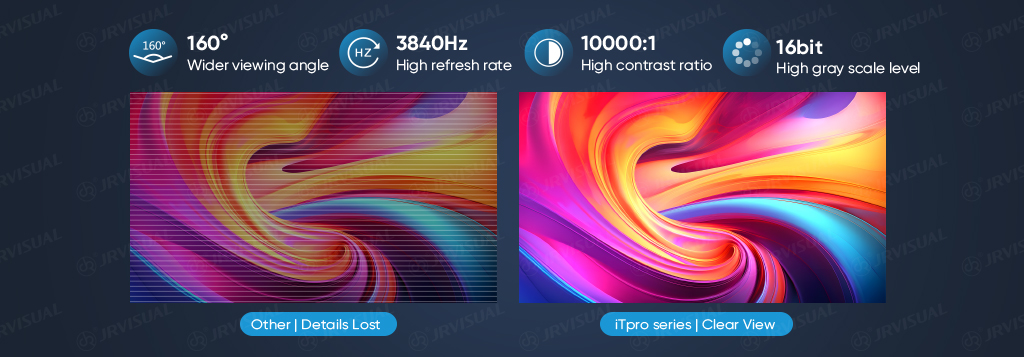

For Great Picture and Video Performance, the iTpro Indoor Fixed Installation LED Display raises the bar. It features a 160° wide viewing angle, so content looks sharp from more positions. With a 3840Hz high refresh rate and 10000:1 contrast ratio, this LED product delivers smooth, vivid visuals. Its 16bit gray scale also ensures no scanning lines—even when captured by cameras. Unlike other options that lose details, this LED Display keeps imagery crisp and colors stunning. It turns every visual into a clear, eye-catching experience for any indoor setup.

iTpro Description 2

Creative Splicing, Infinite Imagination

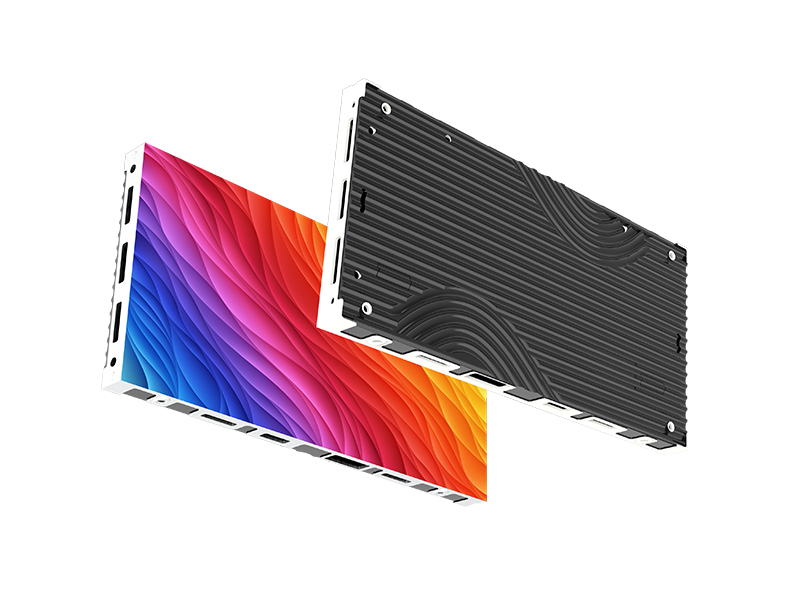

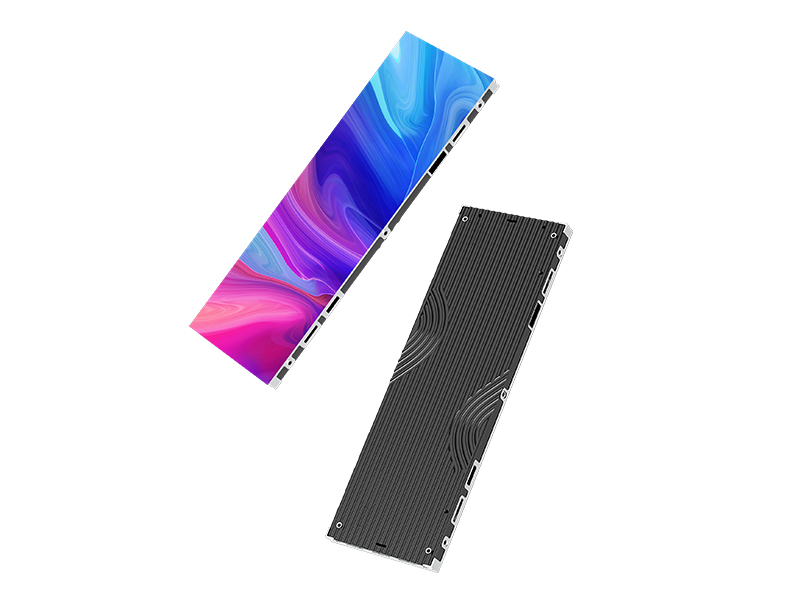

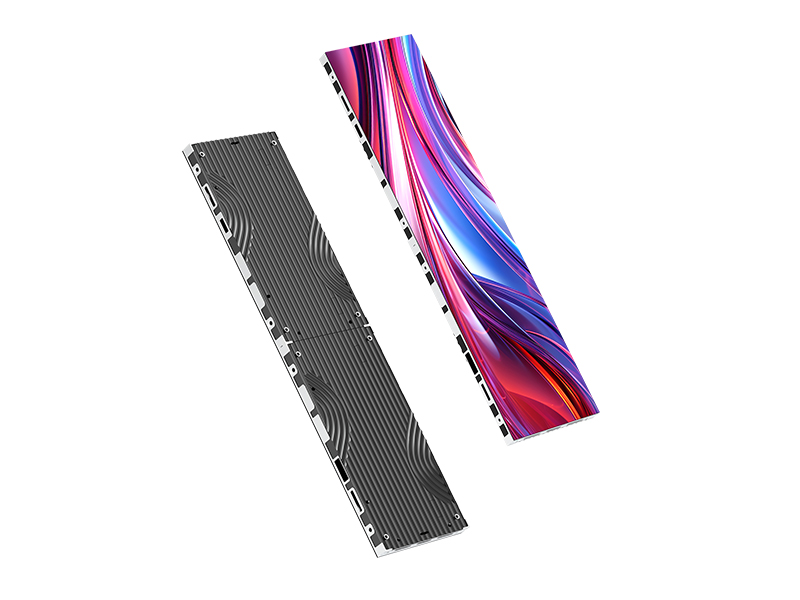

Centered on Creative Splicing, Infinite Imagination, the iTpro Indoor Fixed Installation LED Display offers four cabinet sizes: 1000x500mm, 1000x250mm, 750x250mm, and 500x250mm. You can install this LED product flexibly both horizontally and vertically. This versatility unlocks endless creative possibilities for diverse project needs. Additionally, the customizable setup makes this LED Display ideal for unique design concepts. It adapts smoothly to different creative ideas and project requirements.

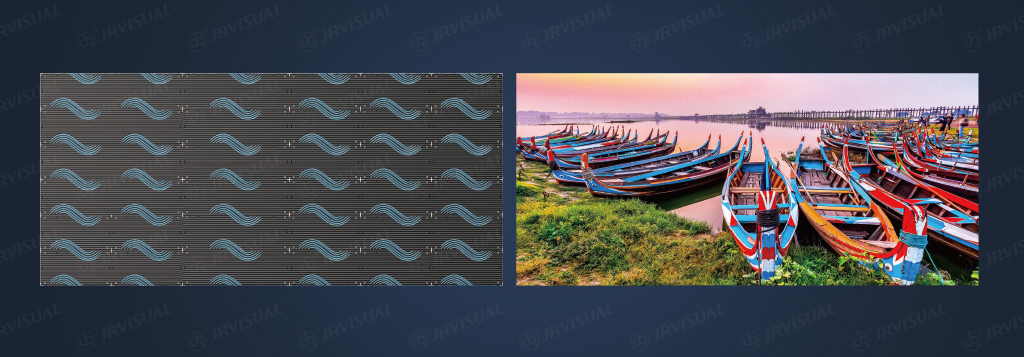

iTpro Description 3

Easy Maintenance

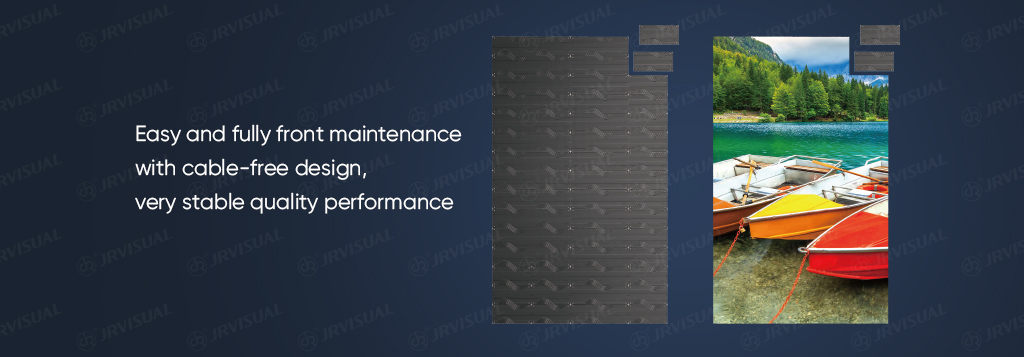

The iTpro Indoor Fixed Installation LED Display stands out for its Easy Maintenance design. It features full-front maintenance paired with a cable-free setup, making upkeep straightforward. This LED product also delivers very stable quality performance, ideal for consistent indoor use. What’s more, its user-friendly structure adds to the convenience of managing this LED Display in fixed indoor installations

iTpro Description 4

Instalaltion Method

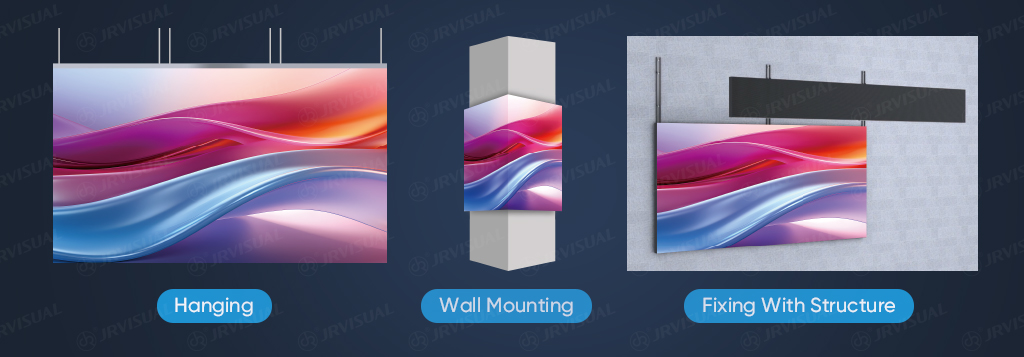

Focused on Installation Method, the iTpro Indoor Fixed Installation LED Display offers versatile setup options. These include wall mounting, ground stacking, hanging, and right angle cubes. For different spaces, this LED product adapts easily to various indoor environments. Moreover, its flexible installation expands the range of applications for this LED Display. This adaptability makes it a practical choice for diverse indoor setups.

iTpro Description 5

Product application cases

Features

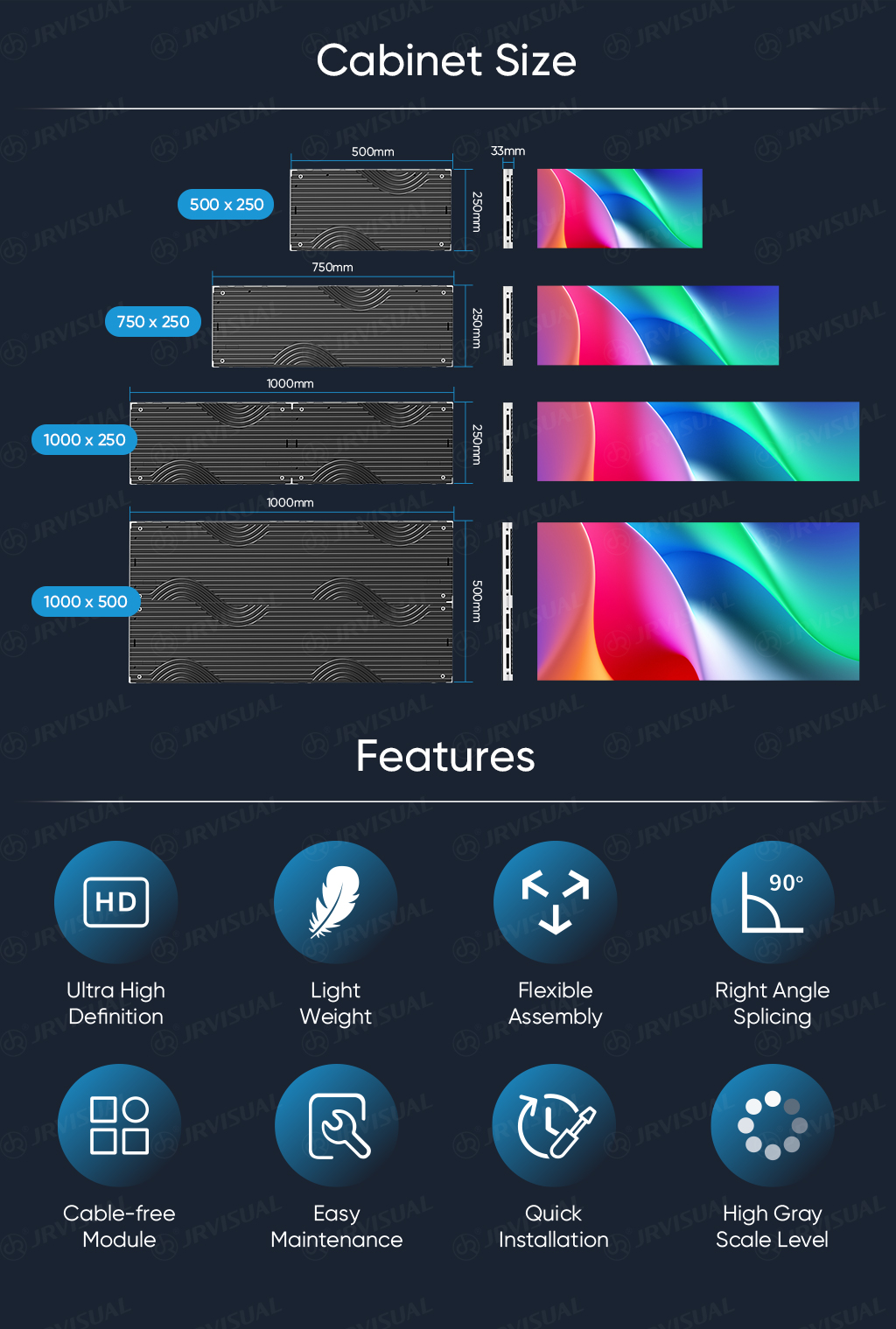

Cabinet Size and Features

iTpro Features

Specification

iTpro Specification

iTpro Specification
Item Number iTp1.25 iTp1.5625 iTp1.95 iTp2.5 iTp2.604 iTp2.976 iTp3.9
Pixel Pitch 1.25mm 1.5625mm 1.95mm 2.5mm 2.6mm 2.976mm 3.906mm
Pixel Density 640,000 pixels/㎡ 409,600 pixels/㎡ 262,144 pixels/㎡ 160,000 pixels/㎡ 147,456 pixels/㎡ 112,896 pixels/㎡ 65,536 pixels/㎡
LED Type SMD1010 (GOB) SMD1212 (GOB) SMD1515 SMD1515 SMD1515 SMD1515 SMD2020
LED Configuration 1 R 1G 1B, 3 in 1 1 R 1G 1B, 3 in 1 1 R 1G 1B, 3 in 1 1 R 1G 1B, 3 in 1 1 R 1G 1B, 3 in 1 1 R 1G 1B, 3 in 1 1 R 1G 1B, 3 in 1
Module Resolution 200x200 pixels 160x160 pixels 128x128 pixels 100x100 pixels 96x96 pixels 84x84 pixels 64x64 pixels
Module Dimension 250x250mm 250x250mm 250x250mm 250x250mm 250x250mm 250x250mm 250x250mm
Module Number W4 x H2 W4 x H2 W4 x H2 W4 x H2 W4 x H2 W4 x H2 W4 x H2
Cabinet Dimension 1000x500x33mm 1000x500x33mm 1000x500x33mm 1000x500x33mm 1000x500x33mm 1000x500x33mm 1000x500x33mm
Cabinet Resolution 800x400 pixels 640x320 pixels 512x256 pixels 400x200 pixels 384x192 pixels 336x168 pixels 256x128 pixels
Optional Cabinet Size 1000x250mmx33mm
750x250mmx33mm
500x250mmx33mm		 1000x250mmx33mm
750x250mmx33mm
500x250mmx33mm		 1000x250mmx33mm
750x250mmx33mm
500x250mmx33mm		 1000x250mmx33mm
750x250mmx33mm
500x250mmx33mm		 1000x250mmx33mm
750x250mmx33mm
500x250mmx33mm		 1000x250mmx33mm
750x250mmx33mm
500x250mmx33mm		 1000x250mmx33mm
750x250mmx33mm
500x250mmx33mm
Cabinet Weight 10.5 / 5.6 / 4 / 3 kg 10.5 / 5.6 / 4 / 3 kg 10.5 / 5.6 / 4 / 3 kg 10.5 / 5.6 / 4 / 3 kg 10.5 / 5.6 / 4 / 3 kg 10.5 / 5.6 / 4 / 3 kg 10.5 / 5.6 / 4 / 3 kg
Cabinet Material Die-casting aluminum Die-casting aluminum Die-casting aluminum Die-casting aluminum Die-casting aluminum Die-casting aluminum Die-casting aluminum
Standard Brightness 600 nits 600 nits 800 nits 800 nits 800 nits 800 nits 800 nits
Optional Brightness N/A N/A 2,000nits 3,000nits 3,000nits 3,000nits 3,000nits
Scan Mode 1/50 1/40 1/32 1/25 1/32 1/28 1/16
Viewing Distance > 1 m > 1m > 2 m > 2m > 2m > 2m > 3m
Brightness Control Manual/Auto/Programmable
Color Temperate 6,500 K as standard
Colors 281 Trillion
Contrast Ratio 10,000 : 1
Gray Scale 14/16 bit
Refresh Rate ≤3,840HZ (Configurable)
Ingress Protection IP20
Maintenance Front only
Bezel Width None
Gap Between Cabinets Seamless
Max Power Consumption 350 W/m2
Ave Power Consumption 100-200 W/m2
LED Life Time 100,000 Hours
Screen Angle Flat, 90°
Standard Installation Method Direct Wall Mounting
Optional Installation Method Stacking
Visual View Angle 160°/140° (H/V)
Video Frame Rate 50/60 HZ
Input Voltage 100-240V ± 10%
Date Interconnection CAT5/6, Multi/Single-mode fiber
Operating Temperature -20~ +45 °C
Signal Input Source S-video,VGA,DVI,HDMI,SDI
Certificate CE, ETL, FCC, EMC
Note: Specifications are for reference only and are subjected to change without notice.
