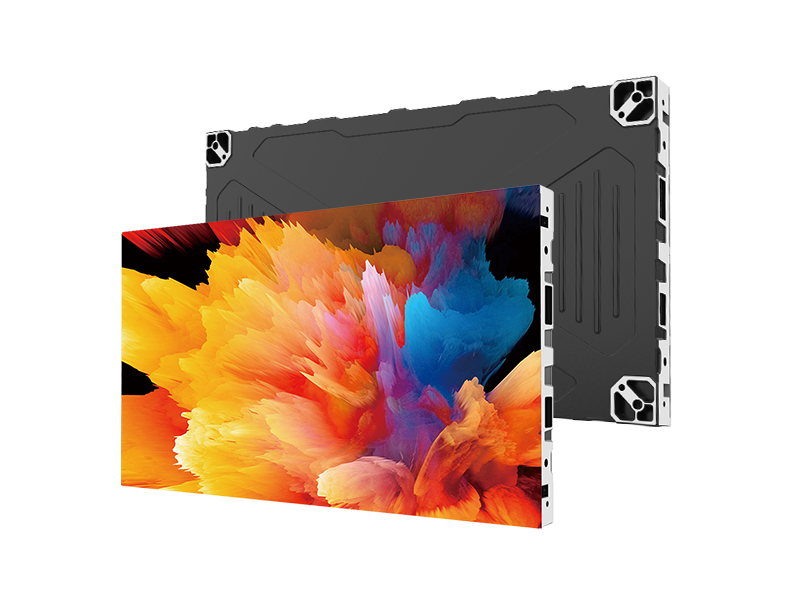

iX-III COB Indoor LED Display

Pixel pitch: 0.6mm, 0.7mm, 0.9mm, 1.2mm 1.5mm
Cabinet size: 600×337.5mm | 16:9


1. Fast lock system for easier and accurate installation
2. Wall mounting brackets are available for front installation
3. Full flip chip COB technology available
4. Flat, curve, cubes LED screen shapes all possible
6. Fine pixel pitch, min. Pixel pitch starts from P0.6mm

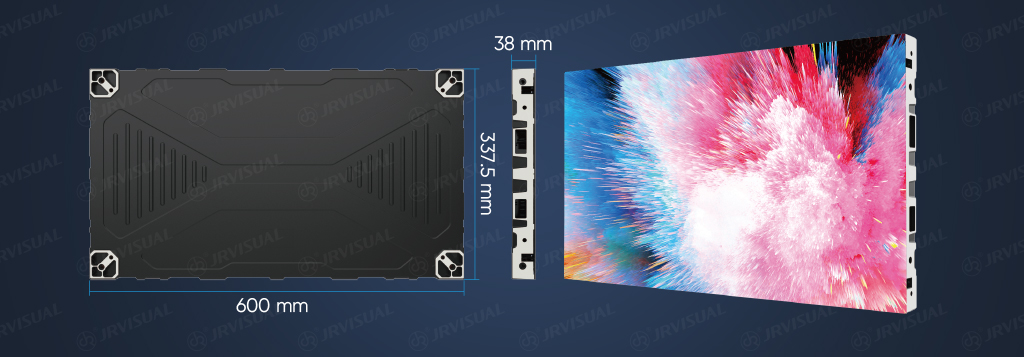

Cabinet Size

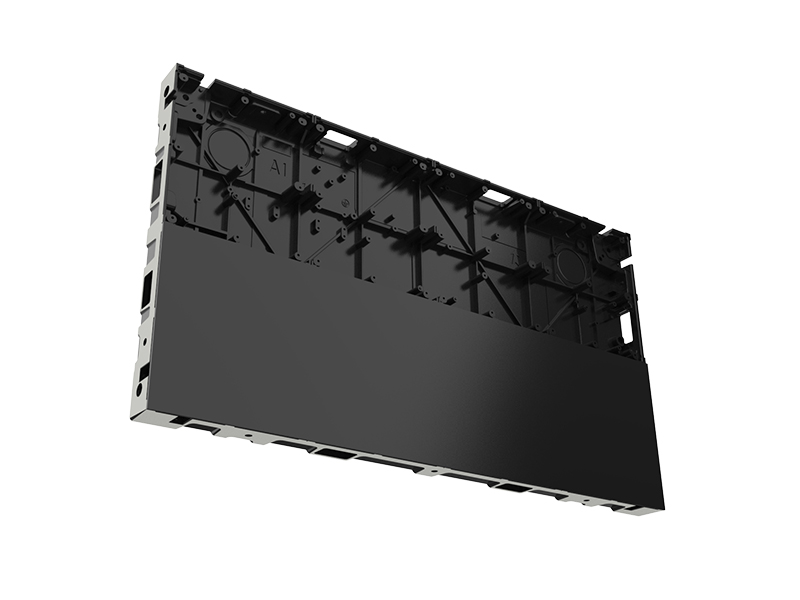

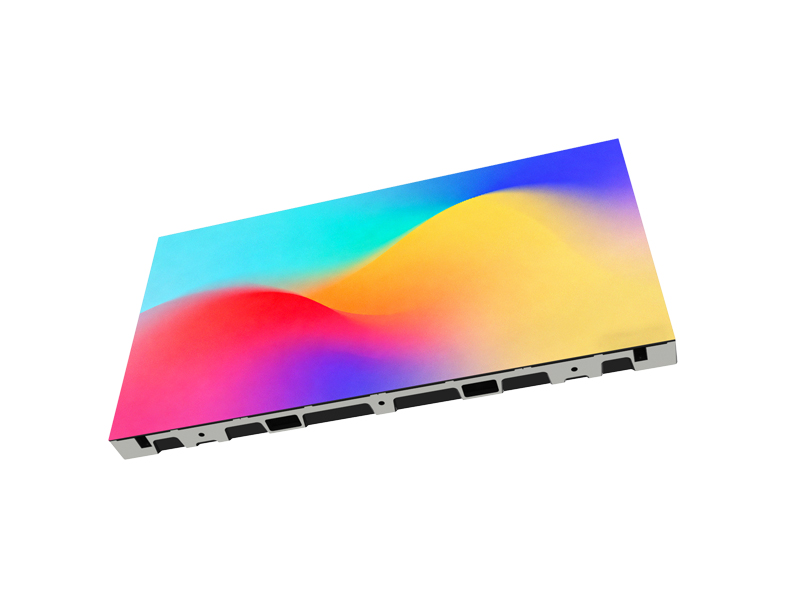

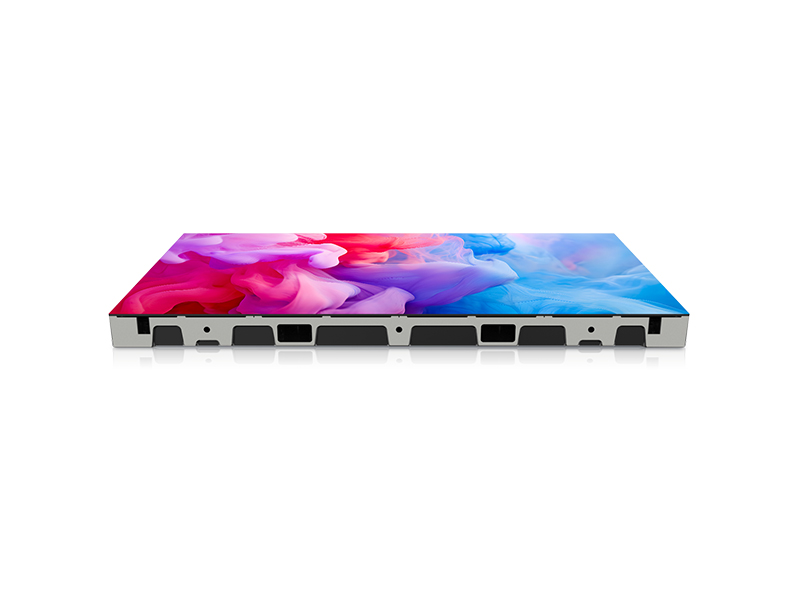

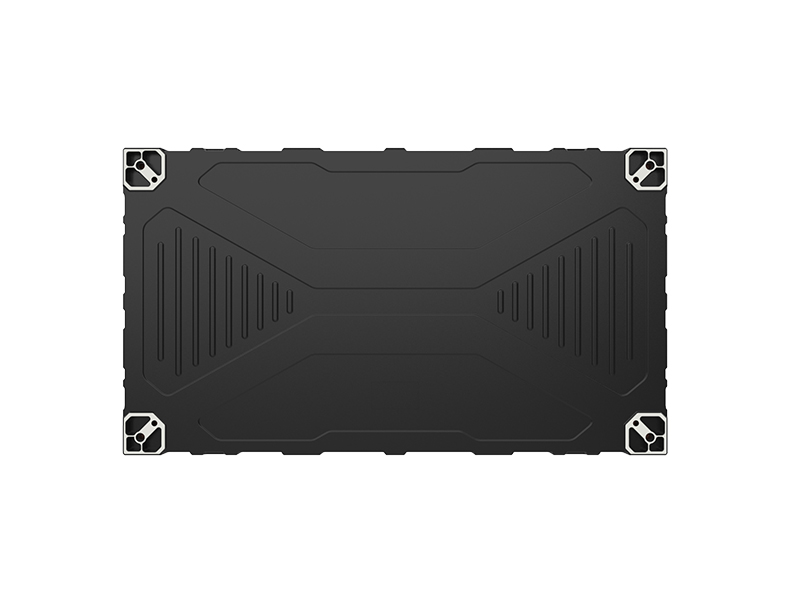

The iX-III COB indoor LED display boasts a stylish design and high performance. Its precise 600 mm × 337.5 mm × 38 mm cabinet balances functionality and space use. The compact yet robust cabinet suits diverse indoor environments well, fits confined spaces easily without sacrificing visual appeal, and its slim 38mm thickness creates a discreet, unobtrusive look after installation.

Description 1

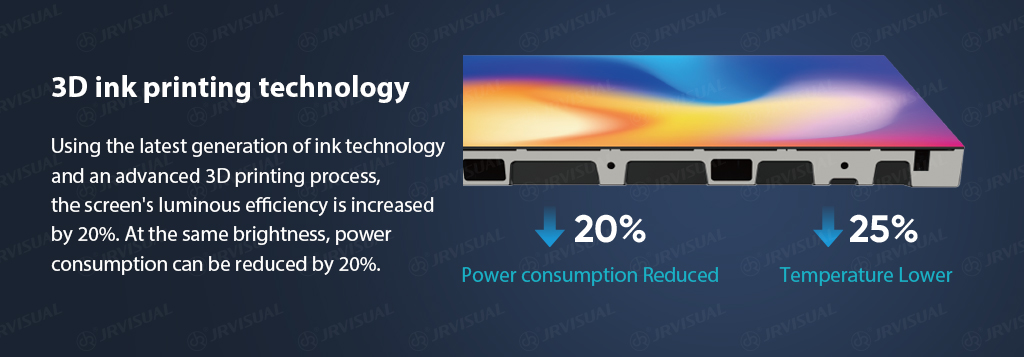

Ultra-low energy consumption Ultra-high energy efficiency

 iX-III COB indoor LED display uses advanced 3D inkjet printing technology. It delivers superior performance while significantly reducing operating costs. It combines the latest inkjet and 3D printing processes to boost luminous efficiency by 20%. It also cuts power use and operating temperature by 20% at the same brightness. These strengths deliver long-term energy savings, lower heating needs, and longer hardware lifespan. They make the display ideal for sustainable, cost-saving indoor environments.

Description 2

Nanoimprint Technology

The iX-III COB indoor LED display targets enduring performance with advanced nanoimprint technology. It effectively resists common environmental hazards in various indoor settings. It packs multiple protective functions: waterproof, moistureproof, dustproof, impact-resistant, and salt-spray-resistant. These features make it ideal for a wide range of indoor environments. It blends robust protection with top-tier performance for a reliable, eye-catching solution.

Description 3

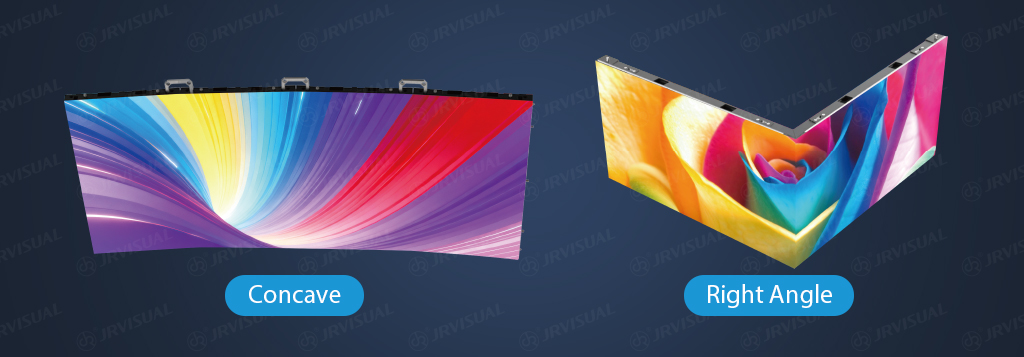

Flexible Installation Method

This LED display is a comprehensive product offering flexible installation options, allowing you to customise it to meet the unique design needs of your space, including concave and right-angle configurations. The concave configuration creates an immersive curved visual effect, while the right-angle design allows you to seamlessly integrate the display into corner spaces without compromising visual flow.

Description 4

Accurate Color Expression

This iX-III COB indoor LED display uses professional COB calibration technology well. It delivers exceptional visual quality and accurate, lifelike colour performance. It minimises speckle noise and optimises images to reproduce true colours. It enhances visual depth and creates a more immersive viewing experience. It boasts A+ grade colour performance for high colour retention and uniformity. It supports wide colour gamut, 8K Ultra HD and HDR 3.0 adaptive colour. It has green health certification to protect eyes during extended viewing.

Description 5

Product application cases

Features

Key Features

With its innovative Micro LED integrated architecture and convenient triple-locking design, this display significantly enhances performance and ease of use. At its core is a 90μm MicroLED flip chip, consuming only 64% of the power of a MiniLED at the same resolution and brightness. The triple-locking mechanism enables quick and easy installation and ensures a seamless connection to the display surface.

The iX-III COB indoor LED display combines energy-efficient Micro LED technology with a convenient installation design, providing a comprehensive LED display solution that balances performance, cost savings, and practicality for various indoor environments.

Features

Specification

X-III Series COB Specification

No. Model X-III-COB-P0.625 X-III-COB-P0.78125 X-III-COB-P0.9375 X-III-COB-P1.25 X-III-COB-P1.5625
LED Type LED Type Flip chip Flip chip Flip chip Flip chip Flip chip
Module Pixel Pitch (mm) 0.625 0.78125 0.9375 1.25 1.5625
Pixel Composition 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Module Resolution (W x H) 240x270 192x216 160x180 120x135 96x108
Module Size (mm) 150x168.75
Cabinet Module Arrangement (W x H) 4x2
Cabinet Resolution (W x H) 768x512 768x512 640x360 480x270 384x216
Cabinet area (㎡) 0.2025 / 27''
Cabinet size (mm) 600x337.5
Cabinet Material Die-casting Aluminum
Net.weight/Cabinet (kg) 4.5
Ingress Protection IP31
Working Voltage (V) 100-240
Serviceability Front
Display Max.Power Consumption (W/㎡) 290 270 280 270 210
Avg.Power Consumption (W/㎡) 95 90 95 90 70
Viewing Angle (H/V °) 170/170 140/140 140/140 140/140 120/120
Brightness (cd/㎡) 600 600 600 600 600
Pixel Density (dots/㎡) 1,638,400 1,638,400 1,137,778 640,000 409,600
Scan Mode 1/64 1/36 1/54 1/60 1/48
Contrast Ratio 12,000:1
Operation Temperature/Humidity -20℃~+45℃/10~80%RH
Lifetime (50% Brightness) 100000
Greyscale (bit) ≥13
Refresh Rate 3840
Frame Rate 50/60
Operation system Novastar, Colorlight
Screen Angle Flat, Concave,  90°
Installation Method Direct wall Mounting / Mounting Frame
Certificate CE/EMC/LVD/RoHS
Remarks: The power consumption will fluctuate within ± 15%, depending on the brightness of different batches of lamps, subject to the actual situation.
