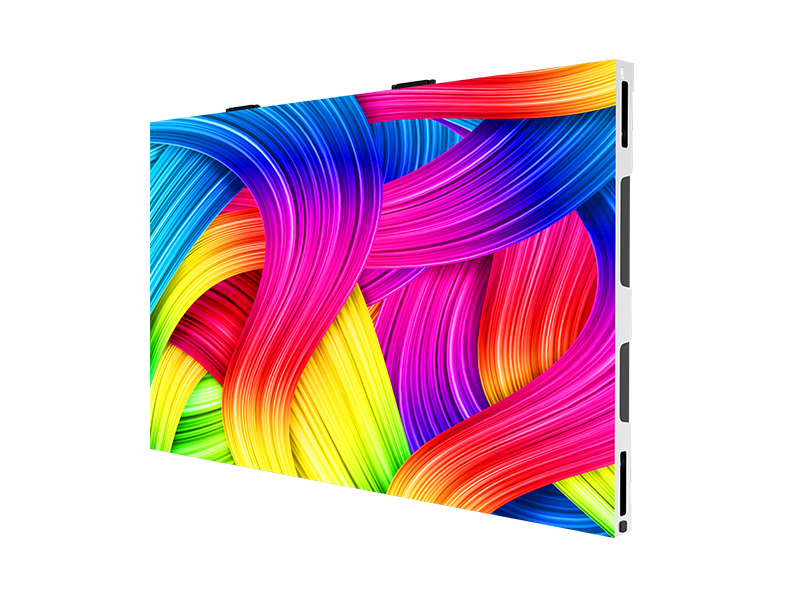

iX-COB & SMD LED Display

Pixel pitch: 0.6mm, 0.7mm, 0.9mm, 1.2mm 1.5mm, 1.8mm
Cabinet size: 600×337.5mm | 16:9

1. Fast lock system for easier and accurate installation.
2. Wall mounting brackets are available for front installation.
3. Both COB and SMD technology available for this series.
4. Fire proof test approved, EN13501.
5. Flat, curve, cubes LED screen shapes all possible.
6. Only 27.5mm cabinet thickness, super slim design.

Request a Quote

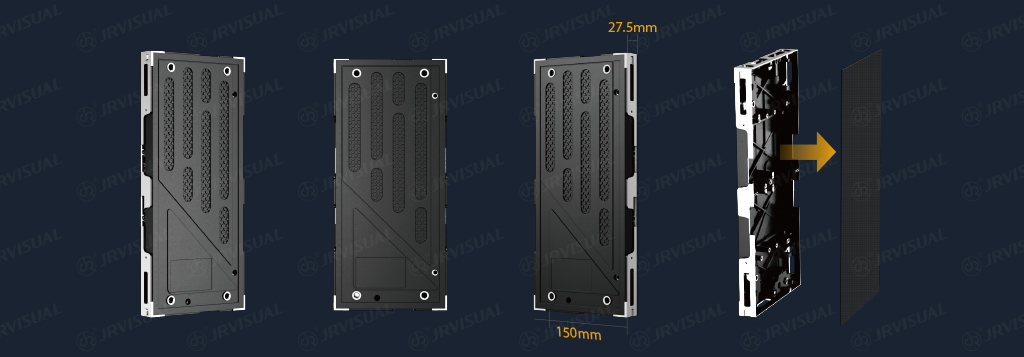

Small Cabinet Option

Small cabinet options are available for both COB & SMD LED Display, designed explicitly for space-constrained indoor environments. Their compact form factors enable flexible deployment in environments such as luxury retail stores and corporate lobbies. By integrating COB technology, these small cabinets ensure seamless, high-resolution visuals for an immersive viewing experience.

iX COB Description 1

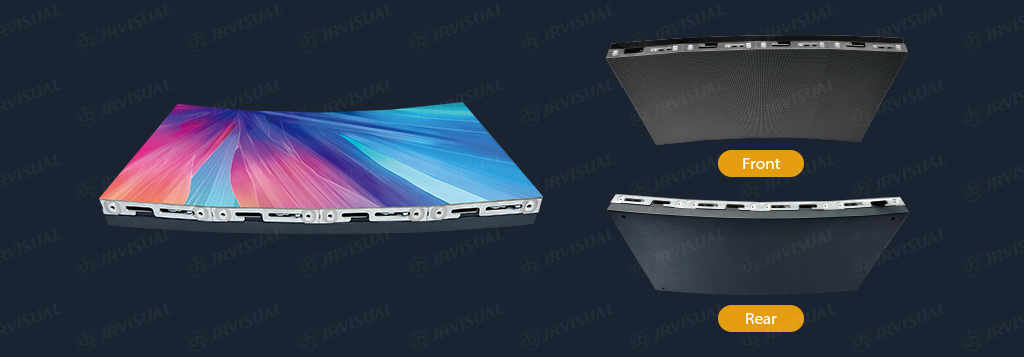

Excellent Curved Screen Design for COB LED Displays

The iX-COB & SMD LED Display features a precisely curved design, delivering seamless HD visuals across its entire surface. The screen’s front and back structural design ensures optimal curvature consistency, making it ideal for creating an immersive surround experience in indoor environments such as luxury boutiques, art installations, or corporate atriums. It also ensures uniform brightness and enhances viewer engagement.

iX COB Description 2

170°Super wide viewing angle

The iX-COB & SMD LED display boasts an ultra-wide 170° viewing angle, delivering flawless images from any angle. Leveraging COB technology, the display ensures consistent color, clarity, and brightness. Whether deployed in a spacious retail atrium, intimate conference room, or vibrant art installation, this COB LED display solution ensures a flawless viewing experience for every viewer.

iX COB Description 3

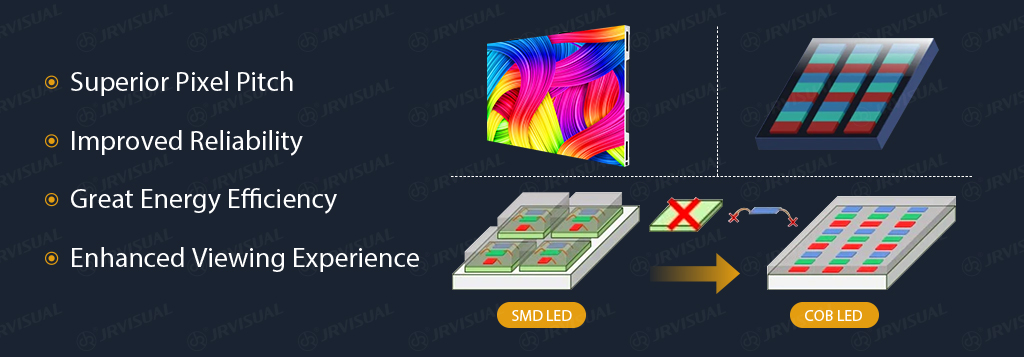

Benefits of COB LED Technology

COB LED technology enables COB LED displays to outperform traditional SMD LED solutions. Its superior pixel pitch delivers exceptionally clear and detailed visuals, while its robust structural design minimizes component failure for improved reliability. Furthermore, its lower energy efficiency and superior viewing experience make indoor COB LED displays the preferred choice for high-end indoor environments.

iX COB Description 4

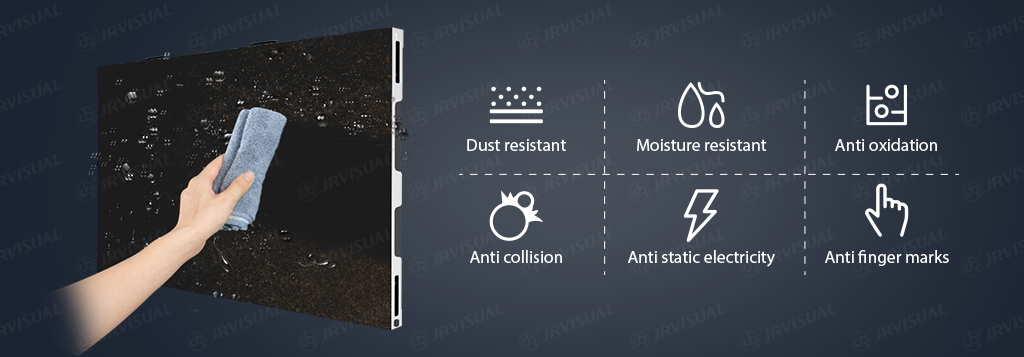

Strong against External Impact

Utilizing COB technology, this LED display boasts exceptional resistance to external impact, creating a robust protective structure that protects against static electricity, water, and fingerprints. This ensures the iX COB LED display delivers reliable performance 24/7, maintaining consistent brightness even in high-traffic indoor environments like retail stores, museums, and conference centers. The robust design not only protects the display from physical impact but also maintains consistent, high-quality visual output.

iX COB Description 5

Product application cases

Features

Flip Chip Technology

Flip-chip technology features a more compact structure, encompassing a black coating, composite encapsulation, LED chips, and PCB substrate. This innovative design increases the contrast of LED displays by three times, delivering stunningly vivid visuals, while reducing failure rates by 50% and improving reliability. It also increases surface strength by four times, providing greater durability. Energy efficiency is also improved by 40%, resulting in cost-effective operation. This makes indoor COB LED displays integrating flip-chip technology ideal for environments such as high-end retail stores, corporate atriums, and luxurious exhibition spaces.

Features

Specification

iX-COB Series Specification

You can choose the appropriate iX-COB display based on your application scenario and the specifications below.

No. Model iX-COB-P0.78125 iX-COB-P0.9375 iX-COB-P1.25 iX-COB-P1.5625
LED Type LED Type Flip chip Flip chip Flip chip Flip chip
Module Pixel Pitch (mm) 0.78125 0.9375 1.25 1.5625
Pixel Composition 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Module Resolution (W x H) 192x216 160x180 120x135 96x108
Module Size (mm) 150x337.5
Cabinet Module Arrangement (W x H) 4x2
Cabinet Resolution (W x H) 768x512 640x360 480x270 384x216
Cabinet area (㎡) 0.2025 / 27''
Cabinet size (mm) 600x337.5
Cabinet Material Die-casting Aluminum
Net.weight/Cabinet (kg) 4.5
Ingress Protection IP31
Working Voltage (V) 100-240
Serviceability Front
Display Max.Power Consumption (W/㎡) 420 420 420 420
Avg.Power Consumption (W/㎡) 80-150 80-150 80-150 80-150
Viewing Angle (H/V °) 170/170 170/170 170/170 170/170
Brightness (cd/㎡) 600 600 600 600
Pixel Density (dots/㎡) 1,638,400 1,137,778 640,000 409,600
Scan Mode 1/48 1/60 1/60 1/48
Contrast Ratio 10,000:1
Operation Temperature/Humidity -20℃~+45℃/10~80%RH
Lifetime (50% Brightness) 100000
Greyscale (bit) 16
Refresh Rate 3840
Frame Rate 50/60
Screen Angle Flat, Concave, Convex, 90°
Installation Method Direct wall Mounting / Mounting Frame
Certificate CE/EMC/LVD/RoHS
Remarks: The power consumption will fluctuate within ± 15%, depending on the brightness of different batches of lamps, subject to the actual situation.
No. Model iX-P0.9375 iX-P1.25 iX-P1.5625 iX-P1.875
LED Type LED Type Mini LED 4 in 1 SMD1010 SMD1010/SMD1212  SMD1010/SMD1515
Module Pixel Pitch (mm) 0.9375 1.25 1.5625 1.875
Pixel Composition 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Module Resolution (W x H) 320x180 240x135 192x108 160x90
Module Size (mm) 300x168.75
Cabinet Module Arrangement (W x H) 2x2
Cabinet Resolution (W x H) 640x360 480x270 384x216 320x180
Cabinet area (㎡) 0.2025
Cabinet size (mm) 600 x 337.5 x 27.5 (W x H x D)
Cabinet Material Die-casting Aluminum
Net.weight/Cabinet (kg) 4.5
Ingress Protection IP31
Working Voltage (V) AC 90-264
Serviceability Front Access
Display Max.Power Consumption (W/㎡) 350 350 350 350
Avg.Power Consumption (W/㎡) 100 100 100 100
Viewing Angle (H/V °) 170/170 170/170 170/170 170/170
Brightness (cd/㎡) 600 600 600 600
Pixel Density (dots/㎡) 1,137,778 640,000 409,600 284,444
Scan Mode 1/46 1/45 1/48 1/45
Contrast Ratio 10,000:1
Operation Temperature/Humidity -20℃~+45℃/10~80%RH
Lifetime (50% Brightness) 100,000
Greyscale (bit) 16
Refresh Rate 3,840HZ
Frame Rate 50 / 60
Screen Angle Flat, Concave, Convex, 90°
Installation Method Direct wall Mounting / Mounting Frame
Certificate CE, EMC, LVD, RoHS
Remarks: The power consumption will fluctuate within ± 15%, depending on the brightness of different batches of lamps, subject to the actual situation.
