M-COB Series mini flip chip technology, anti-collision, and HDR picture quality
LED Panel Details

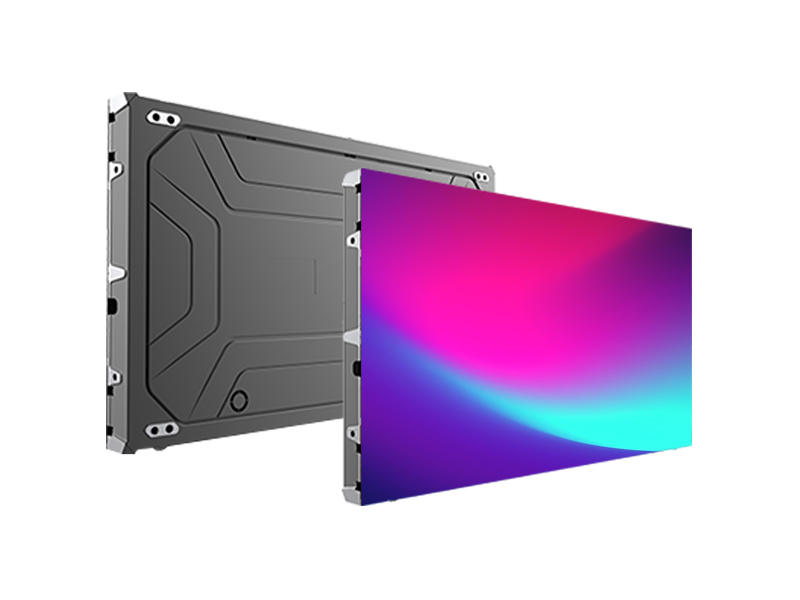

Panel View
Mini Flip Chip Technology
Product application cases
Copyright © 2025 JR VISUAL TEC, all rights reserved.

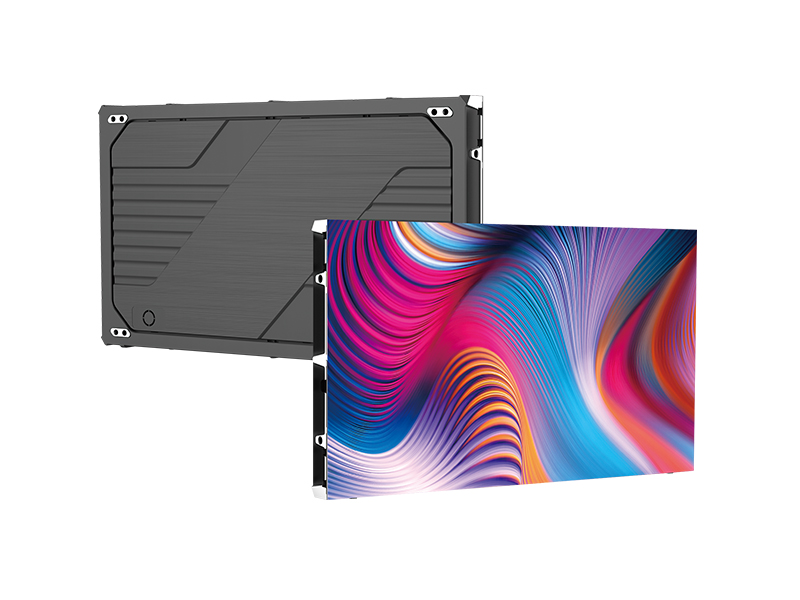

M-COB LED Display
Pixel pitch: 0.6mm, 0.7mm, 0.9mm, 1.2mm, 1.5mm, 1.8mm
Cabinet size: 600×337.5mm | 16:9
1. Light weight, less than 20kg/sqm.
2. PSU, receiver and hub card 1 design.
3. Direct wall mounting, easy front installation.
4. Conventional COB LED Display solution.

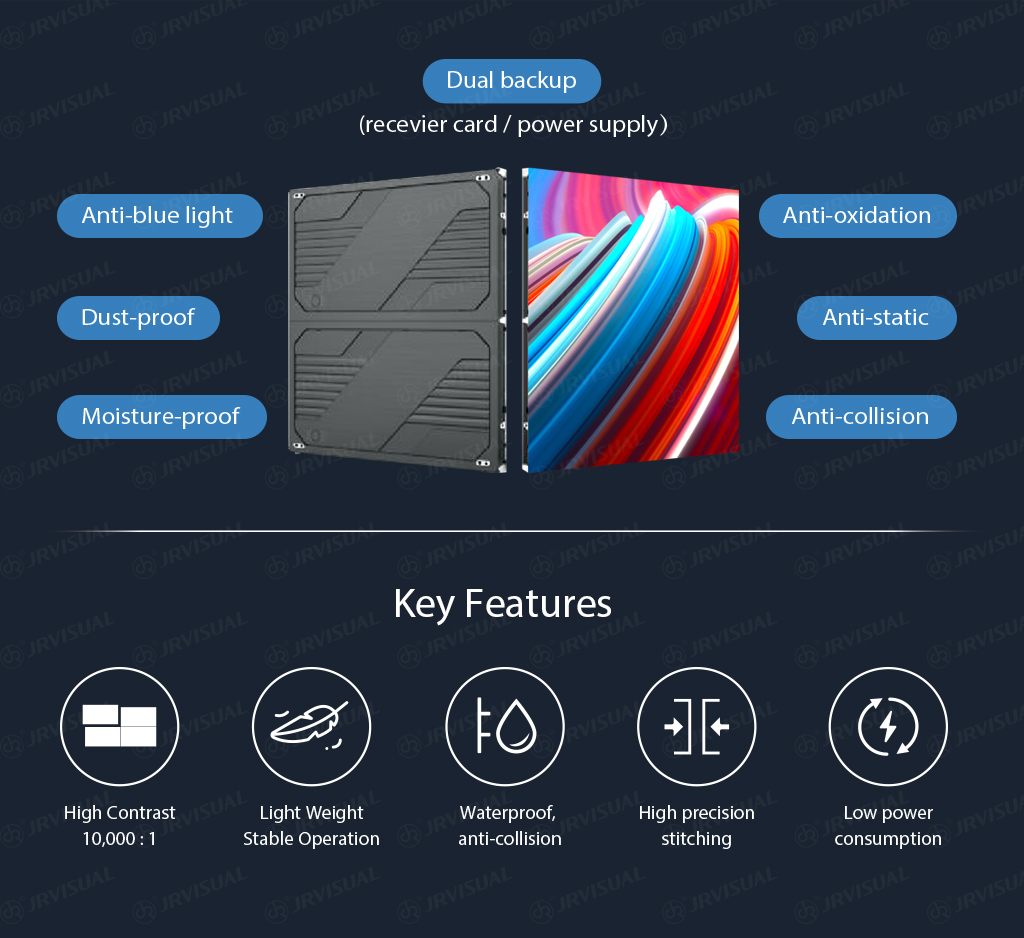

Features
Specification
M-COB Series Specification
| No. | Model | M-COB-P0.625 | M-COB-P0.78125 | M-COB-P0.9375 | M-COB-P1.25 | MCOB-P1.5625 | M-COB-P1.875 |
| LED Type | LED Type | Flip chip | Flip chip | Flip chip | Flip chip | Flip chip | Flip chip |
| Module | Pixel Pitch (mm) | 0.6.25 | 0.78125 | 0.9375 | 1.25 | 1.5625 | 1.875 |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |
| Module Resolution (W x H) | 240x270 | 192x216 | 160x180 | 120x135 | 96x108 | 80x90 | |
| LED Chip | Flip chip / Matt COB | ||||||
| Module Size (mm) | 150x168.75 | ||||||
| Cabinet | Module Arrangement (W x H) | 4x2 | |||||
| Cabinet Resolution (W x H) | 960x540 | 768x512 | 640x360 | 480x270 | 384x216 | 320x180 | |
| Cabinet area (㎡) | 0.2025 / 27'' | ||||||
| Cabinet size (mm) | 600x337.5 | ||||||
| Optional Cabinet size (mm) | 600x675x39.5mm (WxHxD) / 7.9kg | ||||||
| Cabinet Material | Die-casting Aluminum | ||||||
| Net.weight/Cabinet (kg) | 4 | ||||||
| Ingress Protection | IP31 | ||||||
| Working Voltage (V) | 100-240 | ||||||
| Serviceability | Front | ||||||
| Display | Max.Power Consumption (W/㎡) | 470 | 420 | 370 | 345 | 345 | 320 |
| Avg.Power Consumption (W/㎡) | 80-150 | 80-170 | 80-150 | 80-150 | 80-150 | 80-150 | |
| Viewing Angle (H/V °) | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 | |
| Brightness (cd/㎡) | 600 | 600 | 600 | 600 | 600 | 600 | |
| Pixel Density (dots/㎡) | 2,560,000 | 1,638,400 | 1,137,778 | 640,000 | 409,600 | 284,444 | |
| Scan Mode | 1/48 | 1/48 | 1/60 | 1/60 | 1/48 | 1/48 | |
| Contrast Ratio | 10,000:1 | ||||||
| Operation Temperature/Humidity | -20℃~+45℃/10~80%RH | ||||||
| Lifetime (50% Brightness) | 100000 | ||||||
| Greyscale (bit) | 16 | ||||||
| Refresh Rate | 3840 | ||||||
| Frame Rate | 50/60 | ||||||
| Screen Angle | Flat, Concave, Convex, 90° | ||||||
| Installation Method | Direct wall Mounting / Mounting Frame | ||||||
| Certificate | CE/EMC/LVD/RoHS | ||||||
| Remarks: The power consumption will fluctuate within ± 15%, depending on the brightness of different batches of lamps, subject to the actual situation. | |||||||
