O-FPP Outdoor LED Display

Pixel pitch: 0.9mm, 1.2mm 1.5mm, P1.8mm, P2.5mm
Cabinet size: 480x540mm | 8:9

1. Outdoor fine pixel pitch LED display with Min. P0.9mm
2. High brightness outdoor application with more than 3,500nits
3. 8:9 aspect ratio cabinet for standard screen resolution format, HD, 4K, 8K
4. Fully front service and extra safety locks
5. Flip chip LED technology, energy saving and stable quality



Request a Quote

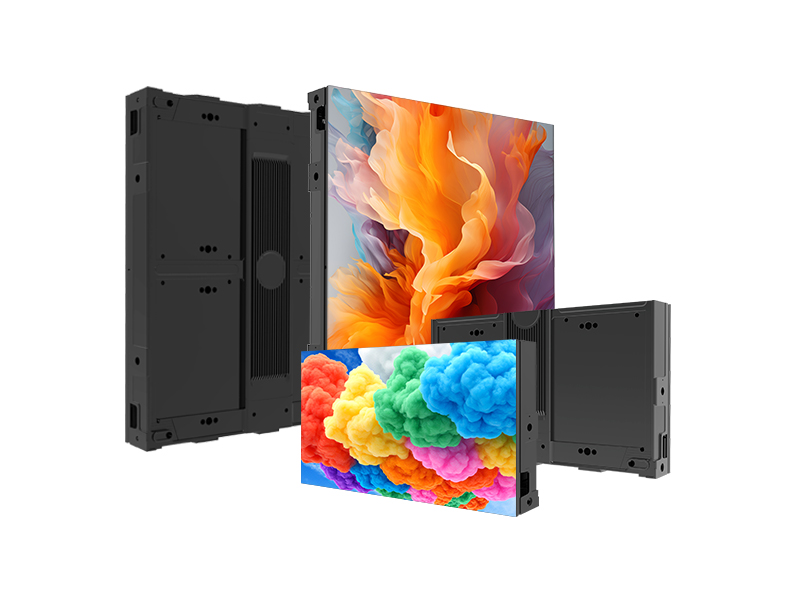

O-FPP Series

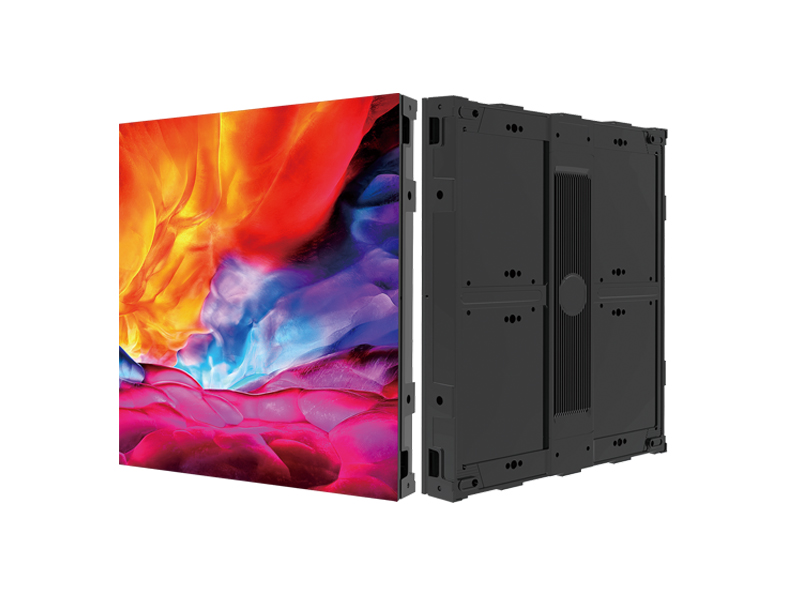

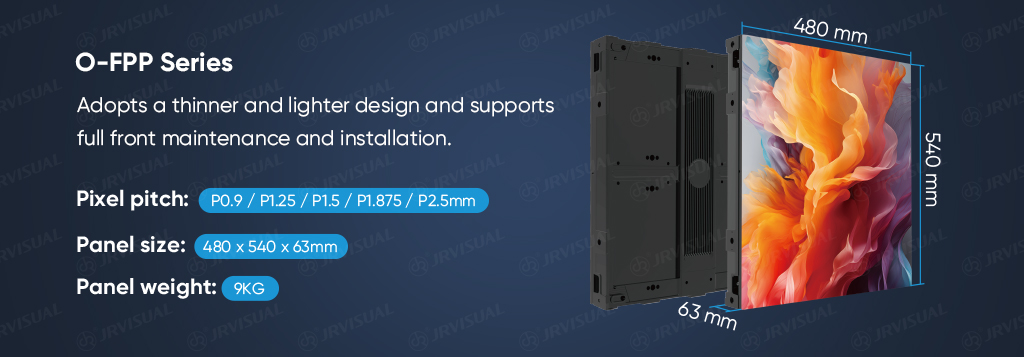

The O-FPP Outdoor LED Display brings a thinner, lighter design to outdoor LED screen setups. It supports full front maintenance and installation, cutting on-site upkeep time. Its panel measures 480x540x63mm and weighs just 9kg for easy handling.
Choose from pixel pitches like P0.9, P1.25, P1.5, P1.875, or P2.5 for varied clarity needs. This range suits everything from close-up viewing to wide outdoor venues.
The front-access design lets you service modules without removing the entire screen. This feature minimizes downtime for busy outdoor installations. As an outdoor LED screen, it merges sleek design with practical functionality.

Description 1

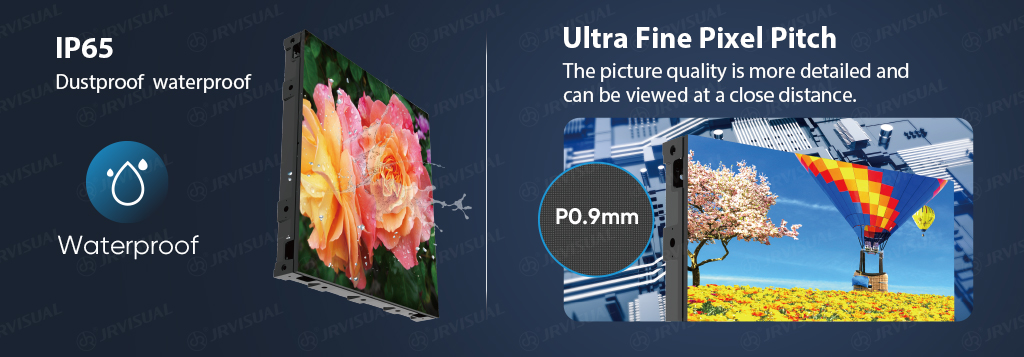

Ultra Fine Pixel Pitch

The O-FPP Outdoor LED Display features Ultra Fine Pixel Pitch for stunning close-up visuals. Its P0.9mm pixel pitch delivers detailed, crisp images even at short viewing distances. It also boasts an IP65 rating, making it dustproof and waterproof for all-weather use. This protection ensures reliable performance in rain, dust, or humidity.
The fine pixel pitch suits high-detail applications like luxury retail or event backdrops. The waterproof design pairs with sharp visuals for long-lasting outdoor impact. As an outdoor LED screen, it merges precision with durability.

Description 2

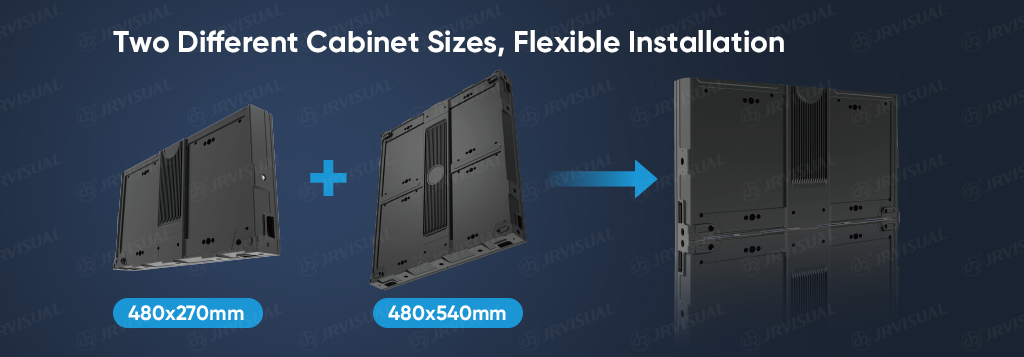

Flexible Outdoor Installations

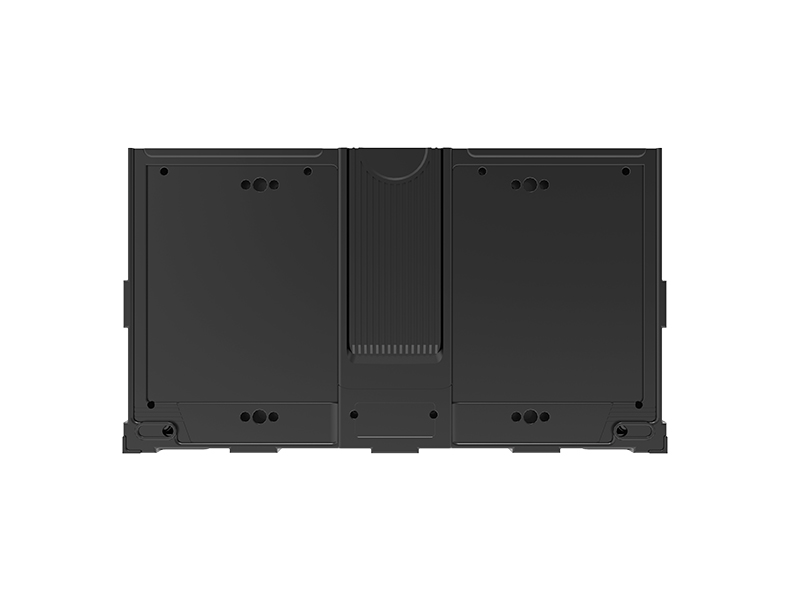

The O-FPP Outdoor LED Display offers two cabinet sizes for versatile outdoor LED screen setups. The 480x270mm and 480x540mm options let you mix and match for custom layouts.
You can combine the sizes to create seamless, tailored configurations. It supports both small and large-scale outdoor projects. The modular design simplifies installation, even for complex outdoor structures. For a customizable outdoor display solution, the O-FPP Series is a top choice.
Description 3

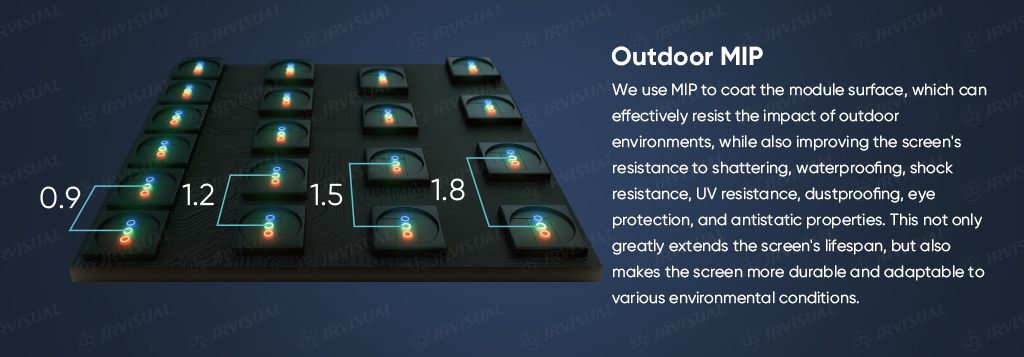

Outdoor MIP

The O-FPP Outdoor LED Display leverages Outdoor MIP coating for unbeatable outdoor durability. This protective layer coats each module’s surface, shielding it from harsh outdoor elements. It boosts shatter resistance, waterproofing, and shock absorption to withstand daily wear.
Additionally, the MIP coating blocks UV rays, repels dust, and reduces static buildup. It also provides eye protection, making visuals more comfortable during long viewing sessions. The display supports pixel pitches from 0.9mm to 1.8mm, balancing clarity and adaptability. The MIP technology pairs with high-resolution pixels for lasting, vivid performance.

Description 4

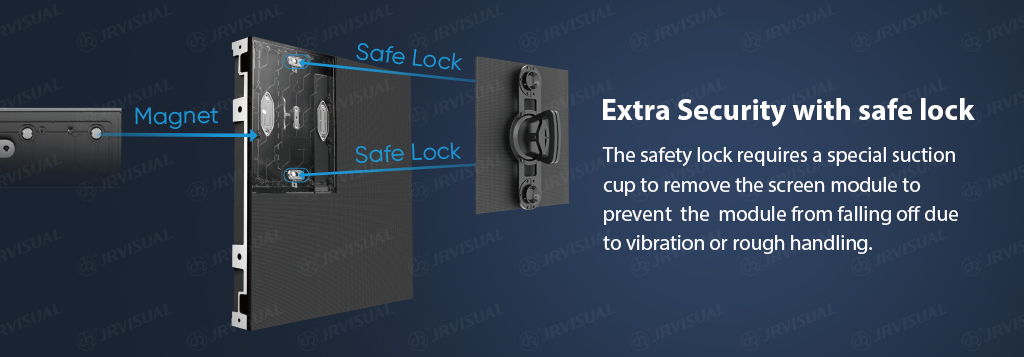

Extra Security with safe lock

The O-FPP Outdoor LED Display uses a safe lock system. This mechanism requires a special suction cup to remove screen modules, preventing accidental detachment. It guards against module falls caused by vibration or rough handling during outdoor use.
Paired with magnetic mounting, the safe lock ensures a firm, reliable hold. The system keeps your outdoor LED screen secure without complicating maintenance. You can still access modules quickly with the right tools, minimizing downtime. As an outdoor LED screen, it merges safety with practical functionality.

Description 5

Product application cases

Features

Key Features

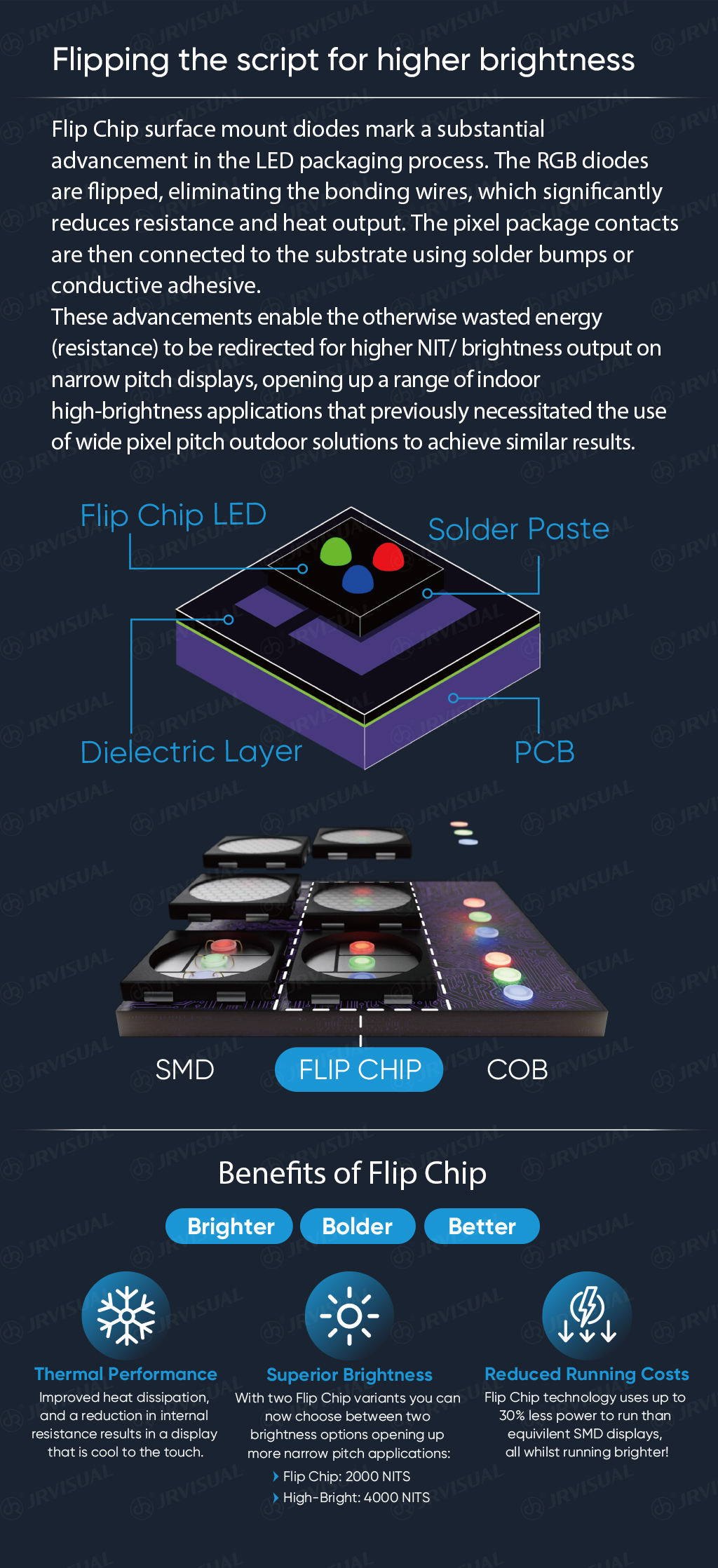

The O-FPP Outdoor LED Display harnesses Flip Chip technology. This advanced packaging flips RGB diodes, eliminating bonding wires to cut resistance and heat output. Solder bumps or conductive adhesive connect pixel packages to the substrate, boosting energy efficiency.
Reduced resistance redirects otherwise wasted energy into higher brightness, reaching up to 4000 nits. This breakthrough lets narrow-pitch outdoor displays match the brightness of wider-pitch alternatives. It delivers vivid visuals even in direct sunlight.
Flip Chip also enhances thermal performance, keeping the screen cool to the touch. It cuts power use by up to 30% compared to SMD displays, lowering running costs. This technology pairs with the O-FPP’s weatherproof build for durable outdoor use.
As an outdoor LED screen, it delivers bold, energy-efficient performance that outshines traditional outdoor displays.

Features

Specification

O-FPP Series Specification

Pixel Pitch P0.9 P1.25 P1.5 P1.8 P2.5
Series Model O-FPP0.9 O-FPP1.25 O-FPP1.5 O-FPP1.875 O-FPP2.5
SMD Type SMD0606 SMD0606 SMD1010 SMD1010 SMD1010
MicroX mode (cd/m²) >4,000 >4,000 >4,000 >4,000 >3,500
Distance >1m >1.2m >1.5m >2m >2.5m
LED Kind MicroX MicroX MicroX MicroX MicroX
Module Surface Treatment X-GOB X-GOB X-GOB X-GOB X-GOB
Pixel Density (dots/m²) 1,137,777 640,000 444,444 284,444 160,000
Refeshrate 3,840HZ 3,840HZ 3,840HZ 3,840HZ 3,840HZ
Viewing Angle 160⁰(H)/160⁰(V) 160⁰(H)/160⁰(V) 160⁰(H)/160⁰(V) 160⁰(H)/160⁰(V) 160⁰(H)/160⁰(V)
Contrast 6000:1 6000:1 6000:1 6000:1 6000:1
Module Size (mm) 240 x 270 240 x 270 240 x 270 240 x 270 240 x 270
Cabinet Size (mm) 480x540/480x270 480x540/480x270 480x540/480x270 480x540/480x270 480x540/480x270
Cabinet Res (px) 512x576/512x288 384x432/384x216 320x260/320x180 256x288/256x144 192x216/192x108
Weight (kg/Panel) 9kg / 5kg 9kg / 5kg 9kg / 5kg 9kg / 5kg 9kg / 5kg
Cabinet Material Die-casting aluminum Die-casting aluminum Die-casting aluminum Die-casting aluminum Die-casting aluminum
System Stacking / Hanging / Wall mounting Stacking / Hanging / Wall mounting Stacking / Hanging / Wall mounting Stacking / Hanging / Wall mounting Stacking / Hanging / Wall mounting
Environment IP65 / IP54 IP65 / IP54 IP65 / IP54 IP65 / IP54 IP65 / IP54
Max Power (w/m²) 720 720 720 720 720
Avg Power (w/m²) 240 240 240 240 240
Voltage AC 100-240V AC 100-240V AC 100-240V AC 100-240V AC 100-240V
Certification CE, EMC, LVD, CCC, ROHS
*The specifications are for reference, actual values may vary.
