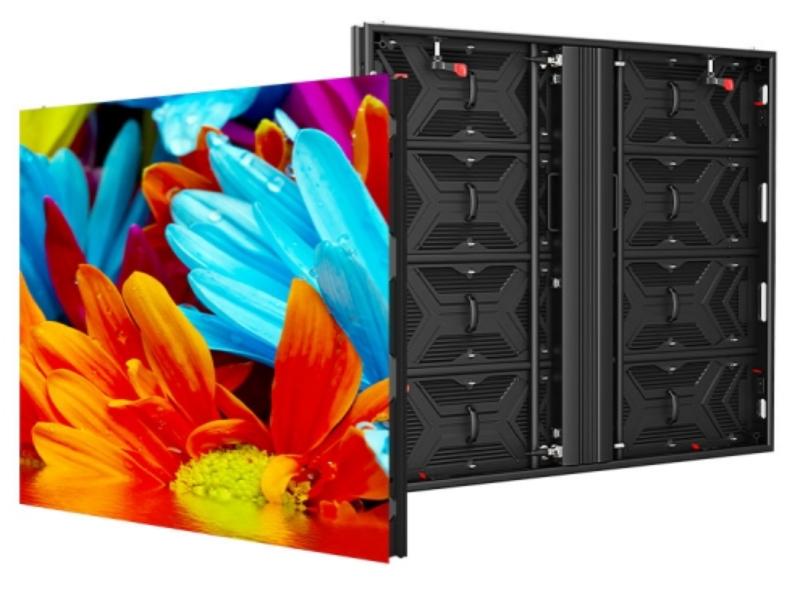

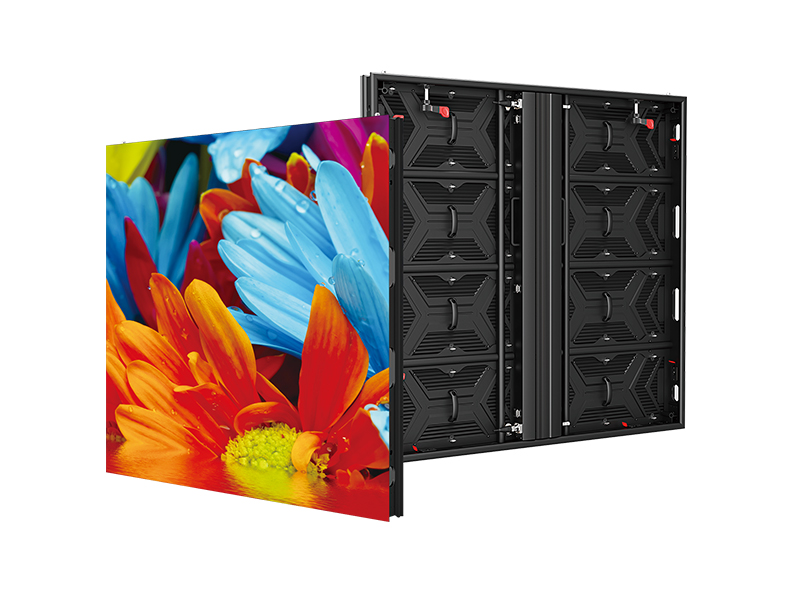

O-FY | Outdoor Fixed Installation LED Display

Pixel pitch: 3.9mm, 4.8mm, 6.25mm, 7.81m, 10.5mm.
Cabinet size: 1000x1000x83mm as standard, 1000x750mm / 1000x500mm or customized available.

1. Cost effective solution for DOOH application, aluminum cabinet and plastic modules.
2. Light weight of 22.5kg/sqm for outdoor LED Display solution.
3. Fast installation with fast lock system.
4. Standard 1x1m cabinet size, use friendly for project planning.
5. Fanless design, 0 noise during operation.

Request a Quote

Product Dimension

The O-FY Outdoor Fixed Installation LED Display features precise, functional product dimensions for easy setup. Its main cabinet measures 1000x1000mm, with a slim 83mm depth—ideal for outdoor space constraints. A power connector ensures a stable energy supply for continuous outdoor use.
Position pins align cabinets precisely, avoiding splicing gaps in large setups. Fast locks secure units quickly, cutting down installation time. The back cover protects internal components from outdoor elements.

O-FY Description 1

Front Side

The O-FY Outdoor Fixed Installation LED Display elevates visuals with its front-side design. It uses a matte corrugation module mask to achieve ultra-high contrast. This feature makes colours pop, even in bright outdoor environments.
The mask reduces glare, keeping visuals clear under direct sunlight—this design suits spaces like plazas or billboards, where clarity matters. The matte finish also minimises reflections, enhancing readability from afar.

O-FY Description 2

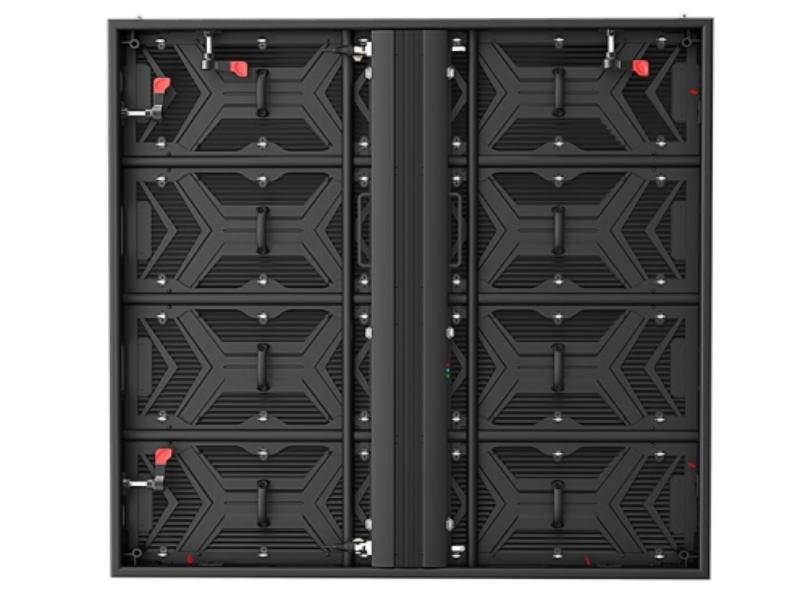

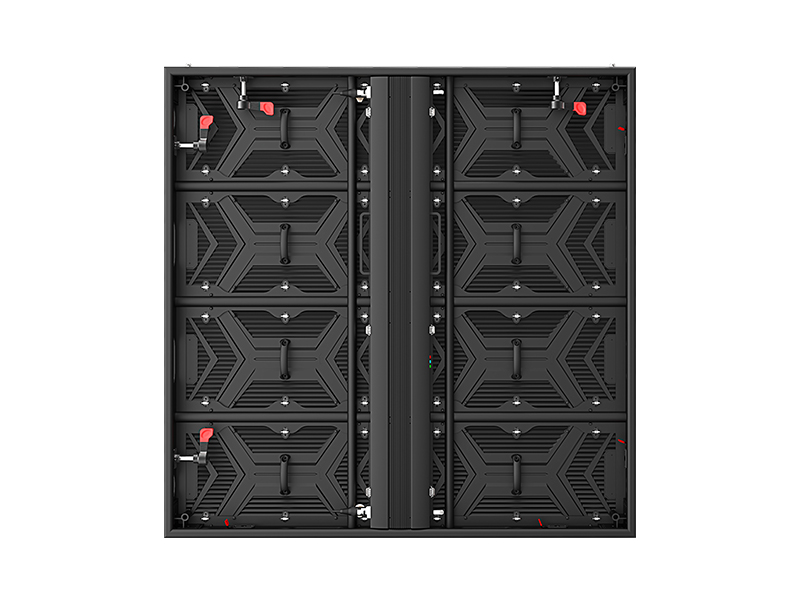

Back Side

The O-FY Outdoor Fixed Installation LED Display uses an aluminium profile cabinet that’s 35% lighter, weighing just 22.5kg. This light build cuts down transportation and installation costs.
Lighter cabinets also make on-site setup faster and less labour-intensive. Beyond weight, it has IP65 waterproofing on both the front and back. This shields it from rain and moisture in outdoor environments.
It balances durability with portability. The aluminium build adds sturdiness while keeping the unit light. This design suits large outdoor installations where efficiency matters.

O-FY Description 3

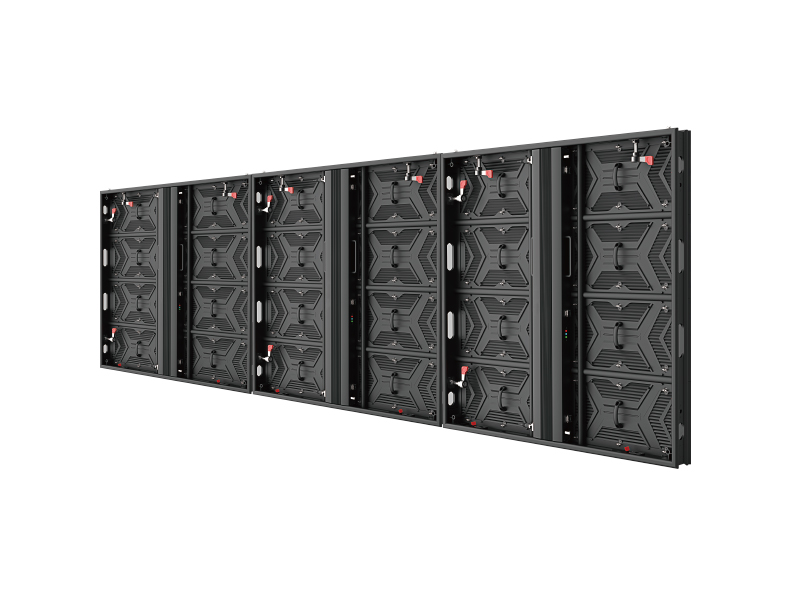

Seamless splicing

The O-FY Outdoor Fixed Installation LED Display delivers seamless splicing for cohesive outdoor visuals. Its delicate structure ensures cabinets align precisely, eliminating visible gaps. This creates a smooth. Seamless splicing lets content flow across multiple units without disruption. The design also achieves perfect flatness, keeping visuals crisp and distortion-free, and prioritises a polished, professional look.

O-FY Description 4

Fast installation

The O-FY Outdoor Fixed Installation LED Display enables fast installation for outdoor projects. It uses a stainless steel fast lock for quick, secure cabinet connections. Its high-precision aluminium alloy panel ensures good flatness post-installation. The stainless steel lock catch adds stability, keeping units aligned. Quick assembly means less labour and faster project turnaround.
It prioritises efficiency without sacrificing quality. The robust lock system maintains structure through outdoor conditions. As an LED display, it merges speed with reliable performance.

O-FY Description 5

Product application cases

Features

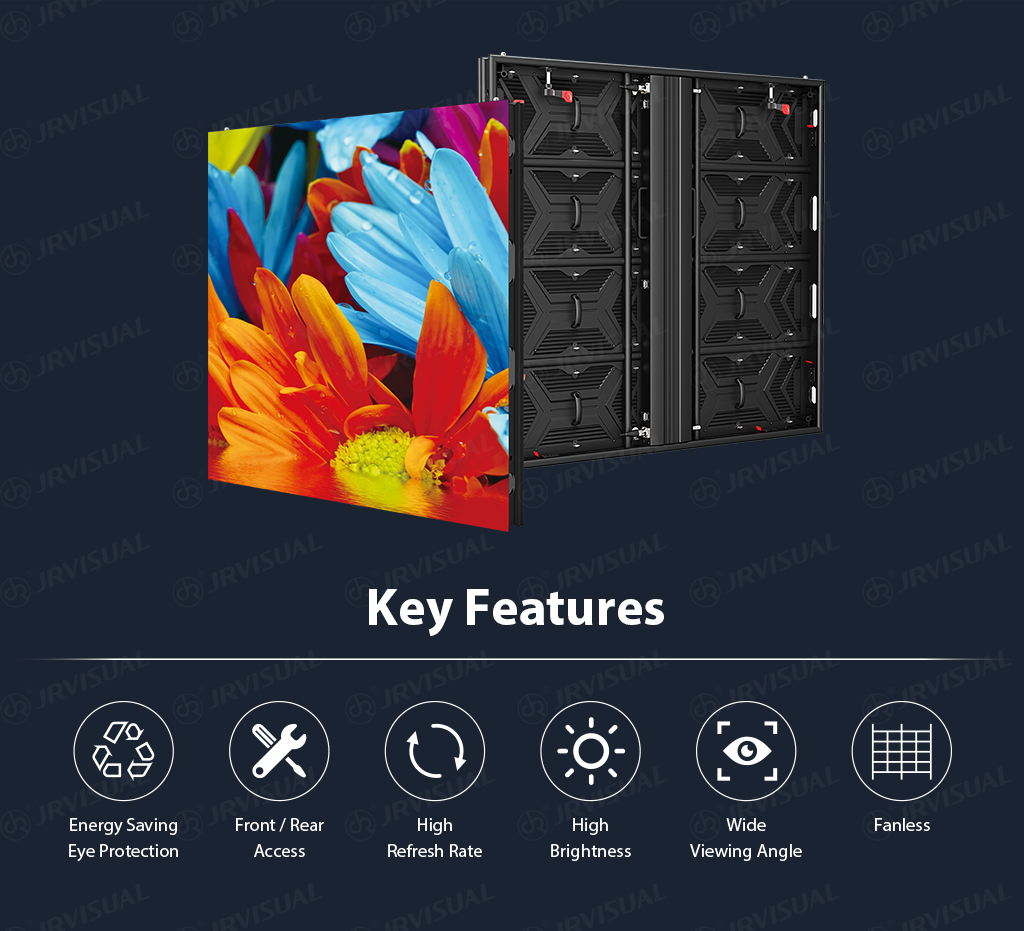

Key Features

For outdoor displays that blend performance and user-friendliness, the O-FY Outdoor Fixed Installation LED Display stands out with its key features. It combines energy saving with eye protection, keeping visuals gentle for public outdoor audiences. Front and rear access make maintenance easy, reducing downtime during outdoor setup.
A high refresh rate ensures smooth, flicker-free content for dynamic outdoor visuals. High brightness keeps displays clear even under intense sunlight. Its wide viewing angle lets people see sharp details from multiple spots.
It operates fanless, running quietly without disturbing outdoor spaces. It merges practicality with user-centric design. As an LED display, it balances function with outdoor suitability.

O-FY Features

Specification

O-FY Series Outdoor LED Display Specification

Model O-Fury P3.9 O-Fury P4.8 O-Fury P6.25 O-Fury P7.81 O-Fury P10.4
Pixel Pitch 3.91mm 4.81mm 6.25mm 7.8125mm 10.416mm
Pixel Density (pixels/m²) 65,536 43,264 25,600 16,384 9,216
LED Type SMD1921 SMD1921 SMD2727 SMD2727 SMD2727
LED Configuration 1R 1G 1B
Module Material Plastic
Cabinet Material Aluminum alloy
Module Connection Connectors / Cable free
Module Size (WxHxD) 500x250 mm
Module Resolution (pixels) 128x64 104x52 80x40 64x32 48x24
Cabinet Size (mm) 1000x1000x83mm as standard, 1000x750mm / 1000x500mm or customized available
Cabinet Resolution (pixels) 256x256 208x208 160x160 128x128 96x96
Recommend Viewing Distance >3m >4m >6m >8m >10m
Scan Mode 1/16 scan 1/13 scan 1/8 scan 1/8 scan 1/8 scan
Brightness (nits) 6,000
Refresh Rate (HZ) 1,920 / 3,840
Contrast Ratio 8,000 : 1
Max. Power Consumption (W/M2) 650
Avg. Power Consumption (WM2) 100-200
Weight (kg/panel) 22.5
Speicial Shape Installation Flat or curve installation (90°≤ x ≤180°)
Color Temperature 8,000 K as standard (3,200-9,000K adjustable)
Frame Frequency (HZ) 50/60
AC Input Voltage 110-220V ±10%
Viewing Angle (°) 160/140 (H/V)
Operating Temperature (°C) -10°C~+40°C
Storage Temperature (°C) -20°C~+50°C
Operating Humidity 10%~95%
Dead Pixel Rate <0.0003
Lift Span 100,000 hours
Ingress Protection IP65 front and rear
Operating Environment Outdoor use suggested
Service Front/Rear access
Certificate CE , EMC, LVD, FCC, ROHS
Note: Specifications are for reference only and are subjected to change without notice.
