RX Series | Outdoor Fine Pixel Pitch LED Display

RX Series cabinet rear view

The RX Series Outdoor Fine Pixel Pitch LED Display showcases a feature-packed cabinet rear view. It includes a SEG Slot and Cover Plate Magnet for secure component placement. Top and Side Locks keep the cabinet stable during outdoor installations.
A Connector Attach and Module Back Lock ensure tight, reliable connections. A Module Handle and Test Button simplify on-site checks and adjustments. The 49% Corner design optimises structural fit for seamless setups.
On the other side, AB Lock and Brainbox Lock boost overall cabinet security. IP55-IP65 Breathing and Curving Lock adapt to outdoor conditions. A Handle and VESA Mounting add flexibility for different installation needs. Stacking Lock and Cable Attach keep setups organised.

Front Maintenance and Back Maintenance

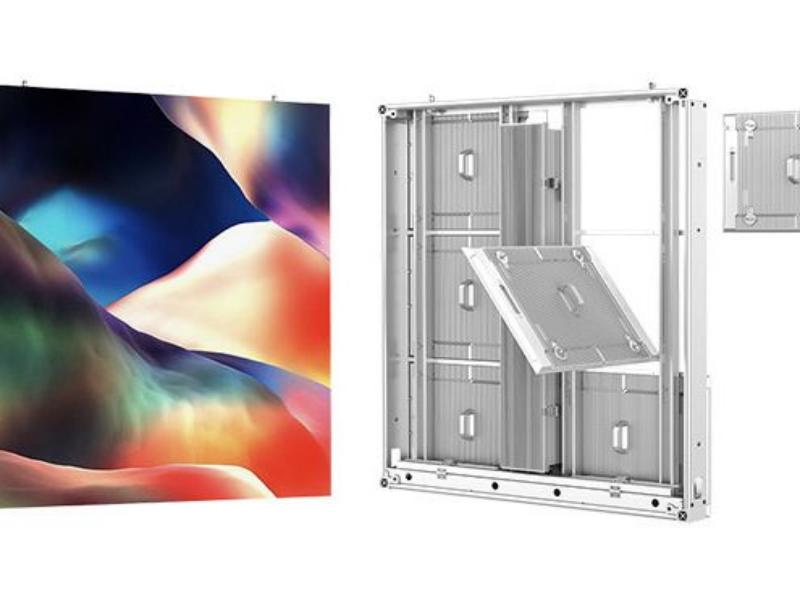

The RX Series Outdoor Fine Pixel Pitch LED Display offers both front and back maintenance for easy upkeep. Its modular design splits into frame, brainbox, and modules, simplifying component access. Front maintenance lets users service parts without moving the entire unit.
Back maintenance provides complete access to internal components via the 496 Corner design. The X-GOB, LEDs, and PCB layers are structured for quick inspection or replacement. Unlike rigid LED products, it prioritises hassle-free servicing for outdoor setups.
This dual-maintenance design cuts downtime. Each part is easily detachable, reducing repair labour and costs.

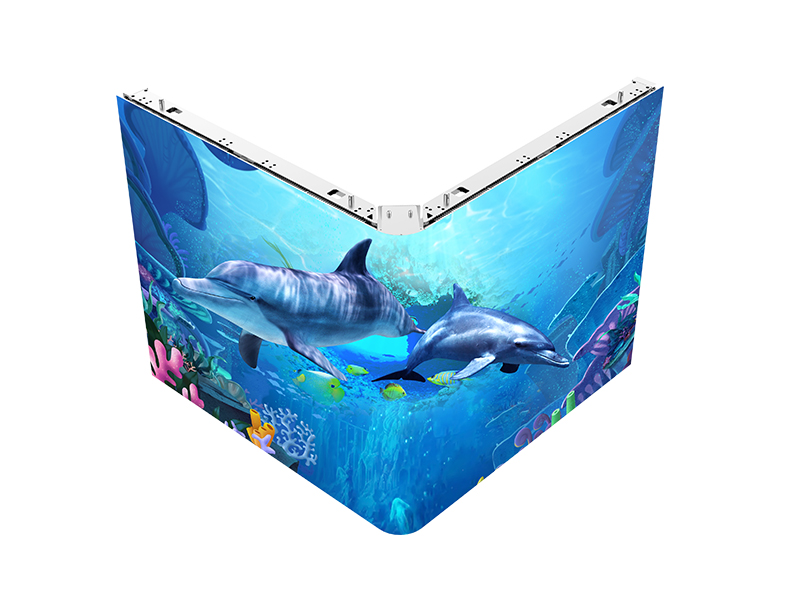

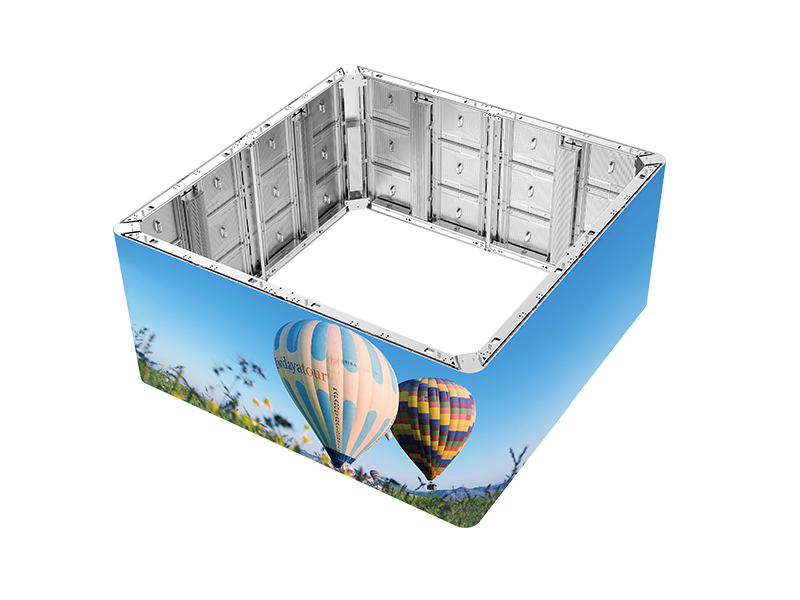

90° connection

The RX Series Outdoor Fine Pixel Pitch LED Display supports a 90° connection for angular outdoor setups. To enable this, the cabinet’s left or right side needs a 45° cut. This modification lets cabinets join at a perfect right angle.
However, the cut side can no longer connect to standard cabinets. This design suits creative outdoor layouts, like corner displays. Unlike inflexible LED products, it offers angular placement flexibility.
The 90° connection creates seamless, sharp visuals around corners. It adds versatility for spaces like building exteriors or plaza edges. This feature balances creativity with outdoor display functionality.

X360 technology and Virtual Production

The RX Series Outdoor Fine Pixel Pitch LED Display features X360 technology and virtual production capabilities. X360 supports floor, curved wall, and straight wall display setups. This versatility adapts to diverse outdoor visual needs, from events to installations.
On the virtual production side, it enables curved wall and ceiling displays. These options create immersive, dynamic environments for creative projects. Unlike basic LED products, it merges flexibility with cutting-edge visual tech.
The vivid, cosmic-themed display showcases its sharp, high-quality output. Its adaptive design works for both functional and artistic outdoor visuals.

Frame Connection

For creative outdoor display setups, the RX Series Outdoor Fine Pixel Pitch LED Display offers flexible Frame Connection. Its iSkin can be assembled with the LED panel or the frame’s cover plate. These two combinations unlock diverse design possibilities for outdoor spaces.
You can craft custom setups, such as bar counters or art walls, blending visuals with architecture. The “ON” mode showcases vibrant, flowing graphics on the integrated display. The “OFF” mode hides the panel, keeping the surface sleek and cohesive.
It merges functionality with creative design freedom. The seamless frame connection ensures stable, polished setups. As an LED display, it turns outdoor spaces into customizable visual hubs.
