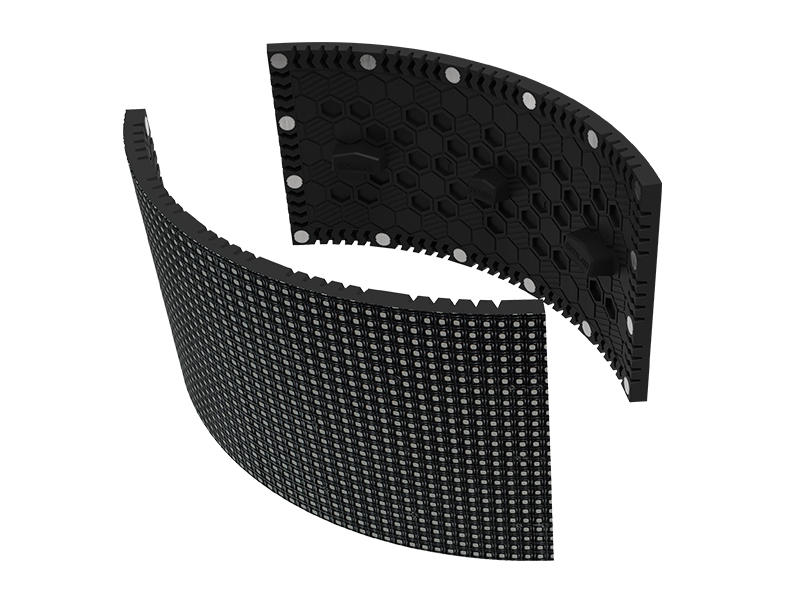

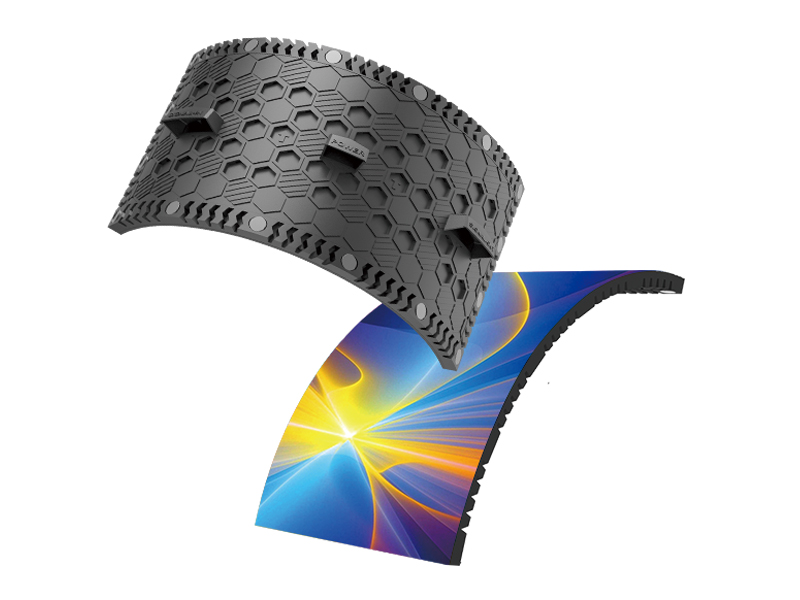

O-Soft | Outdoor Flexible LED Display

Pixel pitch: 2.5mm, 3mm, 4mm.
Module size: 320x160mm.
Cabinet size: Customized Steel cabinet.


1. Modular design with standard 320x160mm modules.
2. IP65 rated for outdoor application.
3. Strong magnetic design for super flat screen.
4. Small pixel pitch start from 2.5mm.

Cell Design

Extreme Visual Beauty.

O-Soft Description 1

Increased Interfaces Safety

Special waterproof designs of interfaces with better protection.

O-Soft Description 2

Outdoor Soft Modules

Allow anther outdoor dislay possibility.

O-Soft Description 3

Module Supports Concave And Convex Designs

Big curve angle supports diversified outdoor LED screen designa.

O-Soft Description 4

Easy installation and maintenance

Removable module rear cover.

O-Soft Description 5

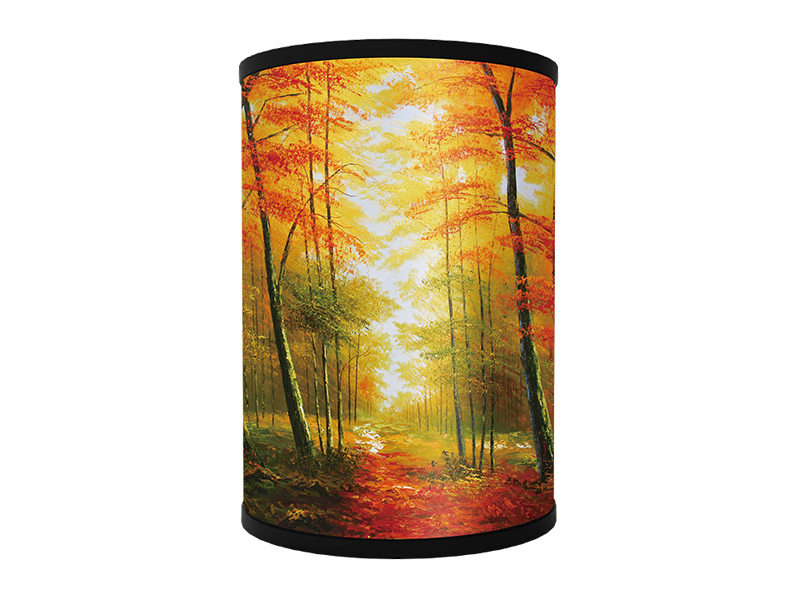

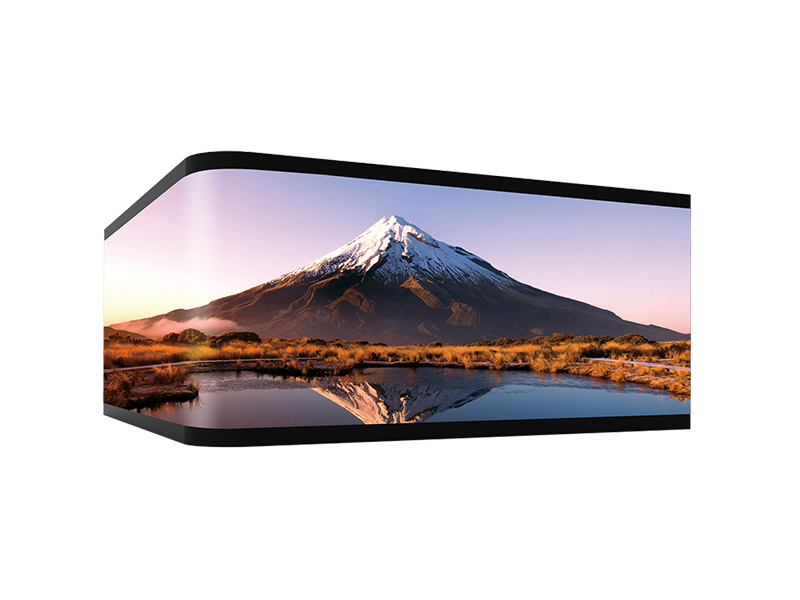

Product application cases

Features

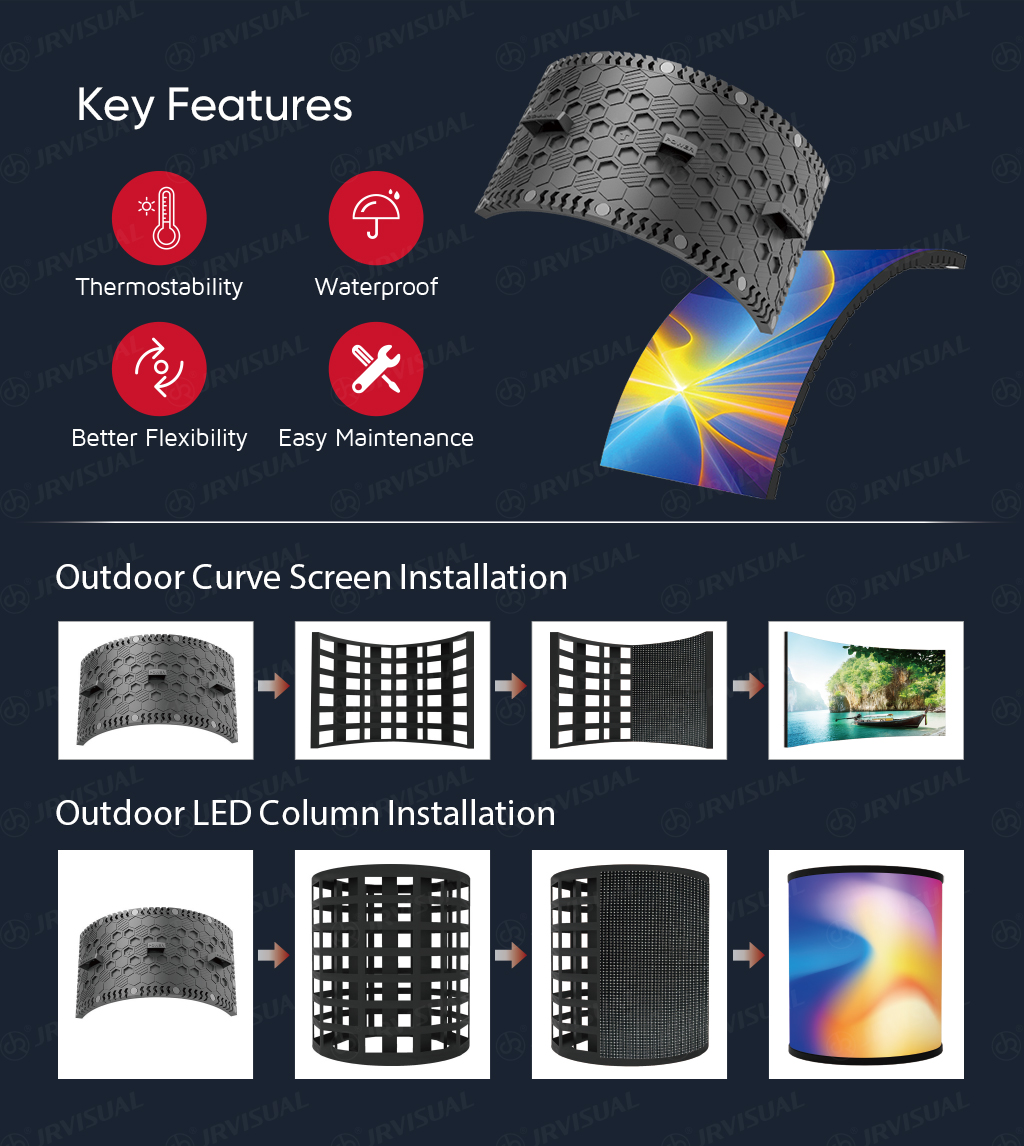

O-Soft Key Features

O-Soft Features

Specification

O-Soft Flexible LED Module Specification

Model OS3 OS4
Pixel Pitch 3mm 4mm
Pixel Density (pixels/m²) 105,625 62,500
LED Type SMD1415 SMD1921
LED Configuration 1R 1G 1B 1R 1G 1B
Module Material Rubber with magnets Rubber with magnets
Module Connector Type HUB75 HUB75
Module Size (WxHxD) 320x160x12 mm 320x160x12 mm
Cabinet Size (mm) Customized based on standard module size / Steel cabinet
Module Resolution (pixels) 104x52 80x40
Curve Min Diameter 1,222.9mm 1019mm
Curve Angle ≥165° ≥162°
Recommend Viewing Distance 3-30m 4-30m
Screen Flatness ≤ 0.6 mm ≤ 0.6 mm
Module Input Voltage (V) 5 5
Module Max. Input Current (A) 6.5 6
Max. Power Consumption (W) 640 600
Avg. Power Consumption (W) 185 170
Module Weight (g) 620 600
Brightness (nits) >5,000 >5,000
Refresh Rate (HZ) 1,920 - 3,840 1,920 - 3,840
Scan Mode 1/13 1/10
Contrast Ratio 3000 : 1 5000 : 1
Color Temperature 6,500 K as standard (3,200-9,000K adjustable)
Frame Frequency (HZ) 50/60
AC Input Voltage 110-220V ±10%
Viewing Angle (°) 140 / 120 (H/V)
Operating Temperature (°C) -10°C~+50°C
Storage Temperature (°C) -20°C~+60°C
Operating Humidity 10%~95%
Dead Pixel Rate <0.0003
Lift Span 100,000 hours
Ingress Protection IP65 (With steel cabinet)
Operating Environment Indoor & Outdoor
Service Front access
