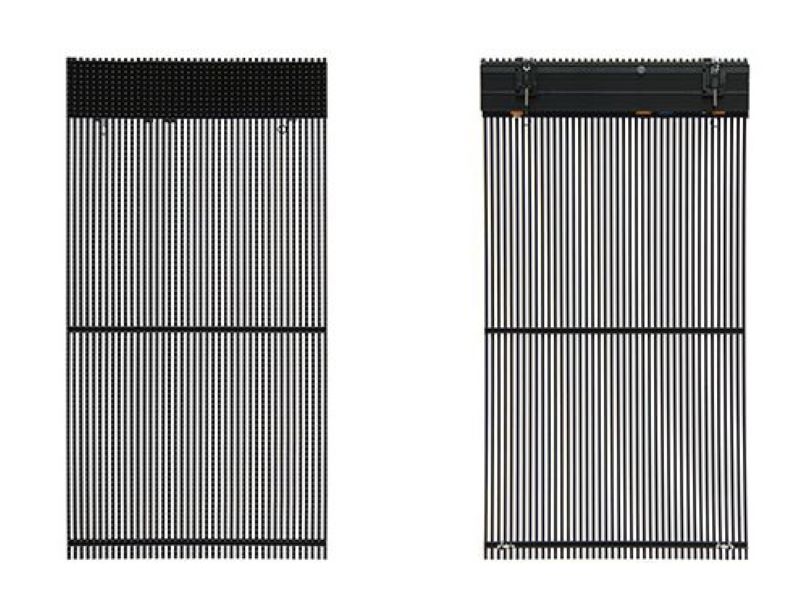

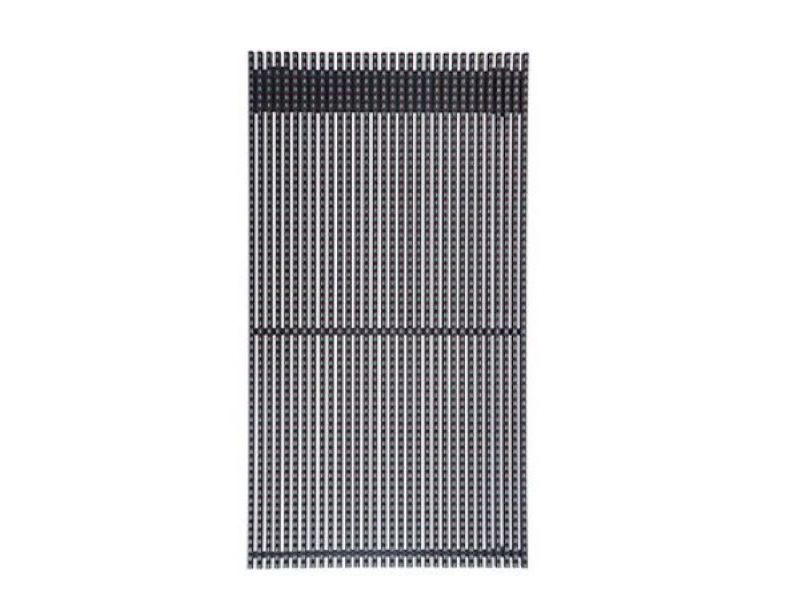

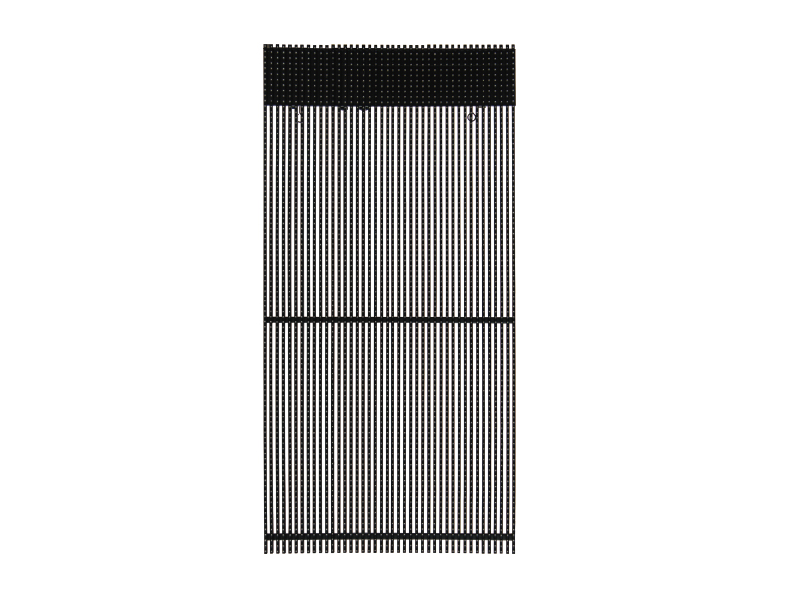

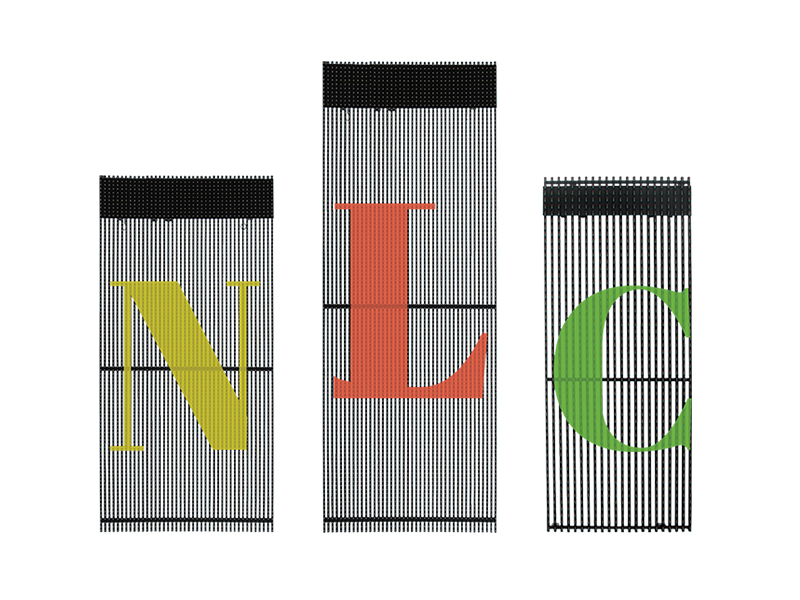

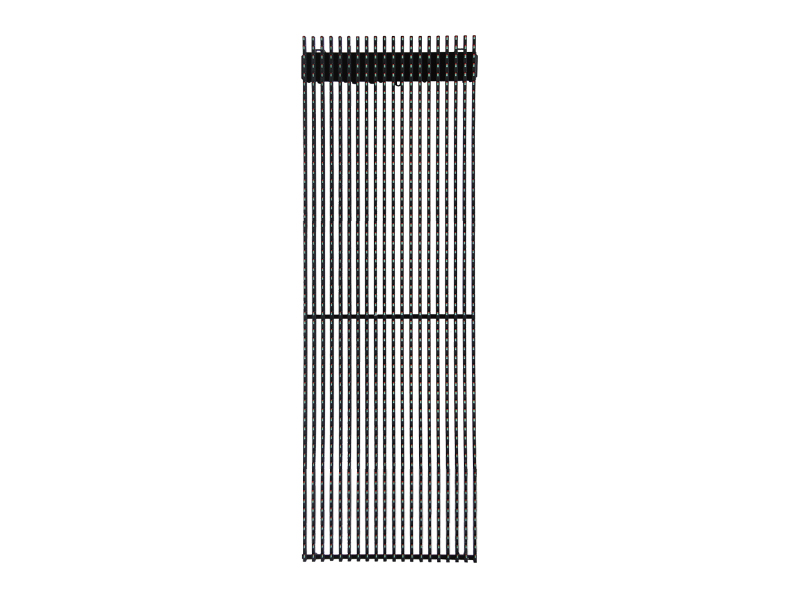

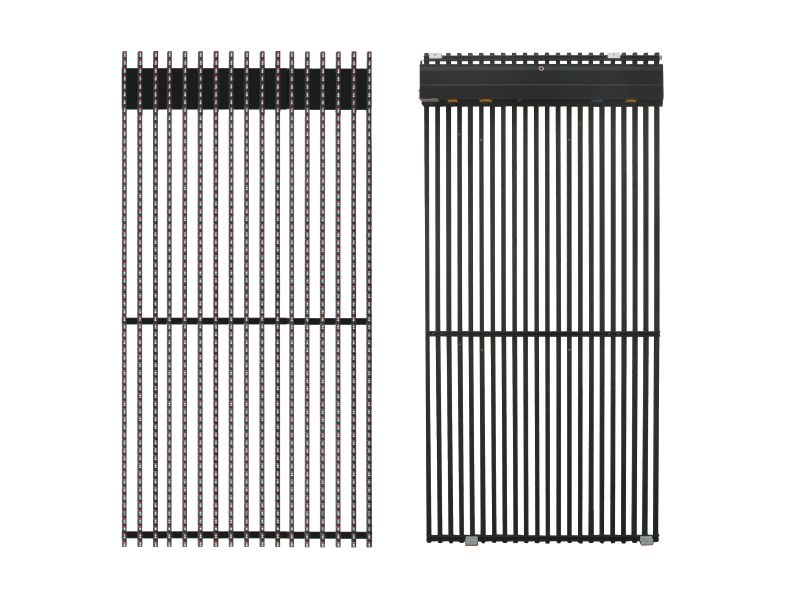

Pixel pitch: P10mm, 12.5mm, 15.625mm, 31.25mm.
Cabinet size: 500x1000mm.

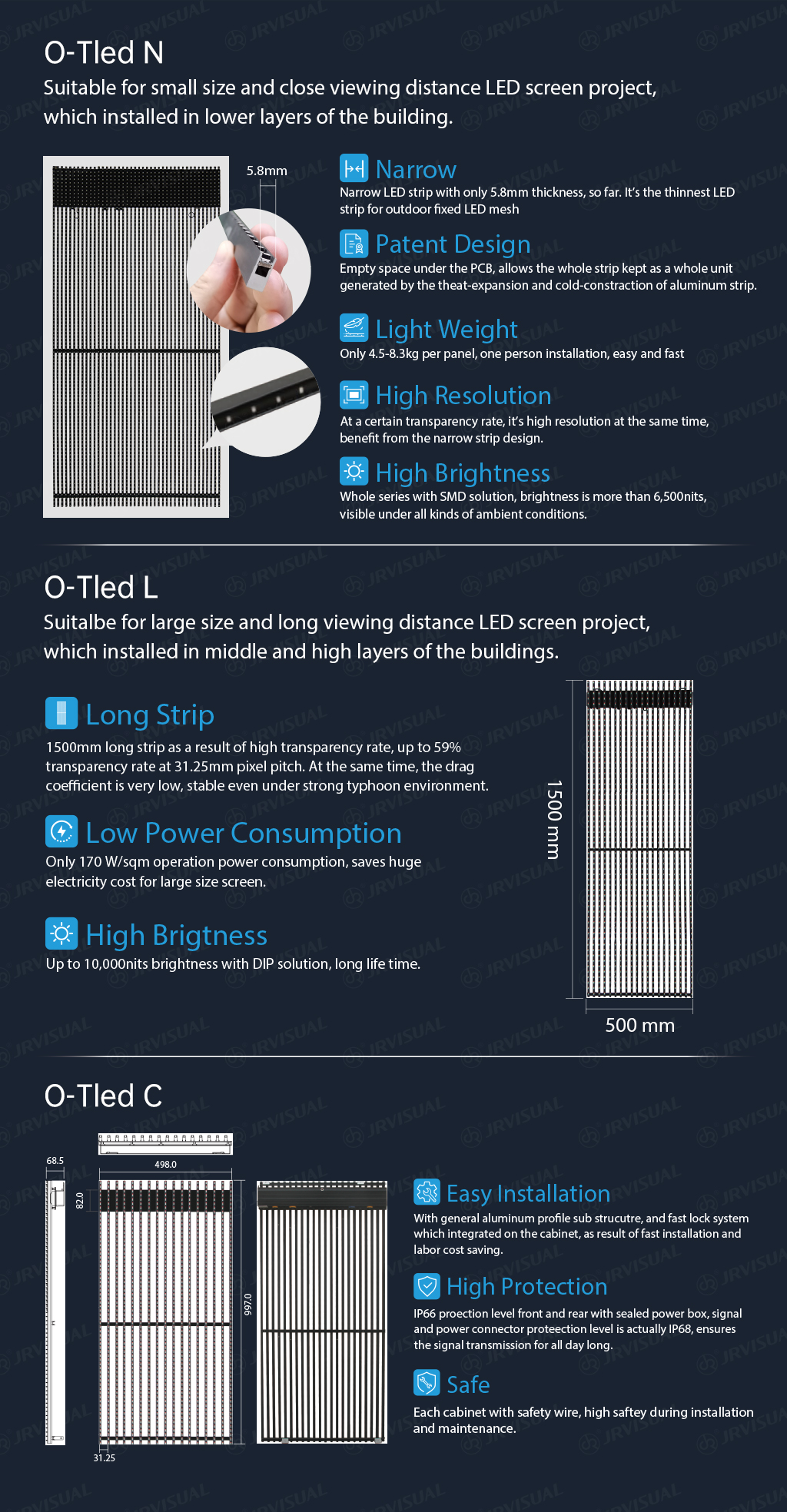

1. Slim LED strips design, can reach both high resolution and decent transparency rate.
2. Light weight cabinet, less than 15kg/sqm.
3. High brightness option, both SMD and DIP available.
4. Front service and front installation.
| Model | OT-N 5/10S | OT-N 10/10S | OT-N 10/20S | OT-N 12.5/12.5S | OT-N 15.6/15.6S |
| Pixel Pitch (V/H) | 5/10 mm | 10/10 mm | 10/20 mm | 12.5/12.5 mm | 15.6/15.6 mm |
| Panel Size | 500(W)x1000(H)x68.5(D)mm | 500(W)x1000(H)x68.5(D)mm | 500(W)x1000(H)x68.5(D)mm | 500(W)x1000(H)x68.5(D)mm | 500(W)x1000(H)x68.5(D)mm |
| Panel Resolution (WxH) | 50×200 | 50×100 | 25×100 | 40×80 | 32×64 |
| Pixels/Square Meter | 20,000 pixels / m2 | 10,000 pixels / m2 | 5,000 pixels / m2 | 6,400 pixels / m2 | 4,096 pixels / m2 |
| Brightness | 6,500nits | 6,500nits | 6,500nits | 6,500nits | 6,500nits |
| Transparency Rate | 40% | 40% | 70% | 52% | 62% |
| LED Encapsulation | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 |
| Pixel Configuration | 1Red 1Green 1Blue | 1Red 1Green 1Blue | 1Red 1Green 1Blue | 1Red 1Green 1Blue | 1Red 1Green 1Blue |
| Life Time | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours |
| Horizontal View Angle | 140° | 140° | 140° | 140° | 140° |
| Vertical View angle | 140° | 140° | 140° | 140° | 140° |
| Input Voltage(working) | 100-240VAC | 100-240VAC | 100-240VAC | 100-240VAC | 100-240VAC |
| Input Power Frequency | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz |
| Operation Temperature | -25 to +50°C | -25 to +50°C | -25 to +50°C | -25 to +50°C | -25 to +50°C |
| IP Rating F/R | IP 66 | IP 66 | IP 66 | IP 66 | IP 66 |
| Processing | True 16 BIT | True 16 BIT | True 16 BIT | True 16 BIT | True 16 BIT |
| Display Refresh Rate | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Brightness Control | 100 levels | 100 levels | 100 levels | 100 levels | 100 levels |
| Drive Method | Current Static driver | Current Static driver | Current Static driver | Current Static driver | Current Static driver |
| Max Power Consumption | 700 W/m2 | 700 W/m2 | 700 W/m2 | 700 W/m2 | 700 W/m2 |
| Average Power Consumption | 240 W/m2 | 240 W/m2 | 240 W/m2 | 240 W/m2 | 240 W/m2 |
| Weight/Panel | 8.8 Kg(17.6 Kg/sqm) | 8.3 Kg(16.6 Kg/sqm) | 4.5 Kg(9 Kg/sqm) | 6.8 Kg(13.6 Kg/sqm) | 5.6 Kg(11.2 Kg/sqm) |
| Application | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Panel Type | Fix installation | Fix installation | Fix installation | Fix installation | Fix installation |
| Certification | CE, EMC | CE, EMC | CE, EMC | CE, EMC | CE, EMC |
| Model | OT-L 12.5/25S | OT-L 12.5/25D | OT-L 15.6/31.2S | OT-L 20/20S | OT-L 25/25S | OT-L 31.2/31.2S |
| Pixel Pitch (V/H) | 12.5/25 mm | 12.5/25 mm | 15.625/31.25 mm | 20/20 mm | 25/25 mm | 31.25/31.25 mm |
| Panel Size | 500(W)x1000(H)x68.5(D)mm | 500(W)x1500(H)x68.5(D)mm | 500(W)x1500(H)x68.5(D)mm | 500(W)x1500(H)x68.5(D)mm | 500(W)x1500(H)x68.5(D)mm | 500(W)x1500(H)x68.5(D)mm |
| Panel Resolution (WxH) | 20×80 | 20×120 | 16×96 | 25×75 | 20×60 | 16×48 |
| Pixels/Square Meter | 3,200 pixels / m2 | 3,200 pixels / m2 | 2,048 pixels / m2 | 2,500 pixels / m2 | 1,600 pixels / m2 | 1,024 pixels / m2 |
| Brightness | 6,500nits | 10,000nits | 10,000nits | 10,000nits | 10,000nits | 10,000nits |
| Transparency Rate | 48% | 48% | 59% | 35% | 48% | 59% |
| LED Encapsulation | SMD | DIP | DIP | DIP | DIP | DIP |
| Pixel Configuration | 1Red 1Green 1Blue | 1Red 1Green 1Blue | 1Red 1Green 1Blue | 1Red 1Green 1Blue | 1Red 1Green 1Blue | 1Red 1Green 1Blue |
| Life Time | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours |
| Horizontal View Angle | 140° | 120° | 120° | 120° | 120° | 120° |
| Vertical View angle | 140° | 60° | 60° | 60° | 60° | 60° |
| Input Voltage(working) | 100-240VAC | 100-240VAC | 100-240VAC | 100-240VAC | 100-240VAC | 100-240VAC |
| Input Power Frequency | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz |
| Operation Temperature | -25 to +50°C | -25 to +50°C | -25 to +50°C | -25 to +50°C | -25 to +50°C | -25 to +50°C |
| IP Rating F/R | IP 66 | IP 66 | IP 66 | IP 66 | IP 66 | IP 66 |
| Processing | True 16 BIT | True 16 BIT | True 16 BIT | True 16 BIT | True 16 BIT | True 16 BIT |
| Display Refresh Rate | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Brightness Control | 100 levels | 100 levels | 100 levels | 100 levels | 100 levels | 100 levels |
| Drive Method | Current Static driver | Current Static driver | Current Static driver | Current Static driver | Current Static driver | Current Static driver |
| Max Power Consumption | 700 W/m2 | 500 W/m2 | 500 W/m2 | 500 W/m2 | 500 W/m2 | 500 W/m2 |
| Average Power Consumption | 240 W/m2 | 170 W/m2 | 170 W/m2 | 170 W/m2 | 170 W/m2 | 170 W/m2 |
| Weight/Panel | 7 Kg(14 Kg/sqm) | 9.2 Kg(18.4 Kg/sqm) | 7.7 Kg(15.4 Kg/sqm) | 7.5 Kg(15 Kg/sqm) | 6.4 Kg(12.8 Kg/sqm) | 5.5 Kg(11 Kg/sqm) |
| Application | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Panel Type | Fix installation | Fix installation | Fix installation | Fix installation | Fix installation | Fix installation |
| Certification | CE, EMC, CCC | CE, EMC, CCC | CE, EMC, CCC | CE, EMC, CCC | CE, EMC, CCC | CE, EMC, CCC |
