Pixel pitch: 1.25mm, 1.56mm, 1.95mm, 2.6mm, 2.9mm, 3.9mm.
Cabinet size: 500x500mm, 496x496mm (optional).
1. Fine pixel pitch outdoor solution starts from 1.2 pixel pitch.
2. XGOB technology for IP65 rated, and wide viewing angle.

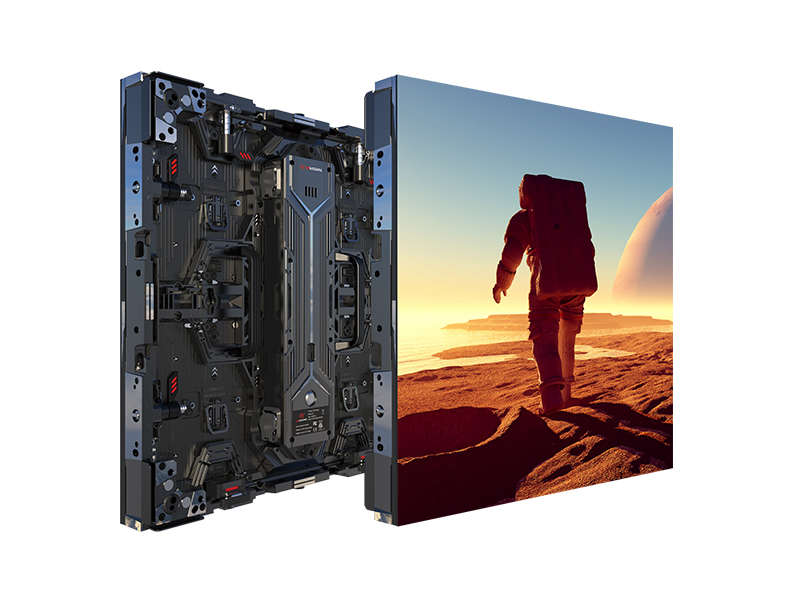

3. Die-casting aluminum cabinet for excellent screen flatness.
4. Lower scan rate, optional solution for XR studio application.
5. Common cathode solution for lower power consumption, as a result of less heat.
Make your corner & cube

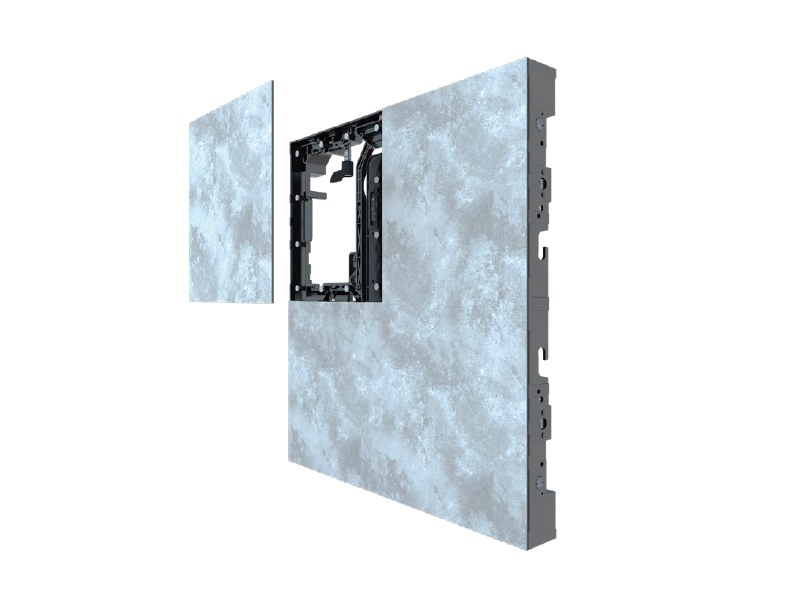

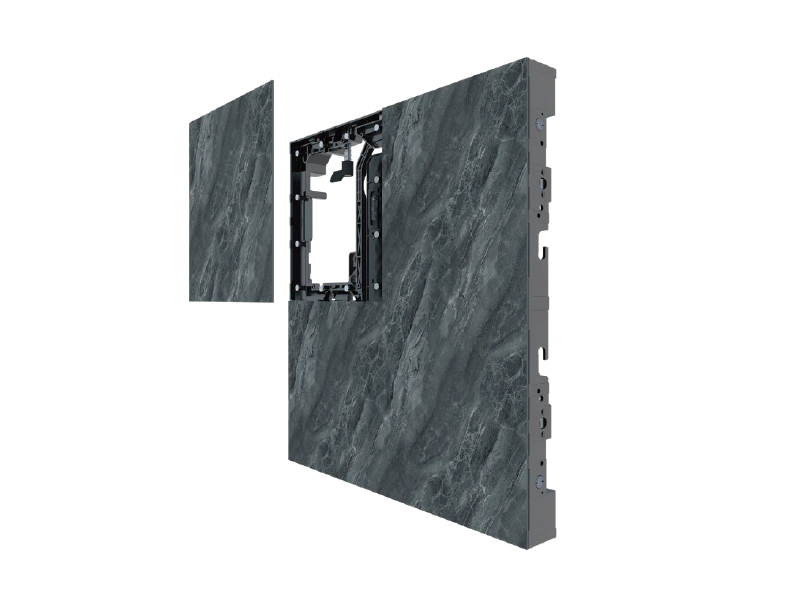

iSkin can be assembled with the LED panel or frame’s cover plate. With these two combination,
you can spread you mind to create different design, such as bar counter, Art wall and etc…
| Pixel Pitch | P1.25 | P1.56 | P1.95 | P2.6 | P2.9 | P3.9 |
| Series Model | RX125d | RX156d | RX195d | RX260d | RX297d | RX390d |
| SMD Type | SMD1010 | SMD1010 | SMD1010 | SMD1010 | SMD1010 | SMD1010 |
| MicroX mode (cd/m²) | >3,000 | >3,500 | >3,500 | >3,500 | >3,500 | >5,000 |
| Distance | >1.25m | >1.56m | >1.95m | >2.6m | >2.97m | >3.9m |
| LED Kind | MicroX | MicroX | MicroX | MicroX | MicroX | MicroX |
| Module Surface Treatment | X-GOB | X-GOB | X-GOB | X-GOB | X-GOB | X-GOB |
| Pixel Density (dots/m²) | 640,000 | 409,600 | 262,144 | 147,456 | 112,896 | 65,536 |
| Technology | iSkin | iSkin | iSkin | iSkin | iSkin | iSkin |
| Refeshrate | 3,840Hz-7,680Hz | 3,840Hz-7,680Hz | 3,840Hz-7,680Hz | 3,840Hz-7,680Hz | 3,840Hz-7,680Hz | 3,840Hz-7,680Hz |
| Viewing Angle | 160⁰(H)/160⁰(V) | 160⁰(H)/160⁰(V) | 160⁰(H)/160⁰(V) | 160⁰(H)/160⁰(V) | 160⁰(H)/160⁰(V) | 160⁰(H)/160⁰(V) |
| Contrast | 6000:1 | 6000:1 | 6000:1 | 6000:1 | 6000:1 | 6000:1 |
| Module Size (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Cabinet Size (mm) | 500x500 x 55/62 | 500x500 x 55/62 | 500x500 x 55/62 | 500x500 x 55/62 | 500x500 x 55/62 | 500x500 x 55/62 |
| Cabinet Res (px) | 400 x 400 | 320 x 320 | 256 x 256 | 192x 192 | 168 x 168 | 96 x 96 |
| System | Stacking / Hanging / Wall mounting | Stacking / Hanging / Wall mounting | Stacking / Hanging / Wall mounting | Stacking / Hanging / Wall mounting | Stacking / Hanging / Wall mounting | Stacking / Hanging / Wall mounting |
| Environment | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 |
| Max Power (w/m²) | (CCT) 600 | (CCT) 600 | (CCT) 600 | (CCT) 600 | (CCT) 600 | (CCT) 600 |
| Voltage | AC 100-240V | AC 100-240V | AC 100-240V | AC 100-240V | AC 100-240V | AC 100-240V |
| Weight (kg/Panel) | 10 | 10 | 10 | 10 | 10 | 10 |
| Certification | CE, EMC, LVD, CCC, ROHS | |||||
| *The specifications are for reference, actual values may vary. | ||||||
