StarLink Transparent LED Film Display

Pixel pitch: 2.5mm, 3.9mm, 6.25mm, 10mm.
Module size: 125mm module wide for P2.5mm, 250mm module wide for P3.9mm, P6.25mm, P10mm.
Poster size: Customized based on module size.

1. High transparency rate more than 50%.
2. High brightness up to 7,000nits.
3. LED lamps and IC 2 in 1 package, clear view picture quality.
4. Can attach to glass windows or install with frame structure.



Request a Quote

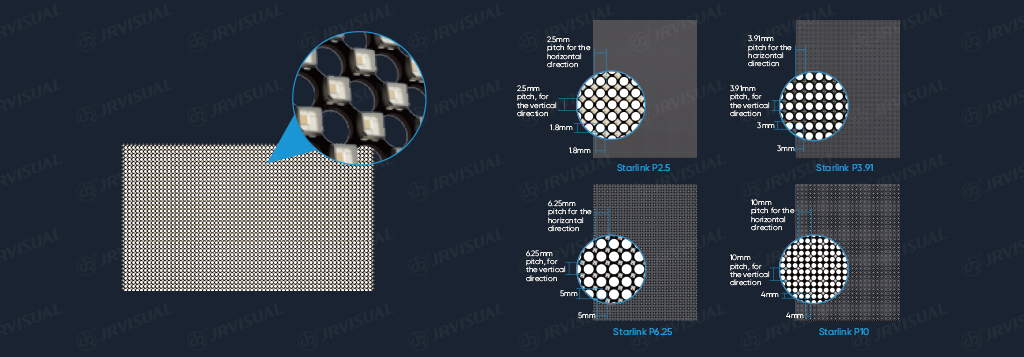

Different pixel pitch: Tailored Flexibility with StarLink Transparent LED Film Display

StarLink transparent LED film displays stand out with different pixel pitch options, including P2.5, P3.91, P6.25, and P10. These different pixel pitches allow users to customize their settings: smaller pitches (such as P2.5) provide ultra-clear detail for close-up viewing, while larger pitches optimize cost-effectiveness for large-scale architectural or commercial installations. The display utilizes advanced adhesive transparent LED display technology, integrating LED lights and IC drivers into a single, streamlined design, resulting in extremely high transparency, an ultra-thin form factor, and clear, vivid image/video output.

StarLink Description 1

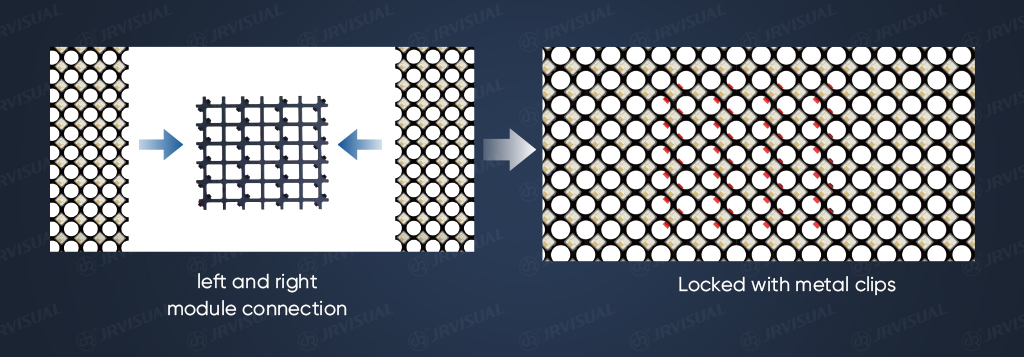

Transparent LED Poster Module Installation

This Transparent LED Film Display simplifies poster-style setups via two key steps: first, aligning left and right modules using the precision grid connector (ensuring seamless, gap-free alignment of the display’s lamp arrays), then locking the assembled modules in place with metal clips (securing the connection for stable, rattle-free performance). Tailored for flexible use cases (from retail window posters and in-store promotional displays to lobby brand visuals), this intuitive installation process enables quick, hassle-free deployment of the StarLink Transparent LED Film Display — all while preserving the product’s core advantages: ultra-high transparency, crisp image output, and a thin, unobtrusive profile.

StarLink Description 2

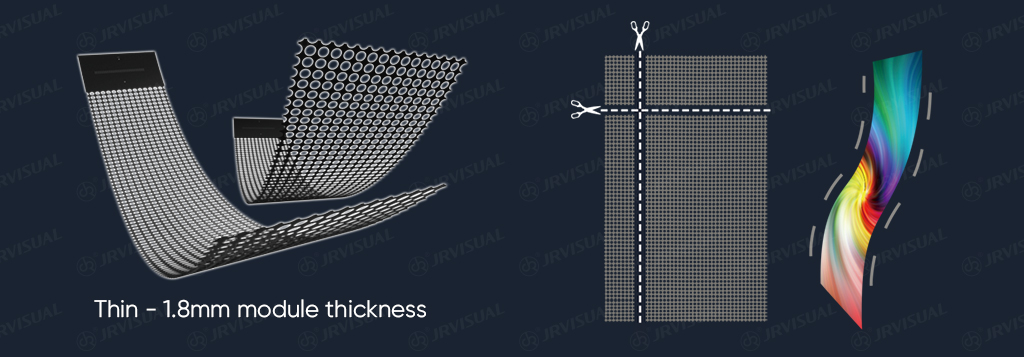

Customized Screen Size: Flexible, Tailored Deployments

StarLink transparent LED Film Displays redefine spatial adaptability with their customizable screen size capabilities. Their core advantage lies in their ultra-thin 1.8mm module thickness. This ultra-thin design allows standard modules to be bent and precisely cut, enabling users to customize the display size to their unique space requirements.

As a Transparent LED Film Display, this flexibility makes it the perfect partner for curved glass and special-shaped screens: its bendable modules conform seamlessly to curved surfaces, while customizable cutting ensures a precise fit for irregular, special-shaped display areas.

StarLink Description 3

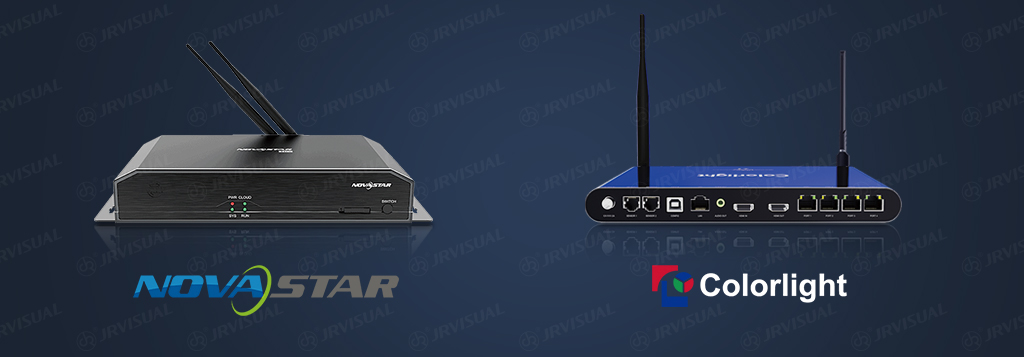

Control System for StarLink Series

The StarLink Transparent LED Film Display — a dynamic Transparent LED Display solution — unlocks seamless, high-quality operation via the Control System for StarLink Series, paired with industry-leading hardware like the NovaStar and Colorlight devices featured in the visual. These robust control units (equipped with wireless connectivity antennas, multi-port interfaces, and streamlined designs) are tailored to complement the StarLink Transparent LED Film Display’s flexible capabilities: they enable reliable content management, smooth visual playback, and easy configuration — even for custom-sized or special-shaped deployments.

StarLink Description 4

Product application cases

Features

Way of Installation: Direct Stick on Glass

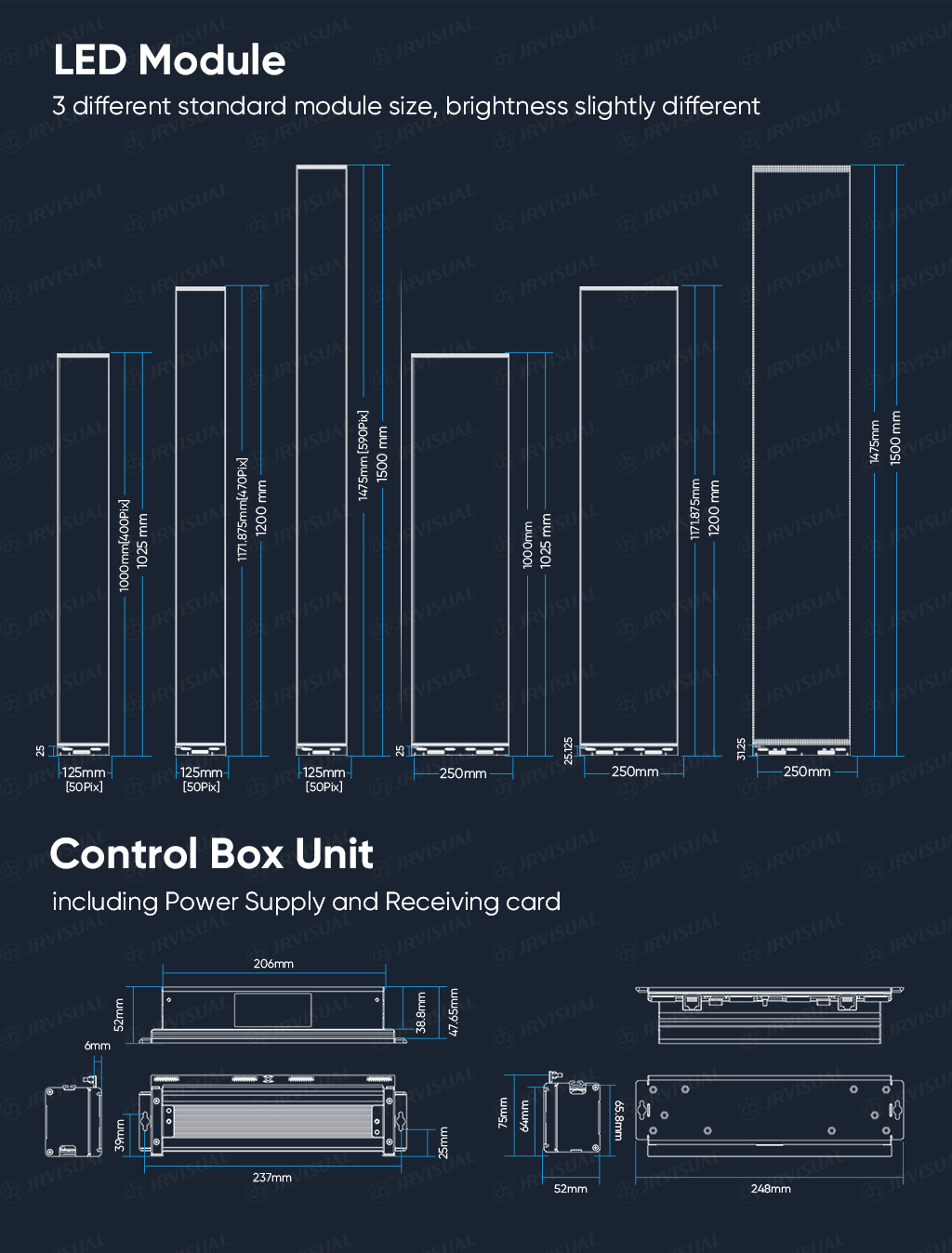

StarLink's transparent LED film display offers significant advantages through its installation method: direct adhesion to glass, supplemented by custom components as shown in the image. This installation method fully utilizes the product's three standard LED module sizes (as shown in the exploded dimensions: 125 mm/250 mm width, and up to 1500 mm height), adapting to various glass surface sizes to ensure precise, customized solutions for retail windows, architectural glass panels, or brand display facades. Designed for discreet integration, this transparent LED display's modules (optimized with a thin, flexible film structure) can be directly and smoothly adhered to the glass, eliminating the need for bulky installation hardware and avoiding any impact on visual appeal.

Features

Specification

StarLink Transparent LED Display Specification

Model SL-TLED-2.5 SL-TLED-3.9 SL-TLED-6.25 SL-TLED10
Pixel Pitch (mm) (H/V) P2.5 / P2.5 P3.91 / P3.91 P6.25 / P6.25 P10 / P10
Visual Transparency Rate 70% 80% 90% 92%
Physical Transparency Rate 35% 50% 65% 70%
Pixel Density (dot / m²) 160,000 65,536 25,600 10,000
Module Size with pixels (mm) (W*H) 125x1000/125x1175 250x1000/250x1175/250x1468 250x1175/250x1475 250x1175/250x1475
Module Size with Edge (mm) (W*H) 250x1025 / 250x1200  250x1025/250x1200/250x1500 250x1200/250x1500 250x1200/250x1500
Module Resolution (dot) (W*H) 50x400 / 50x470 64x256 / 64x300/ 64x376 40x188 / 40x236 25x116 / 25x146
Maximum Screen Height (m) 2 3 3 3
Brightness (cd/m²) 1,500 - 1,800 2,200 - 4,000 4,500 - 5,000 4,000 - 4,500
Weight (kg/㎡) 6.5 6 6 6
Encapsulation Type LED & IC packed in one
Scanning Mode Static Driving (Single Pixel Single Control)
Lifespan ≥ 100,000.00 hours
Gray Scale 65,536 (16bit)
Maximum Power Consumption (w / m²) 1000
Average Power Consumption (w / m²) 300
Control System Novastar/Colorlight
Control Way Synchronous / Asynchronous
Input Voltage AC100~240V 50/60 Hz
Module Working Current DC 4.2V ± 0.2V
Operation Temperature 0~50℃
Operation Humidity 20%RH ~ 85%RH
Storage Temperature -20~60℃
Storage Humidity 10%RH ~ 85%RH
Certificate CE, EMC, LVD, CCC
Note: Specifications are for reference only and are subjected to change without notice.
