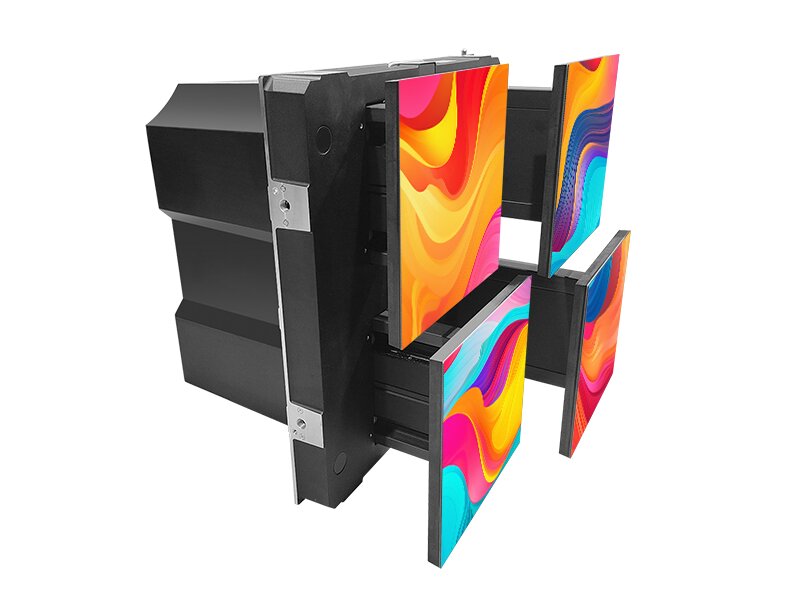

For users considering a robotic LED display for exhibitions and events, the purchasing process requires careful consideration of pixel pitch, cabinet structure, module tolerances, and the motion system that transforms a static screen into a dynamic sculpture. JRVISUAL, a supplier of robotic LED displays, offers 3D kinetic LED displays in two cabinet sizes: 640 × 480 mm, 1.98 mm pixel pitch, 160 × 160 mm modules, and 500 × 500 mm, 1.9 mm pixel pitch, 250 × 250 mm modules. These displays utilize a die-cast aluminum cabinet for quick installation and removal, and industrial-grade linear guides maintain module gaps below 1 mm. The mechanical design allows for tailored adjustments for exhibitions, rentals, and events.
Pixel Pitch and Size Selection for Robotic LED Display
LED display quotes most commonly cite pixel pitch as a specification. It refers to the center-to-center distance between adjacent LED pixels, measured in millimeters. Pixel pitch directly determines the native resolution of a given cabinet surface: the smaller the pixel pitch, the higher the resolution per square meter, resulting in finer image detail at closer viewing distances.
For indoor events requiring close-up immersive displays or high-resolution brand visuals, displays with a 1.9-2.0mm pixel pitch, such as the JRVISUAL 3D Kinetic LED display, are ideal. For audiences 10-15 feet away, a slightly larger pitch will provide a more noticeable effect and benefit. Therefore, when selecting a pixel pitch, consider the intended viewing plane. Interactive displays for front-of-stage use require a tighter pitch than billboard-style installations intended for distant audiences. The cabinet’s module size determines the number of modules, and thus the number of pixels, within each mechanical panel. For a 640×480mm cabinet with a 1.98mm pitch, closely spaced modules with a gap of less than 1mm between modules achieve excellent visual uniformity.
Mechanical Design of Robotic LED Display
Robotic LED displays are both mechanical and visual systems. Buyers should consider the display cabinet and motion components as an integrated product. Weak mechanical design can compromise optimal pixel pitch. Key mechanical requirements to evaluate when purchasing robotic LED displays include:
Die-cast aluminum cabinets are preferred, offering improved thermal management. The JRVISUAL 3D Motion LED Display utilizes this type of cabinet, resulting in a sturdy, lightweight design that maintains stable thermal performance even during repeated touring. Assembly is also faster due to the precise casting geometry that maintains alignment and tolerances. For 3D kinetic displays, gaps between modules create visible seams when the panel is reoriented. Therefore, industrial-grade linear guides ensure a module gap of less than 1 mm, reducing seam artifacts and enabling smooth visual continuity.
Motion Control Systems for LED Displays
High-performance robotic LED displays require tight integration between vision electronics, motion control, and media servers. Therefore, when purchasing, consider whether the LED controller utilizes pixel-accurate mapping that can handle dynamic geometric changes. As the panel moves within the 3D environment, the controller must recalculate the texture mapping to maintain geometric fidelity. For carefully choreographed presentations, synchronization jitter is crucial. The drive system should ensure synchronization accuracy of less than 10 milliseconds between motion events and pixel changes. Choosing a high-resolution dynamic display also requires significant data bandwidth, and designers must determine the data transmission layer, whether it is DVI/SDI-based for smaller systems or Ethernet-based protocols for larger displays.
Considerations such as procurement costs and buyer service
Purchasing a robotic LED display is more than just a capital expenditure; it is also a commitment to mutual support and trust. Therefore, when purchasing a robotic LED display, consider not only the total equipment price but also the expected operating expenses, including spare modules, motors, encoder replacements, service contracts, and software licenses. Kinetic screen systems typically require higher maintenance than static screens, so modeling the cost of parts replacement over a 5-7 year lifecycle is crucial. Also, confirm warranty coverage for the LEDs, drive electronics, and motion components. Specifically inquire about coverage for motion-related failures, as moving parts can wear out even under tightly controlled loads.
Purchasing the Right Robotic LED Display
Purchasing a robotic LED display requires a comprehensive consideration, integrating content, motion, mechanical precision, and service. Pixel pitch sets the visual benchmark, while mechanical design, module gap control, cabinet design, and industrial-grade linear guides determine whether performers and stage engineers can achieve this visual benchmark on stage. When evaluating suppliers, consider not only pixel pitch or cabinet price, but also motion integration, data and power architecture, maintainability, and local support.
Five Common Purchasing Questions
Q1. What is the appropriate viewing distance for a 1.9mm or 1.98mm robotic LED display?
A1: Displays with a pixel pitch between 1.9 and 1.98mm are suitable for close to medium viewing distances.
Q2. How important is the module gap in LED screens?
A2: Critical. Module gap creates noticeable seams and discontinuities as the panel moves; industrial-grade linear guides and a module gap of less than 1mm ensure seamless visuals throughout the entire motion cycle.
Q3. What maintenance budget should be reserved?
A3: Your budget should include regular calibration, actuator and encoder checks, spare LED modules and driver boards, and any mechanical bearings that may need to be replaced in the future.
