The answer is yes. However, it’s important to note that whether the installation of a Transparent LED Display meets your expectations depends on the glass material, its structure, and the specifications of the display unit. If not handled properly, issues such as poor adhesion, fading, or even malfunction of the display may occur. Therefore, you should consider the following points before making a purchase.
What Is a Transparent LED Display Made Of？
A transparent LED display is built from a flexible or rigid substrate — typically a thin polyester or PCB base — with micro LEDs mounted at precise intervals across the surface. The gaps between LEDs are what create transparency. The wider those gaps, the more light passes through, and the higher the transparency rate. Most transparent LED film products run between 1mm and 3mm thick. That slim profile is what makes glass integration possible. The display bonds to glass either through optical-grade adhesive or a perimeter frame system, with power and signal fed through a ribbon cable routed along the edge.
Brightness output typically ranges from 2,500 nits for indoor units up to 7,000 nits for outdoor-facing installations — because the display has to compete with ambient light while still maintaining visibility through the glass. The LED pitch, usually between 3.9mm and 10mm, determines how sharp the content looks at a given viewing distance. It is precisely this combination of ultra-thin design, flexible substrates, and high brightness that makes this technology particularly well-suited for use on glass surfaces. However, not all glass is the same, and this is precisely the problem most buyers encounter.
What types of glass can be used for transparent LED displays?
Glass varies significantly in composition, surface coating, and structural behavior. Each type interacts differently with adhesive films and mounting hardware. Here are the five most common types you’ll encounter:

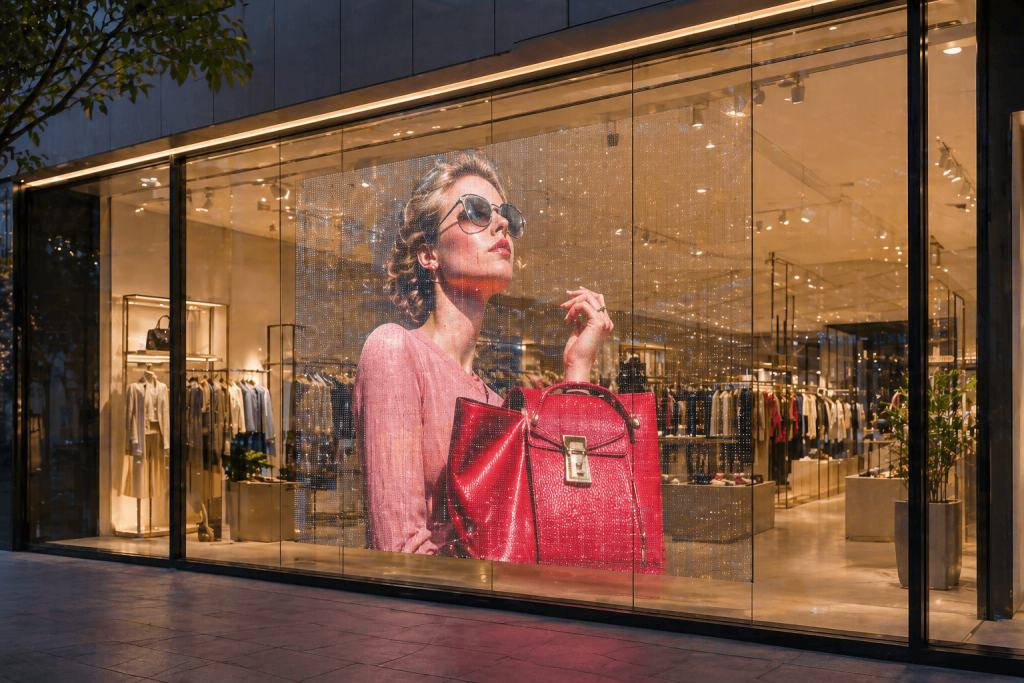

Tempered Glass is the most widely used substrate for transparent LED display installations. The heat-treatment process gives it four to five times the strength of standard glass, and its flat, uniform surface accepts optical-grade adhesive reliably. Standard thicknesses of 6mm to 12mm perform consistently across retail and commercial applications.

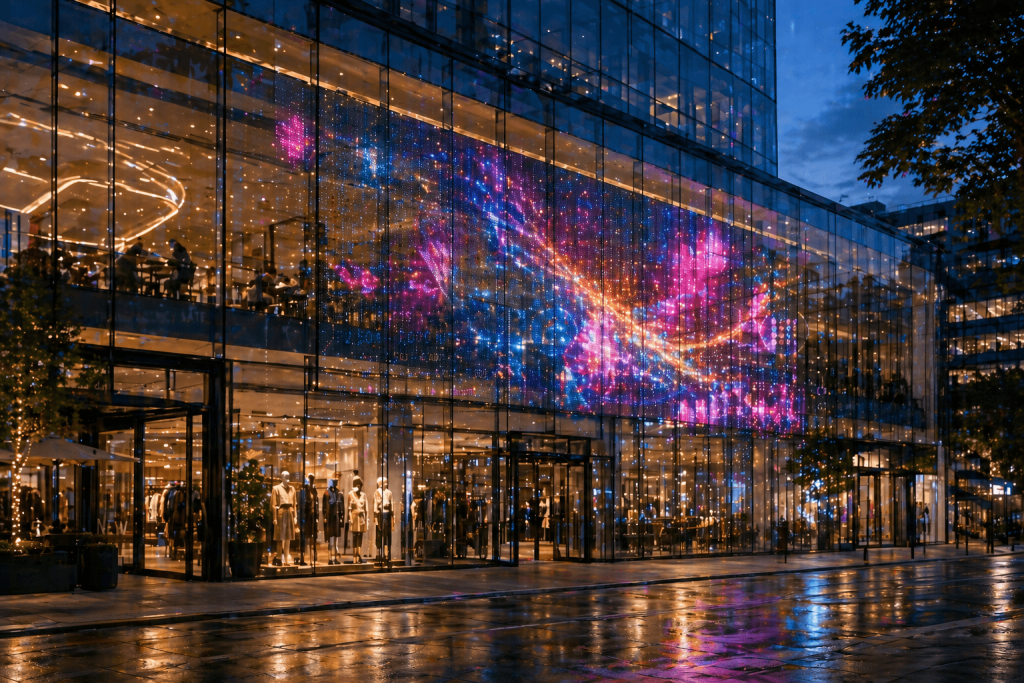

Laminated Glass consists of two or more glass layers bonded with a PVB (polyvinyl butyral) interlayer. It’s structurally robust and commonly used in curtain walls and building facades. However, the interlayer means direct adhesive bonding isn’t always viable — over time, adhesive can cause the PVB layer to delaminate at the edges.
Low-E Glass carries a metallic oxide coating on its surface that reduces heat transfer — a common choice for energy-efficient office towers. That coating can interfere with certain adhesive films, so compatibility testing before installation is essential. It also reduces the amount of ambient light passing through, which affects how bright the display appears from outside.
Float Glass is the most basic form of flat glass — produced by floating molten glass on a bed of tin. It has no special coating or treatment, which makes it the most straightforward surface for adhesive-mounted transparent LED film. It’s widely used in indoor partition walls, interior retail displays, and showroom environments.
Curved Glass introduces a different set of challenges. Most transparent flexible LED film products support a minimum bend radius of around 1,000mm, which is common in gentle curves in architectural features and high-end retail windows. Tighter curves risk pixel distortion or film delamination, so always confirm the exact bend radius tolerance with your supplier before specifying.
How should I style it?
Your glass type determines which display specs and installation method will actually deliver results. Use this table as your starting point:
| Glass Type | Recommended Brightness | Transparency Rate | Installation Method | Best Use Case |
|---|---|---|---|---|
| Tempered Glass | 5,000–7,000 nits | 75–85% | Adhesive Film | Retail storefront window |
| Laminated Glass | 4,000–6,000 nits | 70–80% | Frame Mount | Building facade, curtain wall |
| Low-E Glass | 6,000–7,000 nits | 70–75% | Frame Mount | Office tower exterior |
| Float Glass | 3,000–5,000 nits | 75–85% | Adhesive Film | Indoor partition, showroom |
| Curved Glass | 4,000–6,000 nits | 70–80% | Flexible Film | Showroom, architectural feature |
Two things to note when reading this table. First, Low-E glass requires higher brightness compensation because its coating reduces light transmission — under-specifying nits here is one of the most common procurement mistakes. Second, laminated and curved glass both call for non-adhesive mounting systems, which affects your installation budget and timeline.
How to Install a Transparent LED Display on Different Glass Types？
Installation isn’t one-size-fits-all. Each glass type has specific requirements that affect surface preparation, bonding method, and hardware choice.
Installation on Tempered Glass: Tempered glass is the easiest surface to install on. Thoroughly clean the surface with isopropyl alcohol to remove any residue, then allow it to dry completely. If moisture remains beneath the film, it will compromise the bond over time.
Installation on Laminated Glass: Do not use adhesives on laminated glass. Instead, use a perimeter frame or magnetic track system to secure the film to the window frame rather than the glass surface.
Installation on Low-E Glass: Before ordering any adhesive system for Low-E glass, please conduct a compatibility test on a sample panel. Metal oxide coatings may react unpredictably with certain adhesive formulations, leading to adhesive failure within a few months.
Installation on float glass: Clean the surface with isopropyl alcohol, apply even pressure to adhere the film, and route the control cables discreetly along the edges.
Curved glass installation: Confirm the glass’s radius of curvature before purchasing the display. If the radius is less than 1,000 mm, most standard transparent flexible LED film products cannot be safely adhered. For compatible curved surfaces, apply the film evenly outward starting from the center point. Please use flexible mounting clips to accommodate the curved geometry.
First, confirm the glass type, then work backward based on the specification sheet. Following this decision-making sequence will always yield the best results.
