P0.93–P1.25
For control rooms, executive boardrooms and detailed close-range content.
Copyright © 2025 JR VISUAL TEC, all rights reserved.
Indoor LED Display
Indoor LED Display
Our indoor LED displays deliver high-res close-range viewing, with premium pixel pitch, color accuracy and smooth visuals. Spanning 0.9mm to 3.9mm, our lineup includes iDisc, iTpro, iBand plus, iBand pro and D-Sides, tailored to every indoor space. iDisc’s 0.9-1.5mm pitches deliver stunning 1-2m clarity. iTpro, iBand plus and iBand pro’s 1.8-2.9mm options ensure vibrant 3-5m visuals. D-Sides and 3.9mm displays keep top performance in larger areas.
We also offer flexible cabinet sizes, from 500x500mm to 1000x500mm, to suit various layouts and splicing requirements, providing the perfect solution for any indoor space.
iTpro – Indoor Fixed Installation LED Display
Pixel pitch: 1.2mm, 1.5mm, 1.9mm, 2.5mm 2.6mm, 2.9mm.
Cabinet size: 1000x500mm, 750x500mm, 500x500mm.

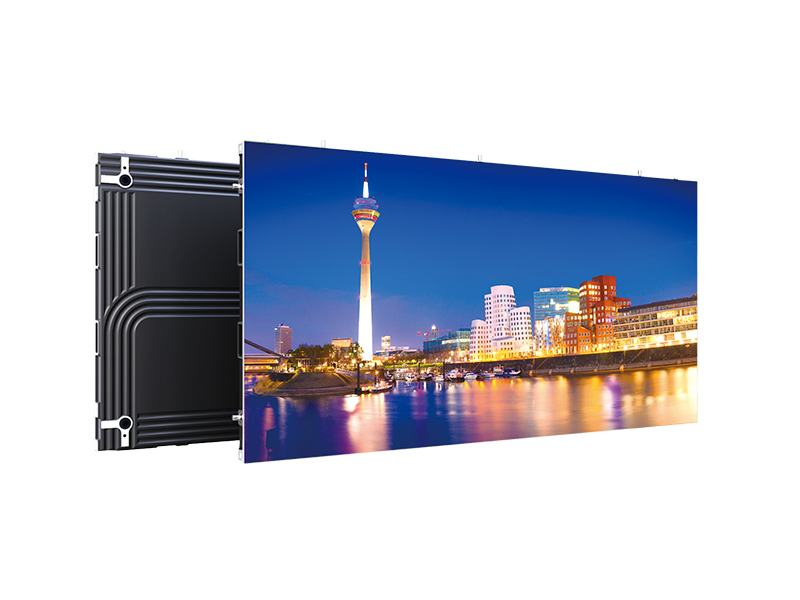

iBand plus-Indoor Fixed Installation LED Display
Pixel pitch: 1.5mm, 1.9mm, 2.5mm, 2.6mm, 3.9mm.
Cabinet size: 1000x500mm, 750x500mm, 500x500mm.
D-Sides Double Sides LED Display
Pixel pitch: 1.2mm, 1.5mm, 1.9mm, 2.5mm 2.6mm.
Cabinet size: 1000x250mm, 750x250mm, 500x250mm.
iDisc - Indoor Fine Pixel Pitch LED Display
Pixel pitch: 0.9mm, 1.2mm 1.5mm, 1.8mm.
Cabinet size: 600×337.5mm | 16:9.
iBand pro-High-end Indoor LED Display
Pixel pitch: 1.5mm, 1.9mm, 2.5mm, 2.6mm, 3.9mm.
Cabinet size: 1000x500mm, 750x500mm, 500x500mm.
JR VISUAL TEC
Advantages of Indoor LED Display Products
Indoor LED display boast superior visual quality, featuring high resolution, excellent colour accuracy, and ultra-high brightness. Even under controlled or ambient lighting, they deliver clear, vivid images, creating an immersive experience in any indoor environment. Their flexible, modular design simplifies installation and allows for seamless integration into various layouts and configurations.
- Indoor LED displays have advantages such as good brightness uniformity, seamless splicing, compact cabinet design, and easy maintenance, making them suitable for various application scenarios.
Strong Scene Adaptability
Slim & Lightweight Design
Easy to operate
In addition to offering a variety of pixel pitches and cabinet sizes, our indoor LED displays are designed with specific functions to meet diverse needs. Utilizing GOB processing technology, they achieve fine pixel pitches of 1.2mm and 1.5mm, ensuring superior image quality and durability. These displays are EN13501 fire-resistant certified, meeting the stringent fire safety standards of shopping malls and office buildings. Furthermore, they are compatible with various control systems, providing seamless integration and flexible deployment options for diverse installation environments.
All models boast an ultra-slim design, with a thickness ranging from 29mm to 54mm, allowing them to seamlessly blend into minimalist interiors without taking up unnecessary space. Even the D-Sides dual-screen model, at just 54mm thick, is significantly slimmer than traditional dual-screen devices. This compact form factor enables bidirectional displays in tight spaces, offering a sleek and unobtrusive solution for areas where space is limited.
Our indoor LED displays allow for quick module replacement without disassembling the entire screen, reducing maintenance costs and minimizing disruptions during business hours. We support various installation methods, including front mounting, rear mounting, ceiling mounting, and floor mounting, ensuring compatibility with different wall structures and spatial layouts.
Indoor Display Selection Guide
How to Choose the Right Indoor LED Display Pixel Pitch
Start with the closest regular viewing distance, then confirm the screen size, content detail and target resolution. The smallest pixel pitch is not always the most cost-effective choice.
P1.5–P1.9
For meeting rooms, premium retail walls and corporate presentation spaces.
P2.5–P2.6
For exhibitions, commercial interiors, auditoriums and multipurpose halls.
P2.9–P3.9
For large venues and applications where viewers remain farther from the screen.
| Viewing Distance | Recommended Pitch | Typical Application | Recommended Product |
|---|---|---|---|
| 1–2 m | P0.93–P1.25 | Control room, boardroom, premium showroom | iDisc |
| 2–3 m | P1.5–P1.9 | Meeting room, retail store, corporate lobby | iTpro |
| 3–5 m | P2.5–P2.6 | Exhibition, commercial space, auditorium | iBand plus |
| 5 m+ | P2.9–P3.9 | Large hall, suspended signage, distant viewing | D-Sides |
Note:These ranges are an initial reference. Final pixel pitch should be confirmed using screen dimensions, native resolution, ambient light, camera requirements and budget.
Indoor LED Display Products Recommended & Quick Spec Table
JR VISUAL’s indoor LED display range spans pixel pitches from P0.93mm to P3.9mm, with cabinet thickness starting from just 29mm. All models feature front-only service access and seamless splicing, supporting flat, curved, 90°, and cube configurations to suit diverse indoor installation needs.
- Indoor LED Display Brief Specifications Table
| Product | Cabinet Size (mm) | Pixel Pitch (mm) | Thickness | Weight | Contrast Ratio | Refresh Rate | Key Feature |
|---|---|---|---|---|---|---|---|
| D-Sides | 1000×250 / 750×250 / 500×250 | P1.5 – P3.9 | 53mm | 7.8 kg/panel | 5,000:1 | 3,840Hz | Double-sided display, 320° viewing angle |
| iTpro | 1000×500 / 1000×250 / 750×250 / 500×250 | P1.25 – P3.9 | 33mm | 3–10.5 kg/panel | 10,000:1 | 3,840Hz | 6 cabinet sizes, GOB on P1.25 & P1.5 |
| iBand plus | 1000×500 / 500×500 / 250×500 | P1.9 / P2.5 / P2.6 | 30mm | 9.5–10 kg/panel | 3,000–5,000:1 | 3,840Hz | Fire proof EN13501, 90° corner design |
| iDisc | 600×337.5 (16:9) | P0.93 – P2.5 | 29mm | 4.5 kg/panel | 5,000:1 | 1,920–3,840Hz | 2K / 4K / 8K ready, German-quality PCB |
| iBand pro | 1000×500 / 500×500 / 1000×250 / 750×250 / 500×250 | P1.9 / P2.6 | 33.4mm | 17.4 kg/m² | 8,000:1 | 7,680Hz | Brompton compatible, COB module support |
JR VISUAL TEC
Application scenarios of indoor LED displays
Our indoor LED displays can be seamlessly integrated into a variety of indoor environments, including commercial, institutional, and entertainment venues. Whether it’s a compact space requiring a clear, precise visual presentation or a large event venue needing an immersive, impactful visual experience, our range of indoor LED displays can meet diverse spatial and application needs.
Flexible Installation
Indoor LED Display Installation Options for Different Spaces
Choose the structure around the architecture, viewing direction and available service space. JR Visual indoor LED displays support slim fixed installations as well as creative corner, curved and double-sided configurations.
Wall-Mounted
A slim, permanent solution for meeting rooms, retail walls, lobbies and corporate presentation areas.
Recommended: iTproRecessed Installation
Creates a flush wall finish and uses full front service where rear maintenance space is unavailable.
Recommended: iDiscCeiling-Hung
Ideal for exhibition halls, retail atriums and suspended signage that must stay visible above foot traffic.
Recommended: iBand plus90° Corner
Wraps content seamlessly around architectural corners for retail showcases and branded exhibition structures.
Recommended: iBand plus / proCurved or Cube
Supports concave, convex and cube-shaped displays for immersive interiors and creative brand experiences.
Recommended: iBand plusDouble-Sided
Displays synchronized or independent content in both directions for corridors, entrances and hanging signs.
Recommended: D-SidesFront Service Access
Maintenance Without Removing the Complete Screen
Front-access modules and components reduce the required wall depth and allow faster service in recessed or space-limited installations.
- Front module replacement
- Less rear service space
- Shorter maintenance time
- Lower business disruption

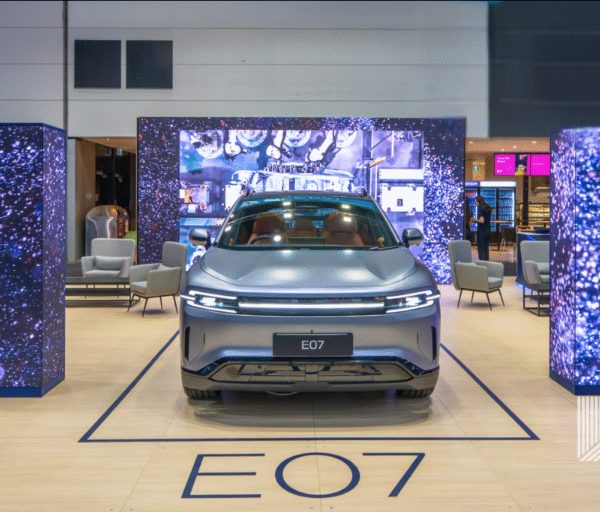

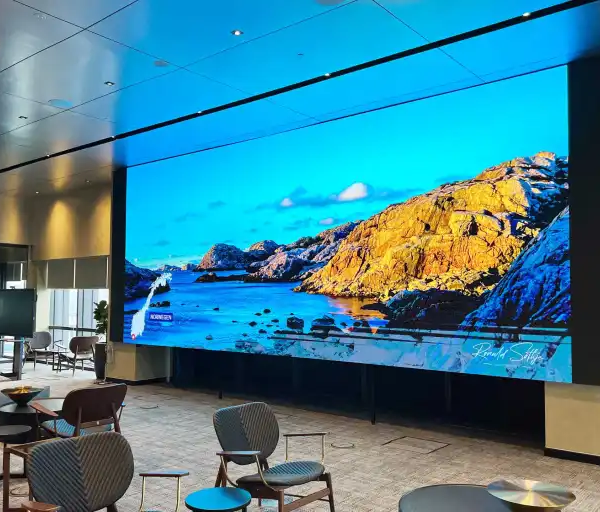

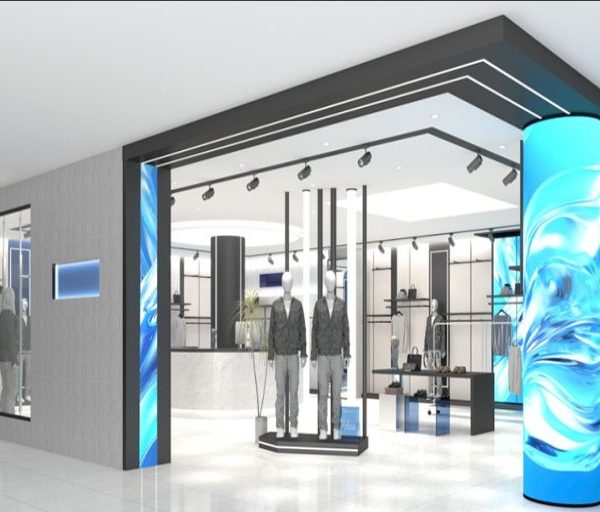

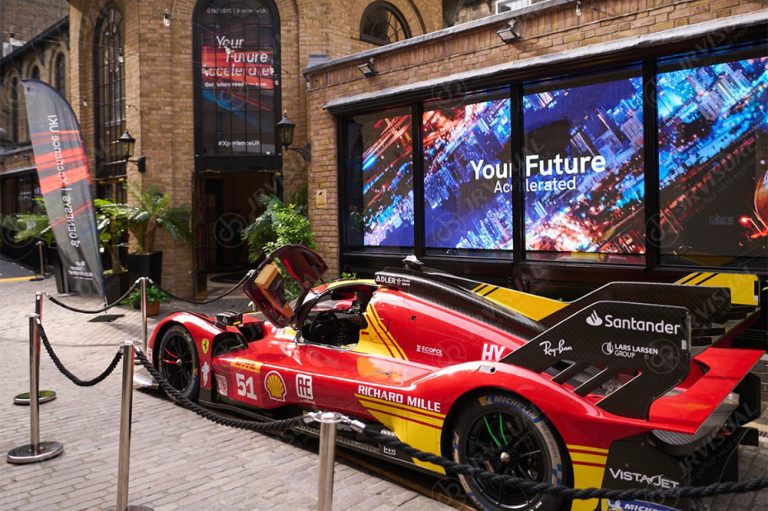

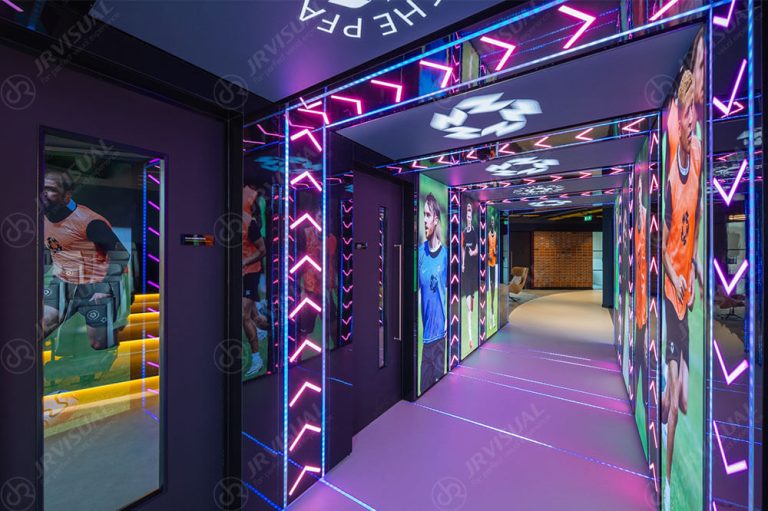

Indoor LED Display Case Studies
From high-end retail storefronts to corporate meeting rooms and live event venues, these real-world projects demonstrate how indoor LED displays deliver lasting visual impact across diverse indoor environments.
Frequently Asked Questions
Indoor LED Display FAQs
Quick answers about pixel pitch, resolution, brightness, installation and project quotations.
Request a Project Recommendation01What pixel pitch is best for an indoor LED display?
The best pixel pitch depends mainly on the closest viewing distance and the content being displayed. P0.93–P1.25 is suitable for control rooms, boardrooms and other close-viewing environments. P1.5–P1.9 works well in meeting rooms, retail stores and corporate lobbies, while P2.5–P3.9 is generally more cost-effective for exhibition halls, auditoriums and larger indoor spaces.
02How large should an indoor LED display be for 4K resolution?
The required screen size depends on the selected pixel pitch. A P1.25 indoor LED display generally needs to be approximately 4.8 meters wide to provide 3,840 horizontal pixels, while a P1.5 display requires approximately 5.76 meters. Final dimensions should also match the cabinet configuration and intended aspect ratio.
03How bright should an indoor LED screen be?
Most indoor LED screens operate effectively between 600 and 1,200 nits. Displays installed in meeting rooms or controlled-light environments can use lower brightness, while shopping malls, storefronts and brightly illuminated exhibition spaces may require higher brightness. Excessive brightness should be avoided because it can cause visual discomfort at close viewing distances.
04Can an indoor LED display be maintained entirely from the front?
Yes. JR Visual indoor LED display products support front-service access, allowing LED modules and key components to be inspected or replaced without removing the complete screen. This is particularly useful for wall-mounted and recessed installations where rear maintenance space is limited.
05What installation options are available for indoor LED displays?
Indoor LED displays can be wall-mounted, recessed, suspended from a ceiling or installed on a floor-standing structure. Depending on the selected product, the screen can also be configured as a flat wall, curved display, 90-degree corner, cube or double-sided display. The correct method depends on wall structure, screen dimensions, viewing direction and maintenance space.
06What information is needed for an indoor LED display quotation?
To prepare an accurate quotation, provide the required screen width and height, closest viewing distance, installation location, target resolution, preferred installation method and main content type. Camera requirements, wall structure, power supply, destination country and installation deadline should also be confirmed when applicable.
