Acoustic LED Dome

Different Screen Shapes

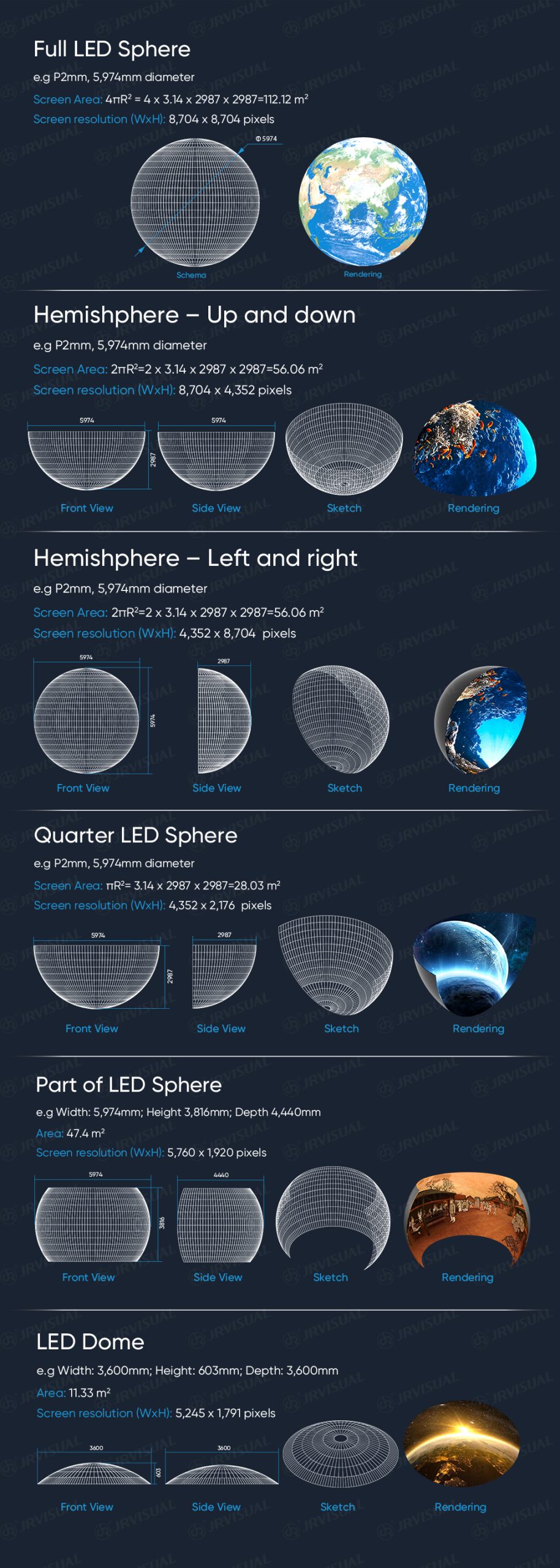

The highly adaptable Acoustic LED Dome offers diverse, tailored configurations. It includes full LED spheres, partial domes and compact options. A whole 5,974mm sphere covers 112.12m² with 8,704×8,704 pixels. Hemispheres provide 56.06 m² of display space for semi-immersive setups. Quarter and custom spheres suit smaller or uniquely shaped venues. The compact 3,600mm dome fits intimate exhibition zones perfectly. Every configuration delivers seamless, high-brightness, zero-fusion-area visuals. It balances flexibility, visual quality and scalable performance well.

Acoustic LED Dome Specification

Why Choose JR VISUAL LED Dome Series?

JR VISUAL has experience providing complex, high-performance LED displays, as well as expertise in control systems, playback, and signal processing. Based on this experience, JR VISUAL has developed the LED DOME SERIES. With strong color intensity, high brightness, high contrast, acoustic transparency, and flexible size and shape options, LED domes bring immersion to a new dimension.

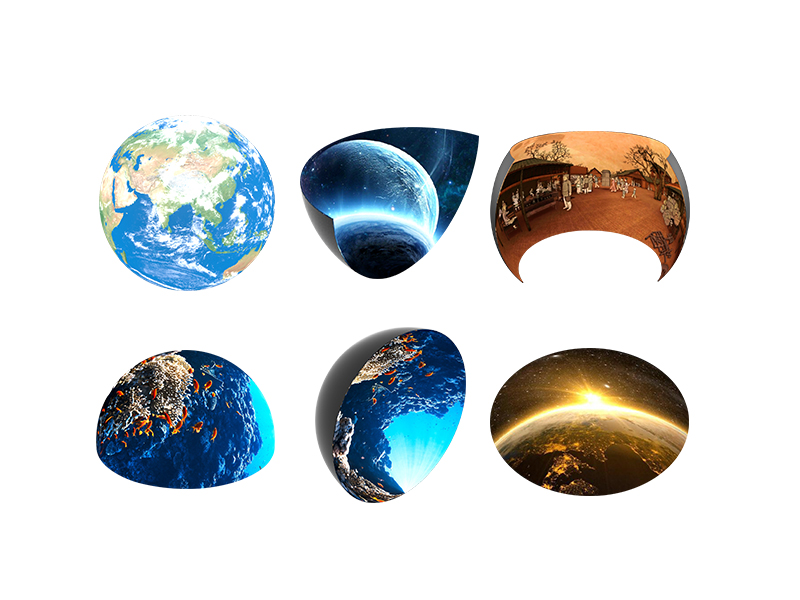

What kind of LED Dome shapes can be done?

Almost any shape and size can be customized. Common shape options include:

• 1. Full dome;
• 2. Half dome;
• 3. Full sphere;
• 4. Tilted dome;
• 5. Vertically aligned dome;
• 6. Custom radius dome;
• 7. Custom-shaped spherical screen.

Is the LED Dome only used for fixed installation, or can it also be used for rental events?

The LED Dome can be used for both fixed installation and rental events. Compared with the fixed installation, the rental version of the LED Dome is recommended to use a fast-lock system, a separate power box, a separate receiver box, and flight-case packaging. These features make connection, transportation, and repeated use easier.

What are the main applications of the LED Dome product?

The LED Dome product can be used in:

• 1. Planetariums;
• 2. Media-based attractions;
• 3. Dome theaters;
• 4. Drive simulators;
• 5. Flight simulators;
• 6. Hybrid dome theaters;
• 7. Multifunctional spaces;
• 8. And many more.

What are the main characteristics of the LED Dome product?

The main characteristics of the LED Dome product include:

• 1. Full domes and full spheres in various sizes;
• 2. Custom radius and shapes, including vertically aligned, tilted, or half dome structures;
• 3. Greater flexibility for visitor positioning and ride system positioning;
• 4. Available pixel pitches: P1.4mm, P1.9mm, P2.5mm, and P3.9mm;
• 5. Ultra-high dome master resolutions, such as 8K × 8K for a 20m / 2.7 dome and up to 12K × 12K for a 30m / 2.7 dome;
• 6. High frame rates for crisp images, even during fast motion;
• 7. Optional 120fps capability;
• 8. Pixel-perfect mapping and integrated server architecture;
• 9. Uncompressed native resolution up to 10-bit RGB 4:4:4;

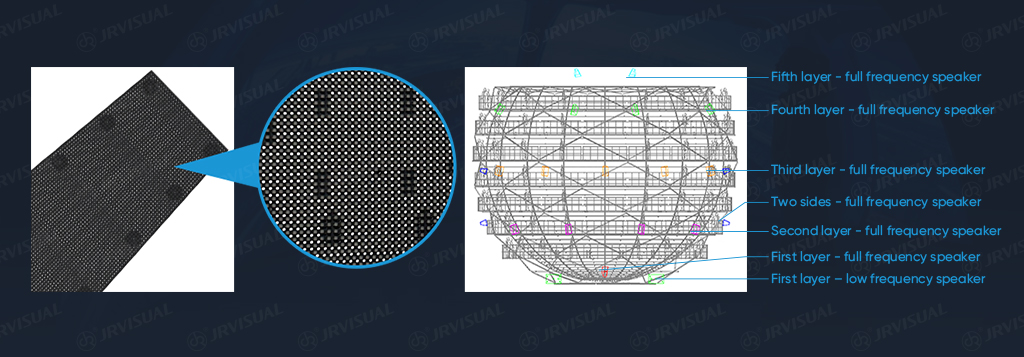

• 10 Acoustically transparent display surface for a clear, precise, and linear sound experience;
• 11. Lifetime image alignment for consistent resolution, brightness, contrast, color space, and geometry;
• 12. Reduced operational costs through instant power on/off and shorter start-of-day and end-of-day procedures;
• 13. 100% rear accessibility;
• 14. Modular monitoring and diagnostics.

Is there any difference in the color spectrum and contrast compared with a regular LED display?

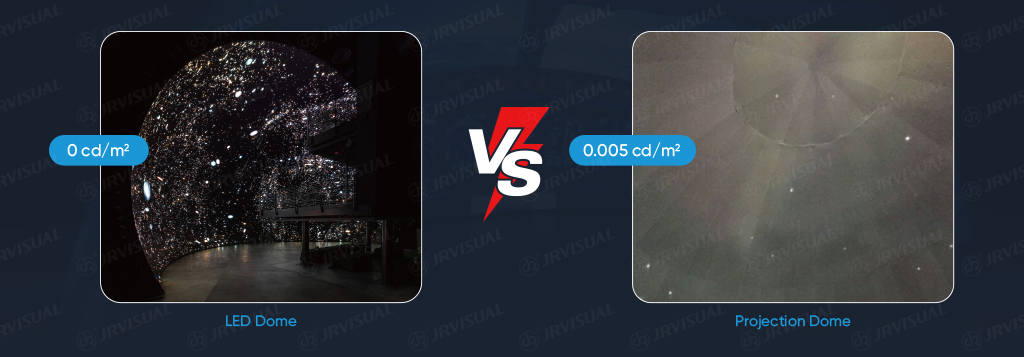

Yes. Compared with a regular LED display, the LED Dome can provide stronger color and contrast performance. It supports over 90% DCI-P3 color space / CIE 1931. Standard observer graphs do not fully reflect the difference seen by the human eye, so brightness and color need to be compared in 3D to better appreciate the result. The color volume of an LED display equals the area of its color gamut multiplied by its peak brightness. The LED Dome also supports HDR, infinite black and ultra-high contrast, with very low cross-reflection while maintaining high peak brightness. This helps create a more hyper-realistic experience.

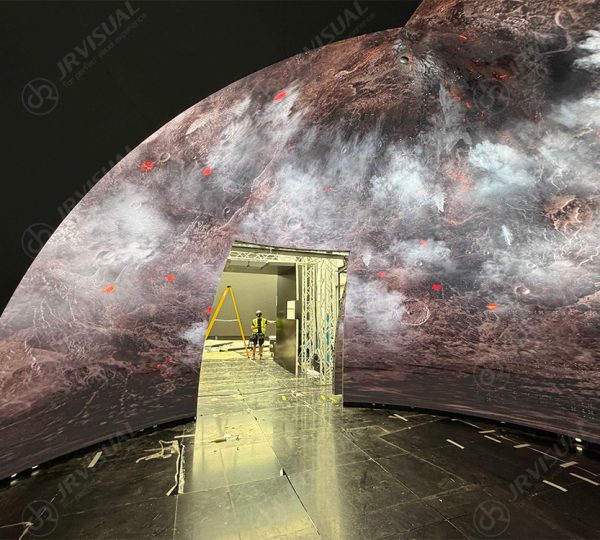

Do you have any worldwide project references?

Yes. JR VISUAL has delivered high-resolution LED Dome projects to the UK, U.A.E., Japan, and other regions. The project sizes range from 3m to 30m in diameter, with pixel pitches from P1.4mm to P3.9mm.
