iFloor | Indoor LED Floor

Pixel pitch: 1.5mm, 1.8mm, 1.9mm, 2.6mm, 3.9mm, 6.25mm.
Cabinet size: 500x500mm.

1. Fine pixel pitch LED Floor solution with GOB LED modules.
2. Interactive floor is available for all different pixel pitch.
3. Floor base adjustable to match great screen flatness.
4. Strong load-bearing performance with max. 2,000kg/sqm.
5. Easy front installation and front service.

Request a Quote

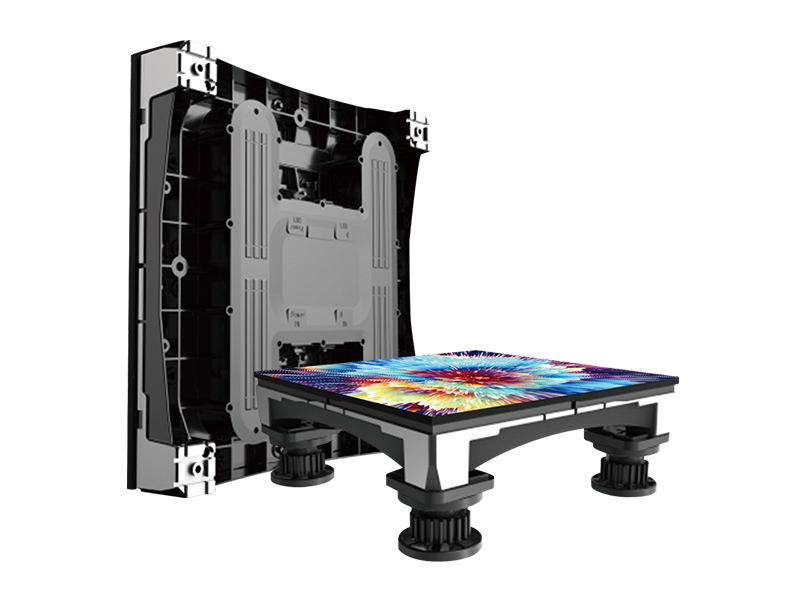

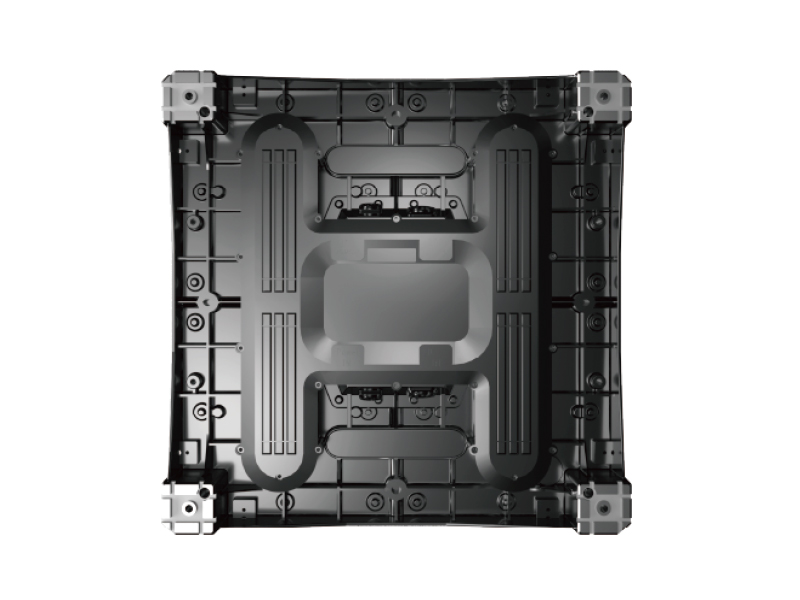

LED Floor Cabinet Details

The iFloor Indoor LED Floor is a high-performance LED display with a robust cabinet design that balances reliability and functionality. Its multi-layered structure includes key components: a protective cover (protecting the display surface), a PCB + LED + interactive IC core layer, waterproof rubber rings, a sturdy base shell, and a durable die-cast aluminium plate to ensure structural stability under heavy foot traffic.

This LED product combines durability, interactivity, and protection, making iFloor Indoor LED Flooring an ideal choice for indoor venues with high-performance and lifespan requirements, such as event stages, retail stores, or exhibition areas.

iFloor Description 1

Super Strong Load-bearing Performance

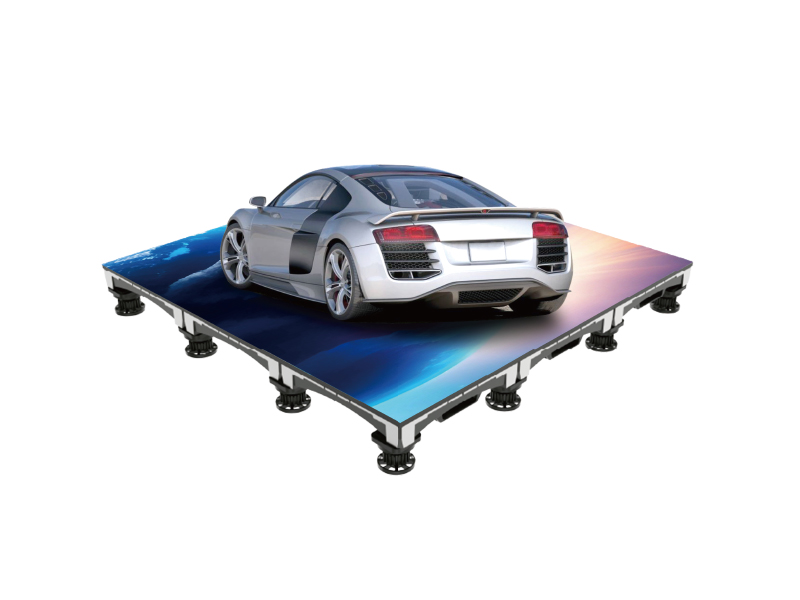

As a heavy-duty LED display, iFloor indoor LED floor is designed for high-intensity indoor environments and boasts exceptional load-bearing capacity. This robust and durable LED product utilises point-to-point contact and support technology, with a load-bearing capacity exceeding 2000 kg/m², efficiently supporting the weight of a car. It is ideal for high-traffic areas, vehicle displays, or significant industrial events.

Regardless of the application, iFloor indoor LED floor perfectly combines vivid, realistic visual effects with industrial-grade durability, ensuring reliable performance even under heavy loads and frequent use.

iFloor Description 2

Easy-to-Service Design for Hassle-Free Maintenance

The iFloor indoor LED floor, as an easy-to-use LED display, features a magnetic module design that simplifies maintenance in busy indoor spaces. This smart engineering allows you to replace modules in just 3 seconds, significantly reducing maintenance time and greatly improving work efficiency.

As a practical LED product, iFloor indoor LED flooring combines vivid and realistic visual effects with convenient maintenance, making it a reliable choice for locations that value both functionality and ease of maintenance.

iFloor Description 3

Multi-Point Touch Interactive Effect with Ultra-Fast Response

The iFloor indoor LED floor significantly enhances the interactive experience with its multi-touch functionality and superior performance. At the heart of our LED products lies a built-in, patented interactive system, meticulously designed for an ultra-fast 0.016-second response time: this near-instantaneous feedback ensures smooth, lag-free interaction, providing an exceptional experience regardless of whether multiple users are simultaneously clicking, swiping, or performing other interactive actions.

It also boasts exceptional durability and visual clarity, combining high-performance interactive technology with the reliability required for high-traffic indoor environments.

iFloor Description 4

Power and Data redundancy design.More stable and safe during operation

iFloor indoor LED floor displays integrate a robust power and data redundancy design, ensuring unparalleled stability and safety during operation. This meticulously designed LED product can seamlessly take over in the event of a mains power or data connection interruption, eliminating unexpected downtime, preventing display failures, and maintaining continuous operation.

In addition to preventing power outages, this redundancy design enhances overall operational safety, reducing the risks associated with power fluctuations or data failures, and ensuring smooth display operation even in high-demand environments.

iFloor Description 5

Product application cases

Features

iFloor Key Features

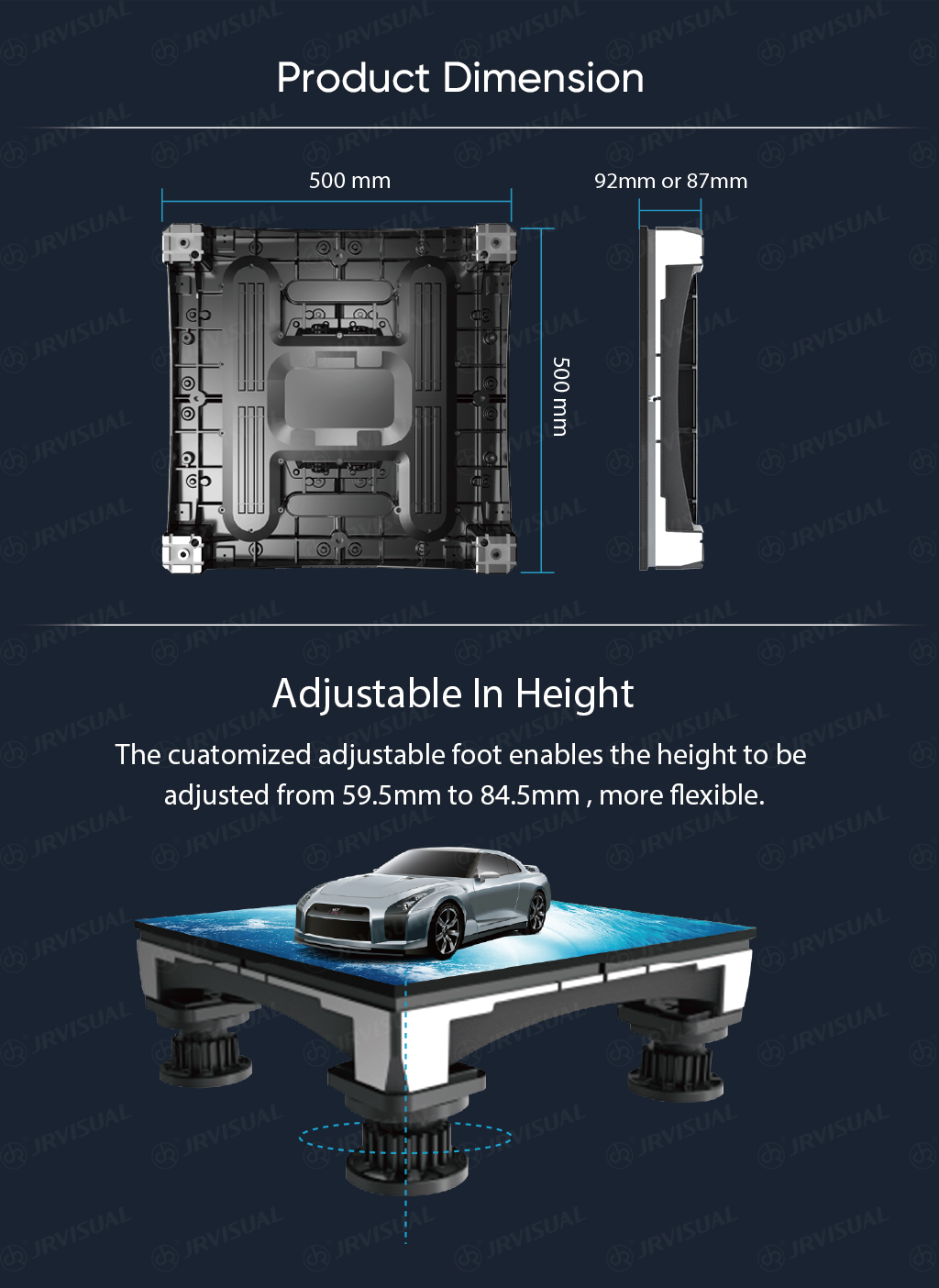

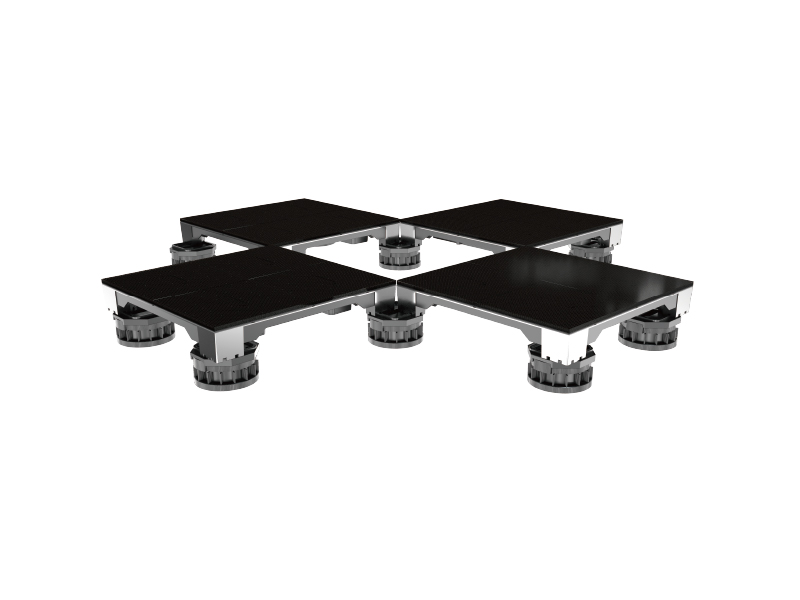

The iFloor indoor LED floor is a rugged, durable LED display specifically designed for indoor spaces—available in custom sizes to adapt to various layouts. Its standard dimensions ensure seamless assembly of large floor displays. In addition to fixed sizes, this versatile LED product features customizable adjustable feet, with height adjustable from 59.5mm to 84.5mm, perfectly suited for levelling uneven surfaces or meeting site design requirements.

It is ideal for event stages or exhibition venues, seamlessly blending sophisticated engineering with flexible adjustability to provide a stable and adaptable foundation for immersive floor visual experiences.

iFloor Features

Specification

iFloor Specification

Item Number i15-Floor i18-Floor i19-Floor i26-Floor i39-Floor i62-Floor
Module Parameter
Pixel Pitch 1.524mm 1.838mm 1.953mm 2.604mm 3.096mm 6.25mm
Pixel Density 430,336dots/㎡ 295,936dots/㎡ 262,144dots/㎡ 147,456dots/㎡ 65,536dots/㎡ 25,600dots/㎡
LED Shape SMD1212 SMD1415 SMD1415 SMD1415 SMD1921 SMD1921
LED Configuration 1R1G1B
Module Size 250 (W) × 250 (H) x 24 (D) mm
Module Resolution 164x164 136x136 128x128 96x96 64x64 40×40
Driving Mode 1/41Scan 1/16Scan 1/14Scan 1/8Scan 1/8Scan 1/8Scan
Cabinet Parameter
Cabinet Size 500(W)×500(H)×92(D)mm
Cabinet Resolution 328x328 272x272 256x256 192x192 128x128 80×80
Module Quality 4pcs 4pcs 4pcs 4pcs 4pcs 4pcs
Cabinet Weight 11.5kg/pc 11.5kg/pc 11.5kg/pc 11.5kg/pc 11.5kg/pc 11.5kg/pc
Brightness 600~900 cd/㎡ 600~900 cd/㎡ 600~900 cd/㎡ 900~1,800 cd/㎡ 900~1,800 cd/㎡ 900~1,800 cd/㎡
Contrast 5000:1 5000:1 5000:1 5000:1 5000:1 5000:1
View Angle 160°(H) / 160° (V) 160°(H) / 160° (V) 160°(H) / 160° (V) 140°(H) / 140° (V) 140°(H) / 140° (V) 140°(H) / 140° (V)
Minimum View Distance 1.5m 1.8m 2m 2m 3m 6m
Gray Scale ≥14(bit)
Max Power Consumption(W/pc) 200 W
Average Power Consumption (W/pc) 80 W
Work Voltage AC100-240V
Frame Frequency 50Hz-50Hz
Refresh Rate ≥3,840
Brightness Adjustment 0-100%
Color Temperature 6500-9000K
Control Mode Synchronization with PC
Control Distance UTP CAT5E:100m,Multi-Mode Fiber:500m,Single-Mode Fiber:15km
Interaction Human-computer interaction, multi-touch
Operating Temperature ( -20℃～+45℃ )
Operating Humidity 10-90% RH
Life Span 100,000Hours
MTBF 5000Hours
IP Rating(Front/Rear) IP54/IP45
Loading Capacity 1,000(Kg/㎡) 1,000(Kg/㎡) 1,000(Kg/㎡) 2,000(Kg/㎡) 2,000(Kg/㎡) 2,000(Kg/㎡)
