Pixel Pitch: P1.5mm, P1.8mm, P1.9mm, P3.9mm, P6.25mm
Cabinet Size: 500x500x92mm
1.Interactive LED Floor system with fast response time, 0.016 second

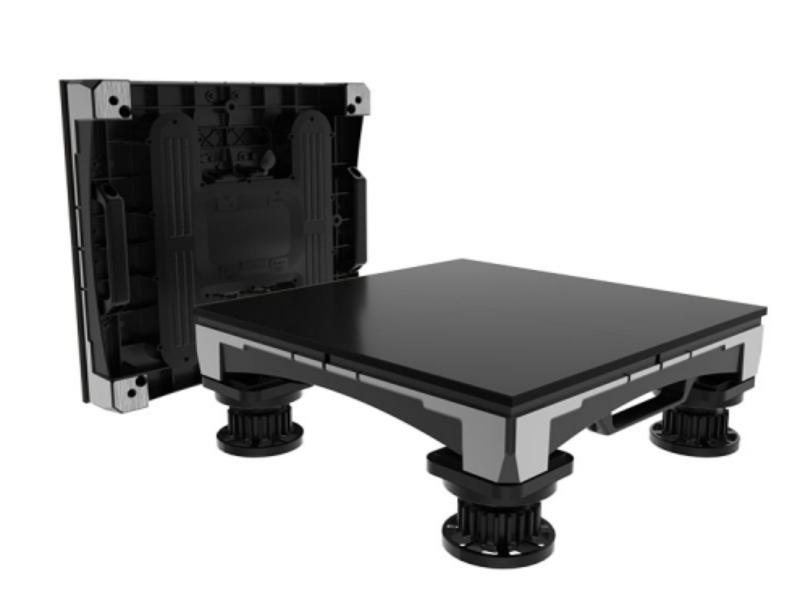

2.Intelligent floor support base, height adjustable
3 Easy service from front access
4.Power and data back up available
5.High resolution LED floor system
100% front service will work to manage the service.
Dual power supplies and receiving cards possible to integrated inside one LED floor panel, to make a back up system, ensure to have a safe events when used for rental.
The weight of LED Floor will on the LED surface, there are specially designed PCB which integrated with higher support points than LEDs, as a result of stable LED Floor product.
1
| iFloor Specification | ||||||
| Item Number | i15-Floor | i18-Floor | i19-Floor | i26-Floor | i39-Floor | i62-Floor |
| Module Parameter | ||||||
| Pixel Pitch | 1.524mm | 1.838mm | 1.953mm | 2.604mm | 3.096mm | 6.25mm |
| Pixel Density | 430,336dots/㎡ | 295,936dots/㎡ | 262,144dots/㎡ | 147,456dots/㎡ | 65,536dots/㎡ | 25,600dots/㎡ |
| LED Shape | SMD1212 | SMD1415 | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| LED Configuration | 1R1G1B | |||||
| Module Size | 250 (W) × 250 (H) x 24 (D) mm | |||||
| Module Resolution | 164×164 | 136×136 | 128×128 | 96×96 | 64×64 | 40×40 |
| Driving Mode | 1/41Scan | 1/34Scan | 1/32Scan | 1/16Scan | 1/16Scan | 1/10Scan |
| Cabinet Parameter | ||||||
| Cabinet Size | 500(W)×500(H)×92(D)mm | |||||
| Cabinet Resolution | 328×328 | 272×272 | 256×256 | 192×192 | 128×128 | 80×80 |
| Module Quality | 4pcs | 4pcs | 4pcs | 4pcs | 4pcs | 4pcs |
| Cabinet Weight | 11.5kg/pc | 11.5kg/pc | 11.5kg/pc | 11.5kg/pc | 11.5kg/pc | 11.5kg/pc |
| Brightness | 600~900 cd/㎡ | 600~900 cd/㎡ | 600~900 cd/㎡ | 900-1,800 cd/㎡ | 900~1,800 cd/㎡ | 900~1,800 cd/㎡ |
| Contrast | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| View Angle | 160°(H) / 160° (V) | 160°(H) / 160° (V) | 160°(H) / 160° (V) | 140°(H) / 140° (V) | 140°(H) / 140° (V) | 140°(H) / 140° (V) |
| Minimum View Distance | 1.5m | 1.8m | 2m | 2m | 3m | 6m |
| Gray Scale | ≥14(bit) | |||||
| Max Power Consumption(W/pc) | 200 W | |||||
| Average Power Consumption (W/pc) | 80 W | |||||
| Work Voltage | AC100-240V | |||||
| Frame Frequency | 50Hz-50Hz | |||||
| Refresh Rate | ≥3,840 | |||||
| Brightness Adjustment | 0-100% | |||||
| Color Temperature | 6500-9000K | |||||
| Control Mode | Synchronization with PC | |||||
| Control Distance | UTP CAT5E:100m,Multi-Mode Fiber:500m,Single-Mode Fiber:15km | |||||
| Interaction | Human-computer interaction, multi-touch | |||||
| Operating Temperature | ( -20℃～+45℃ ) | |||||
| Operating Humidity | 10-90% RH | |||||
| Life Span | 100,000Hours | |||||
| MTBF | 5000Hours | |||||
| IP Rating(Front/Rear) | IP54/IP45 | |||||
| Loading Capacity | 1,000(Kg/㎡) | 1,000(Kg/㎡) | 1,000(Kg/㎡) | 2,000(Kg/㎡) | 2,000(Kg/㎡) | 2,000(Kg/㎡) |
