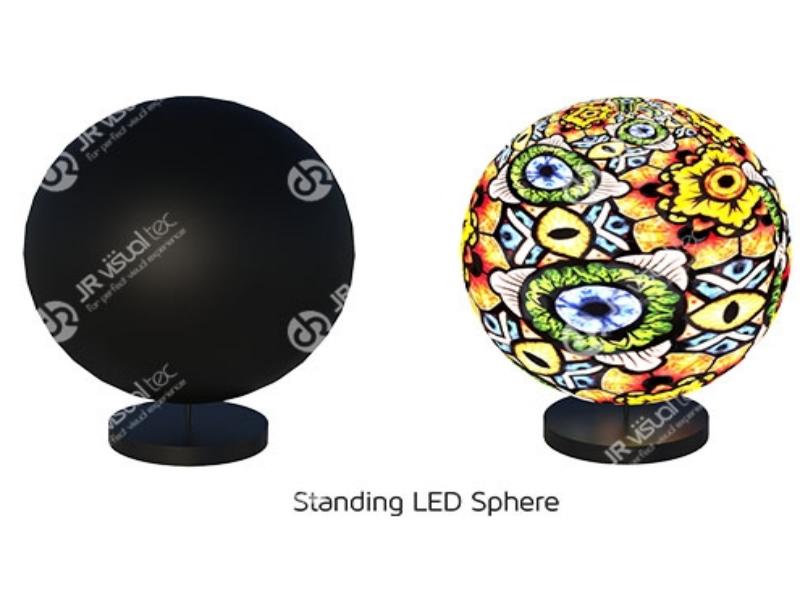

Installation Way

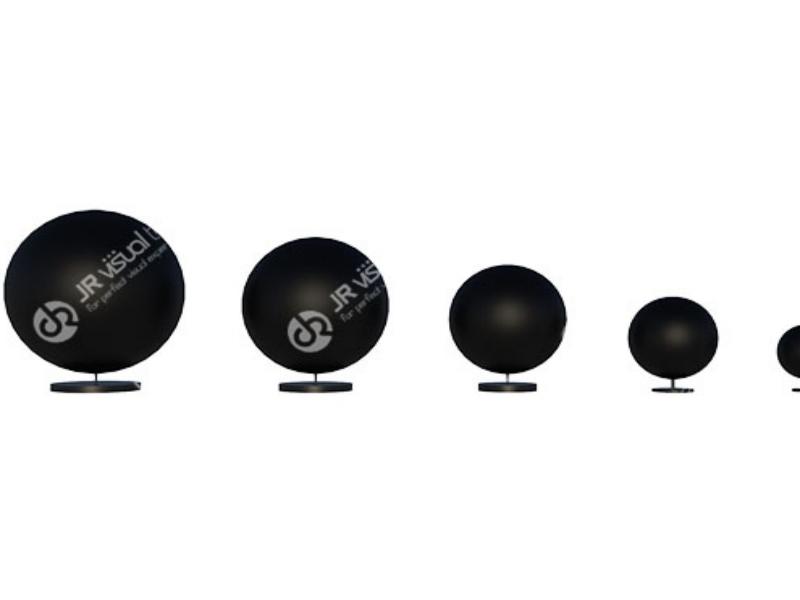

Various diameter LED Sphere available
Various diameter LED Sphere available

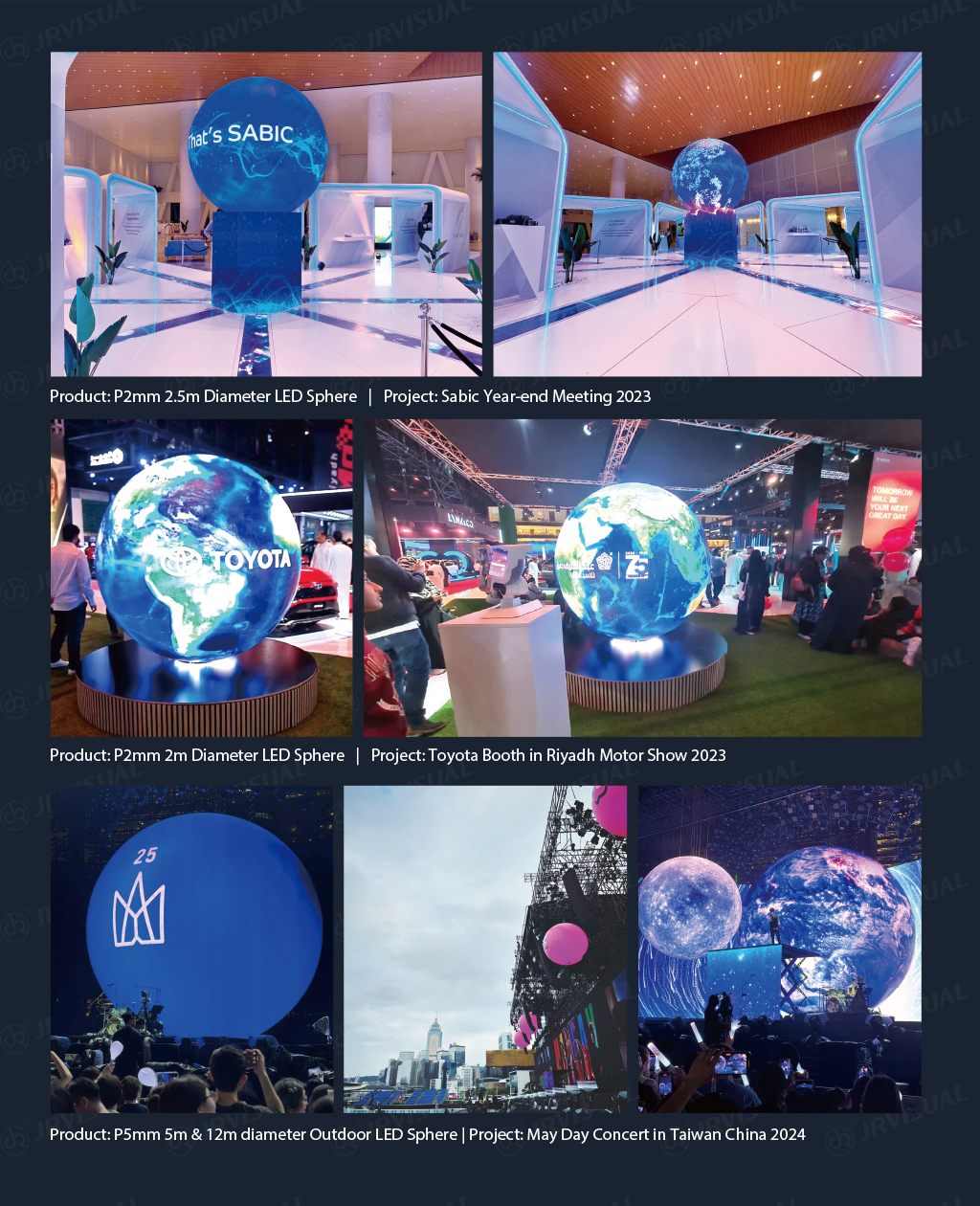

Product application cases
Copyright © 2025 JR VISUAL TEC, all rights reserved.
LED Sphere| Rental And Fixed Installation
Indoor Pixel pitch: 1.2mm, 1.5mm, 1.8mm, 2mm 2.5mm.
Diameter: 0.5m, 1m, 1.5m, 2m, 2.5m, 3m or bigger.
Outdoor Pixel pitch: 4mm, 5mm.
Diameter: 3m, 4m or bigger.
1. Wide range of pixel pitch options, high resolution.
2. Different diameter available, can be customized sizes.
3. For rental purpose, GOB LED Module treatment applied.

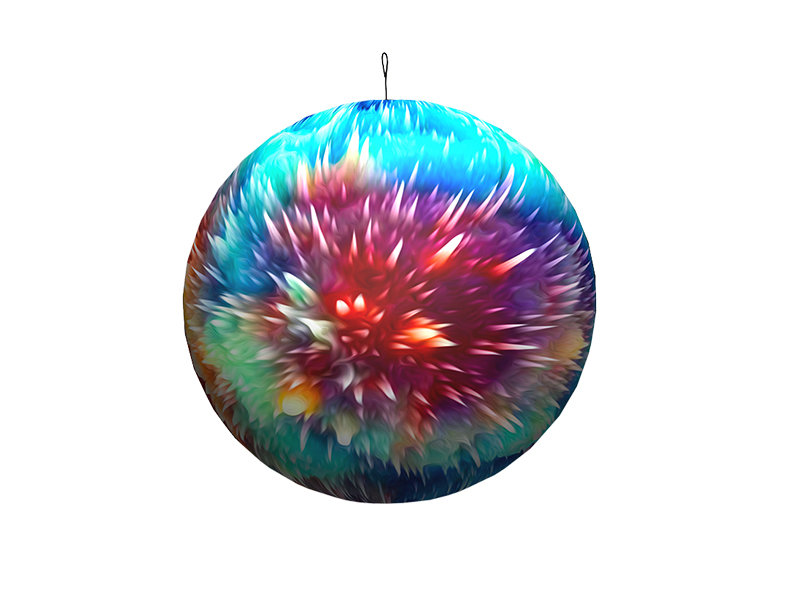

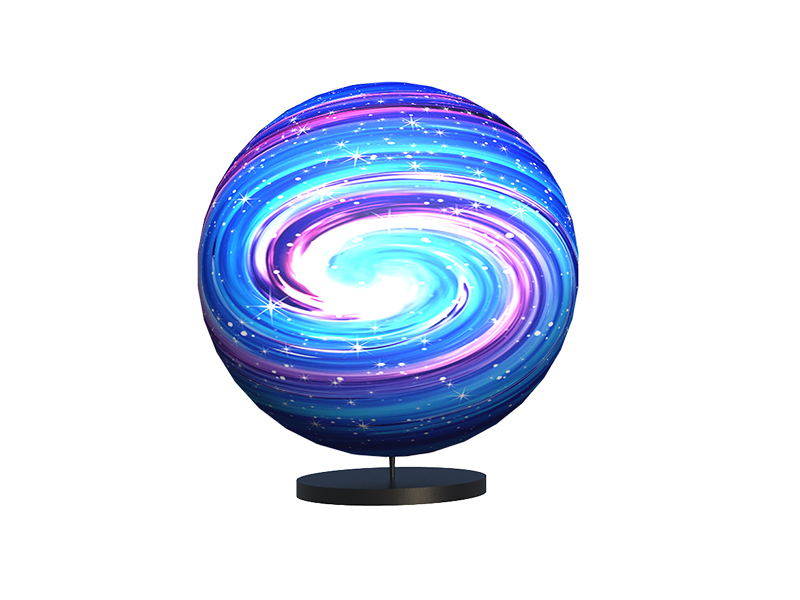

4. Both floor standing and hanging installation.
Features
Fixed Installation & Rental Event
Specification
Indoor Spherical LED Display Specification
| Indoor Spherical LED Display Specification | |||||
| 1m Diameter P2mm | 1.5m Diameter P2mm | 2m Diameter P2mm | 2.5m Diameter P2mm | 3m Diameter P2mm | |
| LED Sphere specification | |||||
| Model | 1m P2 | 1.5m P2 | 2m P2 | 2.5m P2 | 3m P2 |
| Pixel Pitch | 2mm ±10% | 2mm ±10% | 2mm ±10% | 2mm ±10% | 2mm ±10% |
| LED Encapsulation | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 |
| Diameter | 1000mm | 1500mm | 2000mm | 2500mm | 3000mm |
| Display Area | 3.14 sqm | 7.07 sqm | 12.57 sqm | 19.63 sqm | 28.27 sqm |
| Resolution | 20,662 Dots/Sqm | 20,662 Dots/Sqm | 20,662 Dots/Sqm | 20,662 Dots/Sqm | 20,662 Dots/Sqm |
| Sphere Resolution Format | 1,536*782 | 1920*1080 | 2688*1328 | 3328*1662 | 4096*1982 |
| Module Gap | ≤0.3mm | ≤0.3mm | ≤0.3mm | ≤0.3mm | ≤0.3mm |
| Controller Model | MB4 | MB6 | MTB2000 | B2000 | B2000 |
| Module Fixed Mode | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic |
| Customized Module Type Qty | 5 | 7 | 9 | 11 | 13 |
| Module Surface Treatment | GOB | GOB | GOB | GOB | GOB |
| Weight | Around 120 Kgs/Set | Around 270 Kgs/Set | Around 480 Kgs/Set | Around 700 Kgs/Set | Around 1,000 Kgs/Set |
| Package | 1 pcs in 1 case | 1 pcs in 1 case | 1 pcs in 1 case | Separate packing, 1pcs in 6 cases | Separate packing, 1pcs in 8 cases |
| Scanning Mode | 1/45 | 1/40 | 1/32 | 1/40 | 1/40 |
| Brightness | ≥600nits | ||||
| Refresh Frequency | ≥3840Hz | ||||
| Gary Scale | 14bit | ||||
| Colour Temperature | 5500K～9300K | ||||
| Contrast Ratio | 3000:1 | ||||
| Ave.Power Consumption | ＜240W/Sqm | ||||
| Max.PowerConsumption | ＜800W/Sqm | ||||
| Optimum Sight Distance | 2m～50m | ||||
| Viewing Angle | (H)160°/(V)160° | ||||
| Operating Voltage | AC100V～240V | ||||
| Operating Frequency | 50～60Hz | ||||
| Power Output | 5V 40A | ||||
| Operating/Storage Temperature | 0℃～+40℃/-20℃～+60℃ | ||||
| Operating/Storage Humidity | 35%-85%/10%-90% | ||||
| Installation Mode | Hanging/Standing | ||||
| Maintenance Mode | Front Service | ||||
| Working Environment | Indoor | ||||
| Ingress Protection | IP43(Front)/IP43(Back) | ||||
| Control System | Mooncell (Suggested) / Novastar (Optional) | ||||
| Control Mode | 1) Synchronous display with control PC by DVI 2)Asynchronous | ||||
| Support Input | VGA, DVI, HDMI, HD_SDI, etc. | ||||
| LED Life Span | ＞100,000 Hours | ||||
Outdoor Spherical LED Display Specification
| Outdoor Spherical LED Display Specification | |||
| 4m Diameter P5mm | 5m Diameter P5mm | 12m Diameter P5mm | |
| Outdoor LED Sphere specification | |||
| Model | 4m P5 | 5m P5 | 12m P5 |
| Pixel Pitch | 5mm ±10% | 5mm ±10% | 5mm ±10% |
| LED Encapsulation | SMD2727 | SMD2727 | SMD2727 |
| Diameter | 4,000mm | 5,000mm | 12,000mm |
| Display Area | ≈50.27 sqm | ≈78.54 sqm | ≈452.39 sqm |
| Resolution | ≈40,000 Dots/Sqm | ≈40,000 Dots/Sqm | ≈40,000 Dots/Sqm |
| Sphere Resolution Format | 2,240*1,083 | 2,880*1,460 | 7,249*3,624 |
| Module Gap | ≤0.5mm | ≤0.5mm | ≤0.5mm |
| Controller Model | MVB6S | B1200S | MTB2000 x 4 + MC-C2KX |
| Module Fixed Mode | Screw | Screw | Screw |
| Customized Module Type Qty | 18 | 21 | 48 |
| Module Material | Aluminum | Aluminum | Aluminum |
| Mask Material | Aluminum | Aluminum | Aluminum |
| Structrue Material | Aluminum | Aluminum | Aluminum |
| Weight | Around 2,000 Kgs/pcs | Around 3,1500 Kgs/pcs | Around 10,080 Kgs/pcs |
| Package | Separate packing, flight case or dolly | ||
| Scanning Mode | 1/8 | ||
| Brightness | ≥5,000nits | ||
| Refresh Frequency | ≥3840Hz | ||
| Gary Scale | 14bit | ||
| Colour Temperature | 5500K～9300K | ||
| Contrast Ratio | 3000:1 | ||
| Ave.Power Consumption | ＜240W/Sqm | ||
| Max.PowerConsumption | ＜800W/Sqm | ||
| Optimum Sight Distance | 5m～100m | ||
| Viewing Angle | (H)160°/(V)160° | ||
| Operating Voltage | AC100V～240V | ||
| Operating Frequency | 50～60Hz | ||
| Power Output | 5V 40A | ||
| Operating/Storage Temperature | 0℃～+40℃/-20℃～+60℃ | ||
| Operating/Storage Humidity | 5%-95%/10%-90% | ||
| Installation Mode | Hanging/Standing | ||
| Maintenance Mode | Front Service | ||
| Working Environment | Indoor | ||
| Ingress Protection | IP68(Front)/IP65(Back) | ||
| Control System | Mooncell (Suggested) | ||
| Control Mode | 1) Synchronous display with control PC by DVI 2)Asynchronous | ||
| Support Input | VGA, DVI, HDMI, HD_SDI, etc. | ||
| LED Life Span | ＞100,000 Hours | ||
