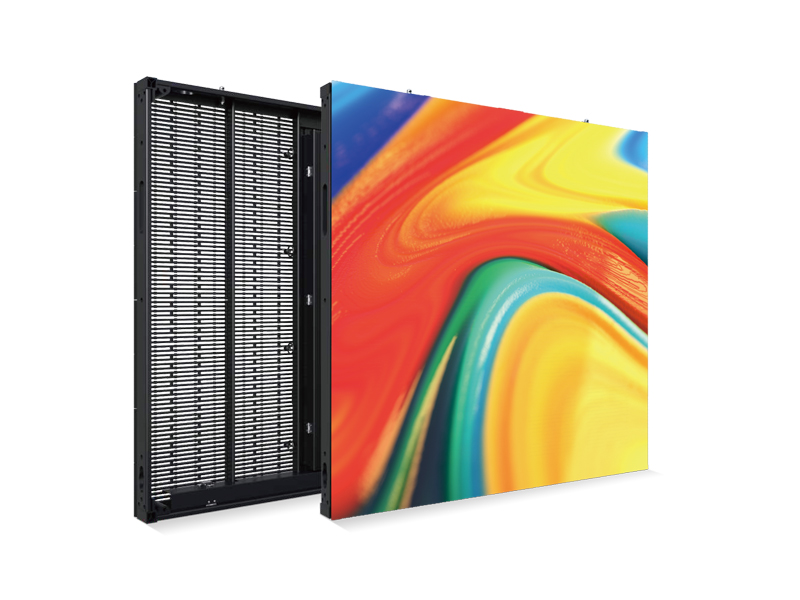

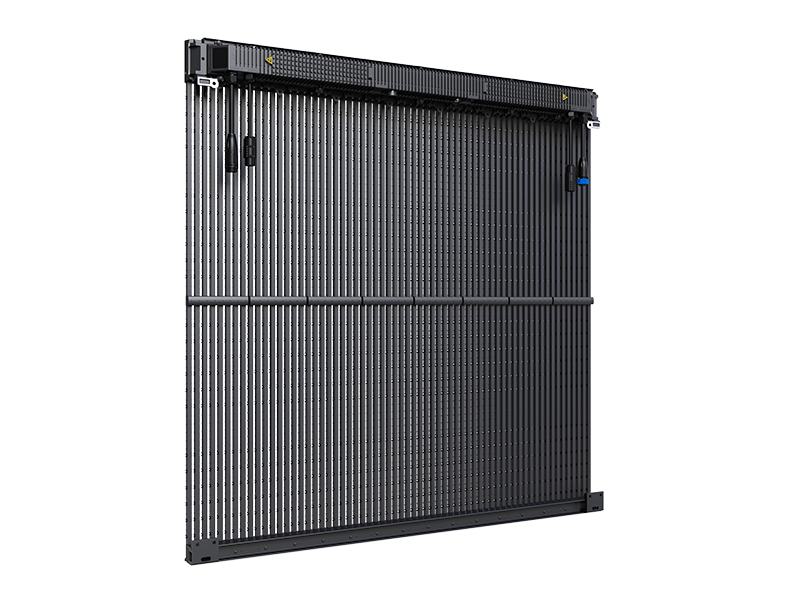

O-PT Mesh | Outdoor Transparent LED Display

Pixel pitch: 10.4mm, 15.6mm, 20.8mm, 31.25mm
Cabinet size: 1000x1000mm / 500x1000mm

1. Wide range of pixel pitch options from 10.4 to 31.25 mm
2. High brightness starts from 8,000nits
3. Mesh design for anti strong wind outdoor applications
4. Stable quality and energy saving outdoor LED mesh



Request a Quote

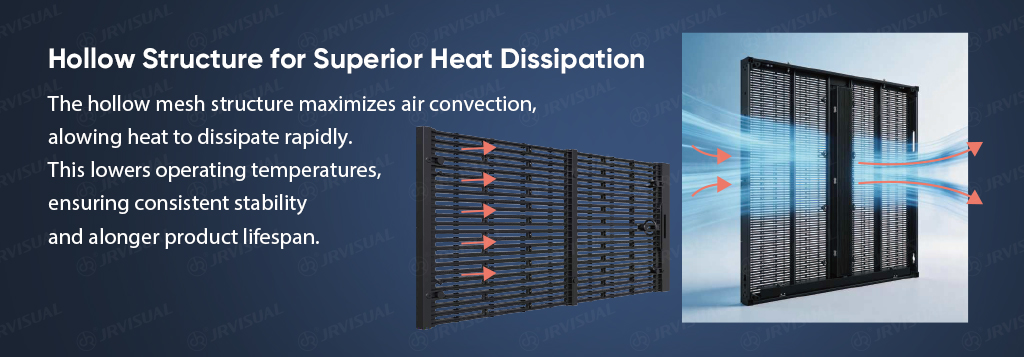

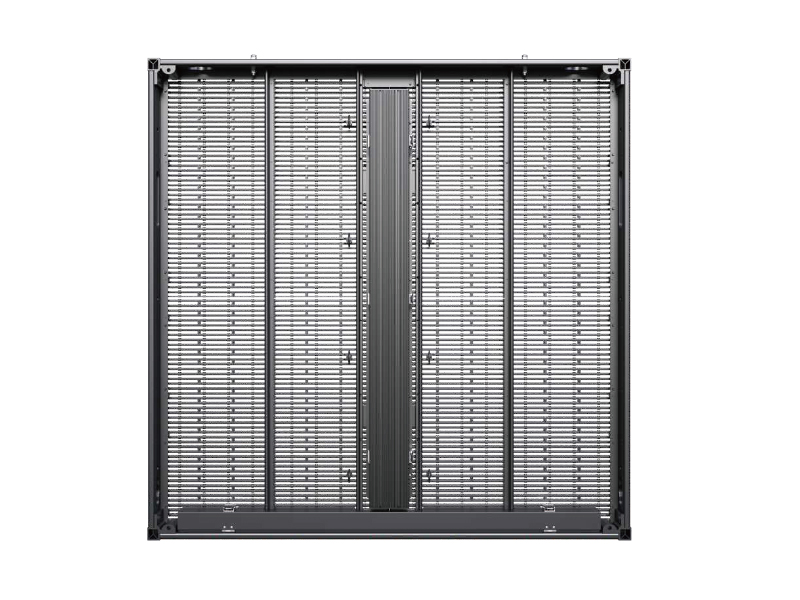

Hollow Structure for Superior Heat Dissipation

The hollow mesh structure maximizes air convection, allowing heat to dissipate rapidly. This lowers operating temperatures, ensuring consistent stability and longer product lifespan.

O-PT Mesh Series Description 1

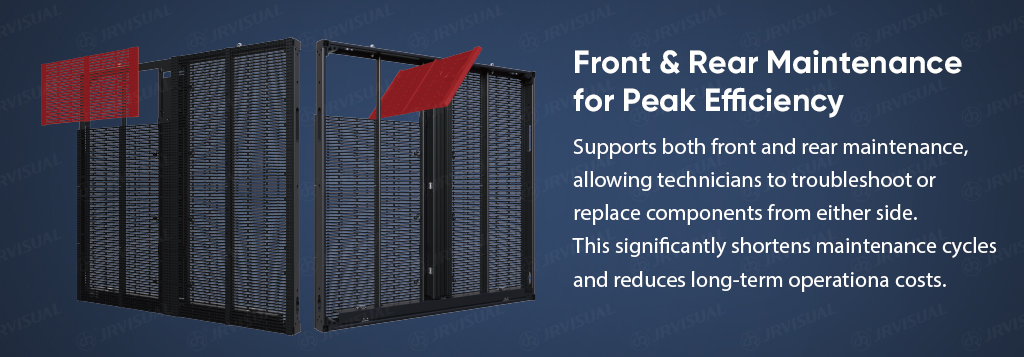

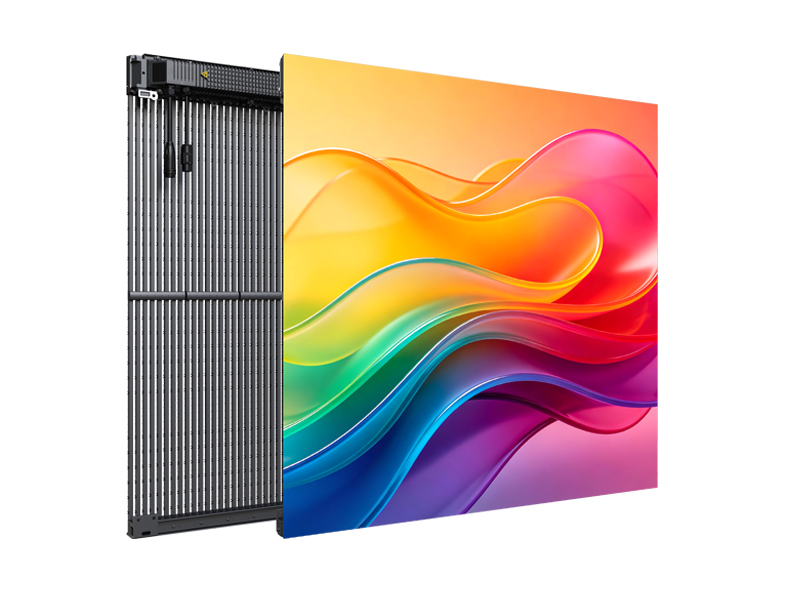

Front & Rear Maintenance for Peak Efficiency

Supports both front and rear maintenance, allowing technicians to troubleshoot or replace components from either side. This significantly shortens maintenance cycles and reduces long-term operational costs.

O-PT Mesh Series Description 2

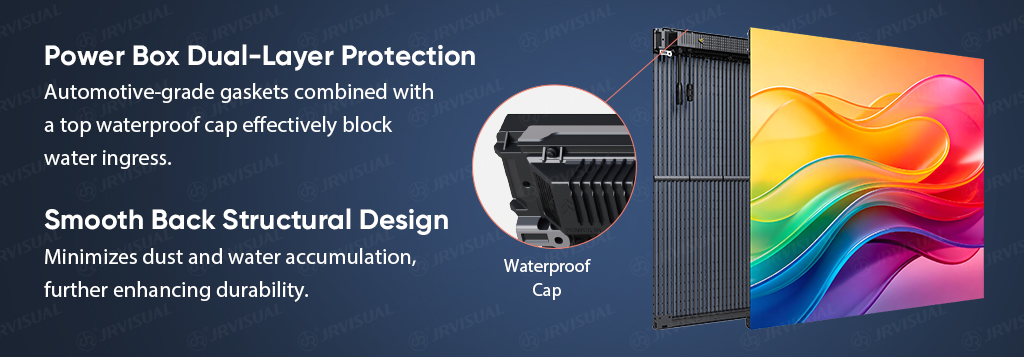

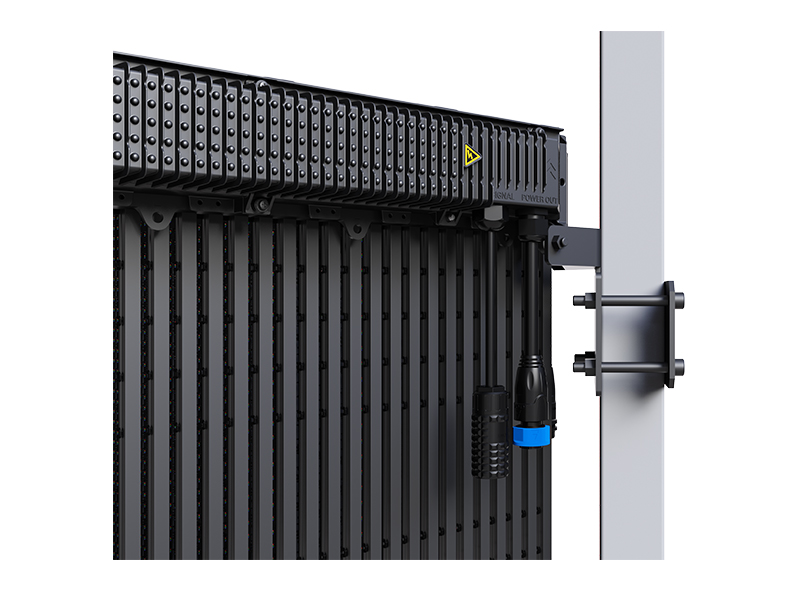

Power Box Dual-Layer Protection

Automotive-grade gaskets combined with a top waterproof cap effectively block water ingress.

O-PT Mesh Series Description 3

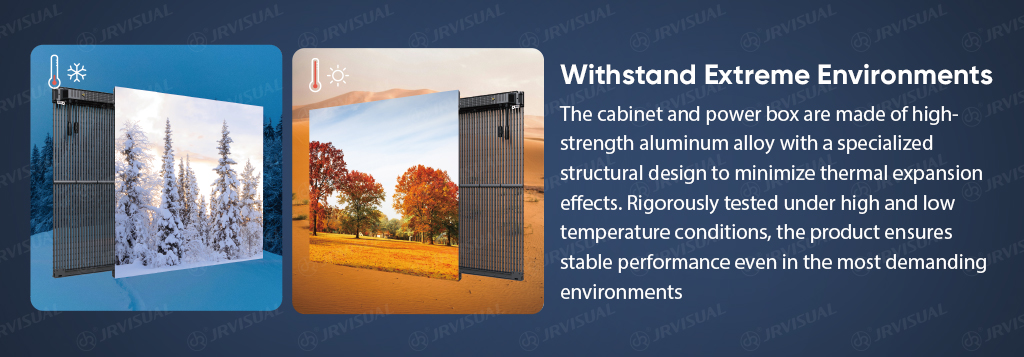

Withstand Extreme Environments

The cabinet and power box are made of high-strength aluminum alloy with a specialized structural design to minimize thermal expansion effects. Rigorously tested under high and low temperature conditions, the product ensures stable performance even in the most demanding environments.

O-PT Mesh Series Description 4

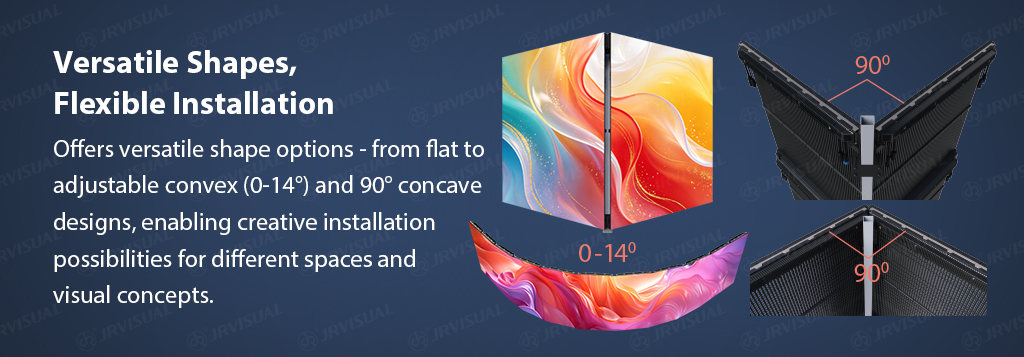

Versatile Shapes, Flexible Installation

Offers versatile shape options – from flat to adjustable convex (0-14°) and 90° concave designs, enabling creative installation possibilities for different spaces and visual concepts.

O-PT Mesh Series Description 5

O-PT Mesh Product application cases

Specification

O-PT Mesh Specification
Model name O-PTM15-H O-PTM20-H O-PTM15-H
Physical Specs Pixel Pitch (mm) 15.625 x 15.625 20.8333 x 20.8333 31.25 x 15.625
Pixel Density (dot/㎡) 4096 2304 2048
LED Type LIP3747/SMD3535 LIP3747/SMD3535 LIP3747
Pixel configuration 1R1G1B 1R1G1B 1R1G1B
Module Size (mm * mm) 125 x 1000 125 x 1000 125 x 1000
Module Resolution (PX* PX) 8 x 64 6 X 48 4 X 64
Module Weight (kg) 1.4 1.1 0.8
Module Thickness (mm) 27.3 27.3 27.3
Cabinet Size (mm * mm ) 500 x 1000 / 1000 x 1000 500 x 1000 / 1000 x 1000 500 x 1000 / 1000 x 1000
Weight (Kg/sqm) 15 12.8 10.9
Cabinet Thickness(mm) 86.7 86.7 86.7
Optical Specs Drive Mode: Static Static Static
Horizontal Viewing Angle (Deg) 160° 160° 160°
Vertical Viewing Angle (Deg) Upward 25°, Down 75° Upward 25°, Down 75° Upward 25°, Down 75°
Brightness (cd/m2) 10,000 / 8,000 10,000 / 8,000 10,000 / 8,000
Grey Scale（bit） 16bit 16bit 16bit
Refresh Rate (Hz) 7,680 7,680 7,680
Maximum Cabinet Power Consumption (W) 430 ± 5% / 600 ± 5% 500 ± 5% / 570 ± 5% 372 ± 5%
Average Cabinet Power Consumption (W) 129 / 180 150 / 171 112
Input Voltage (V) AC100-240V AC100-240V AC100-240V
Environmental Specs Transparency Rate (％) 45% 60% 71%
Working Temperature (℃) -40 ~ + 55 ℃ -40 ~ + 55 ℃ -40 ~ + 55 ℃
Working humidity (RH) 10%~90% RH 10%~90% RH 10%~90% RH
Storage Temperature (℃) -40 ~ + 60℃ -40 ~ + 60℃ -40 ~ + 60℃
Storage humidity (RH) 10%~60%RH 10%~60%RH 10%~60%RH
Waterproof Level IP68 / IP66 IP68 / IP66 IP68 / IP66
Maintenance type Front / Rear Front / Rear Front / Rear
Working Environment: Outdoor Outdoor Outdoor
Installtion Method Fixed Installation Fixed Installation Fixed Installation
Certificates: CE (LVD、EMC), ETL, CB, FCC CE (LVD、EMC), ETL, CB, FCC CE (LVD、EMC), ETL, CB, FCC
O-PT Mesh P10mm Specification
Model name O-PTM10
Physical Specs Pixel Pitch (mm) 10.416
Pixel Density (dot/㎡) 9216
LED Type SMD2727
Pixel configuration 1R1G1B
Module Size (mm * mm) 500x250
Module Resolution (PX* PX) 48 x 24
Module Weight (kg) 0.75
Module Thickness (mm) 18
Cabinet Size (mm * mm ) 1,000*1000/1,000x750/1,000x500
1,500*1000/1,500x750/1,500x500
Weight (Kg/sqm) 14.8
Cabinet Thickness(mm) 75
Optical Specs Drive Mode: Static
Horizontal Viewing Angle (Deg) 160°
Vertical Viewing Angle (Deg) Upward 25°, Down 75°
Brightness (cd/m2) 8,000
Grey Scale（bit） 16bit
Refresh Rate (Hz) 7,680
Maximum Cabinet Power Consumption (W) 500 ± 5%
Average Cabinet Power Consumption (W) 168
Input Voltage (V) AC100-240V
Environmental Specs Transparency Rate (％) 50%
Working Temperature (℃) -30 ~ + 50℃
Working humidity (RH) 10%~95%RH
Storage Temperature (℃) -40 ~ + 60℃
Storage humidity (RH) 10%~60%RH
Waterproof Level IP65
Signal backup Suitable for 1000mm width cabinet (Optional)
Power supply dual backup No
Maintenance type Front / Rear
Working Environment: Outdoor
Installtion Method Fixed Installation
Certificates: CE (LVD、EMC), ETL, CB, FCC

Features

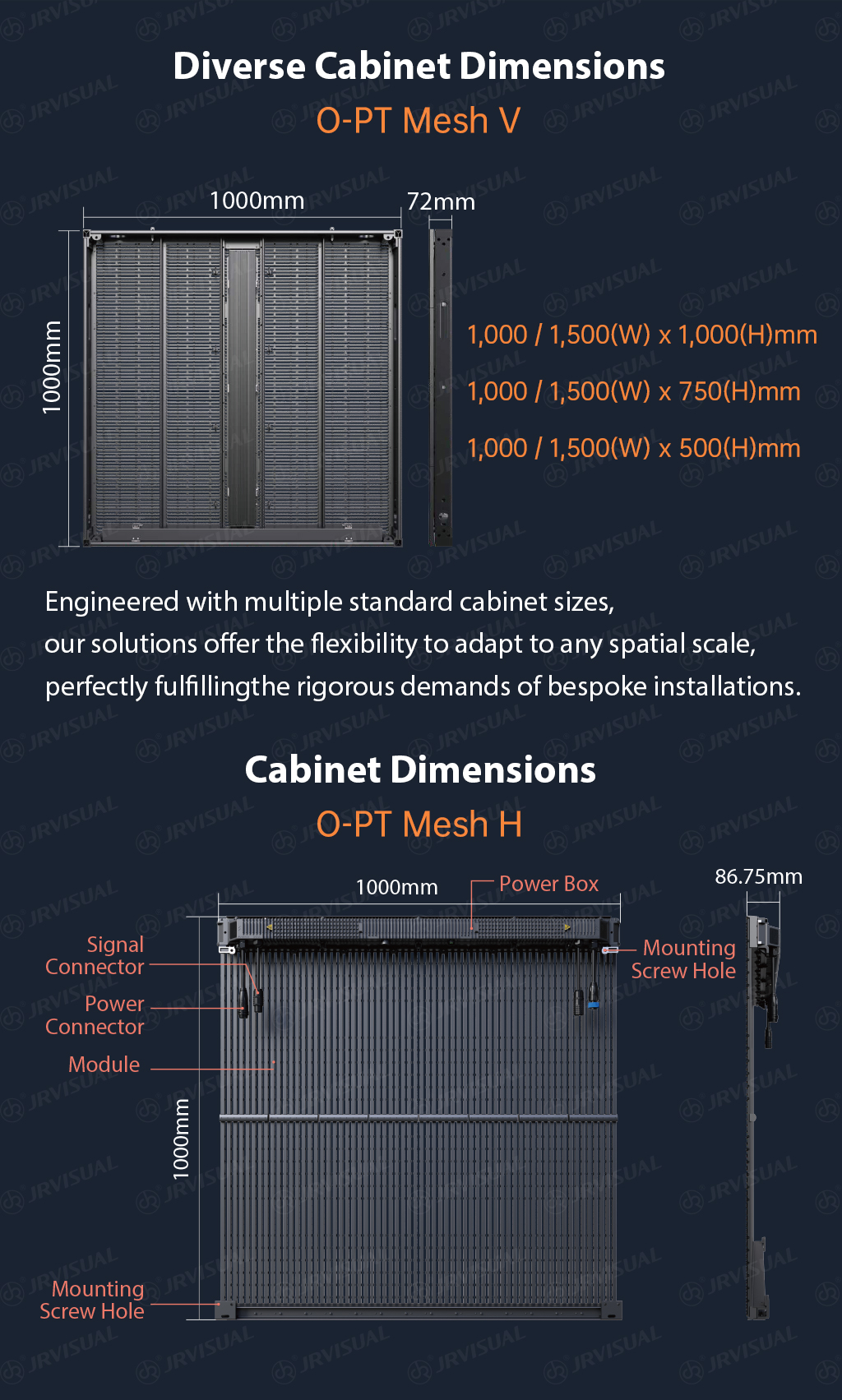

Cabinet Dimensions

O-PT Mesh Series Features
