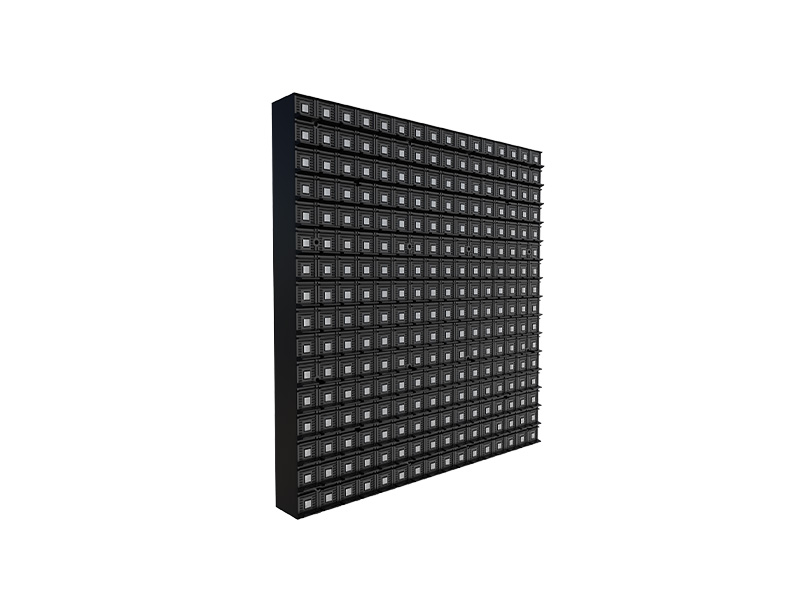

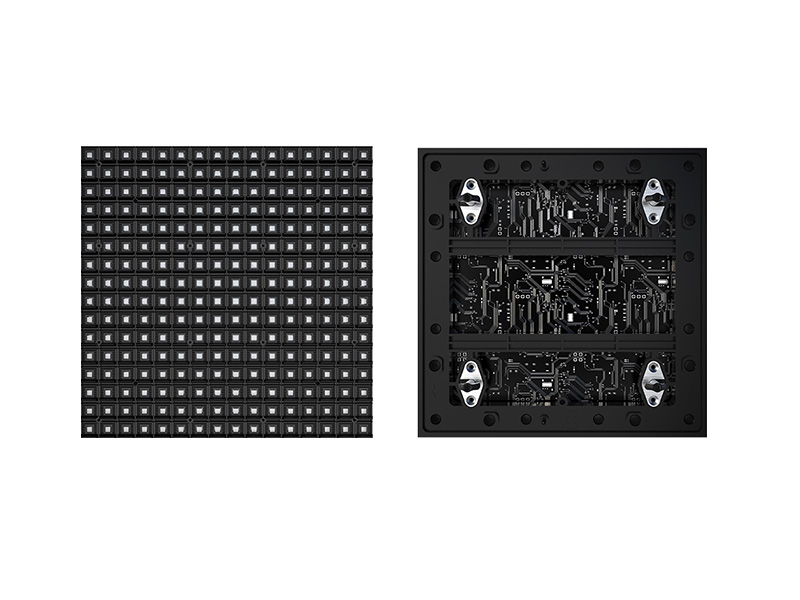

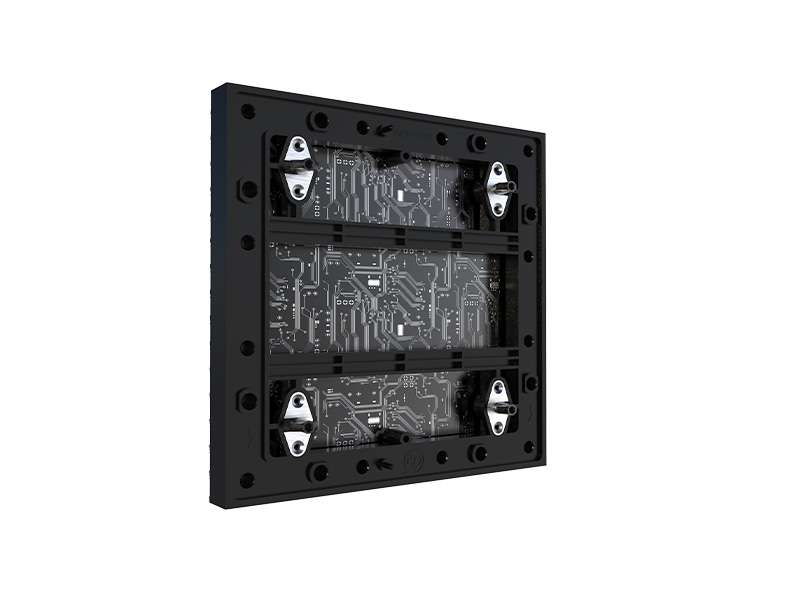

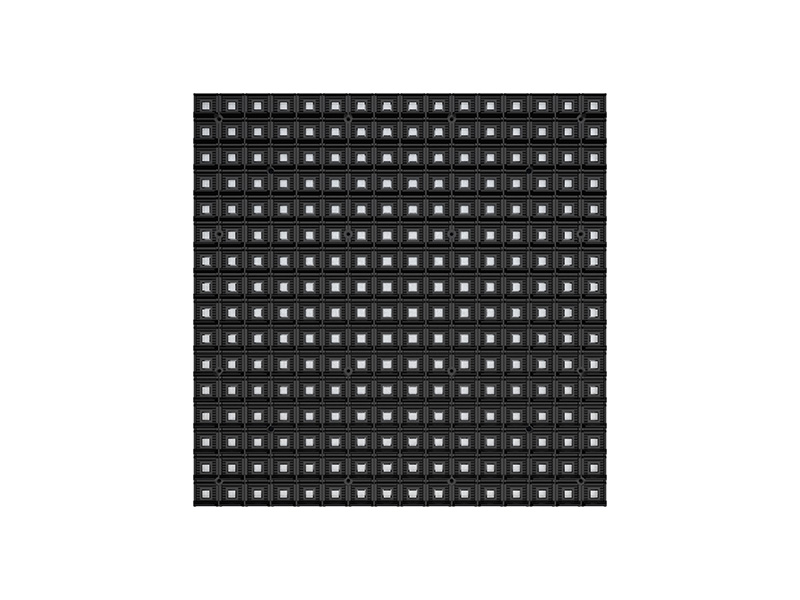

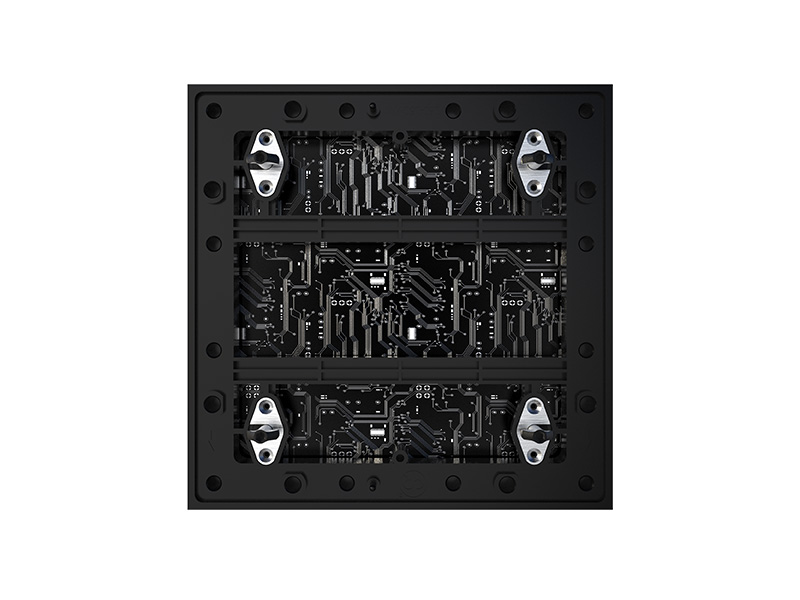

OA P10 | Outdoor Front Service LED Module
Pixel pitch: 10mm
Module size: 160x160mm
Cabinet size: Customized cabinet size
1. 160x160mm small LED Module size option, ideal for LED Strips installation
2. Front service with customized locks, easier and simpler service
3. High brightness with more than 5,000nits
Specification
OA P10 Outdoor Front Service LED Module
| OA P10mm Specification | |
| Items | OA10 |
| Technical Parameters | |
| Pixel Configuration | 1R1G1B Full Color |
| Encapsulation | SMD 3 in 1 |
| Pixel Density (dots/m2) | 10,000 |
| Module Size (mm) | 160x160 (Width x Height) |
| Module Resolution (dots) | 16x16 |
| Scan Mode | 1/4 |
| Standard Driver IC (Optional) | Constant Current Driving iC |
| Refresh Rate (Hz) | 3840 |
| Frame Rate (Hz) | 50&60 |
| Gray Scale (bit) | 12-16 adjustable |
| Data Interface Type | HUB75 |
| Module Barcket Materials | Plastic |
| Cabinet Size | Can be ODM freely upon module sizes |
| Cabient Material | Powder Coated Sheet Metal Steel Cabinet |
| Cabinet Evenness (mm) | ≤ 1 |
| IP Protection Grade | IP65/IP54 |
| Assembly / Maintenance Type | Front & Rear Assembly / Maintenance |
| Photoelectronic Special Features | |
| Brightness (nits) | ≥5,000 |
| Color Temperature (K) | 3000—10000 Adjustable |
| Brightness Evenness | ≥97% |
| Horizontal / Vertical View Angle | ≥120°/≥100° |
| Contrast Ratio | 5000:1 |
| Electrical Parameters | |
| Module Input Voltage DC（V） | 5 |
| Module Maximum Current DC（A） | 3 |
| Module Maximum Power Consumption（w/pcs） | 15 |
| Working Input Voltage AC（V） | 110—220 |
| Peak Power Consumption（w/m2） | 600 |
| Average Power Consumption（w/m2） | 200 |
| Application Parameters | |
| Typical Life Span（hrs） | 100,000 |
| Working Temperature（℃） | -10—50 |
| Storage Temperaure（℃） | -20—60 |
| Working Humidity（RH） | 20—85% (No Condensation) |
| Storage Humidity（RH） | 20—80% (No Condensation) |
