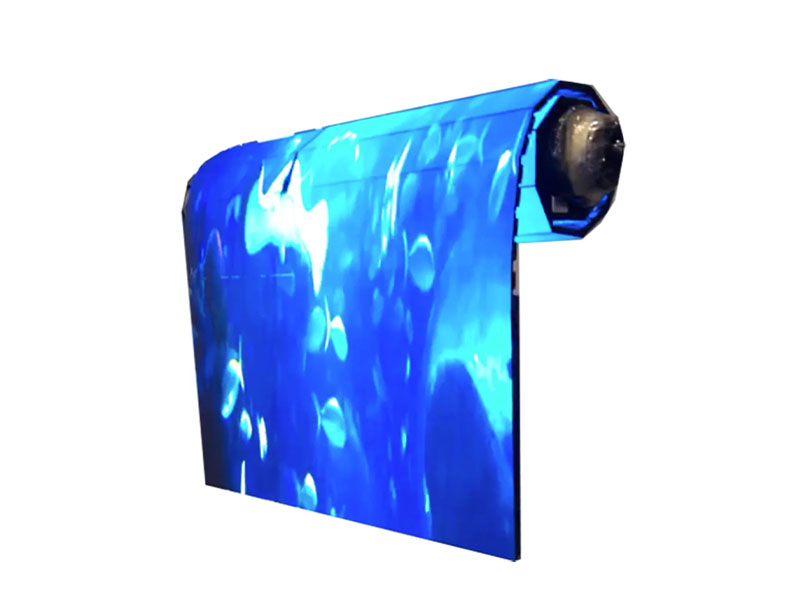

Rolling LED Display
Pixel pitch: 1.25mm, 1.5625mm, 1.953mm, 2.604mm, 3.91mm.
Module size: 250×62.5mm / 500×62.5.
1. Fine pixel pitch available, starts from 1,2mm.

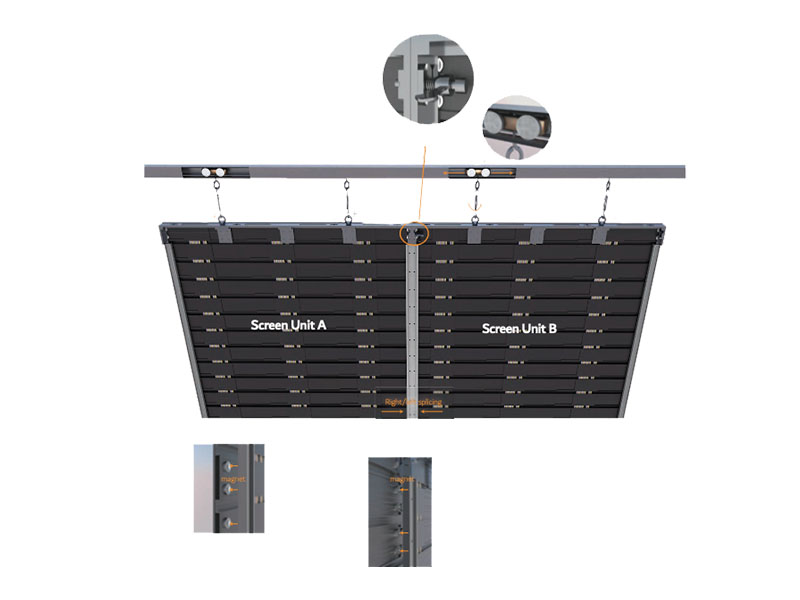

2. Multi-functions, can be used as hanging LED wall, super thin LED Floor.
3. Fast rental LED Floor solution, no need extra structure for installation.
4. GOB LED Module treatment, strong weight load capacity.
Specification
Rolling LED Screen Specification
| Model | GOB-M1.25 | M1.56 | M1.953 | M2.604 | M3.91 | |
| Parameter | LED | SMD1010 | SMD1010 | SMD1010 | SMD1515 | SMD2121 |
| Pixel Pitch | 1.25mm | 1.5625mm | 1.953mm | 2.604mm | 3.91mm | |
| Module Size (mm) | W250 x H62.5mm | W250 x H62.5mm | W250 x H62.5mm | W250 x H62.5mm | W250 x H62.5mm | |
| Module Resolution (pixels) | 200 x 50 pixels | 160 x 40 pixels | 128 x 32 pixels | 96 x 24 pixels | 64 x 16 pixels | |
| Color Depth | 12-16 bit | 12-16 bit | 12-16 bit | 12-16 bit | 12-16 bit | |
| Gray Scale | 4096-65536 | 4096-65536 | 4096-65536 | 4096-65536 | 4096-65536 | |
| Refresh Rate | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz | |
| Scan Mode | 1/29 | 1/20 | 1/32 | 1/24 | 1/16 | |
| Brightness | >600cd/m2 | >600cd/m2 | >600cd/m2 | >800cd/m2 | >800cd/m2 | |
| Viewing Distance | ≥ 1.2m | ≥ 1.5m | ≥ 1.9m | ≥ 2.6m | ≥ 3.9m | |
| Weight | 11kg/㎡ | 11kg/㎡ | 11kg/㎡ | 11kg/㎡ | 11kg/㎡ | |
| Viewing Angle | 140° | 140° | 140° | 140° | 140° | |
| Input Power | DC 24V | DC 24V | DC 24V | DC 24V | DC 24V | |
| Max. Power Consumption | / | 512w/sqm | 448w/sqm | 384w/sqm | 320w/sqm | |
| Avg. Power Consumption | 170w/sqm | 150w/sqm | 130w/sqm | 110w/sqm | ||
| Working Temperature | -20 ℃/+50℃ (working) | -20 ℃/+50℃ (working) | -20 ℃/+50℃ (working) | -20 ℃/+50℃ (working) | -20 ℃/+50℃ (working) | |
| Storage Temperature | ‐40 ℃/ +60℃ (storage) | ‐40 ℃/ +60℃ (storage) | ‐40 ℃/ +60℃ (storage) | ‐40 ℃/ +60℃ (storage) | ‐40 ℃/ +60℃ (storage) | |
| IP Level | IP 63 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 | |
| Working Humidity | 10%~90% (working) | 10%~90% (working) | 10%~90% (working) | 10%~90% (working) | 10%~90% (working) | |
| Storage Humidity | 10%~90% (storage) | 10%~90% (storage) | 10%~90% (storage) | 10%~90% (storage) | 10%~90% (storage) | |
| Lift Span (Hours) | 100000 | 100000 | 100000 | ≥100,000 | ≥100,000 | |
| Service | Rear | Rear | Rear | Rear | Rear | |
| LED | Nationstar | |||||
| IC | ICN2076 | |||||
| Control System | Built-in NOVA A5s receiving card | |||||
