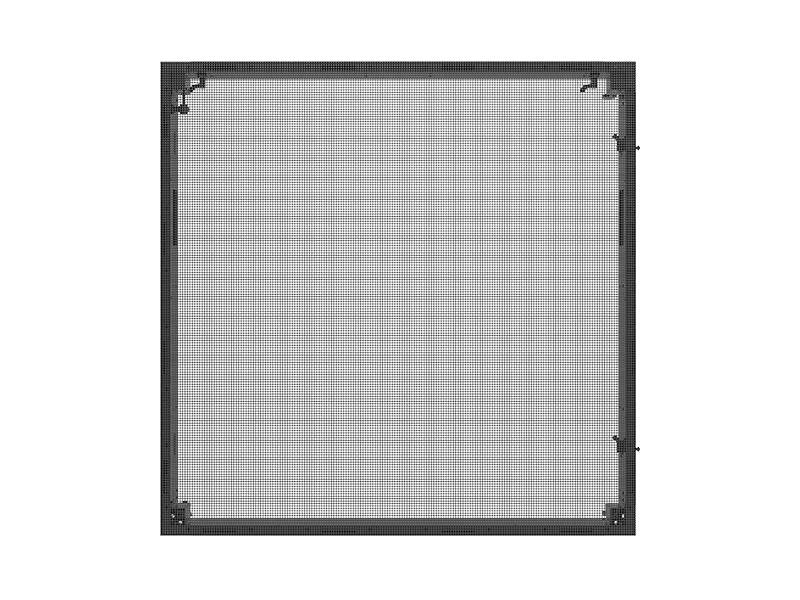

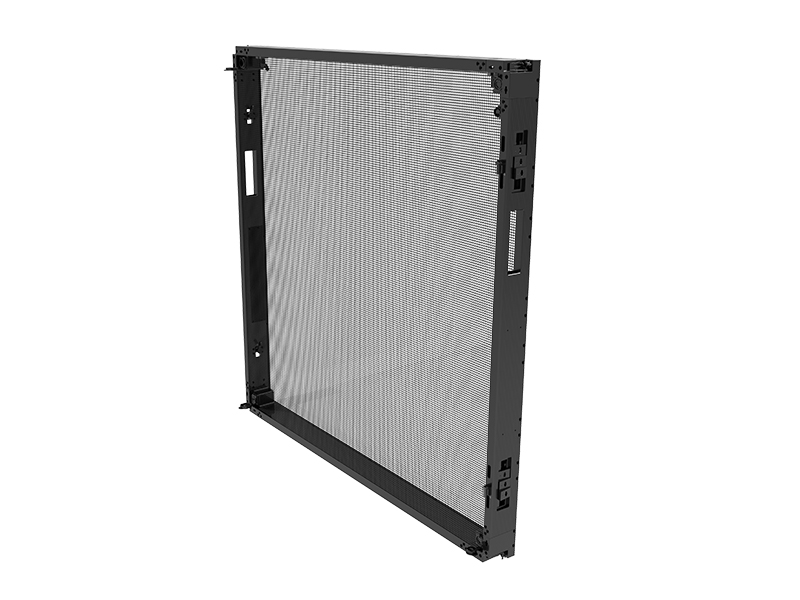

StarLink Air Indoor Rental Holographic LED Display

Pixel pitch: 2.9mm, 3.9mm, 6.25mm
Module size: 250 x 1,000 mm
Cabinet size: 1,000 x 1,000 x 73 mm

1. High transparency rate: more than 50%
2. LED lamps and IC 2-in-1 package, clear-view picture quality
3. With curveable locks, can install concave and convex LED screens
4. Durable mask design, solid LED Modules for rental and exhibition applications
5. Cabinet edges with protective corners; LED lamps are well protected

Request a Quote

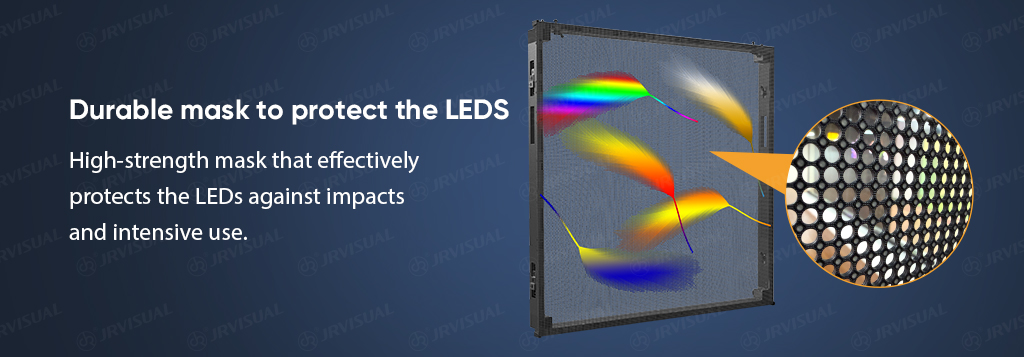

Durable mask to protect the LEDS
High-strength mask that effectively protects the
LEDs against impacts and intensive use.

StarLink Air Description 1

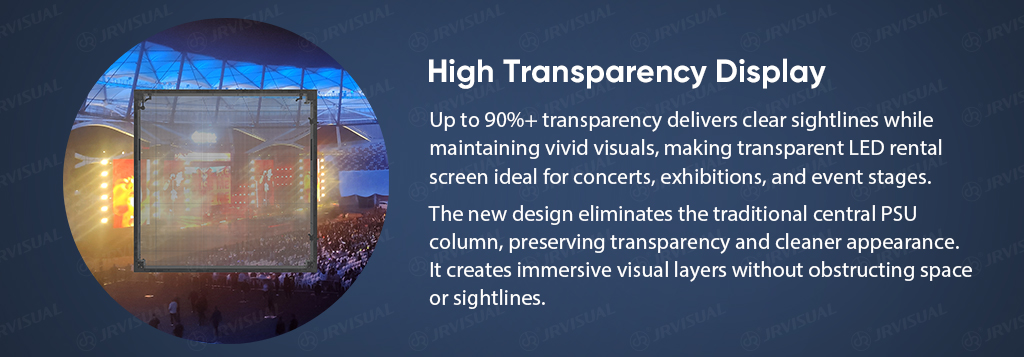

High Transparency Display
Up to 90%+ transparency delivers clear sightlines while maintaining vivid visuals, making the transparent LED rental screen ideal for concerts, exhibitions, and event stages.
The new design eliminates the traditional central PSU column, preserving transparency and a cleaner appearance. It creates immersive visual layers without obstructing space or sightlines.

StarLink Air Description 2

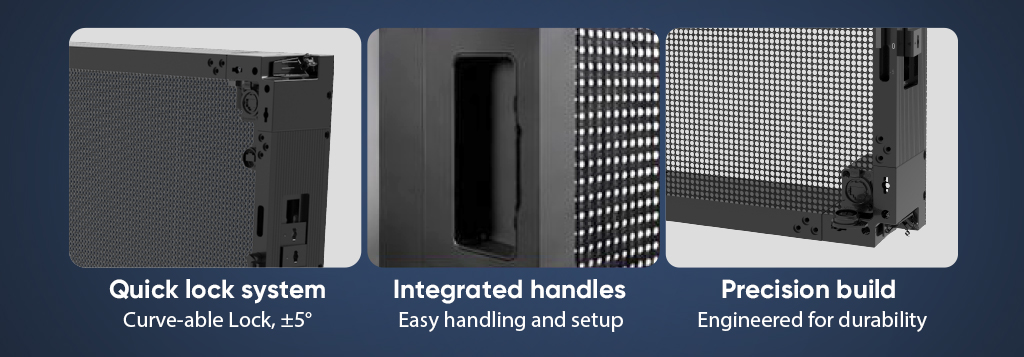

Quick lock system
Curve-able Lock, ±5°

StarLink Air Description 3

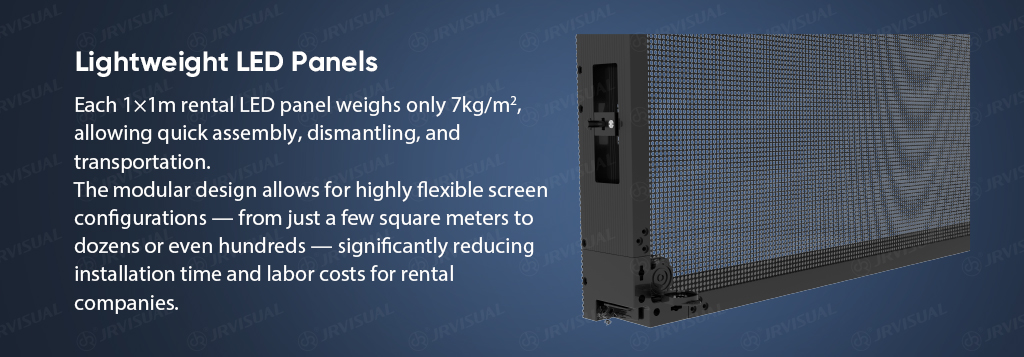

Lightweight LED Panels
Each 1×1m rental LED panel weighs only 7kg/m2, allowing quick assembly, dismantling, and transportation.
The modular design allows highly flexible screen configurations—from just a few square meters to dozens or even hundreds—significantly reducing installation time and labor costs for rental companies.

StarLink Air Description 4

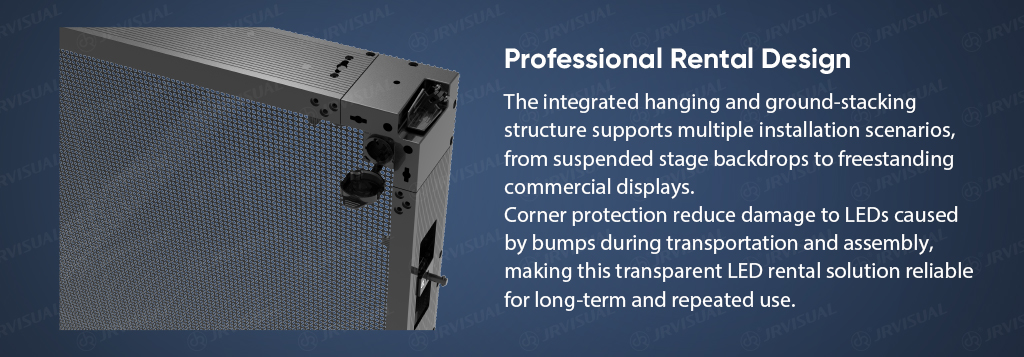

Professional Rental Design
The integrated hanging and ground-stacking structure supports multiple installation scenarios, from suspended stage backdrops to freestanding commercial displays.
Corner protection reduces LED damage from bumps during transport and assembly, making this transparent LED rental solution reliable for long-term, repeated use.

StarLink Air Description 5

StarLink Air Product application cases

Specification

JR VISUAL StarLink Air Indoor Rental Holographic LED Display
Model name SA2.9i SA3.9i SA6.25i
Pixel Pitch (mm) 2.976 3.906 6.25
Pixel Density (dot/㎡) 112,896 65,536 25,600
LED Type SMD1515, LED & IC 2 in 1  SMD1515, LED & IC 2 in 1  SMD2121, LED & IC 2 in 1
Pixel configuration 1R1G1B 1R1G1B 1R1G1B
Module Size  1,000 x 250 x 1.8mm 1,000 x 250 x 1.8mm 1,000 x 250 x 1.8mm
Module Resolution (PX* PX) 336 x 84 256 x 64 160 x 40
Cabinet Size 1000 x 1000 x 73mm / 39.4'' x  39.4'' x 2.87'' 1000 x 1000 x 73mm / 39.4'' x  39.4'' x 2.87'' 1000 x 1000 x 73mm / 39.4'' x  39.4'' x 2.87''
Cabinet Resolution (PX* PX) 336 x 336 256 x 256 160 x 160
Weight / Panel 9.8 kg / 21.61 lbs 9.5 kg / 20.94 lbs 9.1 kg / 20.06 lbs
Cabinet Curve Locks Concave -5° ~ Convex +5° Concave -5° ~ Convex +5° Concave -5° ~ Convex +5°
Max. Hanging Screen Height 12m 12m 12m
Drive Mode Static Static Static
Viewing Angle (Deg) 160 / 140° (H/V) 160 / 140° (H/V) 160 / 140° (H/V)
Brightness (cd/m2) 2,000 -  2,500 2,000 -  2,500 2,000 -  2,500
Grey Scale（bit） 16bit 16bit 16bit
Refresh Rate (Hz) ≥ 7,680 ≥ 7,680 ≥ 7,680
Control System Compatibility Novastar / Colorlight / Brompton Novastar / Colorlight / Brompton Novastar / Colorlight / Brompton
Maximum Power Consumption (W/SQM) 580 550 504
Average Power Consumption (W/SQM) 203 193 176
Thermal / BTU 1,286 BTU/Hour (Max) 1,219 BTU/Hour (Max) 1,117 BTU/Hour (Max)
Input Voltage (V) AC100-240V AC100-240V AC100-240V
Working Voltage for LED Modules (V) DC 4.2 V ± 0.2V DC 4.2 V ± 0.2V DC 4.2 V ± 0.2V
Visual Transparency Rate (％) 50% 80% 90%
Working Temperature (℃) -20 ~ + 50℃ -20 ~ + 50℃ -20 ~ + 50℃
Working humidity (RH) 20%~85%RH 20%~85%RH 20%~85%RH
Storage Temperature (℃) -20 ~ + 60℃ -20 ~ + 60℃ -20 ~ + 60℃
Storage humidity (RH) 20%~85%RH 20%~85%RH 20%~85%RH
Waterproof Level IP30 IP30 IP30
Maintenance type Full Panel Service Full Panel Service Full Panel Service
Working Environment Indoor Indoor Indoor
Lifespan ≥ 100,000 hours ≥ 100,000 hours ≥ 100,000 hours
Installtion Method Fixed Installation / Rental Fixed Installation / Rental Fixed Installation / Rental
Certificates CE (LVD、EMC), FCC, ETL, RoHS CE (LVD、EMC), FCC, ETL, RoHS CE (LVD、EMC), FCC, ETL, RoHS

Features

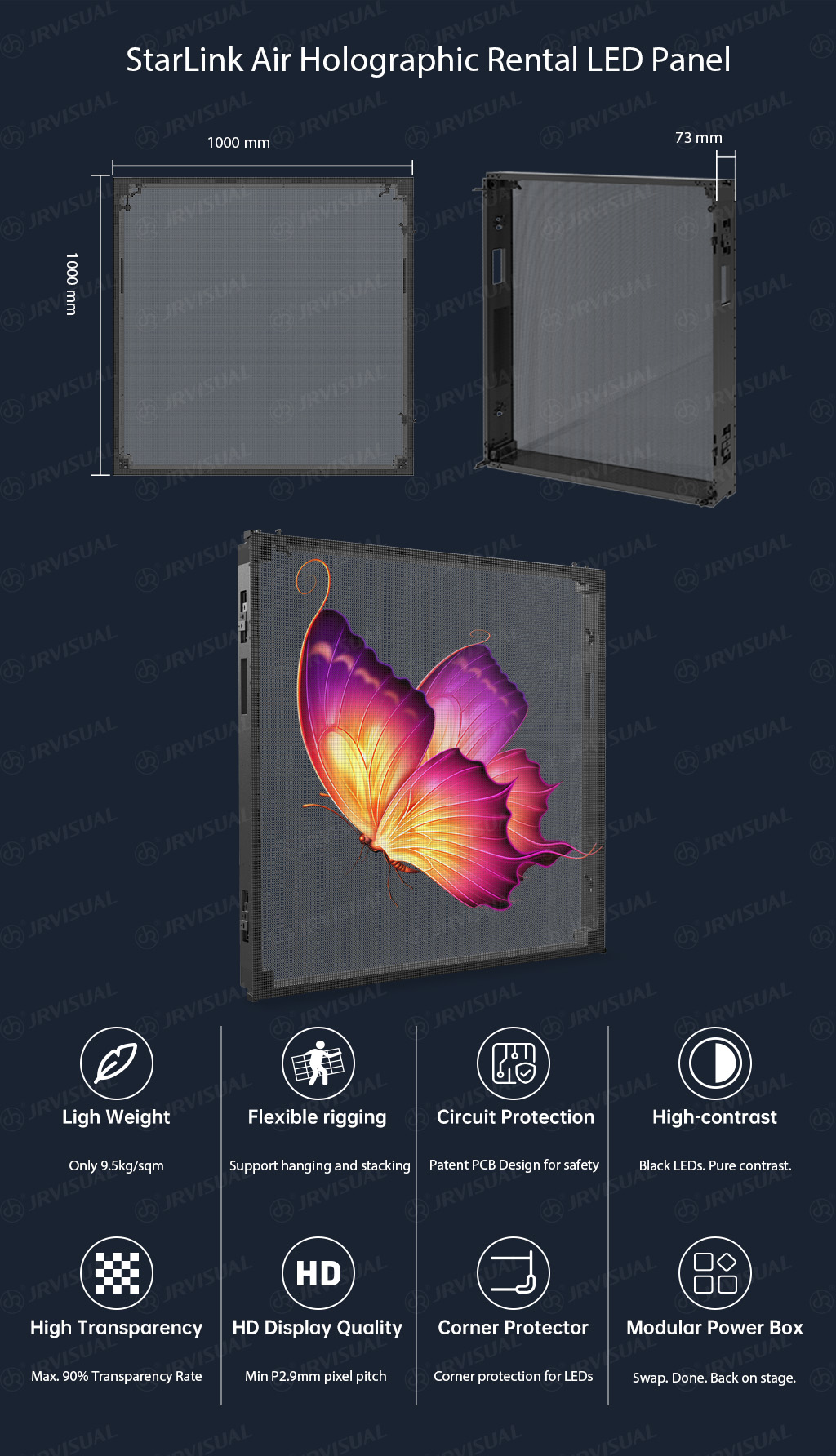

Cabinet Dimensions

Features 01
