JR VISUAL provides professional rental LED display solutions for temporary events, with cost-effective indoor and outdoor options. Our Master Series, CB TLED Series and Spider Series feature lightweight cabinets and flexible installation, delivering superior performance for exhibitions, performances and corporate events.
Indoor Pixel pitch: 1.5mm, 1.8mm, 2.6mm.
Cabinet size: 500x500mm.
Pixel pitch: 2.6×5.2mm, 3.9×7.8mm.
Cabinet size: 1000x500mm.
Pixel pitch: 1.9mm, 2.6mm,2.9mm, 3.9mm.
Cabinet size: 250x500mm, 500x500mm, 500x1000mm.
Product selection
Match viewing distance, venue conditions, transparency and cabinet format before choosing panels for an event-production or rental inventory project.
Select an application
Recommended
Professional rental system
Start here for concerts, stage backdrops, exhibitions and corporate event screens.
Also suitable
Flexible cabinet formats
Compare this series for sports information screens, exhibitions and layouts that need multiple cabinet sizes.
Check requirements
Transparent rental display
Review this option for transparent stage effects, pop-up activations and exhibition structures.
Final selection should also confirm screen dimensions, nearest viewing distance, rigging method, camera use, transport frequency and service access.
JR VISUAL TEC
Designed specifically for temporary use, JR VISUAL’s rental LED displays are built for easy assembly, efficient transportation, and seamless adaptation to various event settings. From hardware design to display performance, every detail is optimised for the rental process, ensuring durability and reliability. These displays offer exceptional flexibility, handling frequent setup changes while delivering hassle-free, high-quality performance for a wide range of temporary applications.
Our LED displays offer a range of pixel pitches from 1.5mm to 4.8mm, with the smaller pitches ideal for indoor close-range high-definition displays, and the larger pitches perfect for long-distance outdoor viewing, ensuring crystal-clear visuals for any rental scenario.
With a lightweight enclosure weighing just 7kg/㎡ for the carbon fiber version, along with a die-cast aluminum frame and corner protection design, these enclosures minimize transportation and labor costs. Their durability is enhanced for repeated rentals, making them perfect for high-frequency use while ensuring better protection against damage during handling.
Our rental LED display offers versatile installation options, including hanging, stacking, seamless 90-degree splicing, curved surfaces, and cube shapes. Whether it's a curved backdrop for a concert or a custom cube display for an exhibition, it allows for a fully personalized setup to meet any creative vision.
JR VISUAL TEC
JR VISUAL’s rental LED display offers easy installation and removal, with no complex setup or permanent modifications. Designed for flexibility, they support custom sizes, resolution adjustments, and seamless integration into audio-visual systems. Perfect for venues of all sizes, from small meeting rooms to large outdoor stadiums, with customizable content, brightness, and layout to fit any event.
Verified installation

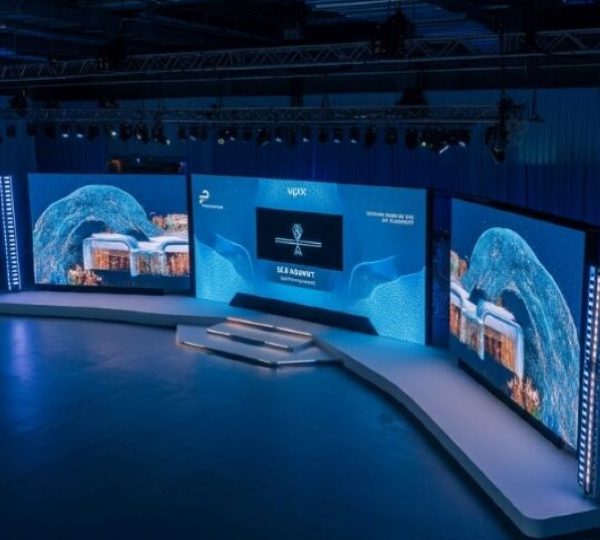

A real indoor event installation shows how screen dimensions, venue capacity and cabinet format come together in a working project.
01
The project record documents a large indoor LED wall for conferences, award dinners and special events at a venue that can host up to 800 guests.
| Feature | Fixed Installation LED Display | Rental LED Display |
|---|---|---|
| Typical use case | Permanent venues: retail stores, brand showrooms, airports, stations, outdoor building facades | Temporary events: exhibitions, concerts, corporate meetings, roadshows, and sports events |
| Installation method | Permanent fixed mounting; designed for long-term single-location use | Supports hanging, stacking, seamless 90° splicing, curved surfaces, and cube configurations |
| Cabinet weight | Heavier build focused on structural stability for permanent use | Lightweight design; carbon fibre version starts at 7 kg/m² (indoor) and 10 kg/m² (outdoor) |
| Pixel pitch | Customised per venue and viewing distance | 1.5 mm – 4.8 mm; fine pitch for close-range indoor, wider pitch for outdoor long-distance viewing |
| Cabinet size | Fully customisable to fit architectural requirements | Standardised: 250×500 mm, 500×500 mm, 500×1000 mm for fast, repeatable setup |
| Disassembly | Installed once; operates continuously over long periods | Engineered for repeated assembly and disassembly; structure reinforced for high-frequency use |
| Portability | Fixed to the venue; not designed for relocation | Modular and portable; easy to transport and redeploy across multiple locations and events |
| Display shape | Standard flat screens; shaped options available depending on product | Flat, 90°, concave, convex, circular, and cube configurations all supported |
| Best value for | Long-term ROI — one investment, continuous brand presence | Short-term flexibility — scalable per event, reusable across projects |
Start with screen dimensions, nearest viewing distance, venue conditions, installation method and content source. These details affect pixel pitch, cabinet format, screen resolution and the supporting structure.
Use the nearest viewing position and required image detail as the starting point. A finer pitch supports closer viewing, while screen dimensions, content type and budget also affect the final selection.
Master can be reviewed for professional event visuals, Spider provides several cabinet formats for temporary indoor layouts, and CB TLED supports projects that need transparent effects. Confirm product-level specifications before ordering.
The page lists hanging and stacking among supported rental installation methods. The cabinet, rigging structure, screen height and venue loading conditions still need project-level confirmation.
Provide the display size, venue, viewing distance, installation plan, expected operating hours, content resolution, event date and delivery location. Drawings and site photos help clarify structural requirements.
A rental LED display product is hardware designed for repeated event use. Short-term LED screen hire is a service that may include panels, transport, installation and on-site operation. Confirm the required procurement model before requesting a quote.
Frequent event use puts more emphasis on cabinet handling, connection points, module protection, service access and spare-parts planning. Review the transport method and expected setup frequency with the supplier.
Send the project dimensions, viewing distance and venue information for a configuration review.
