The JR VISUAL LED Module Series encompasses three primary product lines: iSoft, iFlex, and O-Soft. These modules enable precise, pixel-level control and deliver stable, reliable operational performance.
As a core component of LED display systems, the iFlex flexible LED display module integrates LED chips, driver ICs, PCBs, and structural housing. Its performance directly determines the clarity, stability, and environmental adaptability of the LED display screen. Whether deployed in high-end indoor commercial display settings or in outdoor advertising environments subject to rigorous conditions, these high-quality flexible LED module consistently deliver exceptional visual effects and meet a diverse range of application requirements.
Pixel pitch: 0.9mm, 1.2mm, 1.5mm, 1.8mm, 2mm, 2.5mm, 3mm.
Module size: 240x120mm, 320x160mm.
Pixel pitch: 1.5mm, 1.9mm, 2.6mm
Module size: 250x250mm.
Pixel pitch: 2.5mm, 3mm, 4mm.
Module size: 320x160mm.
Pixel pitch: 1.5mm, 1.8mm, 2.5mm.
Module size: 480x320mm.
Pixel pitch: 0.9mm, 1.2mm, 1.5mm.
Cabinet size: 4300×168.75mm.
Pixel Pitch Guide
A smaller pixel pitch supports closer viewing and finer image detail, while a larger pitch is a practical choice for bigger screens viewed from farther away.
Best for
Best for
Best for
Best for
Share the screen dimensions, viewing distance, installation environment and preferred shape with our team.
Viewing ranges are practical starting points. Final pixel pitch should be selected according to screen size, content detail, audience position and project budget.
JR VISUAL TEC
JR VISUAL competitive advantage lies in its integrated design and performance optimisation. While each type of LED module is tailored to specific application scenarios, they all share common benefits that enhance the overall performance of LED display systems. These key features ensure exceptional reliability, superior visual clarity, and energy efficiency, making them the preferred choice across a range of industries. With a focus on durability and adaptability, JR VISUAL modules are engineered to deliver long-term performance in both indoor and outdoor applications, supporting a wide range of complex display needs.
This series of LED module uses a flexible substrate material, allowing for bending angles from 0-30° (slight variations exist between different models). This makes them suitable for non-planar installations, such as curved, curved, cylindrical, and wavy shapes. Furthermore, their lightweight design (≤8kg/m²) reduces the load on the mounting surface, making them ideal for applications such as glass curtain walls, lightweight steel structures, and other specialized display devices. These flexible modules offer great flexibility for a variety of display solutions in different environments.
This product offers a pixel pitch range of 0.9 mm to 4 mm, ensuring smooth display from near to far. The indoor model utilizes advanced 16-bit color depth technology for smooth color transitions and displays 16.77 million colors with astonishing precision. The outdoor model features high-brightness LEDs and an anti-glare mask design, ensuring a clear and sharp image even in direct sunlight. All modules in this series support high refresh rates, eliminating flicker and ghosting for a smooth and high-quality viewing experience.
All LED module are designed with standardized dimensions and interfaces, ensuring easy "plug and play" installation with no need for complicated adjustments. This allows for quick and seamless screen assembly. The modules feature a magnetic or snap-on structure, making them lightweight and easy to handle. Maintenance is hassle-free, as modules can be easily disassembled and replaced without the need for specialized tools.
LED Module Selection
Compare JR Visual flexible LED modules by installation environment, pixel pitch, module format and recommended application to narrow down the right solution for your display.
| Series | Environment | Pixel Pitch | Module Size | Key Strength | Recommended Applications |
|---|---|---|---|---|---|
| iSoftFlexible LED Module | Indoor | P0.9–P3 | 240 × 120 mm 320 × 160 mm |
Wide pixel-pitch range for curved indoor displays | Retail columns, curved video walls, airports and commercial interiors |
| iFlexFlexible COB | Indoor | P1.5 / P1.9 / P2.6 | 250 × 250 mm | COB construction for fine-pitch creative surfaces | Close-view installations, showrooms, exhibitions and shaped displays |

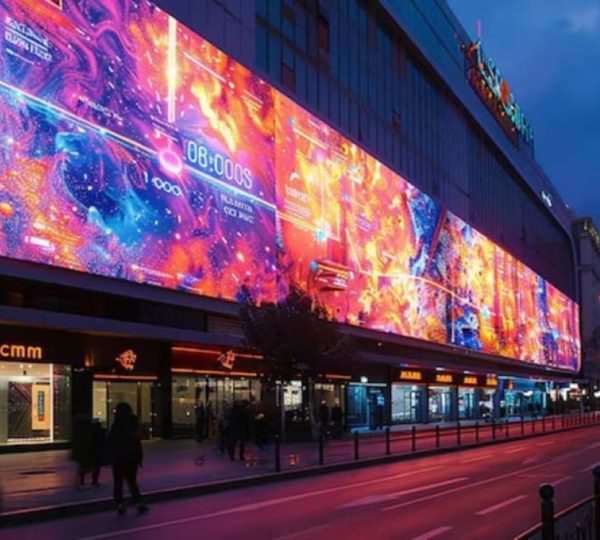

| O-SoftOutdoor Flexible Module | Outdoor | P2.5 / P3 / P4 | 320 × 160 mm | Flexible outdoor design with weather-resistant protection | Curved façades, outdoor advertising walls and public information displays |
| iSoft MaxLarge-Format Flexible | Indoor | P1.5 / P1.8 / P2.5 | 480 × 320 mm | Larger module format for efficient screen assembly | Museums, stages, large creative displays and exhibition installations |

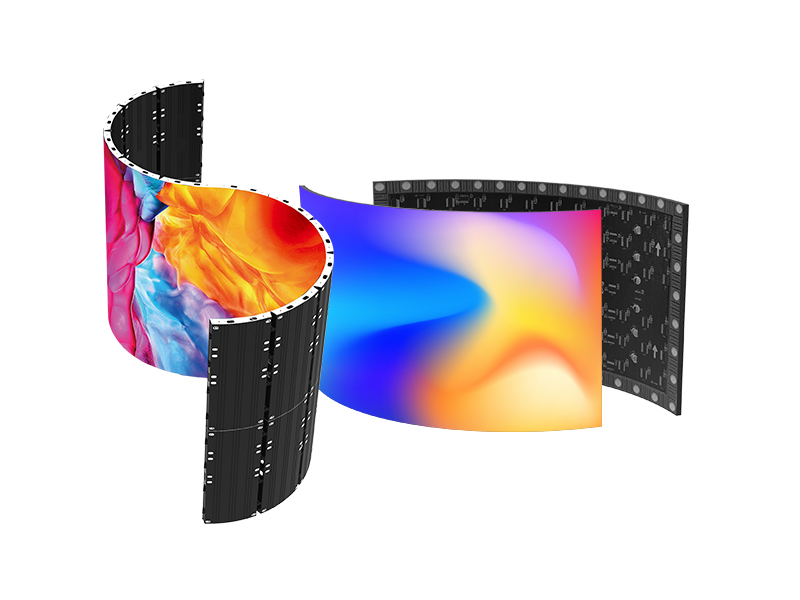

| iSoft MIPMIP Fine Pitch | Indoor | P0.9 / P1.2 / P1.5 | Project-specific configuration | Fine-pitch MIP solution for detailed close-range content | Premium retail, control spaces, showrooms and high-resolution curved screens |
Specifications represent published product-family options. Final configuration should be confirmed against the approved project datasheet.
JR VISUAL TEC

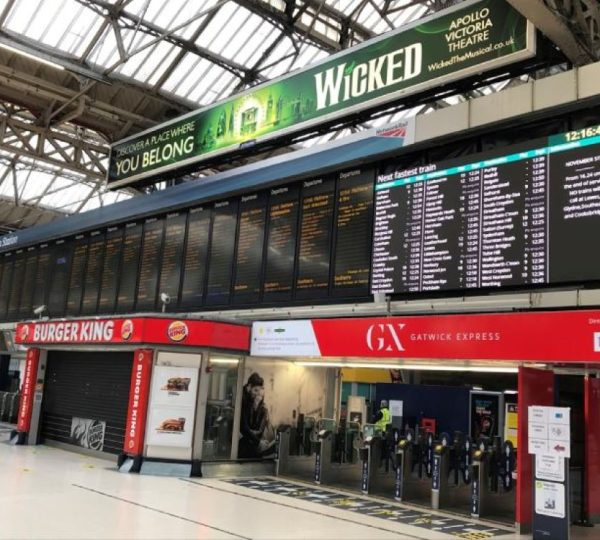

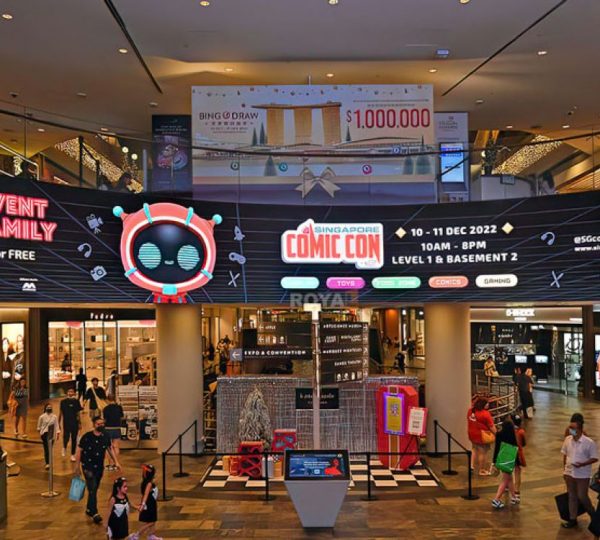

With its key advantages such as flexibility, high-definition display, and reliability, the LED module has become an indispensable part of modern display systems. Today, they are widely used in various industries, including commerce, culture, sports, transportation, and government.

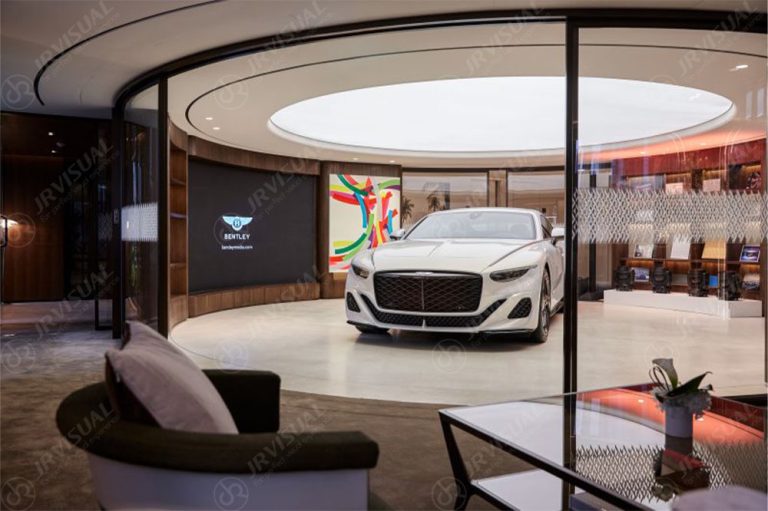

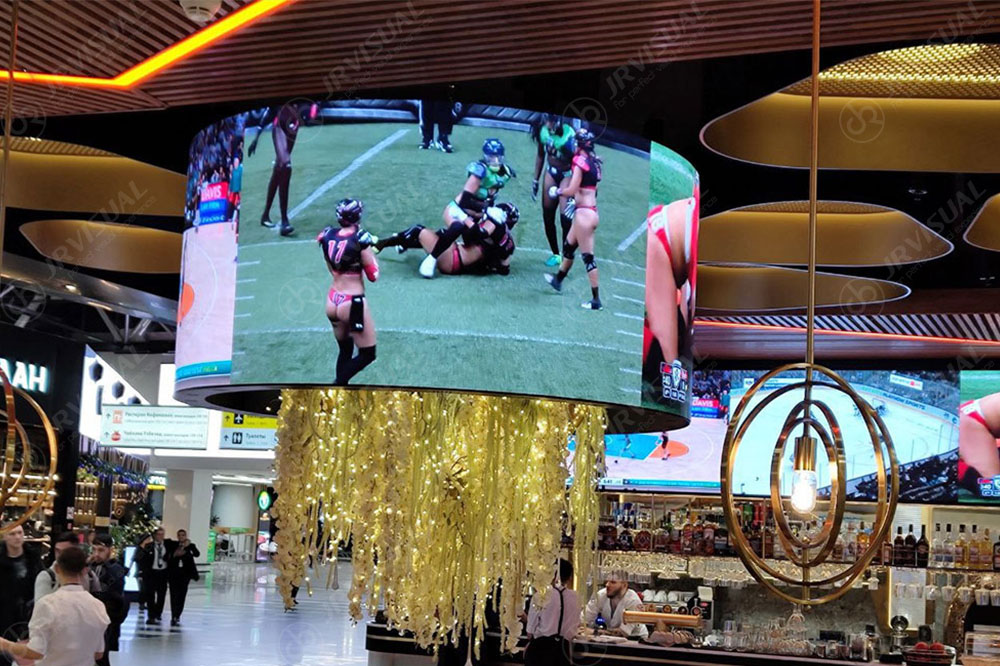

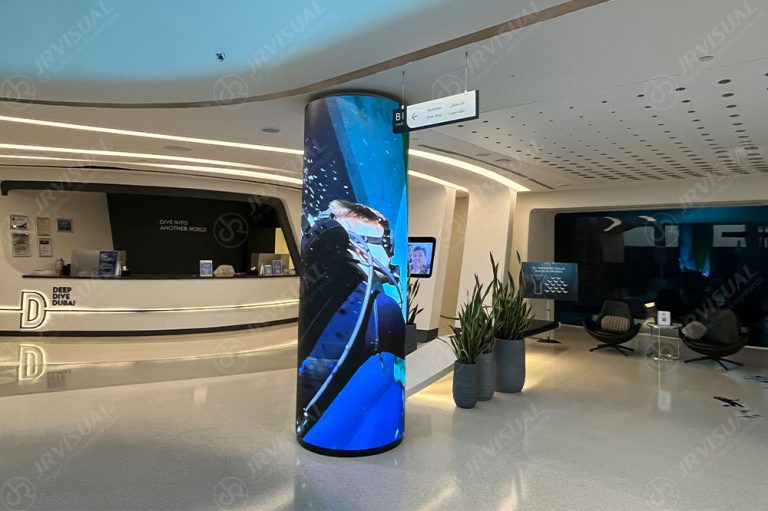

From international airport terminals to premium automotive showrooms and landmark experiential venues, these global installations showcase how LED module perform at the highest level across diverse real-world environments.
JR Visual FAQ
Find practical answers about LED module types, pixel pitch, curved-screen applications, installation and project selection.
An LED module is a core display assembly that combines LED chips, driver ICs, a PCB and structural components. Multiple modules are connected to form a complete LED screen. Flexible LED modules are especially useful when a project requires curved, cylindrical, column-shaped or other non-flat display surfaces.
The iSoft indoor flexible LED module offers pixel pitches from P0.9 to P3 and is suitable for many indoor curved-display projects. The iFlex flexible COB display is available in P1.5, P1.9 and P2.6 for fine-pitch creative surfaces. The final choice depends on viewing distance, required resolution, screen shape and installation structure.
The O-Soft outdoor flexible LED display is designed for outdoor curved façades, advertising walls and public information displays. It is available in P2.5, P3 and P4 with a 320 × 160 mm module format. Final brightness, weather protection, operating temperature and structural requirements should be confirmed for the specific installation site.
The LED module range covers approximately P0.9 to P4 across different product families. iSoft offers P0.9, P1.2, P1.5, P1.8, P2, P2.5 and P3; iFlex offers P1.5, P1.9 and P2.6; O-Soft offers P2.5, P3 and P4; iSoft Max offers P1.5, P1.8 and P2.5; and iSoft MIP offers P0.9, P1.2 and P1.5.
Start with the closest viewing distance, screen dimensions and the level of image detail required. A smaller pixel pitch provides finer detail for close viewing, while a larger pitch is usually more practical for larger screens viewed from farther away. Content type, installation environment and budget should also be considered before the final selection.
Yes. Flexible LED modules can be arranged on a correctly engineered frame to create concave, convex, cylindrical, column and wave-shaped displays. JR Visual modules support bending angles of approximately 0–30°, although the available angle varies by model, module configuration and supporting structure. The required radius should be confirmed before production.
Flexible LED modules are installed on a custom flat or curved supporting frame. Depending on the selected model, magnetic or snap-on mounting can simplify alignment, front access and individual module replacement. The completed screen still requires correct power distribution, signal routing, structural tolerances and color calibration to achieve a seamless result.
Provide the screen width and height, indoor or outdoor location, closest viewing distance, required shape or curve radius, preferred pixel pitch, brightness requirements, installation and maintenance access, control method and available power. Site drawings, photographs or a 3D model can help JR Visual evaluate the supporting structure and recommend a suitable LED module.
